SAND FILTER PUMP HOSE CONNECTION SETUP (continued)

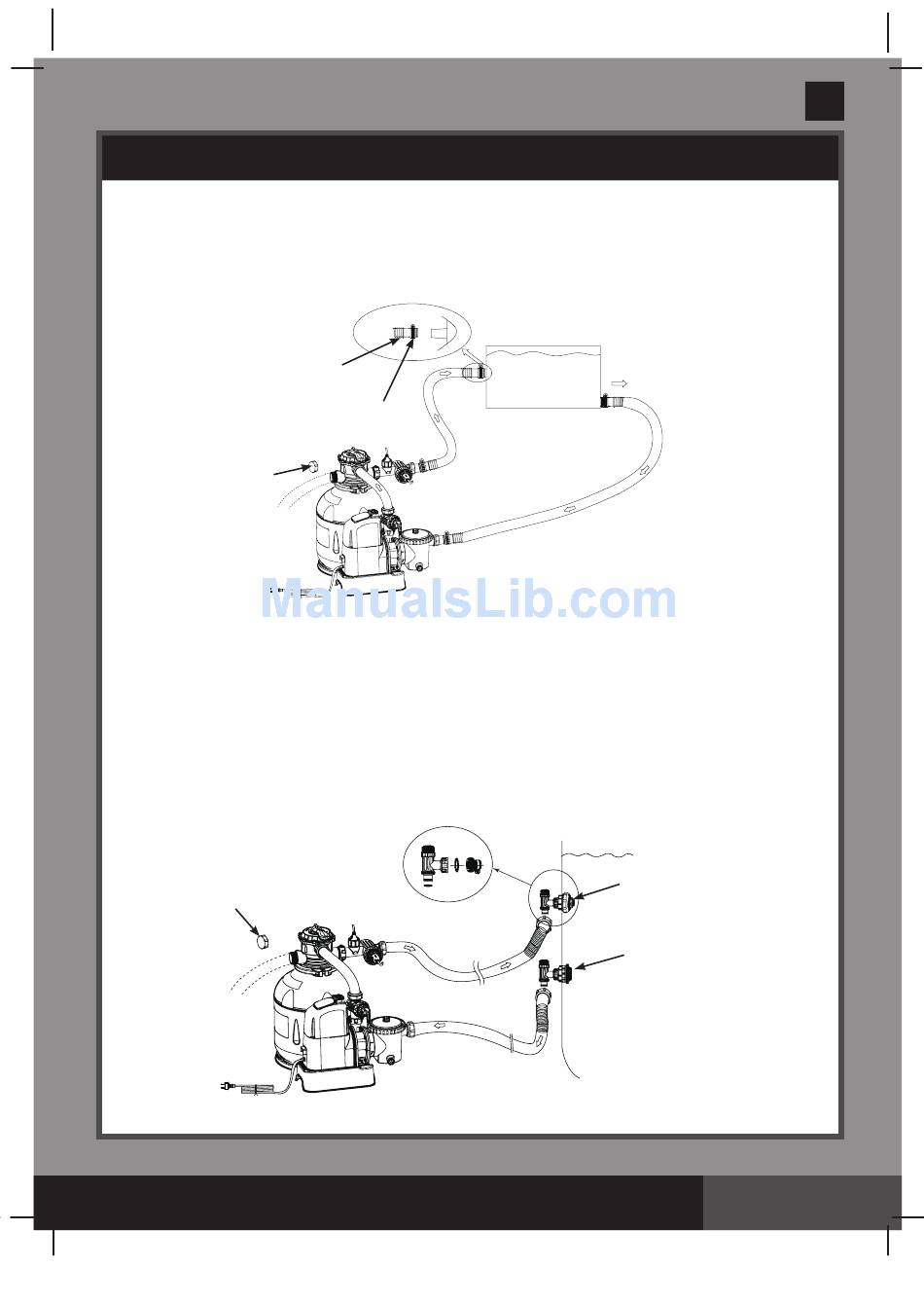

For NON-INTEX pool:
1. Connect the hose (12) to the pool inlet/outlet connection with a large hose clamp. Tighten
securely. Remove the drain valve (3) from the 6-way valve outlet and connect the hose to
the outlet.
3
For INTEX pool size 16' and below:
1. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer
connector (33). Be careful not to lose the step rubber washer (30).
2. Grasp the plunger valve assembly. Make sure the step washer (30) is in place. Connect
adaptor B (35) to plunger valve union.
3. Remove wall plug and then insert the strainer (36 & 38) into the lower position of protruding
hose connection, and the nozzle (36 & 37) into the upper position of protruding hose
connection. Adaptor B (35) fits over the strainer connection (36) inserted into the connection.
Tighten securely.
4. Remove the drain valve (3) from the 6-way valve outlet and connect the hose to the outlet.
3
