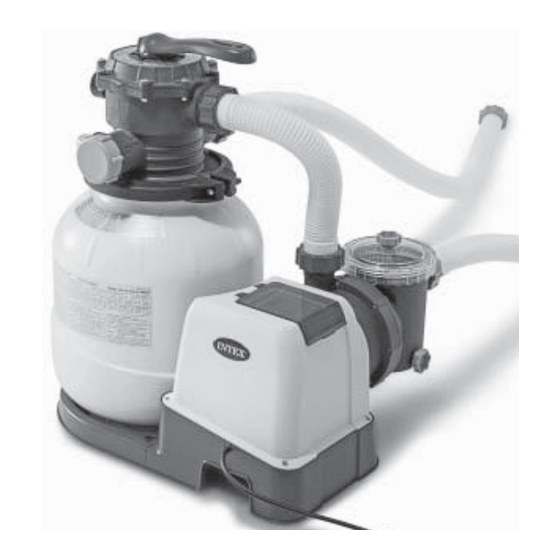

- Page 1 Manuel de l’utilisateur - Produit 1: Intex 26648 Krystal Clear 8 m³ Système de filtre à sable pour piscines jusqu'à 36 000 l Blanc Manuel de l’utilisateur - Produit 2: Intex - 28000 - Skimmer De Surface Deluxe Pour Autostable...
- Page 2 Model SF70110-2 Model SF60110-2 For illustrative purposes only. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website. Due to a policy of continuous product improvement, Intex reserves the right to change specifications and appearance, which may result in updates to the instruction manual without notice.
-
Page 3: Table Of Contents
Warnings................3 Parts References............4-5 Setup Instructions ............6-13 Product Specifications........... 8 Operating Instructions ........... 14-16 Intex Pools Operating Time Table........17 Non-Intex Pools Operating Time Table......18 Maintenance..............19 Long Term Storage............20 Troubleshooting Guide........... 21 Common Pool Problems..........22 General Aquatic Safety........... -
Page 4: Warnings
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • To reduce the risk of injury, do not permit children to use this product. Always supervise children and those with disabilities. -
Page 5: Parts References
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. Parts shown on this page are supplied with the pool package and are shown here for assembly purposes only. 23 24 23 24 23 28... - Page 6 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English SPARE PART NO. REF. NO. DESCRIPTION QTY. SF80110-2 SF70110-2 SF60110-2 PRESSURE GAUGE 11411 11224 11224 6-WAY VALVE 11378 11496 11496 DRAIN OUTLET COVER 11131 11131 11131 CLAMP 11380 11380 11380 TANK O-RING...
- Page 7 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional) The strainer grid prevents large objects from jamming and/or damaging the filter pump. If your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before inflating the pool liner top ring.
- Page 8 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional) 1. In a counter-clockwise motion unscrew plunger valve union from the inlet threaded air connector (42) (see drawing 5). Be careful not to lose the step rubber washer (23).
-
Page 9: Setup Instructions
Motor pre-filtering assembly setup: Remove the sand filter and its accessories from the packaging carefully and inspect for any visible damage. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. - Page 10 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English SETUP INSTRUCTIONS (continued) 4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet (see drawings 12.1 & 12.2). 12.2 12.1 5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing (see drawings 13.1 &...
- Page 11 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English SETUP INSTRUCTIONS (continued) Sand loading: IMPORTANT: Use No. 20 silica sand or glass sand with particle size range 0.45 to 0.85 mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75. NOTE: Before loading the tank with sand, ensure the center pipe hub assembly is securely in place at the bottom of the tank, and vertically centered inside the tank.

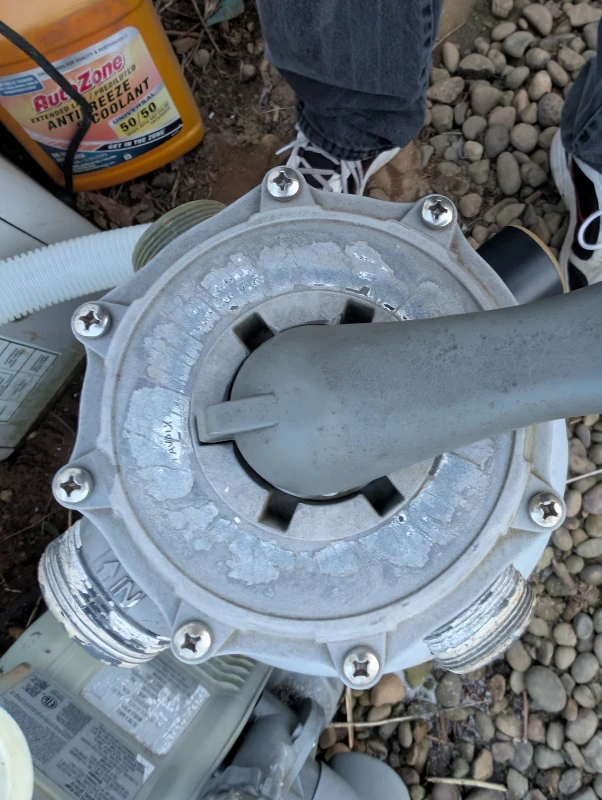

- Page 12 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English SETUP INSTRUCTIONS (continued) WARNING Improper tank valve and clamp assembly could cause the valve and clamp to blow off and cause serious injury, property damage or death. 6-way valve installation: Lower the 6-way valve over the tank slowly, and ensure the bypass pipe protruding underneath the 6-way valve fits securely into the center pipe hub (7) top opening (see drawing 19).
- Page 13 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English SAND FILTER PUMP HOSE CONNECTION SETUP WARNING • Position this product away from the pool, so as to prevent children from climbing on it and accessing the pool. The 6-way valve has three hose connection ports.
- Page 14 Connect the hose (12) to the pool inlet/outlet connection with a large hose clamp. Tighten securely. LARGE HOSE CLAMP POOL For INTEX pool with 1-1/4” (32mm) connections/hoses: Make sure the air jet valve (39) is securely tighten onto the pool inlet air adaptor (43) and facing (Adaptor B) (Adaptor B) Page 13...
-
Page 15: Operating Instructions
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English OPERATING INSTRUCTIONS WARNING • Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. - Page 16 “BACKWASH” under “initial startup and operation” section. Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the flow to diminish and the pressure to rise.
- Page 17 (342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English OPERATING INSTRUCTIONS (continued) Operating the system under “TIMER” mode or manually: To operate the sand filter pump in “FILTER” mode under “TIMER” control: 1. Activate the unit: Press button.
-
Page 18: Intex Pools Operating Time Table
This table shows the required operating time for average use of the sand filter pump with above ground pools. If the system is attached to an “Intex Saltwater System” unit, the filter pump running time should be longer than the required operating time of the Intex Saltwater System unit. -
Page 19: Non-Intex Pools Operating Time Table
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English NON-INTEX POOLS OPERATING TIME TABLE This table shows the required operating time for average use of the sand filter pump with above ground pools. Water Capacity Sand filter pump operating time (For one cycle) / (Hours) -
Page 20: Maintenance
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English MOTOR PRE-FILTER CLEANING AND MAINTENANCE 1. Make sure the filter pump is switched off, then disconnect the power cord from the electrical outlet. 2. Turn both plunger valve handles fully clockwise until they stop. This closes the valve, prevents the water from flowing out of the pool. -
Page 21: Long Term Storage
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English POOL CARE & CHEMICALS • All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water. -
Page 22: Troubleshooting Guide
• An air leak on the intake hose. • Tighten hose nuts, check hose for damage. • Faulty motor or the impeller is • Contact Intex service center. jammed. • Sand tank o-ring missing. • Remove 6-way valve cover and ensure the 6-WAY VALVE/ •... -
Page 23: Common Pool Problems
• Finger tighten all caps. LEVEL • The drain valves are loose. SEDIMENT • Dirt or sand on pool floor. • Heavy use, getting in and • Use Intex pool vacuum to ON POOL out of pool. clean bottom of pool. BOTTOM SURFACE •... -
Page 24: General Aquatic Safety
(342PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/08/2018 English GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions. -
Page 25: Limited Warranty
Your Sand Filter Pump has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only to the Sand Filter Pump and accessories listed below. - Page 26 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal –...
- Page 27 (122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A TABLES DES MATIERES Attention................3 Detail des pièces............. 4 Crochet de fixation pour piscines autostables avec boudin gonflable............. 5 Crochet de fixation pour piscines tubulaires....6 Instructions de montage..........
-
Page 28: Attention
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A IMPORTANT Lisez et suivez attentivement toutes ces instructions avant d'installer et d'utiliser ce produit. ATTENTION • Ne laissez pas les enfants utiliser ce produi. Utilisation par des adultes uniquement. -
Page 29: Detail Des Pièces
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A DETAIL DES PIECES Avant d'assembler votre produit, prenez quelques instants pour vérifier son contenu et vous familiariser avec chaque pièce. NOTE : Ce croquis est une simple représentation du produit. Il n'est pas à l'échelle réelle. -
Page 30: Crochet De Fixation Pour Piscines Autostables
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A CROCHET DE FIXATION POUR PISCINES AUTOSTABLES AVEC BOUDIN GONFLABLE NOTE : Si vous utilisez une piscine tubulaire ronde, aller directement à la page 6. Connectez le tuyau (11) à... -
Page 31: Crochet De Fixation Pour Piscines Tubulaires
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A CROCHETS DE FIXATION POUR PISCINES TUBULAIRES Connectez le tuyau (11) à la base du skimmer (5). Montez le crochet comme sur le schéma. Insérez Appuyez Appuyez Insérez... -
Page 32: Instructions De Montage
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A INSTRUCTIONS DE MONTAGE Pour piscine d’un diamètre de 488 cm et inférieur : Dévissez la grille de la crépine depuis l’intérieur de la piscine. Traversée de La buse de Support de... - Page 33 (122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A INSTRUCTIONS DE MONTAGE (suite) Placez le panier (4), le joint (2) et le couvercle flottant (1) dans le skimmer (5). NOTE : Le joint du couvercle flottant doit être installé correctement pour maintenir le couvercle.
- Page 34 (122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A INSTRUCTIONS DE MONTAGE (suite) ATTENTION • Ne faites pas fonctionner l'epurateur lorsque des personnes se trouvent dans la piscine. • Forte aspiration. N'enlevez pas ou n'obstruez pas le couvercle flottant lorsque l’epurateur est en marche.
-
Page 35: Hivernage
(122IO) DELUXE WALL MOUNT SURFACE SKIMMER FRENCH SIZE: 4.875” X 7.25” PANTONE 295U 05/16/2013 Français 122A HIVERNAGE 1. Assurez vous que l’épurateur est éteint, et débranchez le cordon d’alimentation. 2. Démontez le skimmer en suivant les instructions de montage à l'envers. 3.
