OPERATING INSTRUCTIONS

• Risk of electric shock. Connect this product only to a grounding type receptacle
protected by a residual current device (RCD). Contact a qualified electrician if you
cannot verify that the receptacle is protected by a RCD. Use a qualified electrician to
install the RCD, which has a maximum rate of 30mA. Do not use a portable residual
current device (PRCD).
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors
or converter plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your
hands are wet.
• Never operate this product above the maximum working pressure stated on the filter
tank.
• Always switch off pump before changing the 6-way valve position.
• Operating this product without water flowing through the system can cause a build up
of hazardous pressure which can result in an explosive situation, serious injury,
property damage or death.
• Never test this pump with compressed air. Never operate the system with water
temperature above 35° C (95° F).

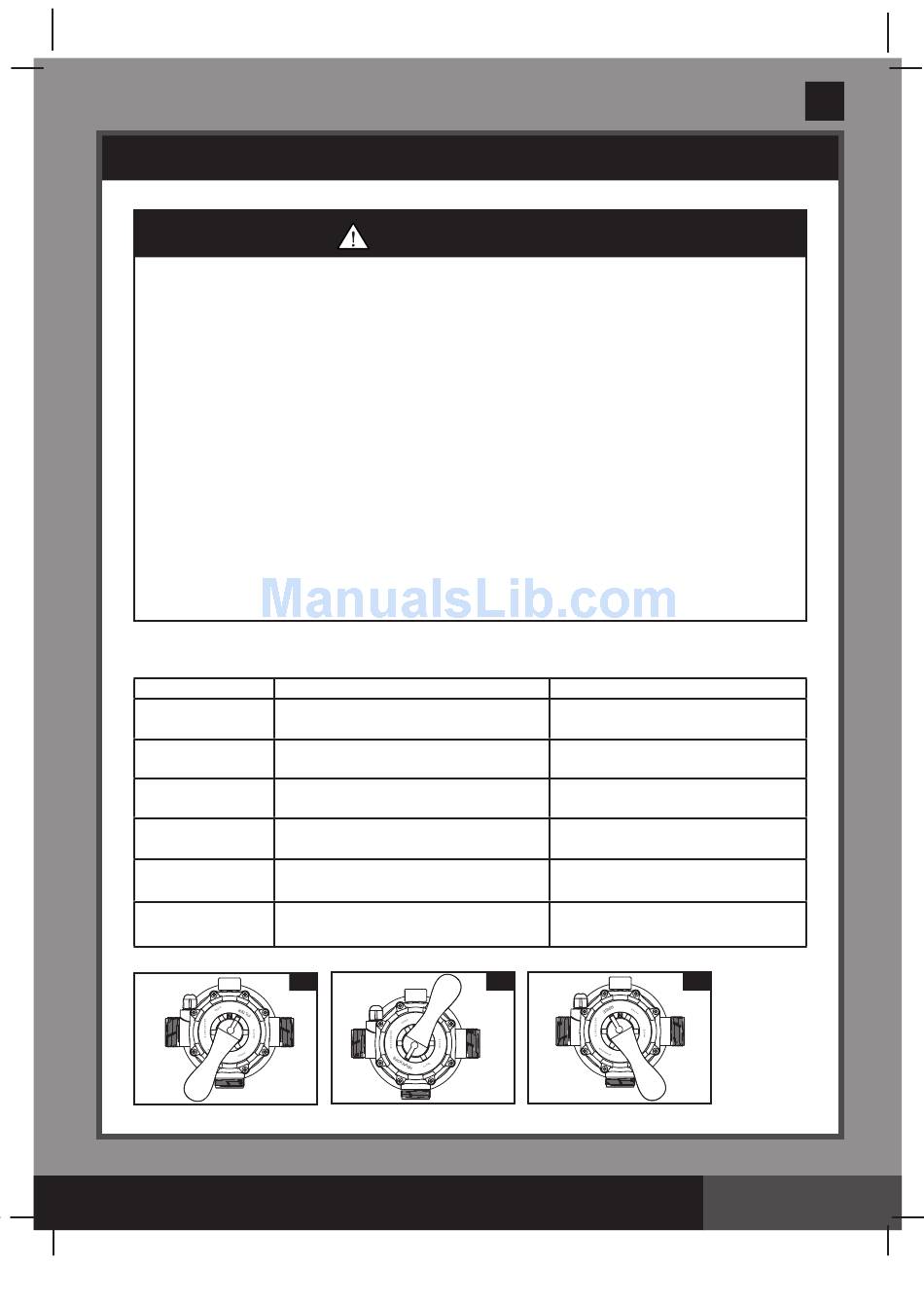

6-way valve positions and function:

Valve Position
Normal filtration and regular
FILTER
vacuuming of pool
(see drawing 26)
Reverses water flow to clean filter
BACKWASH
media
(see drawing 27)
RINSE For initial startup cleaning of the sand, and
leveling the sand bed after backwashing
(see drawing 28)
For vacuuming directly to waste,
WASTE
lowering pool level or to drain the pool
(see drawing 29)
For circulating water back to pool
RECIRCULATE
without going through the filter media
(see drawing 30)
Shuts off all flow to filter and pool
CLOSED
"Do not use this setting with pump running"
(see drawing 31)
26
SAVE THESE INSTRUCTIONS
WARNING
Function
27
English
Water Flow Direction
From pump through filter media
to pool
From pump through filter media
to valve waste/drain outlet
From pump through filter media
to valve waste/drain outlet
From pump to valve waste/drain
outlet bypassing the filter media
From pump through valve to
pool bypassing the filter media
28
