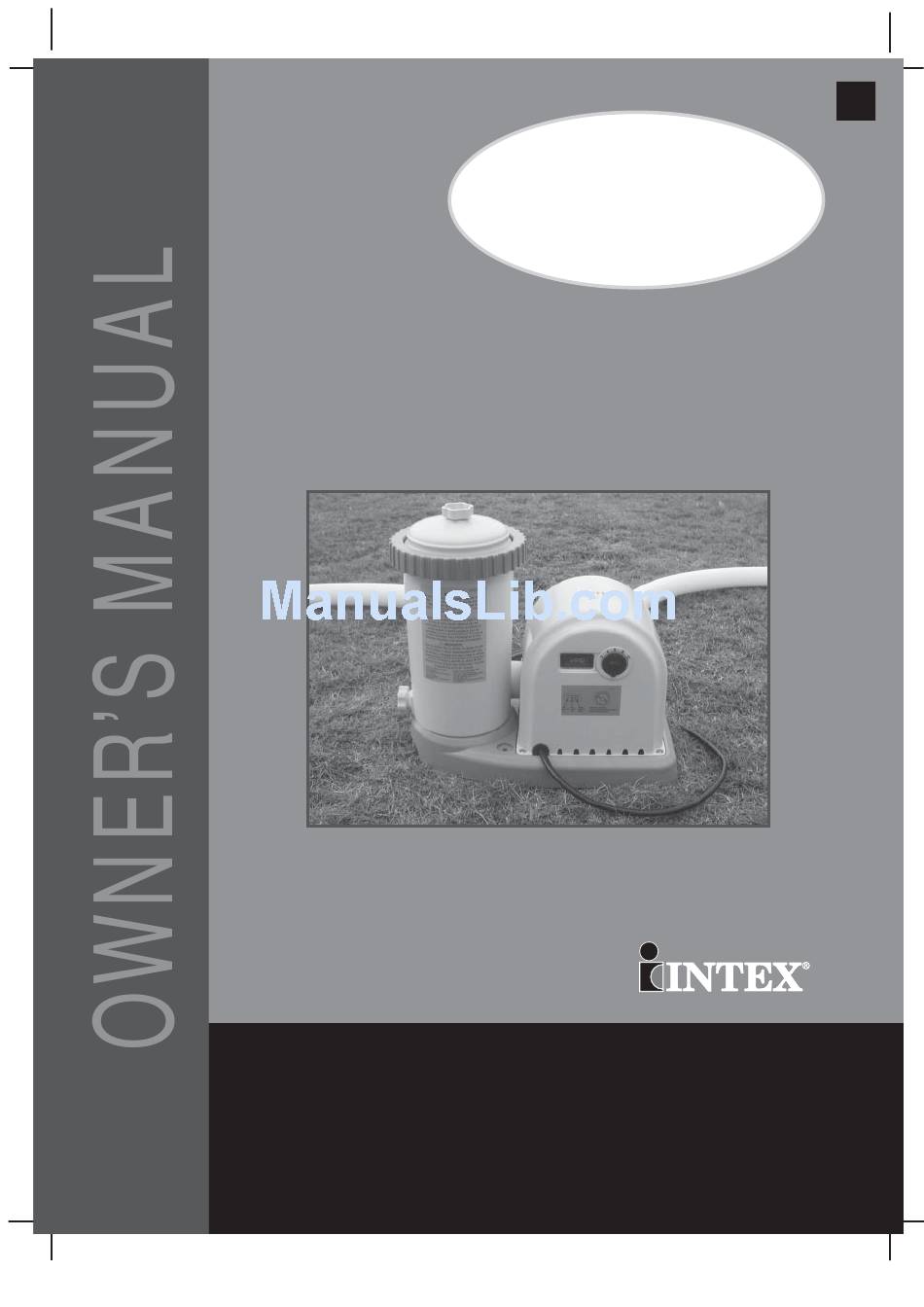

Model 635T Filter Pump For illustrative purposes only. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website. Due to a policy of continuous product improvement, Intex reserves the right to change specifications and appearance, which may result in updates to the instruction manual without notice.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English TABLE OF CONTENTS Warnings................3 Parts Reference.............. 4-5 Setup Instructions ............6-8 Operating Instructions ..........9 Operating Time Table............10 Maintenance..............11-12 Pool Care and Chemicals..........12 Long Term Storage............
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • To reduce the risk of injury, do not permit children to use this product. Always supervise children and those with disabilities.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. REF.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. REF.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional) The strainer grid prevents large objects from jamming and/or damaging the filter pump. The plunger valve assembly prevents water from flowing into the filter pump while the filter cartridge is being placed or cleaned.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional) 1. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector (13) (see drawing 5). Be careful not to lose the step rubber washer (10).
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English FILTER PUMP HOSE CONNECTION SETUP 1. Remove the Krystal Clear™ filter pump and hoses from the packaging. 2. Place the filter pump in such a manner, that you can easily assemble the hose (7) connections to the plunger valve.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English OPERATING INSTRUCTIONS 1. Make sure the filter pump is switched off. The switch is located on the motor housing. 2. Connect the power cord to a GFCI protected electrical outlet. WARNING Risk of electric shock.
Frame Pool and 80% for Easy Set operating hours Pool Size & Oval Pool) per day (Gals) (Liters) (Hours) INTEX ABOVE GROUND POOLS (AGP’s) 18’ x 42” (549cm x 107cm) 4,786 18,115 EASY SET ® POOL 18’ x 48” (549cm x 122cm) 5,455 20,647 18’...
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English CLEANING OR REPLACING FILTER CARTRIDGES It is recommended that the filter cartridge be replaced at least every 2 weeks. 1. Make sure the filter pump is turned off, then disconnect the power cord from the electrical outlet.
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English POOL CARE & CHEMICALS • All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water.
• Turn off pump, if water leaking from the vacuum release valve, then release valve needs to be replaced. Contact Intex Service Center immediately to order replacement. You may cover release valve with the cap temporarily if you ensure that the strainer cover / strainer grid is installed and you Do Not run the pump while pool is occupied.
• Finger tighten all caps. WATER LEVEL • The drain valves are loose. • Dirt or sand on • Heavy use, getting in • Use Intex pool vacuum to SEDIMENT pool floor. and out of pool. clean bottom of pool. ON POOL BOTTOM •...
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013 English GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions.
This Limited Warranty applies only to those parts and components sold by Intex. The Limited Warranty does not cover unauthorized alterations, repairs or disassembly by anyone other than Intex Service Center personnel.
