Cardinal Detecto 8430 Series Operating Instructions Manual

Digital physician waist-high scale
Hide thumbs Also See for Detecto 8430 Series:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
DIGITAL PHYSICIAN
Waist-High Scale
Model 8430 Series
Operating Instructions
CARDINAL SCALE MFG. CO.
PO BOX 151  WEBB CITY, MO 64870
8525-M041-O1 Rev M
Printed in USA
PH (417) 673-4631  FAX (417) 673-5001
06/15
www.detectoscale.com
Technical Support: Ph: 866-254-8261  techsupport@cardet.com
0033-M114-O1 Rev G  Model 6437 Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Detecto 8430 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal Detecto 8430 Series

Summary of Contents for Cardinal Detecto 8430 Series

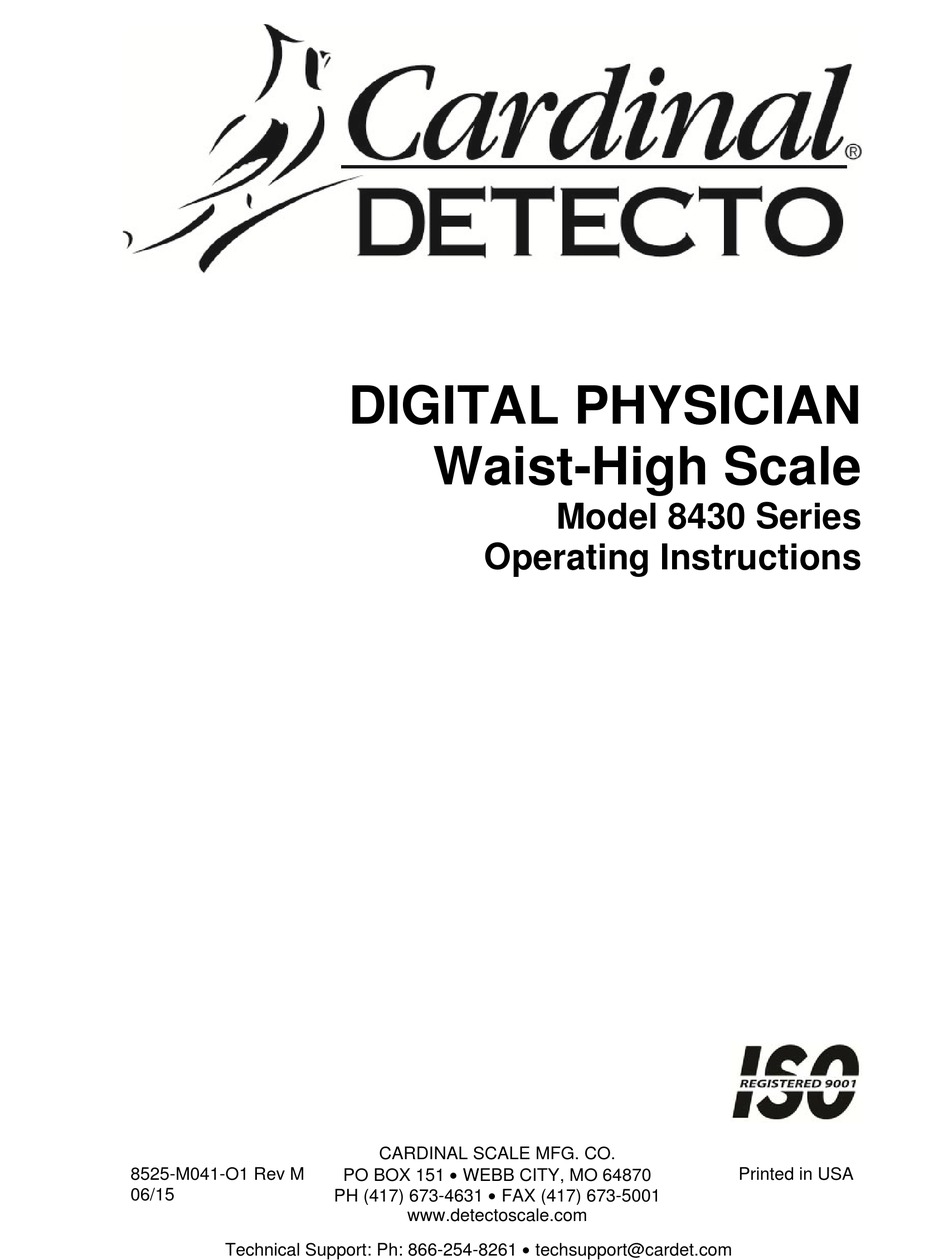

  • Page 1 DIGITAL PHYSICIAN Waist-High Scale Model 8430 Series Operating Instructions CARDINAL SCALE MFG. CO. PO BOX 151  WEBB CITY, MO 64870 8525-M041-O1 Rev M Printed in USA PH (417) 673-4631  FAX (417) 673-5001 06/15 www.detectoscale.com Technical Support: Ph: 866-254-8261  techsupport@cardet.com...
  • Page 2 0033-M114-O1 Rev G  Model 6437 Series...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This equipment generates uses and can radiate radio frequency and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
  • Page 4 0033-M114-O1 Rev G  Model 6437 Series...

  • Page 5: Specifications

    ID: 14 digit, 14 segment, .35” (8.89 mm) high LCD Power ………………..6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Cardinal part number MV1PWR). Keyboard ......Membrane type with 19 keys, On/Off, Zero, Units, Lock/Release,...

  • Page 6: Unpacking Instructions

    UNPACKING INSTRUCTIONS  Remove scale from carton by lifting up with equal force from column and platform base.  Check for any damage incurred in shipping. If scale has been damaged, place a claim with the carrier. Use the original carton and shipping material to return the scale. ...
  • Page 7 ASSEMBLY INSTRUCTIONS, CONT. Grommet Load Cell Cable Figure No. 1 Figure No. 3 Column Raise Draft Push Draft Column Lever Bracket Opening Figure No. 4 Swivel Ball Socket and Scale Top Plate #10-32 Truss Head Screw Figure No. 2 Lock Washer 8525-M041-O1 Rev M ...

  • Page 8: Basic Operation

    OPERATION MedVue MV1 Keypad ALWAYS assist the patient in stepping on and off the scale platform to ensure they do not fall. NEVER leave a patient unattended while they are on the scale platform. Failure to maintain control of the patient at all times can result in serious injury to you and/or the patient.
  • Page 9 OPERATION, CONT. Basic Operation with ID – (No BMI) To Weigh 1. Press ON/OFF key to turn the MV1 on. 2. Press ZERO key to zero weight display. ZERO, GROSS and lb or kg annunciator will turn on to show scale is ready for use. 3.
  • Page 10 OPERATION, CONT. Body Mass Index (BMI) Operation with ID To Weigh and Calculate BMI 1. Press ON/OFF key to turn MV1 on. 2. Press ZERO key to zero weight display. ZERO, GROSS and lb or kg annunciator will turn on to show scale is ready for use. 3.

  • Page 11: Height Rod Instructions

    HEIGHT ROD INSTRUCTIONS Height Rod Hole Location 2in (51mm) Please check the Height Rod hole locations before installing the Height Rod.  Some scales may require holes to be drilled.  Please follow the measurements for drilling holes if necessary. 9/64”...
  • Page 12 HEIGHT ROD INSTRUCTIONS, CONT. 3. Place the large end of the slotted holes in the height rod brackets over the four hex head screws on the back of the column. Height Rod Bracket 4. Pull down to set the screws in the small end of the slotted hole and secure the bracket to the column.
  • Page 13 HEIGHT ROD INSTRUCTIONS, CONT. Height Rod Operating Guide 1. Before patient steps onto scale platform, spoon (B) should be rotated to horizontal position, and raised well above patient's apparent height. 2. Patient may now step onto scale platform. Spoon (B) should be held horizontal and above patient's head.

  • Page 14: Error And Status Displays

    ERROR AND STATUS DISPLAYS Display Meaning ERROR General error, invalid keypad entry was attempted. ERR OVERFLOW Attempting to display a negative number greater than –9,999 or a positive number greater than 99,999 ERR ZERO LIM Indicates an attempt to zero a weight outside scale zero range. Refer to the Calibration Setup ZERO Menu, ZERO LIMIT (Two Percent Zero Tracking Range Limit) parameter.

  • Page 15: Stainless Steel

    CARE AND CLEANING OF SCALE Powder Painted Steel While powder painted steel is attractive and so durable that it will last many years longer than ordinary painted steel, it is desirable to clean it thoroughly on a routine basis. There are three basic things that should be remembered when cleaning powder painted steel.

  • Page 16: Parts Identification

    PARTS IDENTIFICATION ITEM PART NUMBER DESCRIPTION WEIGHT INDICATOR FOR CLINICAL SCALES 8555-B519-0A MEDVUE MTG KIT ASSY 0033-B104-0A TOP PLATE, INDICATOR TO 3P 6021-1045 SCW HEX HEAD #10-32 X 1/2 Z/P 6024-0049 WASHER LOCK EXT #10 430XG3R800 COLUMN ASSEMBLY 0033-B315-0A COLUMN ASSEMBLY FOR 8430S, 8431S, 8437S 0033-B254-08 DRAFT ROD FOR 8430 SERIES 3P2011X...
  • Page 17 PARTS IDENTIFICATION, CONT. 8525-M041-O1 Rev M  8430 Series...

  • Page 18: Statement Of Limited Warranty

    STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment.
  • Page 19 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
  • Page 20 8525-M041-O1 Rev M  8430 Series...
