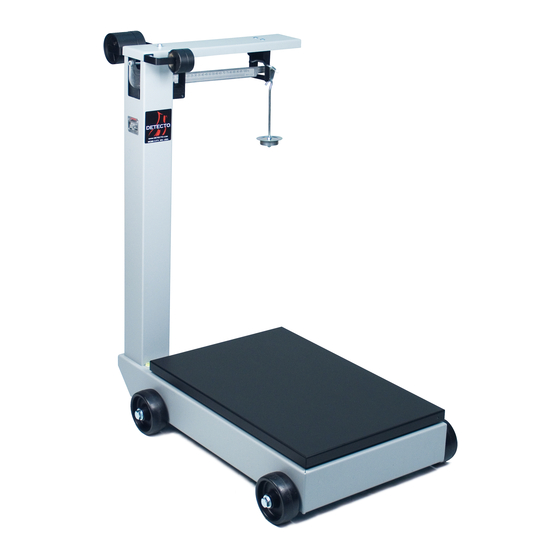

Mechanical portable platform scales with beam
Hide thumbs Also See for 854F Series:
Table of Contents

Advertisement

Quick Links

Download this manual
MECHANICAL PORTABLE
PLATFORM SCALES
with BEAM
SERIES 854F/954F
Owner's Manual
0066-M110-O1 Rev J Series 854F/954F Owner's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 854F Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal 854F Series

Summary of Contents for Cardinal 854F Series

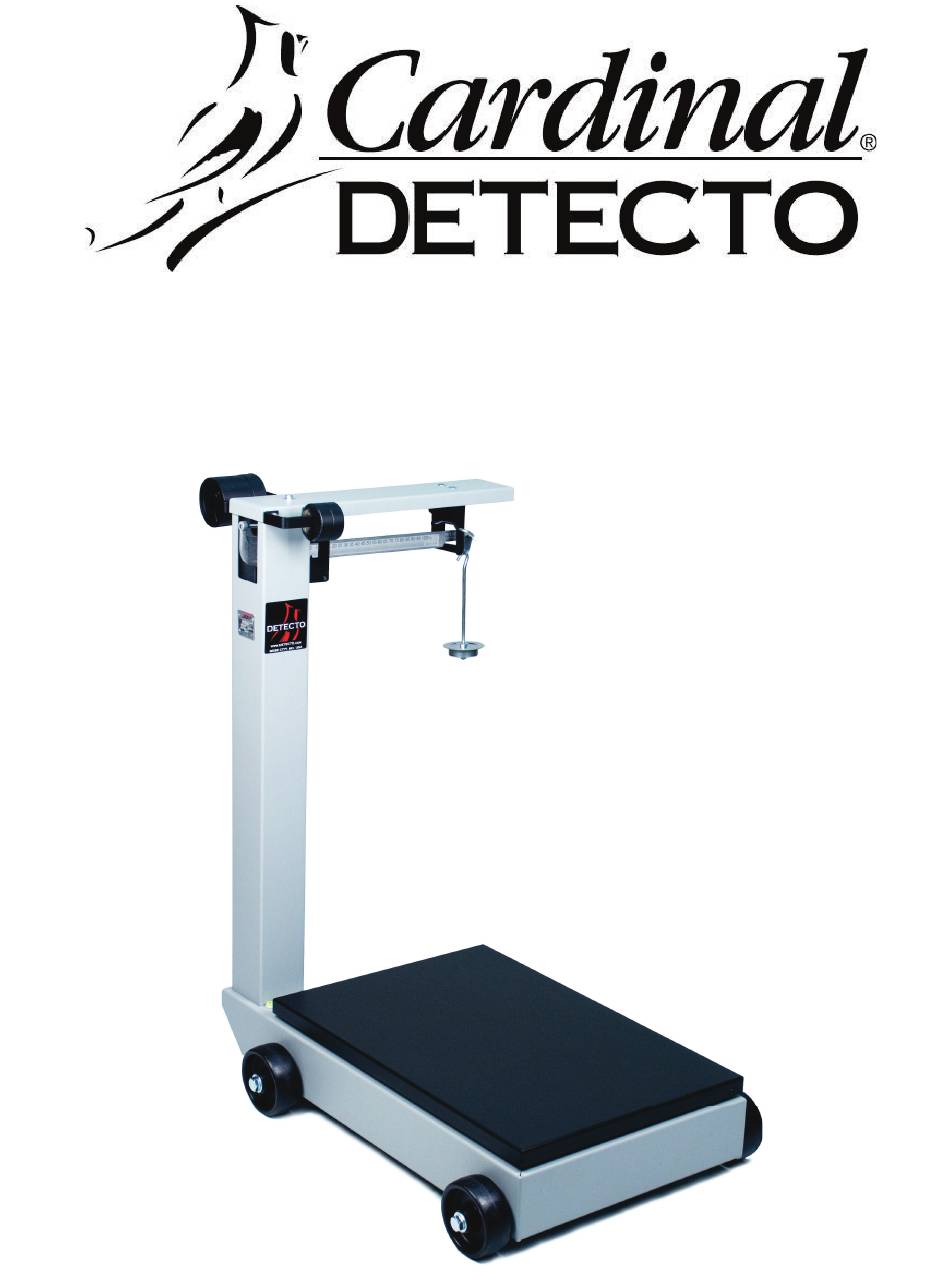

  • Page 1 MECHANICAL PORTABLE PLATFORM SCALES with BEAM SERIES 854F/954F Owner’s Manual 0066-M110-O1 Rev J Series 854F/954F Owner’s Manual...
  • Page 2 0066-M110-O1 Rev J Series 854F/954F Owner’s Manual...

  • Page 3: Table Of Contents

    INTRODUCTION Thank you for purchasing our Detecto Mechanical Portable Platform Scale with Beam, Series 854F/954F. Manufactured with Detecto quality and reliability, this scale has been calibrated and tested before leaving our factory to ensure accuracy and dependability for years to come. This manual is provided to guide you through assembly and operation of your scale.

  • Page 4: Unpacking

    UNPACKING Remove your scale from its packing and inspect it for signs of damage such as exterior dents and scratches. Keep the carton and packing for return shipment or relocation if it should become necessary. It is the responsibility of the purchaser to file all claims for any damage or loss incurred during transit.

  • Page 5: Final Sealing And Adjusting Instructions

    SCALE ASSEMBLY INSTRUCTIONS, CONT. Refer to Figure No. 1 and follow the instructions below for scale assembly. 1. Assemble the wheels to the scale base with four 5/8-11 x 3 1/2" hex head bolts, four sleeves and eight 5/8 flat washers. To secure the wheel, tighten the bolt against the sleeve to the scale base.

  • Page 6: Scale Operation Instructions

    SCALE OPERATION INSTRUCTIONS The following steps will guide you through operation of the portable platform beam type scale. Counterpoise Weights Beam Beam Tip Trig Loop Sliding Poise Beam Lock Poise Screw Counterpoise Figure No. 2 Portable Platform Beam Type Scale Operation Components 1.

  • Page 7: Base Assembly Parts Diagram

    BASE ASSEMBLY PARTS DIAGRAM Figure Number 4 Base Assembly Parts Diagram BASE ASSEMBLY PARTS LIST Item No. 854F Part No. 954F Part No. Part Name Qty. 0066-C017-08 0066-D057-0A Deck Plate 0066-D012-0A 0066-D107-0A Weighbridge Assembly 0066-D006-0A 0066-D060-0A Long Lever Assembly 0066-D007-0A 0066-D061-0A Short Lever Assembly 0066-B004-0A...

  • Page 8: Column Assembly Parts Diagram

    COLUMN ASEMBLY PARTS DIAGRAM Figure Number 5 Figure Number 5 Column Assembly Parts Diagram Column Assembly Parts Diagram COLUMN ASSEMBLY PART LIST Item No. Part No. Part Name Qty. Model No. 0066-C036-18 Column Cap 854F/954F 0066-C042-0A Column Assembly 854F/954F 6P33X Steelyard Rod Assembly 854F/954F 6P2009X...
  • Page 9 COLUMN ASSEMBLY PART LIST, CONT. Item No. Part No. Part Name Qty. Model No. 6PP3000X Weight Pack Assembly 1000lb 854F100P 6PP3050X Weight Pack Assembly 500lb 854F50P 6PK2500X Weight Pack Assembly 500kg 854F50K 6PK2550X Weight Pack Assembly 1000lb/500kg 854F100PK 6PL1000X Weight Pack Assembly 1000 libra/500kg 854FFS 6PK10 Weight...

  • Page 10: Beam Assembly Parts Diagram

    BEAM ASSEMBLY PARTS DIAGRAM Figure Number 6 Beam Assembly Parts Diagram 0066-M110-O1 Rev J Series 854F/954F Owner’s Manual...

  • Page 11: Beam Assembly Parts List

    BEAM ASSEMBLY PARTS LIST Item No. 854F Part No. 954F Part No. Part Name Qty. Model No. 6P10037 6P10037 Beam 52 & 53 6P11037 6P11037 Insert 100lb (Rear) 854F100P/954F100P 6P11137 6P11137 Insert 100lb (Front) 854F100P/954F100P 6P11042 Insert 50lb (Rear) 854F50P 6P11142 Insert 50lb (Front) 854F50P...

  • Page 12: Double Beam Assembly Parts Diagram

    DOUBLE BEAM ASSEMBLY PARTS DIAGRAM Figure Number 7 Double Beam Assembly Parts Diagram 0066-M110-O1 Rev J Series 854F/954F Owner’s Manual...

  • Page 13: Double Beam Assembly Parts List

    DOUBLE BEAM ASSEMBLY PARTS LIST (Assembly for avoirdupois, unit available in metric) Only 1700 Demountable Heads can be used with these scales. Item No. Part No. Part Name Qty. 6P7037X Beam W/Pivots 6P6042 Tare Beam 6P11138 Insert 50K Front 6P11038 Insert 50K Rear 6P11137 Insert 100P Front...
  • Page 14 STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment.
  • Page 15 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
  • Page 16 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 0066-M110-O1 Rev J 07/20 0066-M110-O1 Rev J Series 854F/954F Owner’s Manual...
