Summary of Contents for Cardinal Detecto 8435

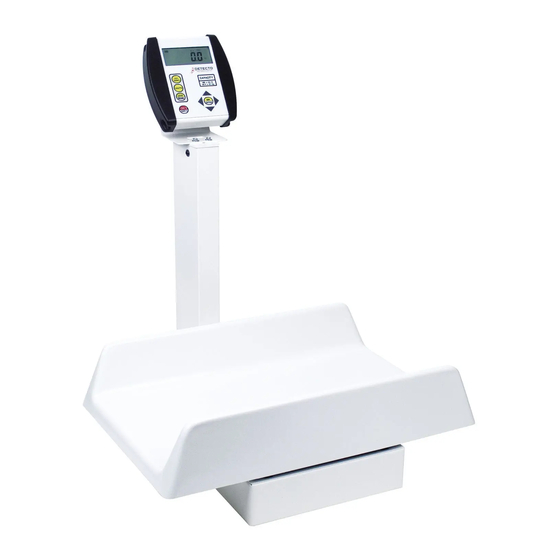

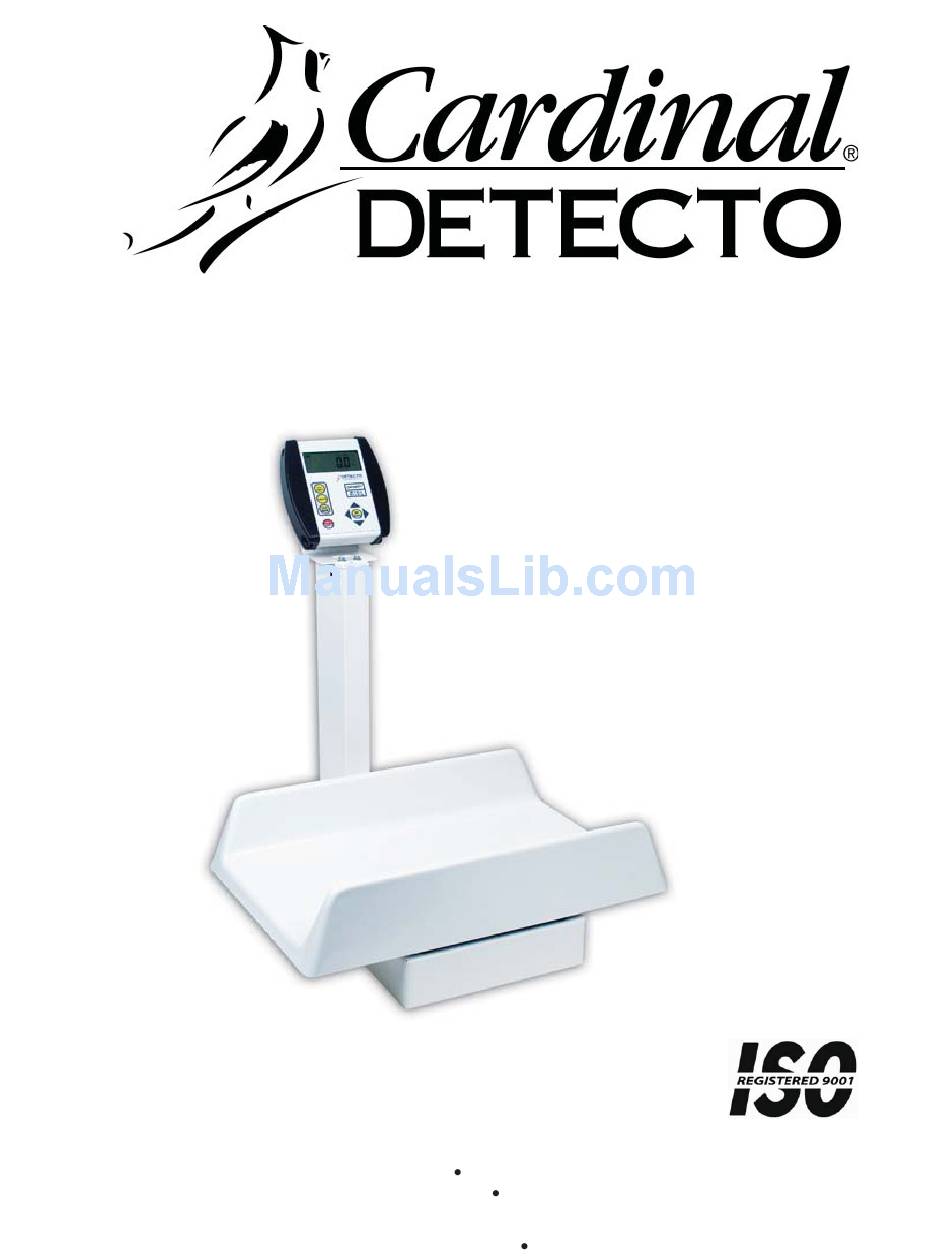

- Page 1 DIGITAL Pediatric Scale Models 8435 & 8435KG Owner’s Manual CARDINAL SCALE MFG. CO. 8525-M316-O1 Rev A Printed in USA PO BOX 151 WEBB CITY, MO 64870 02/10 PH (417) 673-4631 FAX (417) 673-5001 www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com...
-
Page 3: Specifications
DIGITAL PEDIATRIC SCALE Thank you for your purchase of our Detecto Model 8435 (8435KG) Digital Pediatric scale. It has been manufactured with quality and reliability at our factory in Webb City, MO USA. Your scale has been tested before leaving our factory to insure accuracy and dependability for years to come. -
Page 4: Unpacking Instructions
UNPACKING INSTRUCTIONS Remove scale from carton by lifting up with equal force from column and platform base. Remove all plastic wrapping, foam fillers and cardboard material from the scale. Place scale upside down on level, stable surface and remove all cardboard packing from bottom of scale base. -
Page 5: Operation
OPERATION DO NOT press the keys on the keypad with pointed objects (pencils, pens, etc). Damage to keypad resulting from this practice is NOT covered under warranty. Basic Weighing 1. Place scale on a level, stable surface. 2. With the baby tray empty, press ON/OFF key to turn on indicator. -
Page 6: Battery Operation
BATTERY OPERATION Batteries The scale can use 6 "AA" size Alkaline, Ni-Cad or NiMH batteries (not included). You must first obtain and install batteries before operations can begin. Batteries are contained in a battery holder inside indicator. Access is via a removable panel on the back of indicator. When using batteries, all 6 batteries must be of the same type. -
Page 7: Optional Ac Power Adapter
BATTERY OPERATION, CONT. 6. If installing new batteries, proceed to step 7. If replacing the batteries, remove all 6 batteries from the battery holder and then proceed to step 7. 7. Install the 6 new “AA” size batteries in the battery holder, noting the polarity markings located in the battery holder. -
Page 8: Parts Identification
PARTS IDENTIFICATION FINAL ASSEMBLY ITEM PART NUMBER DESCRIPTION 33P1201X-1 BASE ASSEMBLY 430XG3R804 COLUMN WELDMENT 709G2R1204 LOAD CELL & MOUNTING ASSEMBLY 0033-B255-08 DRAFT ROD FOR (8435) 33P50 BABY TRAY 63K1038 BASE LEG 5930-B114-08 LABEL: SCALE MODEL NO. SHEET 7 0033-B439-0A MOUNTING BRKT 391RV204 NUT ELASTIC STOP 1/4-20 Z/P 6021-1454... -
Page 9: Base Assembly
PARTS IDENTIFICATION, CONT. BASE ASSEMBLY ITEM PART NUMBER DESCRIPTION 33P1011X PLATFORM WELDMENT 3P2087 PLATFORM LOAD BEARING 3P1001X BASE WELDMENT 3P60 CHECK PLATE 6021-0985 HEX WASHER HD SCW #10 X 1/2 63K1038 BASE LEG 2U58 UNION CENTER HANGER 3P8003X SHORT LEVER ASSEMBLY 3P8059 UNION HANGER 3P122... -
Page 10: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of one (1) year from date of shipment. - Page 11 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or have had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
- Page 12 8525-M316-O1 Rev A 8435(KG)
