Ceramic Smoke Deflector; Adjustment Of The Air - SCAN 4 Instructions For Installation And Use

Congratulations on your new SCAN stove!
You have chosen a product from one of Europe's lea-
ding manufacturers of wood-burning stoves. We are
convinced that your stove will be to your full satisfaction
and give you many hours of pleasure if you follow the
advice and instructions of this manual.
Please read this manual as well as the General
Instructions for Installation before beginning the
installation.
2
4
3

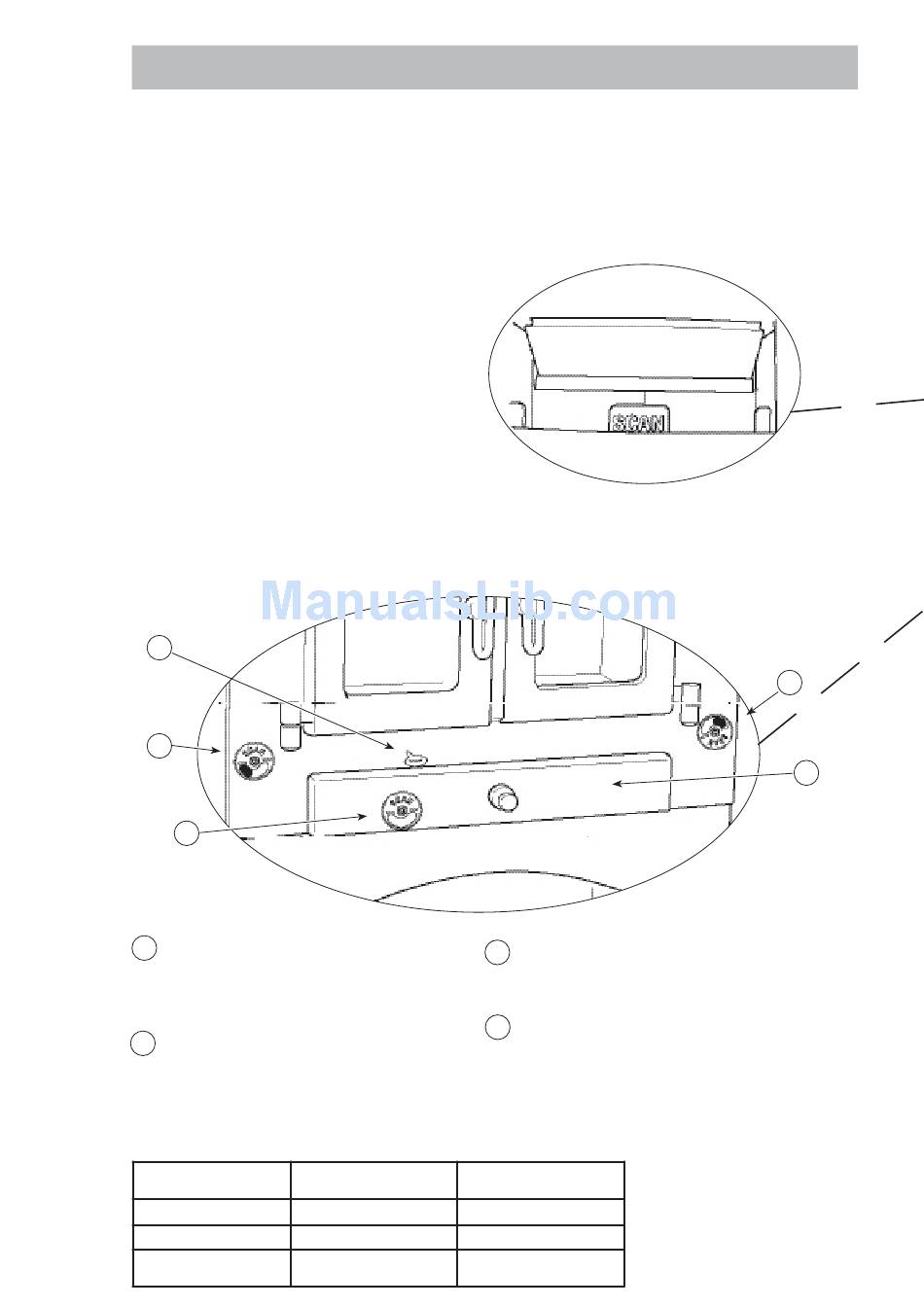

1 Ashtray. The ashtray is placed below the com-
bustion chamber. Attention! Be careful when you
empty ashes from the stove. There may be embers
left for up to 24 hours after the stove was last
used.
2 Handle for shaking grate. The stove is equipped
with a shaking grate. When you activate the grate
handle, the ashes from the combustion chamber
are emptied into the ashtray.

Adjustment of the air

SCAN 4
Combustion air %
Primary air %
SCAN 4
3 Regulation for primary air. Turn the air valve
4 Regulation for combustion air. Turn the air valve
Wood / briquettes Fuel kg/h (beechwood
max. 20% humidity)
100
0-50

Ceramic smoke deflector

In order to dismount the ceramic smoke
deflector, lift up the plate at the front edge.
Lower it at the back and take it out.
in order to open. The primary air is used when
lighting and refuelling the stove. It should always
be closed during continuous firing.
to the right for opening and to the left for closing.
The air is used for the combustion and regulates
the output of the stove.
The ashtray, shaking grate, and primary air should
always be closed during continuous firing.
2 kg
4
1
