INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch; do
not use any phone in your building.
•
Immediately call your gas supplier
from your neighbor's phone. Follow
the gas suppliers instructions.
•
If you cannot reach your gas
supplier call the fire department.
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.

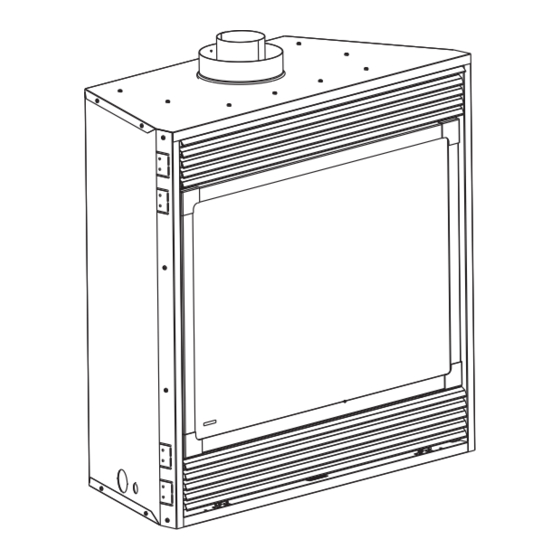

Builder Top Vent
Direct Vent
Models: 33LDVT, 36LDVT
39LDVT, 43LDVT
Installation Instructions and
Homeowner's Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
C E R T I F I E D
10007852 1/13 Rev. 17
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Majestic 33LDVT
Summary of Contents for Majestic 33LDVT
-
Page 1: Direct Vent
Builder Top Vent Direct Vent Models: 33LDVT, 36LDVT 39LDVT, 43LDVT INSTALLER/CONSUMER SAFETY INFORMATION PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 2: Table Of Contents
LDVT Series Direct Vent Gas Fireplace Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THIS APPLIANCE. Thank you and congratulations on your purchase of a Vermont Castings Group fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Installation & General Information, Warnings, Cautions
FOR SAFE INSTALLATION AND OPERATION PLEASE NOTE 15. These units have been approved for bedroom use. THE FOLLOWING: 33LDVT / 36LDVT / 39LDVT / 43LDVT 1. This fireplace gives off high temperatures and should be Certified To located out of high traffic areas and away from furniture and draperies. -
Page 4: Operating Instructions Requirements For The Commonwealth Of Massachusetts
LDVT Series Direct Vent Gas Fireplace Installation & Operating Instructions Inspection Requirements for the Commonwealth of Massachusetts The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the All gas fitting and installation of this heater shall only be installation unless, upon inspection, the inspector observes done by a licensed gas fitter or licensed plumber. -
Page 5: Fireplace Dimensions
Voltage Electrical Access Access Gas Line Voltage Access Electrical Access Gas Line Access Fig. 1 Fireplace specifications and framing dimensions. Ref. 33LDVT 36LDVT 39LDVT 43LDVT 33” (838 mm) 36” (914 mm) 39” (991 mm) 43” (1092 mm) 28⁷⁄₈” (733 mm) 34¹⁄₄”... -
Page 6: Locating Your Fireplace
7/5/01 sta 20’ (6m). See details in manual Venting Section. Depth 36/39/43 LDVT 33LDVT * When you install your fireplace in(D) Room divider or (E) Flat 10” (254 mm) 17” (432 mm) 16¹⁄₂” (419 mm) on wall corner positions (Y), a minimum of 6” (152mm) clearance 8”... -
Page 7: Hearth
LDVT Series Direct Vent GaS Fireplace Gas Specifications Hearth Max. Min. A hearth is not mandatory but is recommended for aes- Input Input thetic purposes. We recommend a noncombustible hearth Model Fuel Control BTU/h BTU/h which projects out 12” (305mm) or more from the front of 33LDVTRN Millivolt 16,000... -
Page 8: High Elevations
LDVT Series Direct Vent Gas Fireplace The fireplace valve must not be subjected to any test High Elevations pressures exceeding 1/2 psi. Isolate or disconnect this or Input ratings are shown in BTU per hour and are any other gas appliance control from the gas line when certified without deration for elevations up to 4,500 pressure testing. -
Page 9: Eb-1 Electrical Box
LDVT Series Direct Vent GaS Fireplace INSIDE EB-1 Electrical Box Electrical Box Retaining Screw The fireplace, when installed, must be electri- cally connected and grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code. -
Page 10: Valve Wiring Diagrams
LDVT Series Direct Vent Gas Fireplace BLACK WHITE POWER CORD GREEN PURPLE PILOT SENSING PILOT IGNITER YELLOW VALVE CIRCUIT BOARD BLUE ORANGE ON/OFF SWITCH WHITE WALL THERMOSTAT FP1571 Fig. 9 SIT822 Valve with Synetek electronic control wiring diagram. White or Green To Pilot Ignitor Green or White White or Orange... -
Page 11: General Venting
LDVT Series Direct Vent GaS Fireplace General Venting There must not be any obstruction such as bushes, Your fireplace is approved to be vented either through the side wall, or vertically through the roof. garden sheds, fences, decks or utility buildings within 24” (610 mm) from the front of the termination hood. -
Page 12: General Venting Information-Termination Location
LDVT Series Direct Vent Gas Fireplace General Venting Information - Termination Location INSIDE CORNER DETAIL Fixed Closed Fixed Operable Closed CFM145a AREA WHERE TERMINAL IS NOT PERMITTED VENT TERMINATION AIR SUPPLY INLET Canadian Installations US Installations CFM145a A = Clearance above grade, veranda, porch, 12”... -
Page 13: General Information On Assembling Vent Pipes
LDVT Series Direct Vent GaS Fireplace Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall with perpendicular side wall... -
Page 14: How To Use The Vent Graph
LDVT Series Direct Vent Gas Fireplace Twist Lock Pipes When using Vermont Castings Group twist-lock pipe it is Vermont Castings Group twist-lock pipe it is twist-lock pipe it is not necessary to use sealant on the joints. The only areas of the venting system that need to be sealed with high temperature silicone sealant are the sliding joints of any telescopic vent section used in the system. - Page 15 LDVT Series Direct Vent GaS Fireplace 20' (6m) Pipe Straps Every 3’ (914mm) Pipe Straps 1 x 90° elbow in horizontal plane = 3’ (914mm) Every 3’ (914mm) Firestop/Zero Clearance Sleeve FP1012 Fig. 16 Support straps for horizontal runs. FP1238 •...
- Page 16 LDVT Series Direct Vent Gas Fireplace Vertical Sidewall Installation Max. Length Adjustable 12” (305mm) Twist Lock Pipe Zero Clearance Sleeve STEP 1 #8 Screws (2) Locate vent opening on the wall. It may be necessary #8 Screws to first position the fireplace and measure to obtain hole location.
- Page 17 LDVT Series Direct Vent GaS Fireplace STEP 5 Measure the horizontal length requirement including a 2” (51 mm) overlap, ie from the elbow to the outside wall face plus 2” (51 mm) (or the distance required if installing a second 90° elbow). (Fig. 23) Always install horizontal venting on a level plane.
-
Page 18: Below Grade Installations
LDVT Series Direct Vent Gas Fireplace Step 4 1. Establish vent hole through the wall. (Fig. 20) Install the 4” (102 mm) flex vent pipe to the appliance col- 2. Remove soil to a depth of approximately 16” (406 mm) lar as described on Page 13. -
Page 19: Vertical Through-The-Roof Applications & Installations
LDVT Series Direct Vent GaS Fireplace Example: Maximum horizontal length 0 x 45° elbows = 10’ (3 m) 1 x 45° elbows = 8¹⁄₂’ (2.6 m) 2 x 45° elbows = 7’ (2.1 m) • A minimum of an 8’ (2.4 m) vertical rise. Snorkel •... - Page 20 LDVT Series Direct Vent Gas Fireplace Vertical Through-the-Roof Installation 1. Locate your fireplace. 2. Plumb to center of the (4” (102 mm) flue collar from ceiling above and mark position. 3. Cut opening equal to 9³⁄₈” x 9³⁄₈” (240 x 240 mm). 4.
- Page 21 LDVT Series Direct Vent GaS Fireplace Vertical Restrictor Plate Rear Log Support 36LDVT, 39LDVT, 43LDVT When installing the 36LDVT, 39LDVT or 43LDVT with a vertical through-the-roof configuration flue system, the restrictor plate (#10008048) supplied with the appliance MUST BE FITTED TO THE APPLIANCE at the installa- tion.
-
Page 22: Venting Components
LDVT Series Direct Vent Gas Fireplace Venting Components 7TDVRVT - Through the wall Rear Vent Termination Starter Kit - 584A Model 7TDVSK - Sidewall Venting (Twist Lock Pipe) venting components rear vent term Model 7FDVSK - Sidewall Venting (Flex Vent Pipe) 4/6/99 djt Models 7TDVTK/TV - Hot Touch Termination Kits Model 7TDVTVTK/TV - Cool Touch Termination Kit... -
Page 23: Operating Instructions Glass Information
LDVT Series Direct Vent GaS Fireplace Operating Instructions 6. Tilt the glass frame out slightly at the bottom, lift the Glass Information frame up and away from the fireplace. 7. To replace the glass frame reverse the procedure. Only glass approved by Vermont Castings Group should be used on this fireplace. -
Page 24: Installation Of Logs, Lava Rock & Ember Material
LDVT Series Direct Vent Gas Fireplace Installation of Logs, Lava Rock & Ember Material The logs are fragile and should be handled 33LDVT with care. Keep the packaging material out of the reach of children and dispose of the 1. Place rear log left (A41) on rear bracket (ensure the material in a safe manner. - Page 25 LDVT Series Direct Vent GaS Fireplace 36LDVT 1. Place rear log (B158) on rear bracket (ensure log is Rear seated properly to the bracket and located to the (B158) two pins), so it will not move from side to side and Figure 40 is firmly positioned on the bracket.
-
Page 26: Flame & Temperature Adjustment
LDVT Series Direct Vent Gas Fireplace 43LDVT 1. Place rear log (BD15) on rear bracket (ensure log is Top Center centered and seated properly to the log support). (BBD18) Rear 2. Place front left log (BD16). Use log’s bottom notch (BD15) Figure 42 to locate it onto the front support and just rest on... - Page 27 LDVT Series Direct Vent GaS Fireplace 33LDVT LG384 Glowing Embers Figure 45 36LDVT LG482 LG384 Glowing Embers 33LDV log flames 1/05 39LDVT LG415 Glowing Embers 43LDVT LG435 Glowing Embers 10007852...
-
Page 28: Lighting & Operating Instructions (Sit 820 Valve)
LDVT Series Direct Vent Gas Fireplace Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manually. Follow the gas supplier’s instructions. -
Page 29: Lighting & Operating Instructions (Sit 822 Valve)
LDVT Series Direct Vent GaS Fireplace Lighting and Operating Instructions For Fireplaces equipped with SIT822 Gas Valve (EN or EP) WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury and loss of life. FOR YOUR SAFETY READ THE FOLLOWING WARNINGS BEFORE LIGHTING THE APPLIANCE Follow the gas suppliers instructions. -
Page 30: Lighting & Operating Instructions (Af4000 Valve)
LDVT Series Direct Vent Gas Fireplace Lighting & Operating Instructions For Fireplaces equipped with AF4000 Gas Valve Warning If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury and loss of life. For Your Safety, Read the Following Warnings before Lighting the Appliance •... -
Page 31: Troubleshooting Gas Control System (Sit 820 Valve)
LDVT Series Direct Vent GaS Fireplace Troubleshooting the Gas Control System SIT NOVA 820 Millivolt Valve NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. WARNING: Before doing any gas control service work, remove glass front. SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION... -
Page 32: Troubleshooting Gas Control System (Sit 822 Valve)
LDVT Series Direct Vent Gas Fireplace Troubleshooting the Gas Control System SIT 822 Valve with Synetek Electronic Control Operating Diagram Normal Operation Abnormal Operation ON/OFF Switch Closed? 5 sec Inter-Trial Delay LED: Steady Flash? Safe Start Check On? Lockout: Flame detected out of sequence Reset by interrupting ON/OFF switch or power for 10 sec 0 Sec Purge... -
Page 33: Troubleshooting Gas Control System (Af4000 Valve)
LDVT Series Direct Vent GaS Fireplace Troubleshooting American Flame Gas Control System If erratic system behavior is observed that cannot be resolved by the methods outlined below, ensure that there is not a transmitter with batteries installed that may be interfering. If a transmitter is packed with batteries installed, its buttons may be depressed sending a constant signal which can interfere with the transmission of desired signals. - Page 34 LDVT Series Direct Vent Gas Fireplace Troubleshooting American Flame Gas Control System (continued) Figure 46: AF4000 MOD Module Right Side Remote/Off Switch Adjustment Continuous PIlot Off/On Switch FP1762 “I” Pilot “S” Pilot Connection Connection Figure 47: AF4000 MOD Module End 8 Pin IPI Connection 6 Volt DC Adapter...
-
Page 35: American Flame Gas Control System Error Codes
LDVT Series Direct Vent GaS Fireplace American Flame Gas Control System Error Codes Ignition Safety: Protection for Ignition System Error Code: One beep every one second Description of Fault: Warn users if the pilot is not successfully ignited in 60 seconds. How to Clear: Switch OFF then ON to re-attempt ignition. -
Page 36: Fuel Conversion Instructions
LDVT Series Direct Vent Gas Fireplace Converting the Appliance From LP to Natural PSE Pilot Gas or Natural Gas to LP Using a suitable wrench on the hexagonal body unscrew the pilot hood assembly from the pilot, do not twist the The conversion of this appliance from one gas hood itself. - Page 37 LDVT Series Direct Vent GaS Fireplace 1. Reassemble the fireplace in the reverse order, except Main Connection for the window frame assembly. Leave this off until after the unit has been checked for leaks and the gas supply MAIN Inlet has been bled.
-
Page 38: Maintenance
LDVT Series Direct Vent Gas Fireplace Maintenance Burner and Burner Compartment Most of these components may require only an occasional checkup and cleaning and some may require adjustment. It is important to keep the burner and the burner compartment If repair is necessary, it should be performed by a clean. -
Page 39: Replacement Parts
Vermont Castings Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, with out notice. 33/36/39/43LDVT 7852 LDVT parts 1/05 33LDVT units: GFTN2I0, GFTL2I0, GFTE2I0, GFTI3I0 36LDVT units: GFTN2J1, GFTL2J1, GFTE2J1, GFTI3J0 39LDVT units: GFTN2K0, GFTE2K0, GFTI3K0 43LDVT units: GFTN2N0, GFTE2N0 10007852... - Page 40 LDVT Series Direct Vent Gas Fireplace 33/36/39/43LDVT (continued) Ref. Description 33LDVT 36LDVT 39LDVT 43LDVT Log Set (complete) 10007567 10010113 10008214 10008314 Front Left Log B160 BC15 BD16 Front Right Log B159 BC16 BD17 Front Center Log B161 B138 B138 Rear Log...
- Page 41 LDVT Series Direct Vent GaS Fireplace 33/36/39/43LDVT (continued) Ref. Description 33LDVT 36LDVT 39LDVT 43LDVT 33a. Support Rear Log - Natural 10007561 10007162 10008211 10008480 33b. Support Rear Log - LP 10007561 10008045 10008211 10008490 Support Front Log 10007562 10007112 10008416...
-
Page 42: Optional Accessories
LDVT Series Direct Vent Gas Fireplace Optional Accessories Fan Kits Thermal Sen- FK24 Fan Assembly This auxiliary fan system increases the efficiency of the circulation of the heating air. The FK24 fan kit allows variable speed control of the circulation fan and also incorporates a heat sensor in the circuit. -
Page 43: Wiring Instructions
Kit Model and Finish Model Function/s Controlled 11/02 Unit Sandstone Black Grey ON/OFF 33LDVT 33LDVTCR ON/OFF and Temperature. 36LDVT GAHC3J0 GAFC3J0 GABC3J0 GAGC3J0 39LDVT 39LDVCR IMTFK Wall mounted thermostat control 43LDVT... -
Page 44: Optional Trim Kits
LDVT Series Direct Vent Gas Fireplace Screen Door Kit Optional Trim Kits Appliance Model Kit Model Louvre Accent Trim 33LDVT 33DVSDKS Pewter Appliance Model Main Louvre Kit Additional Louvre 36LDVT 36DVSDKS Pewter Polished Brass 36LDVT 36DVLMP 36DVLAP 33LDVT 33DVSDKB Black... - Page 45 LDVT Series Direct Vent GaS Fireplace 10007852...
- Page 46 LDVT Series Direct Vent Gas Fireplace 10007852...
-
Page 47: Limited Lifetime Warranty
LDVT Series Direct Vent GaS Fireplace LIMITED LIFETIME WARRANTY Lifetime Warranty The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. Five Year Warranty The following components are warranted for five (5) years to the original owner, subject to proof of purchase: Ceramic Fiber Logs. -
Page 48: Energuide
Based on CSA P.4.1-09 Efficiency Ratings Model EnerGuide Ratings Steady State (%) D.O.E. Fireplace Efficiency (%) Fan-OFF Fan-ON (AFUE%) 33LDVTRN 56.0 33LDVTRP 56.0 33LDVTEN 63.3 33LDVTEP 63.3 33LDVTIN 63.3 33LDVTIP 63.3 36LDVTRN Recherchez dans la brochure 55.0 36LDVTRP 55.0 les caractéristique de rendement 36LDVTEN 60.6 énergétique de foyer au gaz...
