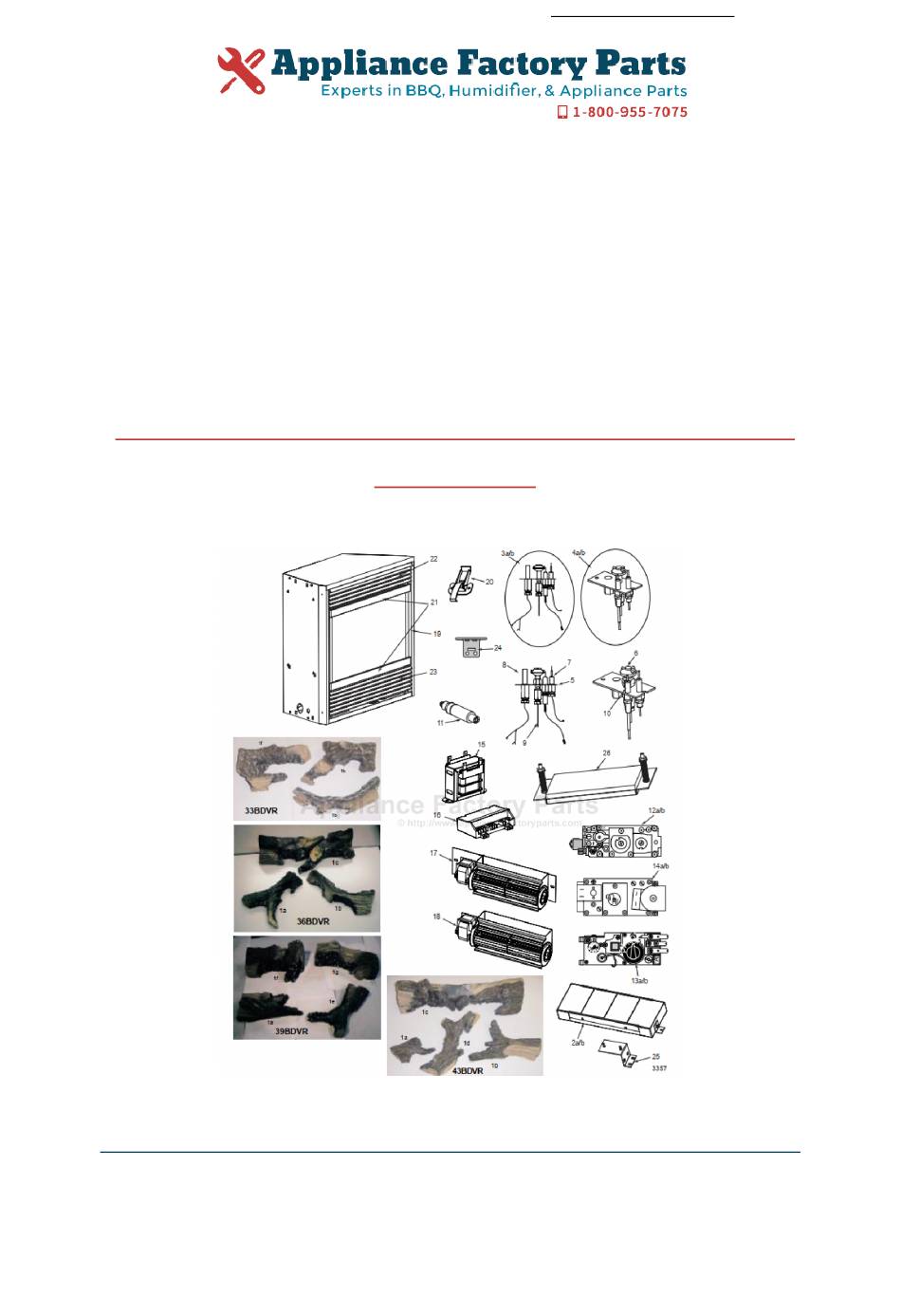

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAJESTIC 43BDVRRP Owner's Manual Shop genuine replacement parts for MAJESTIC 43BDVRRP Find Your MAJESTIC Fireplace Parts - Select From 585 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for MAJESTIC 43BDVRRP 54103 FAN & BRKT ASSY W/PACKAGE FK24 FK24 Fan w/brkt assy he/heb/hedv 58d0443 ROCK WOOL - BAGGED 8 GRAM 57885 SENSING ELECTRODE W/CABLE 10001297 ELECTRODE IGNITER W/CABLE FK12 FAN KIT 37D0018K NG SIT FIELD CONV. PILOT...
- Page 3 INSTALLER/CONSUMER SAFETY INFORMATION PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO- Builder Rear Vent SION MAY RESULT CAUSING PROPERTY DAMAGE, PER- Direct Vent SONAL INJURY OR LOSS OF LIFE.
-
Page 4: Table Of Contents
BDVR Series Direct Vent Gas Fireplace Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a CFM Specialty Home Products fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions fully may result in a possible fire hazard and will void the warranty. -
Page 5: Installation & Operating Instructions
BDVR Series Direct Vent Gas Fireplace Installation & Operating Instructions This gas appliance should be installed by a qualified This appliance may be installed in an aftermarket installer in accordance with local building codes and with permanently located, manufactured home or mobile current CSA-B149.1 Installation codes for Gas Burning home, where not prohibited by local codes. -
Page 6: Fireplace Dimensions
BDVR Series Direct Vent Gas Fireplace Fireplace Dimensions Rough Opening Depth O - Rough Opening Width Rough Centerline of Opening 7" Collar Height Electrical Access Gas Line Voltage Access Electrical Access Gas Line Access Fig. 2 Fireplace specifications and framing dimensions. Ref. -
Page 7: Clearance To Combustibles
BDVR Series Direct Vent Gas Fireplace Clearance to Combustibles Top of Unit to Ceiling ......36” (914mm) Appliance Top ............0” (0 mm) Bottom ..........0” (0 mm) Side ............. 0” (0 mm) Back ............. 0” (0 mm) Venting Black Surround Concentric sections of DV Vent Face... -
Page 8: Framing And Finishing
BDVR Series Direct Vent Gas Fireplace Framing and Finishing 33BDVR / 36BDVR / 39BDVR / 43BDVR Certified To 1. Choose the unit location. 2. Place the unit into position and secure it to the floor ANSI Z21.88-2002 / CSA 2.33-2002 with 1¹⁄₂”... -
Page 9: Gas Line Installation
BDVR Series Direct Vent Gas Fireplace Gas Line Installation Remote ON/OFF Switch Installation When purging the gas lines, the front window frame assembly must be re- 1. Thread the wiring through the holes on the end moved. panels of the fireplace. Take care not to cut the wire or insulation on metal edges. -
Page 10: Eb-1 Electrical Box
BDVR Series Direct Vent Gas Fireplace EB-1 Electrical Box Electronic Gas Control Valve The fireplace, when installed, must be This appliance may be fitted with a Honeywell electrically connected and grounded in ignition module. accordance with local codes or, in the Installation of the remote on/off starter switch on absence of local codes, with the current electronic ignition units. -
Page 11: General Venting Information
BDVR Series Direct Vent Gas Fireplace General Venting Your fireplace is approved to be vented either through Do not locate termination hood where excessive snow the side wall, or vertically through the roof. or ice build up may occur. Be sure to check vent termination area after snow falls, and clear to prevent •... -
Page 12: General Venting Information-Termination Location
BDVR Series Direct Vent Gas Fireplace General Venting Information - Termination Location INSIDE CORNER DETAIL Fixed Fixed Closed Closed Fixed Operable Closed AREA WHERE TERMINAL IS NOT PERMITTED VENT TERMINATION AIR SUPPLY INLET CFM145a Canadian Installations US Installations A = Clearance above grade, veranda, porch, 12”... -
Page 13: General Information Assembling Vent Pipes
BDVR Series Direct Vent Gas Fireplace Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Recessed Location Outside Corner Combustible 6"(152mm) Combustible 6"(152mm) Noncombustible 2"(50mm) Noncombustible 2"(50mm) Balcony - Balcony - with no side wall with perpendicular side wall C = Maximum depth of 48"... -
Page 14: How To Use The Vent Graph
BDVR Series Direct Vent Gas Fireplace How to Use the Vent Graph Rear Wall Venting Applications When installed as a rear vent unit this appliance may The vent chart should be read in conjunction with the be vented directly to a termination located on the rear following vent installation instructions to determine the wall behind the appliance. -
Page 15: Rear Wall Installations
BDVR Series Direct Vent Gas Fireplace Rear Wall Installations Max. Length Adjustable Zero 12” (305mm) Clearance STEP 1 Sleeve Locate vent opening on the wall. To locate hole center #8 Screws (2) consult with appropriate fireplace dimensions, Page 4. Frame as shown below. #8 Screws Combustible Walls (Fig. -
Page 16: Vertical Sidewall Applications & Installation
BDVR Series Direct Vent Gas Fireplace Maximum Vertical Dimension 20 ft. (6.1m) 7¹⁄₂ft. Minimum 48" When Horizontal 12" (1.2m) Finished Wall Run is 20ft. (305mm) 15 ft. Vent (4572mm) Termination 7.5’ (2.3m) 7TDVRT90 Elbow CFM141 Fig. 18 Maximum number of 90° elbows is three (3). •... -
Page 17: Vertical Sidewall Installations
BDVR Series Direct Vent Gas Fireplace •IMPORTANT• Minimum clearance between vent pipes 7 ft. (2134 mm) and combustible materials is one (1”) inch (25 mm) on bottom, sides and top. 10 ft. (3048 mm) Twist Lock Vent Starter Kit 7TDVSK, plus 90°... - Page 18 BDVR Series Direct Vent Gas Fireplace STEP 2 STEP 4 Measure wall thickness and cut adjustable zero clear- Measure the horizontal length requirement including a ance sleeve parts to proper length (MAXIMUM 12”/ 2” (50mm) overlap, i.e. from the elbow to the outside 305mm).
-
Page 19: Below Grade Installation
BDVR Series Direct Vent Gas Fireplace STEP 6 1. Establish vent hole through the wall. (Fig. 23) Apply high temperature sealant to 4” (102mm) and 7” 2. Remove soil to a depth of approximately 16" (178mm) collars or the termination one inch away from (406mm) below base of snorkel. -
Page 20: Vertical Through-The-Roof Applications & Installation
BDVR Series Direct Vent Gas Fireplace If the foundation is recessed, use recess brackets (not supplied) for securing lower portion of the snorkel. Fasten brackets to wall first, then secure to snorkel with self drilling #8 x 1/2 sheet metal screws. It will be Max. - Page 21 BDVR Series Direct Vent Gas Fireplace Attic Insulation Vent Shield Termination Roof Storm Collar 2’ Min. Roof Flashing Roof Support Joist Attic Insulation 40’ Shield (12m) Attic Insulation Joists Joists Ceiling 11" Installation Upper Floor 11" Joist Firestop Spacer FP1022 Nails (4) Fig.
-
Page 22: Twist Lock Venting Components
BDVR Series Direct Vent Gas Fireplace Twist Lock Venting Components 7TDVRVT - Through the wall Rear Vent Termination Starter Kit-Model 7TDVSK-Sidewall Venting Starter Kit-Model 7TDVSKV-Vertical Venting for 7TDVSKV-A order 1/12 to 6/12 roof pitch for 7TDVSKV-B order 7/12 to 12/12 roof pitch for 7TDVSKV-F order flat roof Starter Kit - Model 7TDVSKS - Snorkel Kit Snorkel Termination - 7TDVSNORK... -
Page 23: Operating Instructions
BDVR Series Direct Vent Gas Fireplace Operating Instructions Glass Information Only glass approved by CFM Specialty Home Products should be used on this fireplace. • The use of any non-approved replacement glass will void all product warranties. • Care must be taken to avoid breakage of the glass. •... -
Page 24: Installation Of Logs, Lava Rock & Ember Material
BDVR Series Direct Vent Gas Fireplace Installation of Logs, Lava Rock & Ember Material Unpack the logs from packaging and remove each log from its wrapping materials. The logs are fragile and should be handled with care. Keep the packaging material out of the reach of children and dispose of the material in a safe manner. - Page 25 BDVR Series Direct Vent Gas Fireplace 39BDVR 43BDVR Refer to Figure 40 Refer to Figure 41 1. Remove the top louvre assembly. 1. Remove the top louvre assembly. 2. Remove the window frame assembly. 2. Remove the window frame assembly. 3.
-
Page 26: Flame & Temperature Adjustment
BDVR Series Direct Vent Gas Fireplace Flame & Temperature Adjustment RN/RP & EN/EP Models For units equipped with “HI/LO” valves the flame adjustment is accomplished by rotating the “HI/LO” adjustment knob located near the center of the gas control valve. (Figs. 42 & 43) Honeywell Valve Turn LG271... -
Page 27: Lighting And Operating Instructions
BDVR Series Direct Vent Gas Fireplace Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit Follow the gas supplier's instructions. - Page 28 BDVR Series Direct Vent Gas Fireplace Lighting and Operating Instructions For Fireplaces equipped with SIT822 Gas Valve (EN or EP) Warning: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury and loss of life. FOR YOUR SAFETY READ THE FOLLOWING WARNINGS BEFORE LIGHTING THE APPLIANCE Follow the gas suppliers instructions.
-
Page 29: Troubleshooting
BDVR Series Direct Vent Gas Fireplace Troubleshooting - Honeywell Millivolt Valve Remove Window Frame Assembly Before Service Work START CHECK • Supply Line Hooked Up Gas Supply On • Shutoff Valve Open • Lockout Has Engaged. Wait 60 Seconds And Try Again. •... -
Page 30: Troubleshooting The Gas Control System
BDVR Series Direct Vent Gas Fireplace Troubleshooting the Gas Control System SIT NOVA 820 MILLIVOLT VALVE NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE GLASS FRONT. SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION... - Page 31 BDVR Series Direct Vent Gas Fireplace Troubleshooting the Gas Control System SIT 822 Valve with a Honeywell Electronic Ignitor Remove Window Frame Assembly Before Service Work START •TURN GAS SUPPLY OFF CHECK: • LINE VOLTAGE (120VAC) • LOW VOLTAGE TRANSFORMER •...
-
Page 32: Fuel Conversion Instructions
BDVR Series Direct Vent Gas Fireplace not over-tighten the screw, it must be finger tight. Fuel Conversion Instructions d. Refit the regulator cap. The conversion of this appliance from one e. Mount conversion label supplied with conver- gas to another must be carried out by an sion screw to valve in a visible position. -
Page 33: Maintenance
BDVR Series Direct Vent Gas Fireplace Maintenance Burner and Burner Compartment To obtain proper operation, it is imperative that the pilot and burner’s flame characteristics are steady, not It is important to keep the burner and the burner lifting or floating. compartment clean. -
Page 34: Replacement Parts
BDVR Series Direct Vent Gas Fireplace 4a/b 3a/b 33BDVR 12a/b 14a/b 36BDVR 13a/b 39BDVR 2a/b 3357 43BDVR CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. 33/36/39/43BDVR 10003357... - Page 35 BDVR Series Direct Vent Gas Fireplace BDVR (continued) (Items marked “*” are not shown) Ref. Description 33BDVR 36BDVR 39BDVR 43BDVR Log Set (complete) 10003685 10003353 100003354 10003696 Log - Front left BB11 BC11 BD12 Log - Front right BB12 BD14 Log - rear BB13 —...
- Page 36 BDVR Series Direct Vent Gas Fireplace BDVR (continued) (Items marked “*” are not shown) Ref.Description 33BDVR 36BDVR 39BDVR 43BDVR Fan speed control, (FK24 option) 51738 51738 51738 51738 Knob, fan speed control, (FK24 option) 51882 51882 51882 51882 Fan assembly, with bracket (FK12 option) ZA1110 ZA1110 ZA1110...
-
Page 37: Optional Accessories
BDVR Series Direct Vent Gas Fireplace Optional Accessories Available Fan Kits Thermal Sensor FK24 Fan Assembly This auxiliary fan system increases the efficiency of the circulation of the heated air. The FK24 fan kit allows variable speed control of the circulation fan and also incorporates a heat sensor in Valve the circuit. -
Page 38: Ceramic Refractory Lining
BDVR Series Direct Vent Gas Fireplace 6. Place the rear refractory panel in place. Locate the Wiring Instructions lower edge of the panel in the ledge formed by the top of the rear log support bracket. The fireplace, when installed, must be electrically connected and grounded in 7. -
Page 39: Bay Window Screen
BDVR Series Direct Vent Gas Fireplace Either remove the top and bottom brass window Top Louvre trims or take care not to scratch them during the installation of the screen kit. 1. Slide the tabs on the top edge of the window screen Window assembly up into the slots in the underside of the top Frame... -
Page 40: Warranty
LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic or Northern Flame brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY •... - Page 41 BDVR Series Direct Vent Gas Fireplace 10003357...
-
Page 42: Efficiency Ratings
Efficiency Ratings Model EnerGuide Ratings Steady State (%) D.O.E. Fireplace Efficiency (%) Fan-OFF Fan-ON (AFUE%) 33BDVRRN 48.4 33BDVRRP 48.4 33BDVREN 48.4 33BDVREP 48.4 36BDVRRN 48.9 36BDVRRP 48.9 36BDVREN 48.9 36BDVREP 48.9 39BDVRRN 56.5 39BDVRRP 56.5 39BDVREN 56.5 39BDVREP 56.5 43BDVRRN 52.9 43BDVRRP 52.9...
