Summary of Contents for Chauvet Ovation FD-165WW

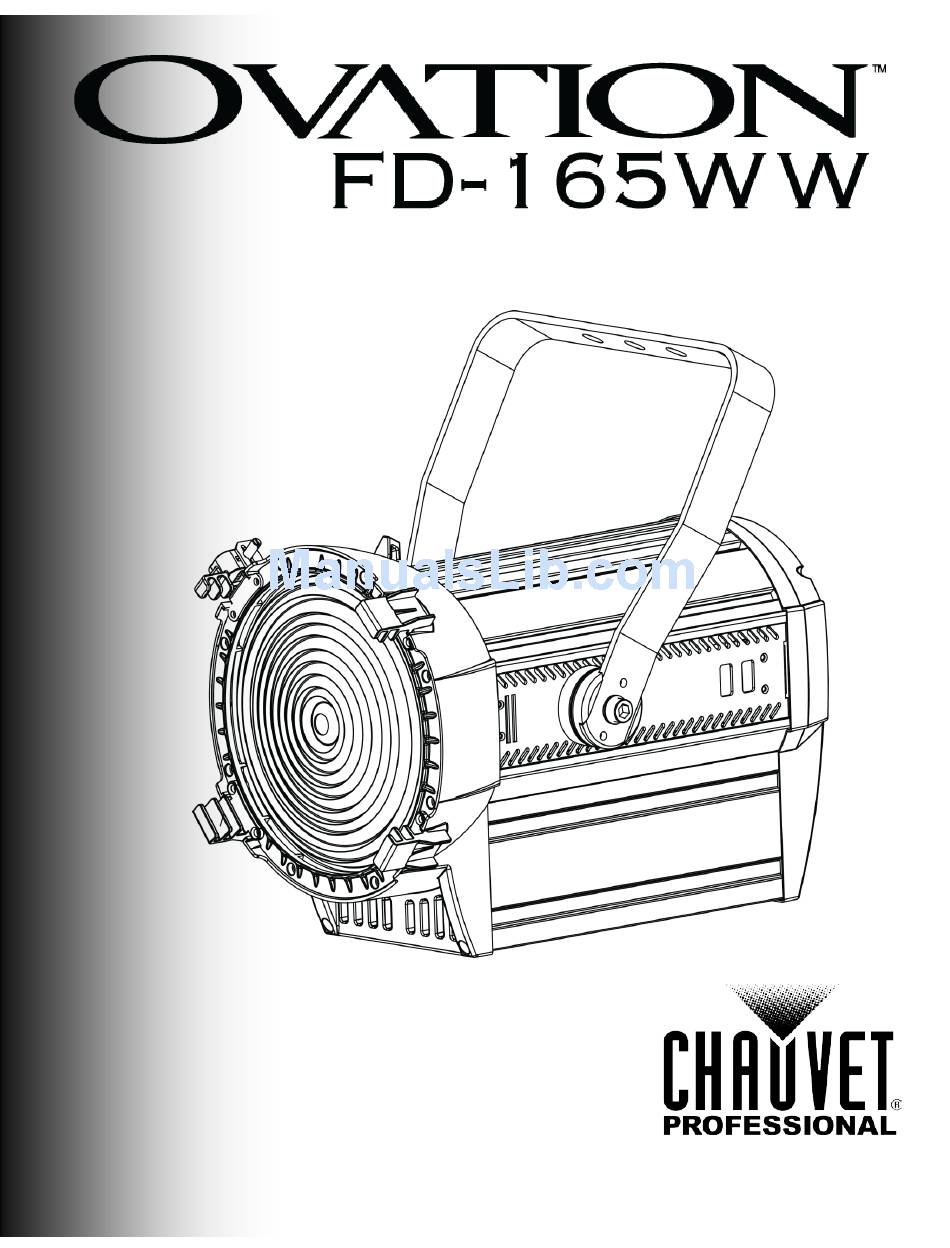

- Page 1 User Manual...
- Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2015 Chauvet. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging .................................. - Page 4 Table of Contents Zoom - Manual Control ................................15 Performance Power Output Options ............................15 5. Technical Information ..........................16 Product Maintenance ..............................16 6. Technical Specifications ......................... 17 Returns ..................................18 Contact Us ..............................19 -ii- OVATION™ FD-165WW User Manual Rev. 1...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Product At A Glance
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction
Introduction 2. I NTRODUCTION The OVATION™ FD-165WW Fresnel wash is a high-power LED based product utilizing data and Description power sensors that make it possible to run on both dimming power systems and constant power rigs. Advanced onboard electronics automatically detect what type of power and data the product receives and it responds accordingly. -
Page 8: Overview
Introduction Overview Gel Frame Holder Front View Side View Dimmer Adjustment Handle Knob Menu Buttons Zoom Voltage Switch Adjustment Knob powerCON® Output powerCON® Display Input Fuse Holder 3- and 5- 3- and 5-pin Rear View pin DMX In DMX Out OVATION™... -
Page 9: Dimensions
Introduction Dimensions 16.40 in 417 mm 9.45 in 240 mm 1.38 in 35 mm 10.3 in 9.37 in 261 mm 238 mm 11.18 in 284 mm 1.30 in 9.88 in 33 mm 251 mm OVATION™ FD-165WW User Manual Rev. 1... -
Page 10: Setup
The OVATION™ FD-165WW supports power linking. You can power link up to 5 products at Power Linking 120 V or up to 10 at 230 V. This product comes with a power input cord. Power linking cables are available from Chauvet for purchase. Fuse 1. -
Page 11: Dmx Linking
If you are not familiar with or need more information about DMX standards, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: http://www.chauvetlighting.com/download/. The OVATION™ FD-165WW may be plugged into and controlled using a regular dimmer. -
Page 12: Mounting
The yoke has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product where necessary. For our Chauvet line of mounting clamps, go to http://trusst.com/products/. -
Page 13: Operation
Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected <ENTER> value in to the current function Navigates upward through the menu list or increases the numeric <UP>... -
Page 14: Menu Map
Operation Menu Map Main Level Programming Levels Description Local control of output STAT 000–100 ZOOM Local control of zoom lens Sets the mode to DMX control SLAV Sets the mode to master/slave Sets the mode to dimmer control which turns DMMR off data input. -
Page 15: Menu Options (Cont.)
Operation Menu Options (Cont.) Main Level Programming Levels Description **** REST (Enter REST Resets fixture to factory defaults Passcode) PERS Selects DMX personality STD.P SLCK SET menu level access lock BLAK Blacks out fixture upon loss of DMX DERR Continues with last command upon loss of SAVE DMX control Sets default zoom position... -
Page 16: Dmx Values
Operation DMX Values Channel Function Value Percent/Setting Dimmer 000ó255 0–100% Channel Function Value Percent/Setting Dimmer 000ó255 0–100% Dimmer Fine 000ó255 Fine control (16-bit) STD.P Channel Function Value Percent/Setting Dimmer 000ó255 0–100% Dimmer Fine 000ó255 Fine control (16-bit) 000ó009 No function 010ó099 Strobe (slow to fast) 100ó109... -
Page 17: Dmx Personality
Operation DMX Personality Set the DMX personality as follows. 1. Go to the SET main level. 2. Select the PERS programming level. 3. Select the desired personality: UNO (1-channel), DOS (2-channel), or STD.P (3-channel). · See the DMX Control section for the highest starting address you can select for each personality. -
Page 18: Dimmer - Menu Control
Operation Dimmer - Menu To adjust the light output of the OVATION™ FD-165WW, select the dimmer setting as follows. Control 1. Go to the STAT main level. 2. Go to the DIM programming level. 3. Select the desired dimmer setting D.000–D.100 (0–100% light output). Manually adjust the light output by using the dimmer adjustment knob, as follows. -
Page 19: Reset
Operation Reset To reset the OVATION™ FD-165WW to the factory default settings, follow the instructions below. 1. Go to the SET main level. 2. Select the REST programming level and then the display becomes blank. 3. Enter the passcode as described in Passcode. After successfully entering the passcode, REST blinks on the display during the reset process. -
Page 20: Technical Information
Technical Information 5. T ECHNICAL NFORMATION To maintain optimum performance and minimize wear, you should clean this product frequently. Product Usage and environment are contributing factors in determining the cleaning frequency. Maintenance As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 21: Technical Specifications
Technical Specifications 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 11.18 in (284 mm) 16.4 in (417 mm) 10.3 in (261 mm) 14.6 lb (6.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection... -
Page 22: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label. -
Page 23: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free:(800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web www.chauvetlighting.co.uk...
