Motorola MBP421 Quick Start Manual

MODELS:
MBP421,
MBP421/2,
MBP421/3,
MBP421/4

QUICK START GUIDE

For a full explanation of all features and instructions, please refer to the User's Guide.

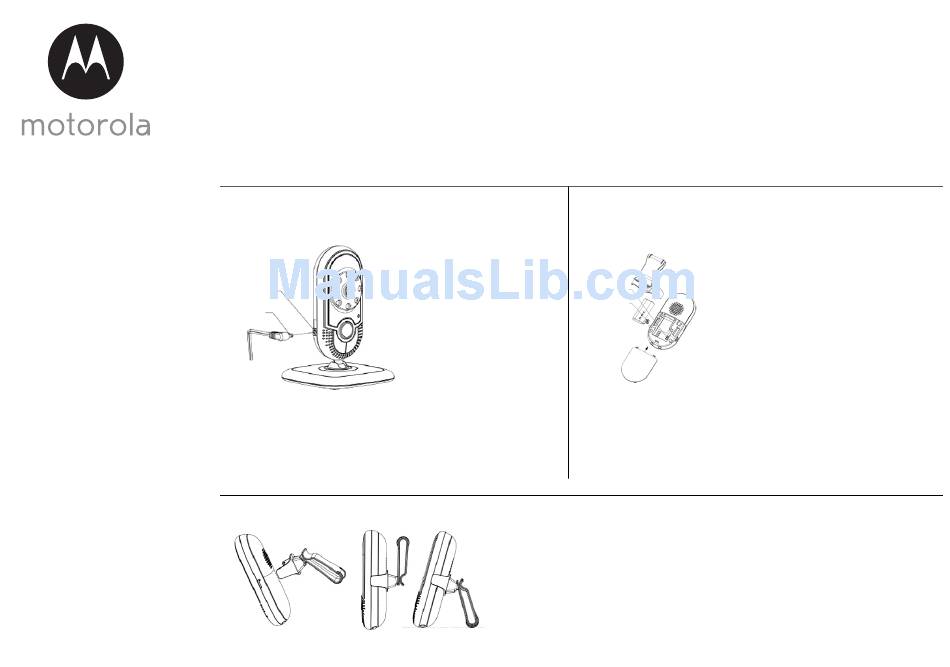

1. Setting up your Video Baby Monitor
A. Baby unit power supply
DC JACK
DC PLUG
C. Belt clip/stand on parent unit
Belt clip position
1. Insert the DC plug of the
power adapter with the
smaller DC plug into the
DC jack in the side of
Battery JACK
the baby unit, as shown.
Battery PLUG
2. Connect the other end
of the power adapter to
a suitable power outlet.
1. The belt clip/stand attaches to the back of the parent unit and clips into the locking
slots on each side.
NOTE
It will only fit one way, as indicated by UP and the arrows on the inside of the clip.
2. The unit comes with the accessory fitted in the belt clip position.
3. You can convert it into the stand mode, by simply pulling the back part of the clip out
slightly and then rotating it by half a turn, as shown in the diagram on the left.
Desktop position
B. Parent unit battery installation
A rechargeable battery pack is supplied and
should be fitted, so that the parent unit can be
moved without losing the link and picture from
the camera unit(s). Charge the parent unit
before you use it for the first time or when the
parent unit indicates that the battery is low.
1. Take off the belt clip/stand.
2. Slide off the battery compartment cover.
3. Insert the plug of the battery pack into the jack
inside the battery compartment, and fit the
battery pack into the compartment.
4. Replace the battery compartment cover and
reinstall the belt clip/stand.
5. Insert the DC plug of the power adapter with
the bigger DC plug into the DC jack in the
side of the parent unit.
6. Connect the other end of the power adapter
to a suitable power outlet.
7. The Charging Indicator comes on.
