Motorola MBP421 Quick Start Manual

MODELS:
MBP421,
MBP421/2,
MBP421/3,
MBP421/4
WARNING:
STRANGULATION HAZARD - Keep the
unit and adapter cord more than 1 metre
from the cot and out of the baby's reach.
NEVER place camera or cords within the
cot. Secure the cord more than 1 metre
away from the baby's reach.
Never use extension cords with AC
Adapters. Only use the AC Adapters
provided.

QUICK START GUIDE

For a full explanation of all features and instructions, please refer to the User's Guide.

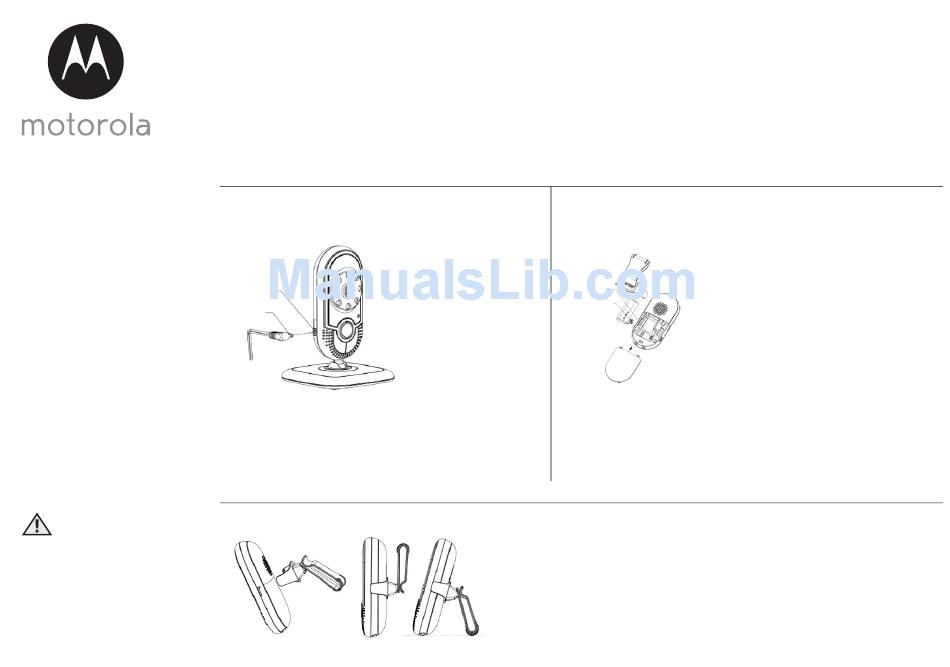

1. Setting up your Video Baby Monitor
A. Baby unit power supply
DC JACK
DC PLUG
C. Belt clip/stand on parent unit
Belt clip position
B. Parent unit battery installation
1. Insert the DC plug of the
power adapter with the
smaller DC plug into the
DC jack on the side of the
Battery JACK
baby unit, as shown.
Battery PLUG
2. Connect the other end of
the power adapter to a
suitable mains outlet.
3. Press and hold the Power
ON button to turn the
Baby Unit on. The Power
Indicator turns on steady
when it is linked with a
Parent Unit or flashes if it
has not linked with a
Parent Unit.
1. The belt clip/stand attaches to the back of the parent unit and clips into the locking
slots on each side.
NOTE
It will only fit one way, as indicated by UP and the arrows on the inside of the clip.
2. The unit comes with the accessory fitted in the belt clip position.
3. You can convert it into the desktop position, by simply pulling the back part of the clip
out slightly and then rotating it by half a turn, as shown in the diagram on the left.
Desktop position
A rechargeable battery pack is supplied and should be
fitted, so that the parent unit can be moved without losing
the link and picture from the baby unit(s). Charge the
parent unit before you use it for the first time or when the
parent unit indicates that the battery is low.
1. Detach the belt clip/stand.
2. Slide off the battery compartment cover.
3. Insert the plug of the battery pack into the jack
inside the battery compartment, and fit the battery
pack into the compartment.
4. Replace the battery compartment cover and
re-attach the belt clip/stand.
5. Insert the DC plug of the power adapter with the
bigger DC plug into the DC jack on the side of the
parent unit.
6. Connect the other end of the power adapter to a
suitable mains power.
7. The charging indicator comes on.
8. Press and hold the Power ON button to turn the Parent
Unit on. The screen shows the picture from a Baby Unit
and the Power Indicator turns on steady when it is
linked with a Baby Unit. The screen shows an out-of-
range symbol, the Power Indicator flashes and the unit
beeps if it has not linked with a Baby Unit.
