CA 110 Owners Manual
128-6530
1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Code Alarm CA 110

Summary of Contents for Code Alarm CA 110

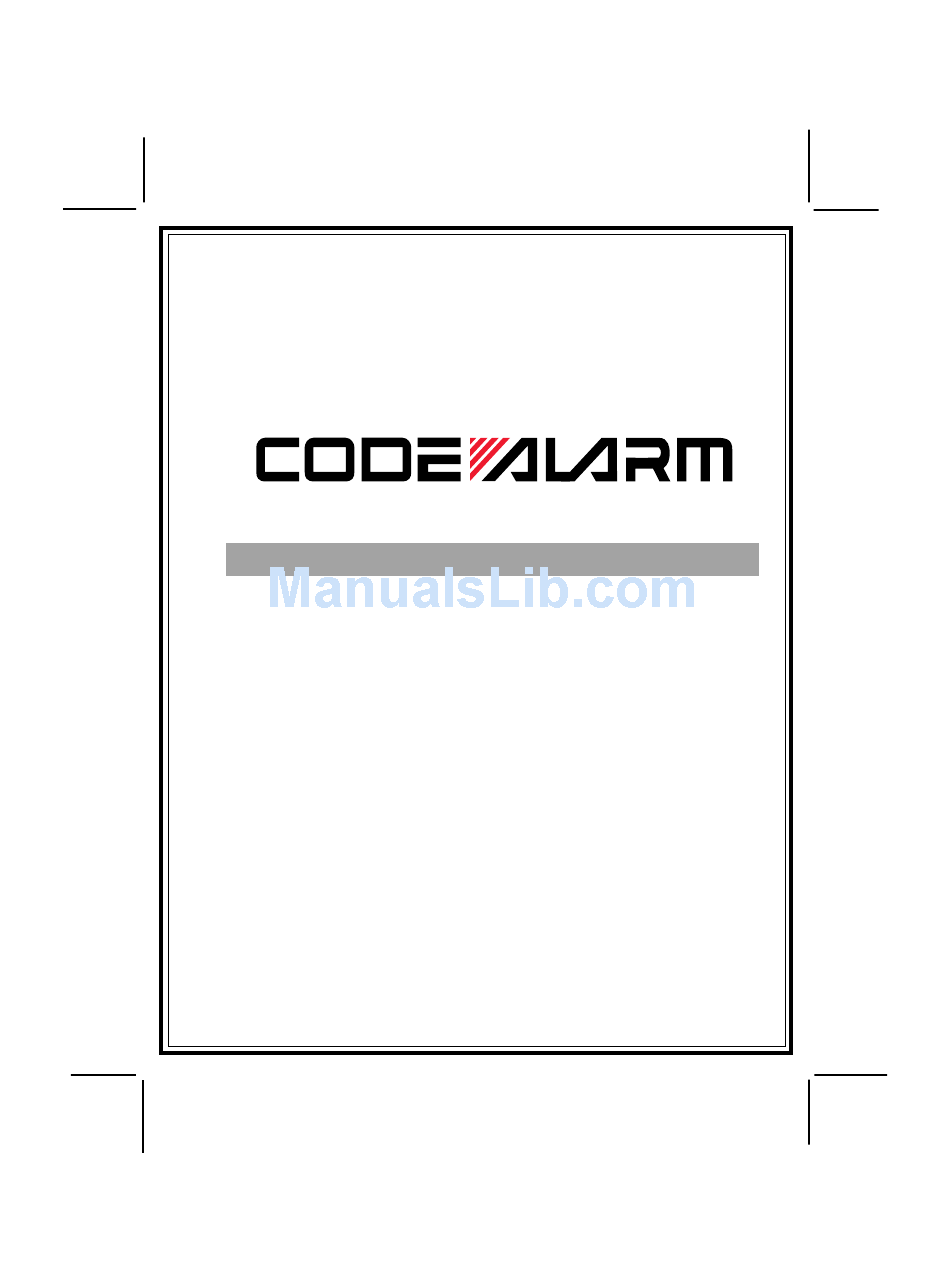

  • Page 1 CA 110 Owners Manual 128-6530 1 of 10...

  • Page 2: Arming The System

    Your System has many features and available options some of which are selected at time of installation. Consult your installing dealer for options that may have been installed and are not listed. ARMING THE SYSTEM: 1. Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk. 2.

  • Page 3: Protection While The System Is Armed

    ARMING THE SYSTEM: If the passive arming feature has been selected: Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk. The dash mounted LED will begin to flash rapidly indicating that the 30 second passive arming timer has begun. If the LED does not begin to flash rapidly, then you have left a door, hood, or trunk ajar.

  • Page 4: Disarming The System

    DISARMING THE SYSTEM: As you approach the vehicle, press and release the DISARM button on the keychain transmitter. The parking lights will flash 2 times, the siren will chirp 2 times, and the dash mounted LED will turn off. If you have the optional door lock/unlock circuit installed, the doors will unlock. NOTE: If the passive arming mode was selected at time of installation, the dash mounted LED will start flashing rapidly indicating that the system is rearming.

  • Page 5: Valet Switch

    parking lights will flash 3 times. Enter the vehicle and before turning on the ignition switch, observe the LED flash pattern. If the LED flashes 2 times...pause, 2 times...pause etc., then an intrusion attempt was made to open the hood, trunk, or by an accessory triggering device.

  • Page 6: Eliminating The Normal Arm/Disarm Chirps

    MANUALLY OVERRIDING YOUR SYSTEM: USING THE VALET SWITCH/ MANUAL OVERRIDE Your system can be disarmed without the use of the keychain transmitter. This is necessary, since you will need the ability to operate your vehicle if the transmitter is lost or its battery fails. To by-pass the alarm system; 1.
  • Page 7 ADDITIONAL REMOTE FUNCTION CHANNEL 3 The system has an optional feature, (Channel 3), that can be connected to the Trunk Release. To operate channel 3, press and hold the UNLOCK button of your keychain transmitter for four seconds. ANTI HI-JACK MODE OPERATION 1.
  • Page 8 CA-110 SYSTEM FUNCTIONS AT A GLANCE ALARM DASH LED INDICATORS RAPID FLASHING PASSIVE ARMING SLOW FLASHING ARMED DISARMED ON SOLID VALET MODE 5 FLASH...PAUSE INTRUSION ZONE 5 4 FLASH...PAUSE INTRUSION ZONE 4 3 FLASH...PAUSE INTRUSION ZONE 3 2 FLASH...PAUSE INTRUSION ZONE 2 ALARM SIREN CHIRP INDICATION 1 CHIRP* 2 CHIRPS*...
  • Page 9 Code Systems, Inc. Limited Lifetime Warranty A Code Systems Inc. (“CODE”) vehicle comfort, convenience and security system sold to a retail consumer purchaser by an authorized dealer of CODE and installed by an authorized dealer of CODE is warranted by CODE to the original retail consumer purchaser to be free from defects in workmanship and materials for the lifetime of the vehicle in which the system was originally installed.
  • Page 10 Code Systems, Inc. Limited Lifetime Warranty - Cont CODE shall not be held responsible for any removal and/or reinstallation charges of a defective system, damage to or theft of the vehicle or its contents, or any incidental or consequential damages caused by any failure of the system to function properly. Under no circumstances should this warranty, or system covered by it, be construed as an insurance policy against loss.
  • Page 11 Plan duration: 3 Years from the date of installation. Plan amount: Maximum allowable value equal to insurance deductible or up to $2,500 whichever is less. Conditions of the Theft Protection Program: The Theft Protection Program is non-transferable and non-assignable. The system must be installed by an authorized CODE dealer. Vehicle must be less than three (3) model years old at the time of installation.
