Summary of Contents for araknis AN-100-SW-R-5

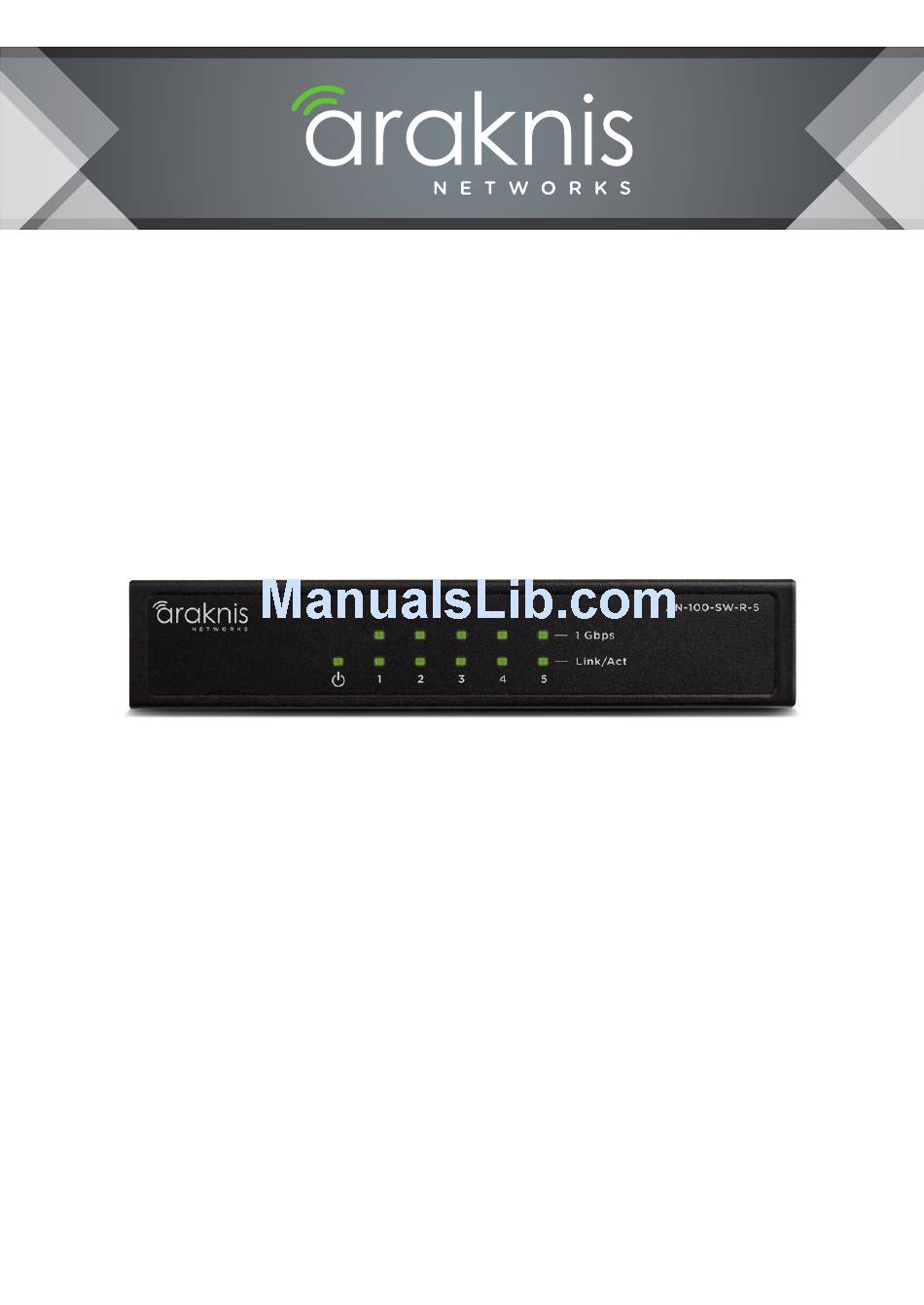

- Page 1 1 0 0 - S E R I E S 5 PO R T N ETWO RK SW ITCH Q U I CK S TA R T G UID E Unmanaged AV Rack Network Switches...
-
Page 2: About This Manual
About this Manual This manual was created to provide a reference for installers and end users of Araknis Networks products. It provides all known information regarding the installation, setup, use, and maintenance of the product. This manual was created expressly for electronic use, but has been formatted so that it may be printed and bound using either one-sided or front-and-back printing. - Page 3 Pro Tips Pro tips are included in sections of the manual to add information that provides extra value, utility, or ease-of-use for the installer or end user of the product. Pro tips may also link to extra information that will provide a better understanding of application, technology or use of the product or feature in question.
- Page 4 SFP Ports Power Supply AN-100-SW-R-5 External AN-100-SW-R-8 Internal AN-100-SW-R-16 Internal AN-100-SW-R-24 Internal Only the AN-100-SW-R-8, AN-100-SW-R-16, and AN-100-SW-R-24 port switches have been evaluated by UL. The AN-100-SW-R-5 port switch has not been evaluated by UL. © 2013 Araknis Networks ®...
-
Page 5: Package Contents
Package Contents AN-100-SW-5 Gigabit Ethernet Switch (1) DC Power Supply (1) Rubber Feet for flat surfaces (4) Mounting Kit (1) Quick Installation Guide (1) Screws (4) Wall Anchors (4) www.araknisnetworks.com | Support: 866.838.5052... -
Page 6: Recommended For Installation
• Rack screws- for rack installation • Drill and Drill Bit- for installation of wall-mount screws or anchors © 2013 Araknis Networks ®... -
Page 7: Wall Mounting
Wall Mounting Shelf Mounting Caution: Do not stack more than 4 switches together. Do not stack any other equipment on top of the network switch to avoid possible interference or damage. www.araknisnetworks.com | Support: 866.838.5052... -
Page 8: Front Panel Layout
10/100Mbps only Device connected at 1Gbps speed 2. Link/Act LED Indicator Behavior Description No device connected Blinking Device connected and traffic is running 3. Power LED Indicator Behavior Description Power is on Power is off © 2013 Araknis Networks ®... -
Page 9: Rear Panel Layout
Rear Panel Layout 1. Ethernet Ports (RJ45) Connect Ethernet network cables routed to equipment. Side Panel Layout 5V DC 2.5A 1. Power Jack Attach supplied power supply. www.araknisnetworks.com | Support: 866.838.5052... -
Page 10: Installation
Installation Internet (Modem) Router Araknis Switch AppleTV Printer/ Desktop IP Camera IP Surveillance Scanner Phone Powering the AN-100-SW-R-5 Switch 5V DC 2.5A Electrical Requirements Input Voltage (DC Only) 5V DC 2.5A © 2013 Araknis Networks ®... -
Page 11: Warranty
Warranty 2 Year Limited Warranty Araknis Networks products have a 2-Year Limited Warranty. This ® warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. - Page 12 © 2013 Araknis Networks ® 131008-1710...
