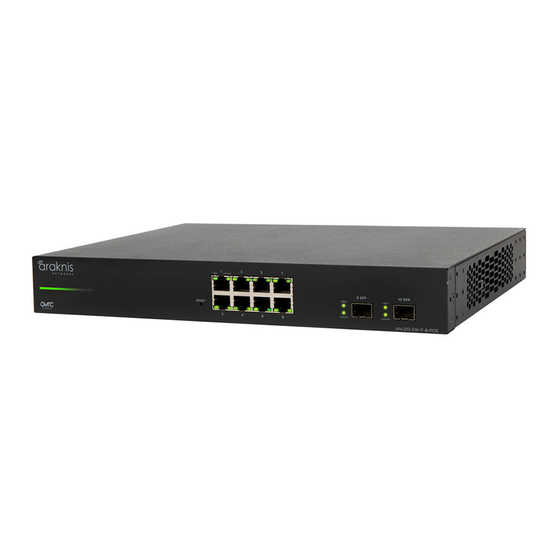

araknis AN-210-SW-F/R-8-POE Quick Start Manual
  1. Manuals
  2. Brands
  3. araknis Manuals
  4. Switch
  5. AN-210-SW-F/R-8-POE
  6. Quick start manual

araknis AN-210-SW-F/R-8-POE Quick Start Manual

Websmart
Hide thumbs
Table of Contents

Advertisement

Quick Links

AN-210-SW-F/R-8-POE
AN-210-SW-F/R-16-POE
AN-210-SW-F/R-24-POE
210 SERIES WEBSMART NETWORK SWITCHES
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-210-SW-F/R-8-POE and is the answer not in the manual?

Questions and answers

Related Manuals for araknis AN-210-SW-F/R-8-POE

Summary of Contents for araknis AN-210-SW-F/R-8-POE

  • Page 1 210 SERIES WEBSMART NETWORK SWITCHES Quick Start Guide AN-210-SW-F/R-8-POE AN-210-SW-F/R-16-POE AN-210-SW-F/R-24-POE...

  • Page 3: Fcc Warning

    Araknis Networks 210 Series Websmart Network Switches Quick Start Guide FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to...
  • Page 4 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide CE Warning This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 5: Welcome To Araknis Networks

    Welcome to Araknis Networks™ Thank you for choosing an Araknis 210-series Network Switch. With Gigabit connectivity on all ports, updated modern aesthetics, and a managed interface, the Araknis 210-series switch is a sleek and highly capable addition to any network.
  • Page 6 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 1: Unbox Switch (1) Rubber Feet for Flat Rack-Mount Kit: Quick Start Guide Surfaces (4) Ears (2), Screws (8) AC Power Cord...

  • Page 7: Rack Mount

    Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 2: Install Rack Mount Wall Mount Shelf Mount NOTE: Do not stack other equipment on top of the switch to avoid possible interference or damage. NOTE: Mounting is the same for models with both front- and rear-facing ports.
  • Page 8 Link/Act 10 SFP Switch Wall Outlet Computer NOTE: Connect SFP ports using Araknis SFP adapters for RJ45 or multi-mode fiber cables. SFP adapters sold separately. NOTE: AN-210-SW-R-8-POE shown. Connection is the same for models with both front- and rear-facing ports.

  • Page 9: Step 4: Poe Budget

    Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 4: PoE Budget The power budget for delivering Power over Ethernet limits the total number of watts available between all of the ports (limited to 30w total consumption on each port). Add the total number of watts consumed by all connected PoE devices to ensure that every thing can be powered, as illustrated in the example below.
  • Page 10 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 5: Verify 9F 10F 1 Gbps Link/Act AN-210-SW-R-8-POE AN-210-SW-R-8-POE AN-210-SW-F-8-POE Power LED – On: system is up. Off: system is down. 1Gbps LED – On: port connected at 1000Mbps speed.
  • Page 11 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 6: Connect Device to OvrC Account OvrC provides remote firmware upgrades, real-time notifications, and intuitive customer management, right from your computer or mobile device. Setup is plug-and-play, with no port forwarding or DDNS address required. To add this device to your OvrC account: Connect the switch to the network (Internet access required).
  • Page 12 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Step 7: Log into Web Interface In the OvrC interface, find the Open a web browser and enter Log in to the interface using the IP address of the switch in the...
  • Page 13 Use a network scanner (e.g. Fing) to sniff the network. The switch manufacturer field will display “Araknis”. See the highlighted field in the Fing screenshot to the right for an example of an Araknis device being identified. © 2016 Araknis Networks®...
  • Page 14 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Other Access Methods: Default IP Address If the switch is not issued an IP address on the network, or needs to be accessed while not connected to a network, you can configure your computer's network connection to allow access using the default IP address, “192.168.20.254”.
  • Page 15 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Other Access Methods: Default IP Address Cont'd Windows 7 screenshots shown for reference. In the left bar, left-click “Change Right-click the icon for the Left-click to highlight “Internet adapter settings”.
  • Page 16 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Other Access Methods: Default IP Address Cont'd Windows 7 screenshots shown for reference. In the “General” tab, left-click Left-click “OK” to close Internet Open a web browser and "Use the following IP address:"...
  • Page 17 Araknis Networks 210 Series Websmart Network Switches Quick Start Guide Pro Tip: Rebooting the Switch 1 Gbps Link/Act 1 Gbps RESET Link/Act 9 SFP 10 SFP AN-210-SW-R-8-POE AN-210-SW-F-8-POE Reboot – Press and hold the RESET button on the back of the switch for 5 seconds, then release.

  • Page 20: Year Limited Warranty

    2-Year Limited Warranty Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled.

This manual is also suitable for:

An-210-sw-f/r-24-poeAn-210-sw-f/r-16-poe
