Hi Sharp HS-ML22M1 User Manual

Mouse control lcd monitor for cctv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing our product.
Please read this User's Manual before
using the product. Change without notice
22"
Mouse Control LCD Monitor
22'' LCD Monitor

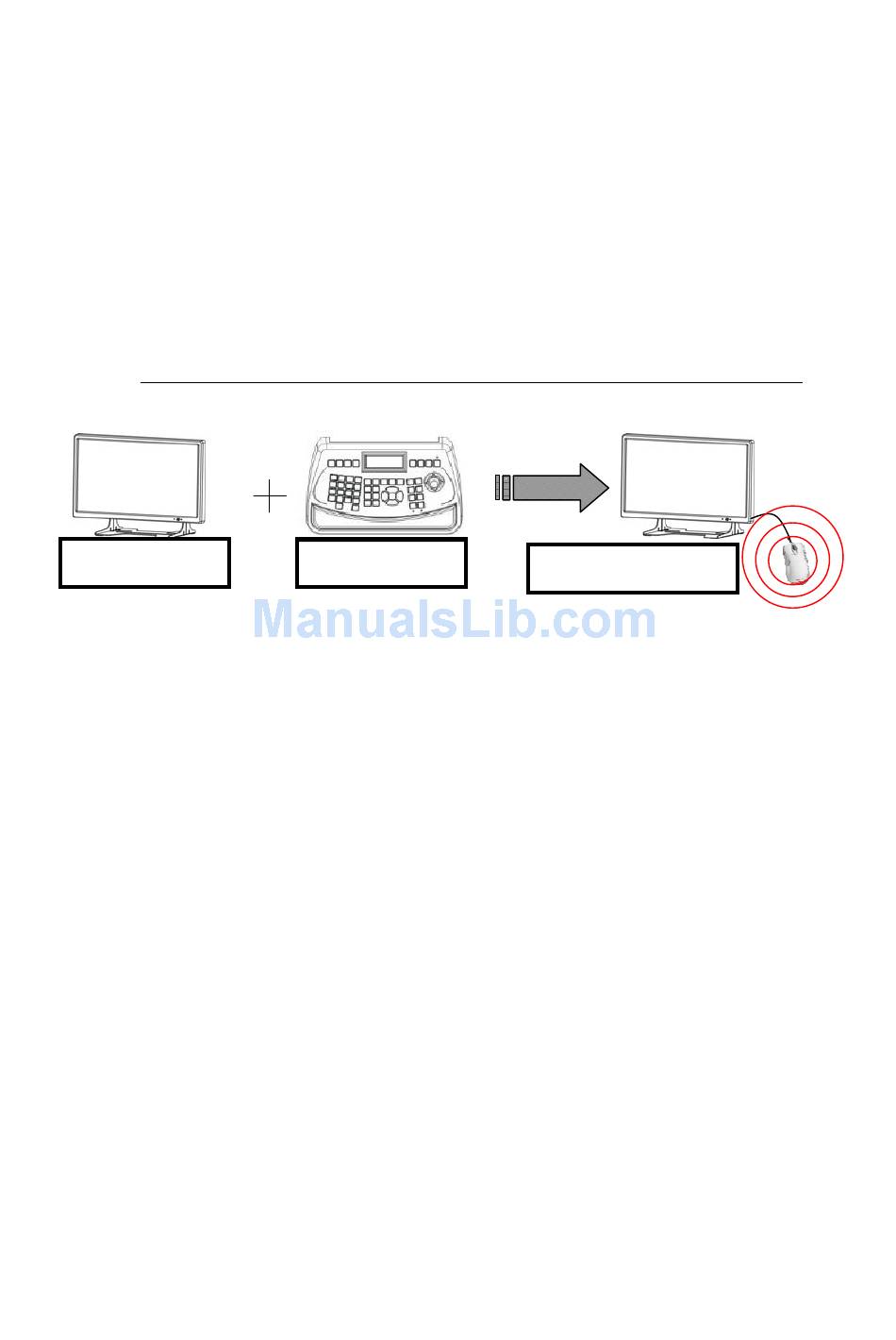

This Powerful equipment provides the GUI to direct control the speed dome, DVR, and
matrix functions, therefore the Mouse control monitor will act as a control center to remote
control all of your devices in CCTV system, just by an unsophisticated USB mouse and friendly
GUI operation!
Keyboard
for CCTV
User's Manual
Mouse control monitor
Accessories
(a) Power cord
(b) Adapter
(c) User Manual
(d) Bracket
(e) Remote controller
(f) RS-485 cable
(g) USB extension cord x1
(h) USB optical mouse
x1
x1
x1
x1
x1
x1
x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-ML22M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Hi Sharp HS-ML22M1

Summary of Contents for Hi Sharp HS-ML22M1

  • Page 1 Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without notice 22” Mouse Control LCD Monitor for CCTV User’s Manual 22’’ LCD Monitor Keyboard Mouse control monitor This Powerful equipment provides the GUI to direct control the speed dome, DVR, and matrix functions, therefore the Mouse control monitor will act as a control center to remote control all of your devices in CCTV system, just by an unsophisticated USB mouse and friendly GUI operation!

  • Page 2: Warning

    WARNING: PRECAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in...
  • Page 3 6. Foreign Material – Extremely caution should be taken so that the objects do not fall into the unit. 7. Surface – Place the unit on a flat, level surface or the unit may fall causing serious damages to the unit. 8.

  • Page 4: Table Of Contents

    Contents Warning…………………………………………………………………………………………………2 Contents………………………………………………………………………………………………4 Features……………………………………………………….…………………………………...5 1. Key definition & Indication…………………………………………………………………………6 1-1. Keypad definition…………………………………………………………………………6 1-2. Indication…………………………………………………………………………………6 1-2-1. LED indicator………………………………………………………………………6 1-2-2. Sound indication…………………………………………………………………6 1-3. IR remote controller definition……………………………………………………………7 1-4. OSD message description…………………………………………………………………8 2. Mouse button definition…………………………………………………………………………9 3. Connector definition……………………………………………………………………………….10 4. Control mode - Remote control wiring allocations…………………………………………….11 4-1.

  • Page 5: Features

    Features Control center for CCTV system Provides the USB mouse control interface Support video system NTSC / PAL Graphic User Interface (GUI) Light sensor for save power and automatic to adjust the Monitor luminance 22” wide with ratio 16:10 VESA Mount at central area of display 2CH CVBS in/out 75 ohms Auto Termination 1CH S-Video in...

  • Page 6: Key Definition & Indication

    1. Keypad definition & Indication 1-1. Keypad definition Function Name Symbol Power ON/OFF Use this button to turn the LCD power on and off when the main power is supplied. 1 Power Button Push this button to displays the main OSD menu. 2 Menu Button Menu Push this button to go back last OSD control level (refer section of OSD control...

  • Page 7: Ir Remote Controller Definition

    1-3. IR remote controller definition Function Name PIP Mode Setup the PIP mode for Off/ small pip / large pip/ POP POWER Use this button to turn the power on and off when the main power is supplied. PIP-ZOOM Use this button to adjust the PIP window size. PIP-SOURCE Use this button to select the PIP source input.

  • Page 8: Osd Message Description

    1-4. OSD message description Confirm OSD No Signal input OSD CDS Power off OSD Going to sleeping mode OSD VGA auto adjusting OSD Signal out of range OSD Volume adjustment OSD...

  • Page 9: Mouse Button Definition

    2. Mouse button definition Mouse button & control behavior explication. Main Button (Left or Right defines by user) to decide the command execution. Second Button(Left or Right defines by user) to pop-up the main choice OSD menu(Root Menu) Scroll up: Zoom in for speed dome control To increase the value of the selected item within the OSD area while the OSD appears.

  • Page 10: Connector Definition

    3. Connector definition ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ VGA input DVI (DVI-D) input PC audio in VIDEO1 Video 1 input Out: Video 1 loop output S-VIDEO: Y/C input Audio: Audio 1 input VIDEO2 Video 2 input Out: Video 2 loop output Audio: Audio 2 input...

  • Page 11: Control Mode - Remote Control Wiring Allocations

    4. Control mode – Remote control wiring configuration 4-1. DVR mode Software setup： a. LCD Setting menu ->Advanced page-> Ctrl mode DVR b. LCD Setting menu ->Advanced page c. DVR setting ： How many Channel numbers does your DVR1/DVR2 have? Zero represent means that you don’t have DVR device.

  • Page 12: Matrix Mode

    Pin 1 RS-485(RJ-11) pin define: 3 + / 2– Notice: Please follows the above installation to avoid system control error. 4-2. MATRIX mode LCD Setting menu ->Advanced page-> Ctrl mode Matrix. Matrix could connect Monitor up to 8, P/T/Z Dome up to 256, DVR up to 16. Multi-user can view and control each camera (P/T/Z Dome)、DVR via each monitor at different place.

  • Page 13: Osd Illustration

    5. OSD illustration 5-1. Catalog of GUI symbol guidance 5-1-1. Root menu a. DVR Mode b. Matrix Mode 5-1-2. LCD menu a. Adjustment page b. Advanced page...

  • Page 14: Camera Menu

    5-1-3. Camera menu DVR name ： DVR1 or DVR2 has been chose now. CAM ID ：Camera 1~32 corresponds with DVR channel capacity. Status board：Left site is show command explanation. Right site is show key-in number by virtual keyboard. 5-1-4. DVR1 & DVR2 with CAM ID mapping table DVR 1 Ch# 0 Ch 4 Ch...

  • Page 15: Dvr Menu

    5-1-5. DVR Menu a. HS_TYPE A b. HS_TYPE B c. HS_TYPE C Model Appearance Remark Protocol HS – TYP A HS – TYP B HS – TYP C...

  • Page 16: Matrix Menu

    5-1-6. Matrix Menu DVR Control Block Speed Dome Control Block Matrix Control Block Virtual Keypad Block 5-2. OSD control tree Block Level 1 Level 2 English/ Chinese Language Video Brightness Adjustment Setting Contrast Adjustment Saturation Adjustment Tint Adjustment Sharpness Adjustment H.
  • Page 17 Balance Adjustment Mute On/Off Mode Off / Small / Large / Side by Side Setting Source AV1/ AV2 / S-Video / VGA / DVI Position Top-Left / Top-Right / Bottom-Left / Bottom-Right Sequential Time 0 ~ 120 Swap(Button) Auto Detection On/Off Power On Source Off/ AV1 / AV2 / S-Video / VGA/...

  • Page 18: Osd Illustration Table

    5-3. OSD illustration table Icon Name Range/ Default Notice 1. Root Menu Setting Wizard Enter the Setting Wizard Menu LCD Setting Enter the LCD Setting Menu CAM Setting Enter the Camera Setting Menu DVR Setting Enter the DVR Setting Menu Matrix Setting Enter the Matrix Setting Menu 2.
  • Page 19 Treble 0~14/10 Adjust treble value Bass 0~14/10 Adjust bass value Balance -10~10/0 Adjust balance value Picture in Picture mode： PIP Mode 4 types/OFF Off/Smal-PIPl/Large-PIP/POP PIP source select： PIP Source 5 types/AV2 AV1/AV2/S-Video/VGA/DVI PIP position select： PIP Position 4 types/ Bottom-R Top-Left / Top-Right / Bottom-Left / Bottom-Right PIP Sequential...
  • Page 20 environment laminates now is enough to power on or not. If you want to deactivate this function immediately, just press “POWER” key. CDS Power Off 0~100/10 Adjust CDS level to turn off the Level monitor power states. The smart setting will indicate there environment laminates now is enough to power off or not.
  • Page 21 Zoom Zoom in/out Play Playback Stop Stop Record Record Freeze Freeze Screen Sequential Screen jump by timing control Menu Entry Menu function Rewind Fast-Forward Alarm Entry Alarm menu Set up Entry Setup menu Backup Entry Backup menu Spot Entry Spot Monitor setting menu Step >...
  • Page 22 Entry the Select function Audio Entry Audio setting menu Step + in playback mode ＋ Step – in playback mode － Speed Dome Zoom in Execute zoom in function Zoom Out Execute zoom out function Focus Far Execute focus far function PS.
  • Page 23 instruction to setting fast. Focus Speed Execute focus speed function PS. If it doesn’t work, please check your device is support. Zoom Speed Execute zoom speed function PS. If it doesn’t work, please check your device is support. Matrix Camera Call which speed dome(camera) number you want to control Call which DVR number you want...
  • Page 24 Right Right command in operation menu Common Icon Close Close current page or menu Hand Select function is available Busy System busy and wait a moment. Mouse Indicate where you are. PT center Indicate Pan/Tile function is available.

  • Page 25: Ptz Control - Dvr / Matrix Mode

    6. PTZ control - DVR / Matrix mode 6-1. Software setup Step1. Make sure your setting is correct. Check Connecting & Wiring are all set again !! a. LCD Setting menu Ctrl mode DVR, when you have no Matrix. Ctrl mode Matrix, when you have a Matrix. b.

  • Page 26: Step By Step

    6-2 Step by step: Select Camera (must to do it first): Dial the camera ID number by virtual key click the mouse main button on the Camera Select icon display the camera number on the information window, if control mode set to DVR mode that should be displayed the DVR information.
  • Page 27 pan control and then release the button to deactivate it Tilt: Push the mouse main button on up/down icon to activate the tilt control and then release the button to deactivate it Camera menu: Click the Menu icon to enter camera OSD. Notice：...

  • Page 28: Dvr Control - Dvr / Matrix Mode

    7. DVR control - DVR / Matrix mode 7-1. Software setup Step1. Make sure your setting is correct. Check Connecting & Wiring are all set again !! a. LCD Setting menu Ctrl mode DVR, when you have no Matrix. Ctrl mode Matrix, when you have a Matrix. b.

  • Page 29: Step By Step

    7-2. Step by step: Common Functions: Select DVR(must to do it first): Dial the DVR ID number by the virtual key click the mouse main button on DVR1/DVR2 icon (if direct to select DVR1/DVR2, that will be set last selected DVR ID number). And then changes the source input port to match the DVR routing Split screen: Click the mouse main button on the 4P/ 9P/ 16P icon to activate the split screen dependent on the number of...
  • Page 30 SEQ icon to enable the sequential display and click it to disable the sequential display HS_TYP B POP: click the mouse main button on the POP icon Time Search: Click the mouse main button on the Time Search icon (DVR Pop up Menu) control it by the Virtual Keyboard FUNC: click the mouse main button on the FUNC icon...

  • Page 31: Matrix Control Mode-Matrix Mode

    8. Monitor control mode - Matrix mode Step1. Make sure your setting is correct. Check Connecting & Wiring are all set again !! a. LCD Setting menu Ctrl mode Must be setup in Matrix mode. b. Protocol(Port2) is Hisharp/Others ? Model recognition is automatically, if unknown protocol will appear common block function only.

  • Page 32: Specification

    9. Specification Model 22” USB Mouse Control LCD Monitor Panel Specification LCD Panel 22” Resolution(H x V) 1680(H) x 1050(V) WSXGA+ Active Area(mm) 697.685(H) x 392.256(V) Display Ratio 16:10 Display Color 16.7M Contrast Ratio(CR) 1000:1(TYP＊) Luminous 300cd/m (TYP＊) Response Time 5ms(TYP＊) / 8ms(Max) View Angle H/V(CR=10) 170°(H) / 160°(V)

  • Page 33: Trouble Shooting

    10. Trouble shooting Before calling a service technician, please check the following table for a possible cause of the problem and some solution. Symptom Solution Monitor Monitor can not turn on ● Make sure the power cord is plugged in, then press POWER button. No picture, no sound ●...
  • Page 34 ● Check Baud rate setting, Mouse control monitor and device should be the same both. ● Check DVR ID setting (RS-485), its DVR ID should be the same as Mouse control monitor setting. ● Check DVR name setting (with Mouse control monitor), its DVR number corresponding with Mouse control monitor video input channel.

  • Page 35: Quick System Start

    11. Quick start Step 1. Hardware classify 1-1. Single Speed dome and DVR P/T/Z Speed Dome Video Video RS-485 RS-485 Port 1 Port 2 PTZ dome video out DVR video in Mouse Control LCD PTZ dome RS-485 Mouse control monitor RS-485 Port1 Monitor DVR video out Mouse control monitor AV1 in...
  • Page 36 RS-485 Port2 DVR2 video out Mouse control monitor AV2 in DVR2 RS-485 twist together with DVR1 Mouse control monitor RS-485 Port2 Step 2. Software setting 2.1 Mouse control monitor Setting Setting could be easily & quickly by this “Setting Wizard” menu, please follow step flow to complete your setting.
  • Page 37 2.2 DVR setting Make sure your DVR1/2 have setting done as follows. Protocol is HS-TYP A , HS-TYP B , HS-TYP C or others? b. Baud Rate is 9600 bps or others? RS-485 control ID 2.3 Speed dome Make sure your speed dome have setting done as follows. Protocol is Pelco-P or others? Baud Rate is 9600 bps or others? RS-485 control ID...
  • Page 38 2.5 OSD illustration a. DVR DVR function Icon Mode Notice Channel Full Screen/ Channel Selection Select 4Ch Split Screen 9Ch Split Screen 16Ch 16Ch Split Screen Zoom Zoom in/out Play Playback Stop Stop Record Record Freeze Freeze Screen Sequential Screen jump by timing control Menu Entry Menu function Rewind...
  • Page 39 Step > Step + in playback mode Step < Step – in playback mode Enable Picture On Picture mode Time Entry Time Search menu Search FUNC Entry Function menu Entry Picture in Picture menu Entry the Select function Audio Entry Audio setting menu Step + in playback mode ＋...
  • Page 40 Call Call Preset point to locate your interested area Clear Clear Preset point Menu Entry Menu function User 1 Type your command then click this button, it will remember your instruction to setting fast. User 2 Type your command then click this button, it will remember your instruction to setting fast.
