Summary of Contents for Hi Sharp HS-ML3700

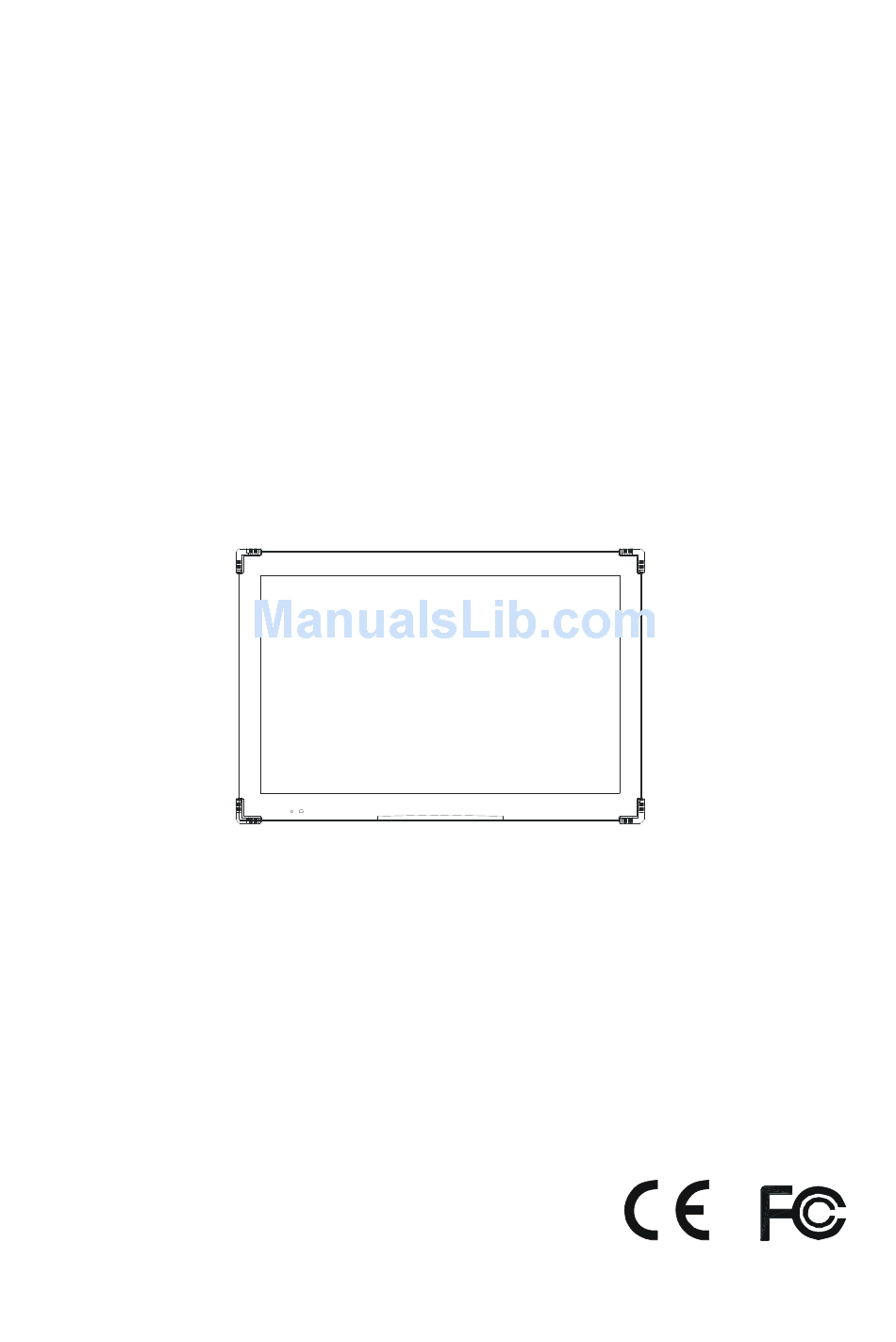

- Page 1 Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice 37-INCH TFT-LCD MONITOR INSTRUCTION MANUAL...
-
Page 2: Warning
Warning TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Information
Important Information IMPORTANT SAFEGUARDS 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. -
Page 4: Safety Precautions
Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Table of contents Warning……….………………………………………………………………….. 2 Important Information…………………………………………………………… 3 Safety Precautions……….……………………………………………………. Table Of Contents……………………………………………………………….. 5 Features……….…….…………………………………………………………… 6 Operating Instructions-Controls……………………………………………….. 7 Top Side…………………………………………………………………………… 8 Side Connections…..….………………………………………………………… 9 Remote Control………………………………………………………………….. 10 OSD Architecture………………………………………………………………… 12 A. General Setup………………………………………………………………. 12 B. Video Setup…………………………………………………………………. 13 C. VGA Setup..………………………………………………………………… 14 D. -
Page 6: Features
Features 37-inch LCD monitor with multiple inputs (Composite video, Y/C (S-Video) (SVHS) and D-sub computer) High brightness of 500 cd/㎡ High contrast of 1500 :1 Wide viewing angle of 160 degrees, both vertically and horizontally Fast LCD response time of 6.5ms, allowing excellent rendering of motion Latching power supply automatically restores power after interruption or remote switching Control button lock-out using the OSD, to minimize tampering in public view applications Remote control for... -
Page 7: Operating Instructions-Controls
Operating Instructions-Control Front Side Monitor power ON / OFF indicator. When OFF, monitor is in standby status. Green Light – Power On Red Light – Power Off Receiver Remote control IR sensor. -
Page 8: Top Side
Operating Instructions-Control Top Side EXT- 1 Support Card Reader for advertising purpose. EXT - 2 Support second Card Reader for advertising purpose. Power Turn ON / OFF monitor. When OFF, monitor is in standby status. Adjust - UP Increase value or turn ON/OFF function. Adjust - DOWN Decrease value or turn ON/OFF function. -
Page 9: Side Connections
Side Connections A. SIDE PANEL CONTROL 1, 3 AUDIO-2 IN (L, R) Stereo Audio Signal Input, this input is for AV2 or 2, 4 AUDIO-1 IN (L, R) Stereo Audio Signal Input, this input is for AV1, S-Video or PC IN S-Video IN Y/C separated signal input AUX OUT... -
Page 10: Remote Control
Remote Control Key Function Turn ON / OFF monitor. In the POWER: OFF mode, the monitor will be in standby status. PIP / POP SWAP: PIP/POP display switch Zoom Screen PIP/ ZOOM: PIP/POP SOURCE: Select PIP/POP display To disable audio. MUTE: Decrease audio volume. - Page 11 Remote Control MULTIMEDIA PLAYER The button to change transition effects. EFFECT: The button to enter the main menu. SETUP: The button to start the slide show. SLIDE SHOW: The button to change dwell time between slides. SLIDE TIME: ◄ Left: The button to select a different sub menu ►...
-
Page 12: Osd Architecture
OSD Architecture A. General Setup Auto So urce Detect OSD La ngu ag e None Power ON Control Key Lo ck Power Memo rize Channe l Display CCD Mo de Defau lt The monitor will auto detect the video source when powered ON. Auto Source Detect : Multi-Language selection in English, French and Spanish. -
Page 13: Video Setup
B. Video Function 9 300 Adjusts the overall picture black levels. Brightness : Tip: Use the Brightness to make details in the dark areas of the picture to be just visible, and Contrast to “brighten” the picture without causing noises and foreheads to turn white. Permits adjustment of contrast between light and dark areas of the Contrast : picture. -
Page 14: Vga Setup
C. VGA Setup (Note: VGA Setup is only available in VGA mode when a VGA signal is provided) Auto Brightness Contr ast Color Tempera tur e 9300 H-Pos ition V-Pos ition Clock Phase Defau lt Auto detects screen detail data such as clock and phase. Auto : Adjusts the overall picture shade and brightness. -
Page 15: Audio Setup
D. Audio Setup Volume : Controls built-in speaker’s output volume. Note: Volume control can also be adjusted by hot key. Audio high frequency adjustment. Treble : Audio low frequency adjustment. Bass Controls built-in speakers LEFT / RIGHT volume balance. Balance : To disable the audio function. -
Page 16: Pip Setup
E. PIP Setup Mu lti-m o de PIP/POP Source -Wi ndow Size -H-P ositio n -V-P o sition SWAP 10~100 Switch ing Switch Time No.1 Audio S our ce Selection of PIP Multi-Mode: Select PIP/POP display PIP/POP Source : The selection of PIP window size in 1/4, 1/3,1/2 and side by side. PIP Window Size : Control the PIP window position horizontal position. -
Page 17: Lcd Monitor Mounting Guide
LCD monitor Mounting Guide Wall Mountable Using the 326 mm pre-cut keyholes. Note : It’s highly suggested to use provided accessories to mount the LCD onto a cement wall to ensure safety. VESA bracket Using VESA standard Pole/wall mount design and the 100mm hole pattern on the back panel to install the LCD monitor to the wall. -
Page 18: Specification
Specifications LCD Panel 37 inch” TFT, TN Mode Display Mode 3D De-interlace Input Filter 3D Comb filter Resolution 1366 x 768 Brightness 500 cd/m Contrast ratio 1500:1 Response Time 6.5ms typ. 85(left), 85(right) CR=5 View Angle 85(up), 85(down) CR=5 BNCx3 in BNC x 3 out (Auto Termination) Input Signal D-Sub 15pin... -
Page 19: Appendixes
Appendixes A. TROUBLE SHOOTING Problem: 1.No power 2.No video or audio 3.Bad video or audio 4.Image not stable 5.Ab-normal line 6.Ghost image 7.Desired video disappears CHECK: Power-cord connected? Power ON? Change to right input channel? Check signal cable? Any interrupt from other devices? Adjust video control on OSD? Adjust video source? Package List... -
Page 20: Dimension
Dimension...
