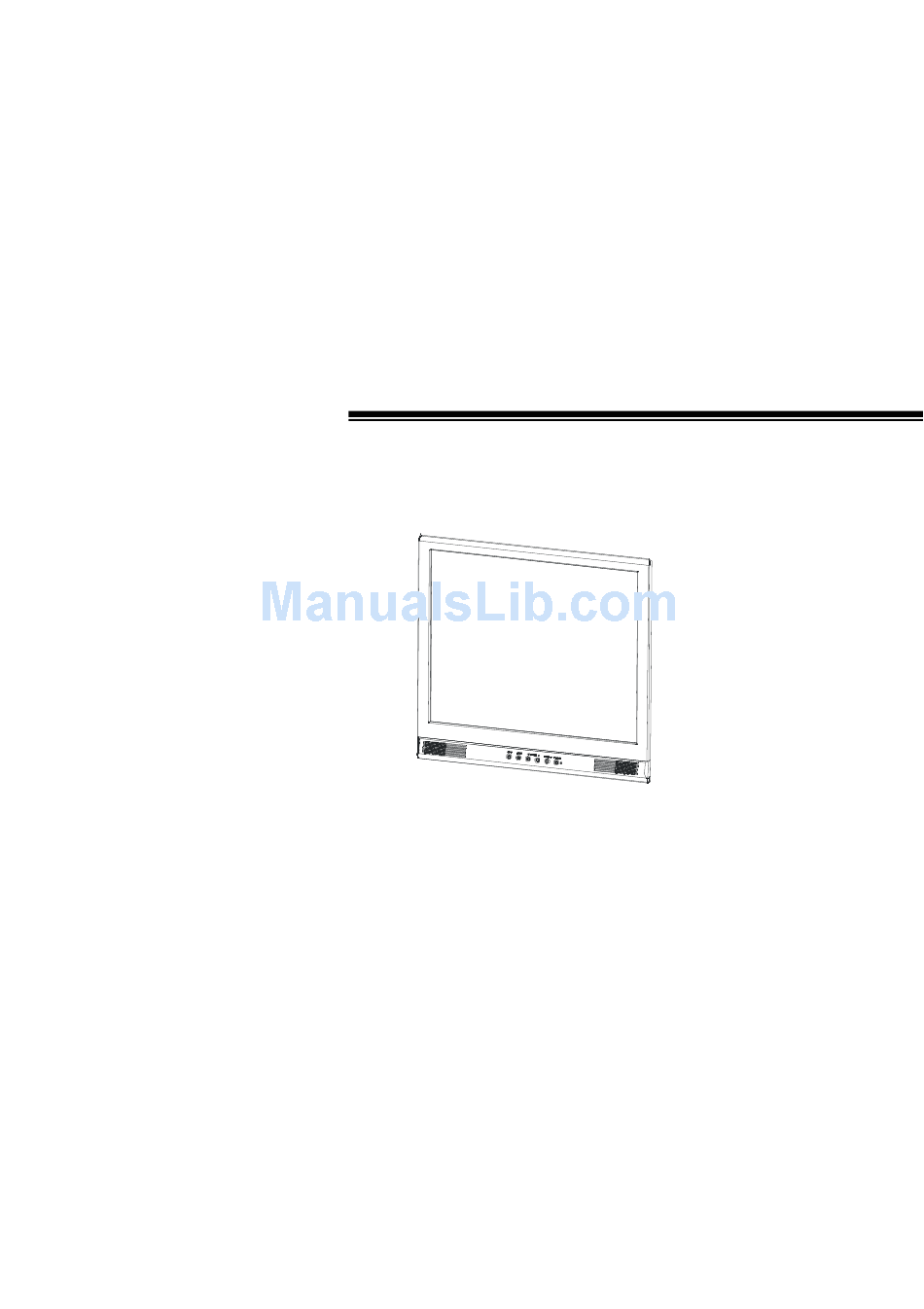

Page 1: User Manual
Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without notice 15” 17” 19” TFT LCD MONITOR USER MANUAL... -
Page 2: Warning
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended.to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Information
Important Information IMPORTANT SAFEGUARDS 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. -
Page 4: Safety Precautions
Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Table of Contents Warning…………………………………………………………………………………………………… 2 Important Information…………………………………………………………………………………… 3 Safety Precautions……………………………………………………………………………………….. 4 Table of Contents………………………………………………………………………………………… 5 Components………………………………………………………….. …………………………………. 5 Feature……………………………………………………………………………………………………. 6 Exploring Your New Moniror…………………………………………………………………………….. 7 Backside Connections…….………………………………………………………………………….…. 8 Selecting a Location for the Monitor…………………………………………………………………… 8 Connecting your Monitor………………………………………………………………………………… 9 Connecting Device………………………………………………………………………………………. 10 Setup your Monitor……………………………………………………………………..………………... -
Page 6: Feature
Feature ■Professional TFT LCD for surveillance in 15”, 17” and 19” with multiple connection. ■Compatible with VGA(640X480), SVGA(800X600), XGA(1024X768), SXGA(1280X1024) resolution, (SXGA for 17/19-inch LCD only) ■Picture-In-Picture feature that allow multi-picture display ■High brightness level and contrast ration with super wide viewing angle ■Built-in 3D comb filter and 3D de-interlace for crispy picture performance ■Fast response time and refresh rate without time lagging. -
Page 7: Exploring Your New Moniror
Exploring Your New Monitor You can operate your monitor by using the buttons on the front panel. The side panels provide the inputs to connect other equipment to your monitor. Front Panel 17" 15" 19" Back Side... -
Page 8: Backside Connections
Backside Connections 1, 2 AUDIO 2 IN (R, L) Stereo Audio Signal Input, this input is for AV2 (Refer to Note below) 3, 4 AUDIO 2 OUT (R, L) Audio looping outputs for AUDIO 2 5, 6 AUDIO 1 IN (R, L) (L) 6 Stereo Audio Signal Input, this input is for AV1 or S-Video (Refer to Note below) -
Page 9: Connecting Your Monitor
Connecting your Monitor If you don’t have experience in electronic equipment connection before, you may wish to read this section. (Cables are not supplied, just for reference) Audio cables are usually color coded according to use: red and white for audio. The red audio cable is for the stereo right channel, and the white audio cable is for the stereo left (or mono) channel. -
Page 10: Connecting Device
Connecting Device Connect PC to Monitor through VGA connector as shown on the above picture Connect External device such as DVD or Game Player to Monitor as shown on the above picture Connect CCD Camera 1 and 2 to Monitor through Video Input 1 and 2 (BNC Connector) as showing on the above picture Support Resolution 15”... -
Page 11: Setup Your Monitor
Setup your Monitor AUTO: Auto-optimize displaying picture under PC mode. Enter: This “ Auto” Button can be either “Enter” function in OSD Menu) CCD Mode: Under AV/1 / AV2 / S-Video press Auto can be changed to CCD/Video mode toggle. MENU: OSD menu ON / OFF control. -
Page 12: General Setup
General Setup Auto Source Detect : The monitor will auto detect the video source when power ON. OSD Language : Multi-Language selection in English. Power ON Control : This function is to assign a specific video signal when power ON. Key Lock : The Key-Lock function is provided to prevent tempering. -
Page 13: Video Setup
Video Setup Brightness : Adjusts the overall picture shade and brightness. Contrast : Permits adjustment of contrast between light and dark areas of the picture. Color : Adds coloring to the black and white picture content (of a color signal), and is usually set for viewer’s preference in color saturation. TINT : Adjusts all the colors on the screen, but is most noticeable to the eye in reds and yellows, and is also usually set for pleasing face tones. -
Page 14: Vga Setup
VGA Setup A uto B righ tne ss C o ntr ast C o lor Temp er at u re 9 300 H -p os iti on V - Pos iti on C lo ck P hase D e fau lt Auto : Auto detect screen detail data such as clock and phase. -
Page 15: Audio Setup
Audio Setup Volume : Controls built-in speakers’ output volumes Mute To disable the audio function. To enable, press MUTE again. Default : Sets AUDIO settings to the original factory setting. -
Page 16: Pip Setup
PIP Setup ack Mount Multi-Mode : This function allow the PIP mode to be selected. Sub Source : The function allow the PIP Sub source to be selected. Sub Window Size: The selection of PIP window size. Sub Window H-Position : Control the PIP window position in horizontal position. Sub Window V-Position : Control the PIP window position in vertical position. -
Page 17: Lcd Monitor Mounting Guide
LCD monitor Mounting Guide ack Mount Desktop Arm Mount (VESA Standard) When adjusting the VESA Standard Arms to Adjust the viewing angle of LCD to fit most the back side of the LCD monitor, please use comfortable monitoring status. the 4x8(mm) screw. For further information’s please refer to the Arm Manual. -
Page 18: Troubleshooting
Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solution. Symptom Solution Monitor will not turn on ● Make sure the power cord is plugged in, then press POWER button. No picture, no sound ●... -
Page 19: Lcd Color Monitor Specifications
LCD Color Monitor Specification Model Number 15” 17” 19” Panel Size 15.0” 17.0” 19.0” Aspect Ratio 640 x 480 640 x 480 640 x 480 @ 60/72/75 @ 60/72/75 @ 60/72/75 800 x 600 800 x 600 800 x 600 @ 56/60/72/75 @ 56/60/72/75 @ 56/60/72/75... -
Page 20: Lcd Color Monitor Dimensions
LCD Color Monitor Dimensions 15" LCD 3 9 0 3 5 4 . 5 74.2 17" LCD 3 90 3 54 .5 7 4.2 19" LCD 42 5 3 9 6 75 .6...
