Hi Sharp 3.5" User Manual

3.5” lcd cctv test monitor
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing our product.
Please read this User's Manual before
using the
product.

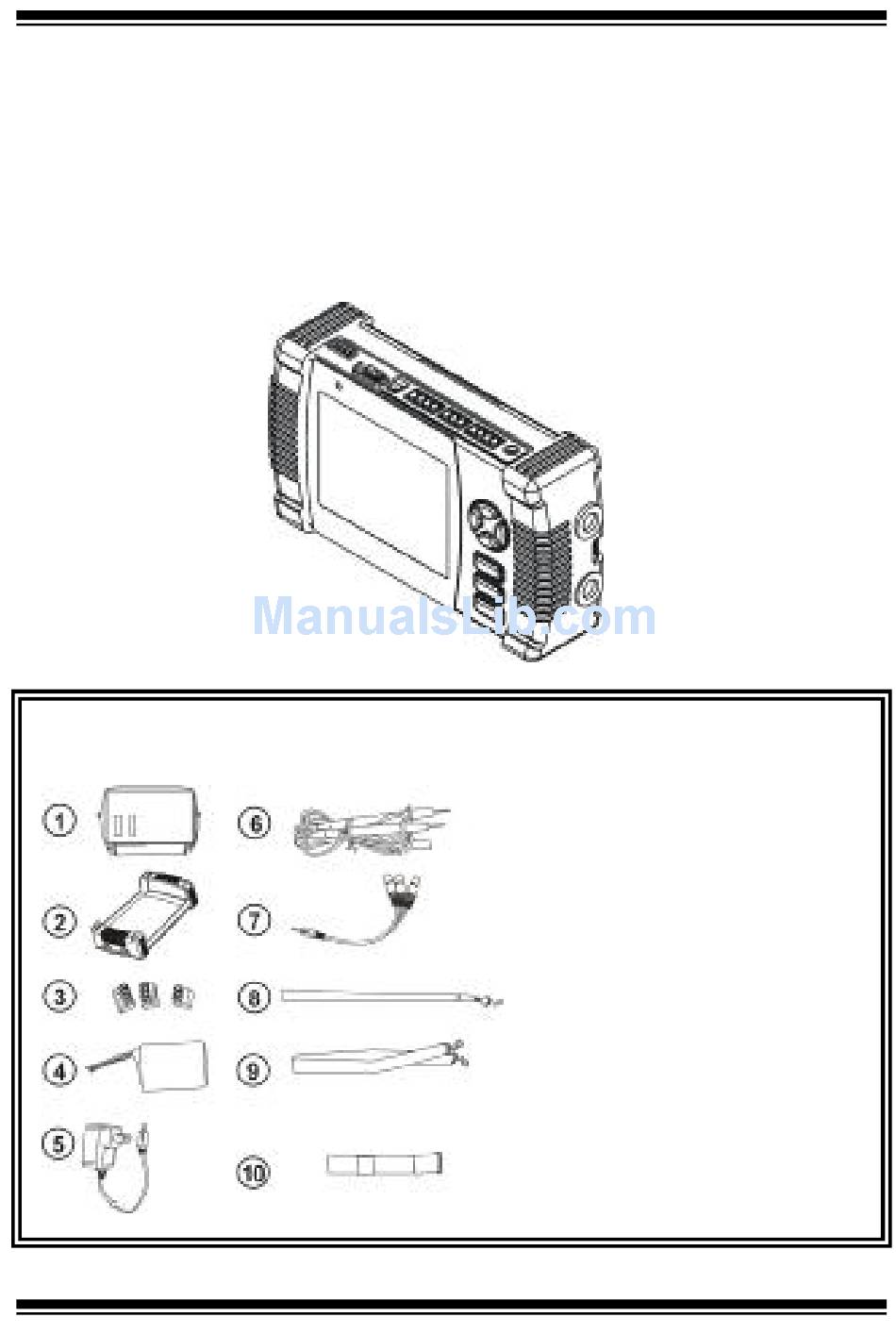

3.5" LCD CCTV Test Monitor
Accessories：
Change without Notice
Legend：
○
1
Bag
○
2
Safeguard
○
3
Terminals
○
4
Battery
○
5
AC adaptor
○
6
Probe
○
7
Video cable
○
8
Neck lace
○
9
Belt
○
10
Hand link

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3.5" and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hi Sharp 3.5"

Summary of Contents for Hi Sharp 3.5"

  • Page 1 Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice 3.5” LCD CCTV Test Monitor Accessories： Legend： ○ ○ Probe ○ ○ Safeguard Video cable ○ ○ Terminals Neck lace ○ ○ Battery Belt ○...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in...
  • Page 3 Exploring your Test Monitor • System indicator Green Light：Power on Red Light：Charging ‚ Direction key Up/Down/L/R direction for select options ƒ MENU key Entry Menu to adjust detail parameters „ MODE key Switch function mode … POWER key Turn on / off Test Monitor †...
  • Page 4 Function & Operation Type A. measurement 1.Video Level： a. Power on and push “MODE key” to get “VIDEO” page. b. Connect “Video Out” of device with “Video In” of video extension cord to measure video level. c. System is auto detects NTSC/ PAL system and measure value will be showed as below.

  • Page 5: Cable Test

    Type B. tester 3.PTZ control test： a. Switch “MODE key” to get “RS485” page as below. b. Push “MENU key” to entry detail Protocol Setup. c. Make sure your remote device protocol is setup correctly at first then configure this as the same. For example, Protocol：PELCO P / ID：1 / Baud rate：9600 c.

  • Page 6: Audio Test

    5.Audio test： a. Switch “MODE key” to get “VIDEO” page. b. Click “Up key” or “Down key” to open or close speaker for testing audio output function, default is ON as diagram below. Type C. video pattern generator 6. Standard pattern output for monitor testing： a.
  • Page 7 Fundamental illustration 1. Language：“Menu key”à”Down key”àLanguage； There have English, Français, Deutsch, Italiano, ,Español, 日本語, Chinese language to select. “Sleep Time” means sleep mode timer setting when user no use test monitor that system will turn off power automatically. 2. LCD panel color adjust： Click “Menu key” to entry adjust OSD menu as below. 2.

  • Page 8: Specification

    Specification Model Name 3.5” LCD CCTV Test Monitor Display Size 3.5” Panel backlight LED type Display Resolution 320 * 240 Charge voltage 4.2V +- 10% Battery 2200mA, Lithium Polymer battery Charge time 2~3 hours Standby time 5~6 hours 0~2Vpp (Voltage peak to peak value) Video level measurement NTSC/ PAL auto detection Pattern out...
