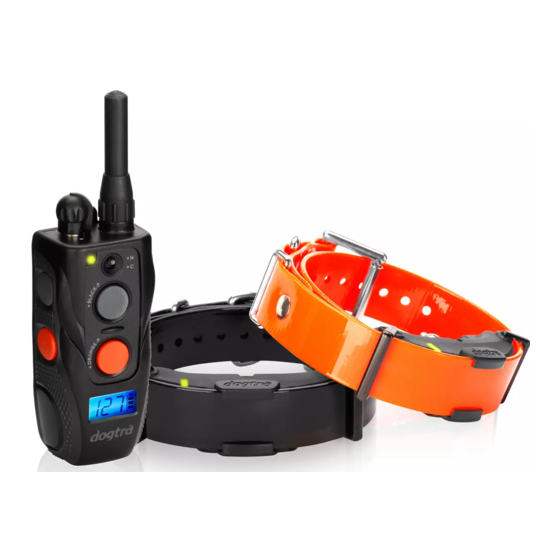

- Page 1 Owner's Manual HANDSFREE - ARC HANDSFREE - 1900S HANDSFREE...
- Page 2 1. 1900S HANDSFREE TRANSMITTER Rheostat Dial Antenna Indicator Light Nick Pager On/Off Constant Button Belt Clip LCD Screen Battery Charging Receptacle & Rubber Plug 1. Turning the 1900S HANDSFREE On/Off To turn the handheld transmitter on, hold down the button on the right side On/Off of the transmitter until the LCD screen Button...
- Page 3 2. 1900S HANDSFREE Code Setting Guide Coding the transmitter and receiver: 1. Turn the transmitter on by pressing the on/off button and set the Rheostat Dial to 0. 2. With the receiver turned off, hold the on/off button on the receiver until the LED light begins to rapidly blink green.
- Page 4 Magnetic Battery Charging Screen Red Dot Receptacle & Rubber Plug 1. Turning the ARC HANDSFREE On/Off To turn the handheld transmitter on, hold down the button on the right side On/Off of the transmitter until the LCD screen Button illuminates. To turn the transmitter off, hold down the same button on the right side of the transmitter until the LCD screen shuts off.
- Page 5 2. ARC HANDSFREE Code Setting Guide Coding the transmitter and receiver: 1. Turn the transmitter on by pressing the on/off button and set the Rheostat Dial to 0. 2. With the receiver turned off, place the red dot on the back of the transmitter to the red dot on the receiver.
- Page 6 1. HANDSFREE Information The HANDSFREE Remote Controller gives you the freedom to multi-task and have discreet fingertip control. The function (Nick, Constant, or Pager) can be coded to the HANDSFREE Remote Controller for you to operate remotely. You may press the HANDSFREE Remote Controller button instead of having to carry the transmitter in your hand.
- Page 7 4. Changing the HANDSFREE Remote Controller Stimulation Mode The default setting for the HANDSFREE Remote Controller button is the Constant stimulation. To change the setting to the Pager or Nick stimulation (or back to Constant stimulation) proceed with the following steps: 1.
- Page 8 5. HANDSFREE Remote Controller Overview Strap Indicator Light Buckle Button Fastening the HANDSFREE Remote Controller Strap The HANDSFREE Remote Controller strap can be fastened to your fingers, wrist, palm, or around a gun stock. Follow the fastening instructions below. 1. Wrap the strap around the object you are fastening the strap to. Pull the strap through the lower section of the buckle and use the notch to keep the HANDSFREE Remote Controller securely in place.
- Page 9 6. Maximizing the Distance Maximum range Typical range Minimum range The HANDSFREE systems have a 3/4-mile range. Depending on the way you use your transmitter, the transmitter range may vary. To get the greatest range, hold the transmitter away from your body and avoid touching the antenna.
-
Page 10: Warranty And Repair Information
Except as otherwise provided below, Dogtra warrants to the original retail purchaser (“You”) that its Dogtra products shall be free of defects in materials and workmanship for a period of one (1) year from the date of purchase (“Warranty”). The Warranty covers the cost of repair (parts and labor) or replacement (if repair is not feasible) of a defective Dogtra product during said one-year period. - Page 11 Limitation of Remedies Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under Warranty. Any claim or action to enforce the Warranty must be commenced within thirty (30) days of the Warranty’s expiration for your product. Dogtra will not be liable for any...
- Page 12 Send repair units to Dogtra Company / Repairs 22912 Lockness Avenue, Torrance, CA 90501 U.S.A. Copyright © 2020 Dogtra Company All rights reserved. Ver.3...
