P-5
P-5 WHITE
P-5 TUNABLE WHITE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-5 and is the answer not in the manual?

Questions and answers

Related Manuals for SGM P-5

Summary of Contents for SGM P-5

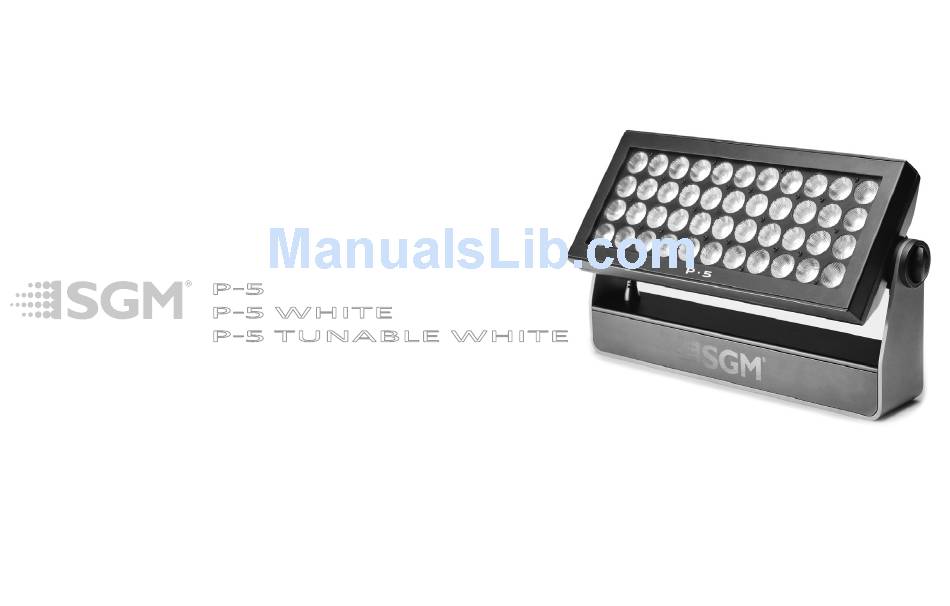

  • Page 1 P-5 WHITE P-5 TUNABLE WHITE...
  • Page 2 P-5 Series dimensions All dimensions in milimeters and inches. Drawing not to scale.
  • Page 3 The SGM logo, the SGM name and all other trademarks in this document pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    Contents Safety information....................6 Overview........................8 Preparing for installation ..................9 Installing the P-5 ....................10 Connecting AC power .................... 12 Configuring the device ................... 13 Setting a static color manually ................14 Using stand-alone operation.................. 15 Connecting to a DMX control device ..............16 Configuring the device for DMX control ..............
  • Page 5 Service........................22 DMX protocols ....................... 23 Control menu ......................32 Specifications ......................38...

  • Page 6: Safety Information

    WARNING! Read the safety precautions in this section before installing, powering or operating this product. P-5 series luminaires are intended for professional use only. They are not suitable for household use. Review the following safety precautions carefully before installing or operating the device.
  • Page 7 WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the device. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...

  • Page 8: Overview

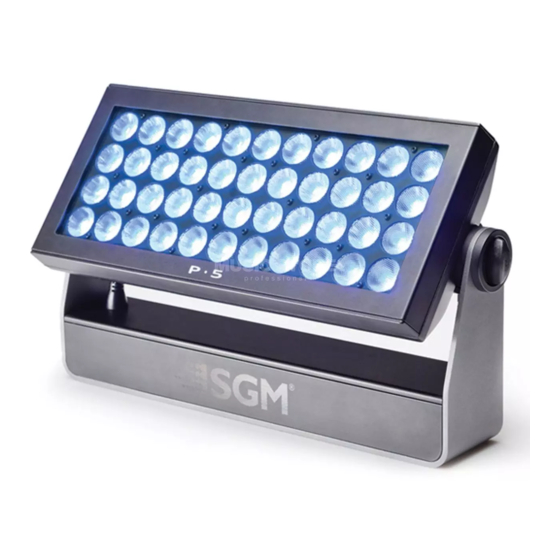

    P-5, P-5 W and P-5 TW luminaires are DMX-controllable, low-profile, IP65-rated, rectangular, LED wash lights. The standard P-5 offers full RGBW color mixing, color temperature control and incorporate 44 10 W LZ4 RGBW Cool White Emitter LED’s. The P-5 W (white) is similar, but incorporating white-emitting LEDs. The P-5 TW (tunable white) offers the ability to adjust white color temperature to 2200, 3000, 4000 or 5300 K.

  • Page 9: Preparing For Installation

    Unpack the device and inspect it to ensure that it has not been damaged in transport. The P-5 is shipped with two quarter-turn brackets that can be used to mount the device at elevation, and a W-DMX G4 wireless antenna.

  • Page 10: Installing The P-5

    Two quarter-turn brackets are supplied with the device if it is to be flown above the ground. Remove the floor stand/base and rig the P-5 to a support truss or structure using the supplied brackets and suitable clamps.
  • Page 11 WARNING! Always secure an elevated P∙5 with a safety cable as backup The device can be tilted from -10/+100 degrees. To adjust the tilt angle, loosen the two tilt screws, one of each side of the fixture, tilt the device to the angle required and retighten the screws.

  • Page 12: Connecting Ac Power

    Connecting AC power The P·5 can operate on any 208–250 V, 50/60 Hz AC mains power supply. It draws approximately 2 amps at full power. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit. The junction’s ingress protection (IP) rating must be suitable for the location.

  • Page 13: Configuring The Device

    Configuring the device using an Android telephone via RFID P-5 devices can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android smart phone that has NFC support (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz...

  • Page 14: Setting A Static Color Manually

    Setting a static color manually The device can be configured to display a predefined and static color (or white, depending on the P-5 model) using the “Manual→Quick color” menus (see “Control menu” on page 32). Note that whenever the “Manual→Quick color” settings are changed, the fixture will be set by default to automatically start in quick color mode whenever it is powered on.

  • Page 15: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes that play continuously in a loop. Up to three stand-alone programs can be defined and run from the menus or one of the programs can be set to run by default whenever the fixture is started.

  • Page 16: Connecting To A Dmx Control Device

    Connecting to a DMX control device The device is controllable using a DMX control device and it can be connected using either DMX cable or via the P-5’s built-in wireless W-DMX G4 receiver system. If using a cabled DMX system, connect the DMX in cable (with male 5-pin XLR plug) and out cable (with female 5-pin XLR plug) to the DMX data link.

  • Page 17: Configuring The Device For Dmx Control

    DMX mode that has been set. The first channel used to receive data from a DMX control device is known as the DMX address. Each P-5 must have a DMX address set. For example, if a P-5 has a DMX address of 10 and it is in 4-channel DMX mode, then it uses channels 10, 11, 12 and 13.
  • Page 18 RGBW with fine control of individual colors. Dimmer and RGBW, with fine control of individual colors. Dimmer and RGBW, with fine control. P-5 TW DMX modes Function Dimmer & white temperature control (2200K-5300K). White temperature control - 2200K, 3000K, 4000K and 5300K.
  • Page 19 P-5 W DMX modes Function Dimmer. Dimmer, shutter, strobe, pulse & open shutter effects. 2 (16-bit) Fine and coarse dimmer.

  • Page 20: Device Personality Settings

    By default, the P-5 uses gamma corrected dimming. For uniform response, set all devices to the same dimming curve. To set the desired dimming curve, use the “Settings→Dimming curve”...
  • Page 21 Setting the fan mode For operating environments where low-noise is a requirement or where the fixture will be operating in high temperatures, it is possible to adjust the default fan speed to low or high using the “Settings→Fan mode” menu.

  • Page 22: Service

    This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your SGM dealer for a suitable maintenance schedule. Clean the P∙5 using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents,...

  • Page 23: Dmx Protocols

    DMX protocols Configuring DMX is described in “Setting the DMX mode” on page 18. This section contains “P-5 DMX protocols” (be- low), “P-5 W DMX protocols” on page 28, and “P-5 TW DMX protocols” on page 29. P-5 DMX protocols...
  • Page 24 P-5 - 6 channel mode - RGBW plus effects Channel Value Percent Function Shutter Blackout 8-15 Shutter Open 16-151 7-58 Variable Strobe 152-175 59-68 Pulse Open 176-199 69-78 Pulse Close 200-244 79-95 Variable Random Strobe 245-255 96-100 Shutter Open 0-255...
  • Page 25 P-5 - 8 channel mode (16-Bit) - RGBW plus fine Channel Value Percent Function 0-255 0-100 Red 0-100% (MSB) 0-255 0-100 Red Fine (LSB) 0-255 0-100 Green 0-100% (MSB) 0-255 0-100 Green Fine (LSB) 0-255 0-100 Blue 0-100% (MSB) 0-255...
  • Page 26 P-5 - 9 channel mode (16-Bit) - Dimmer & RGBW plus fine Channel Value Percent Function 0-255 0-100 Dimmer 0-100% 0-255 0-100 Red 0-100% (MSB) 0-255 0-100 Red Fine (LSB) 0-255 0-100 Green 0-100% (MSB) 0-255 0-100 Green Fine (LSB)
  • Page 27 P-5 - 10 channel mode (16-Bit) - RGBW plus fine Channel Value Percent Function 0-255 0-100 Dimmer 0-100% (MSB) 0-255 0-100 Dimmer Fine (LSB) 0-255 0-100 Red 0-100% (MSB) 0-255 0-100 Red Fine (LSB) 0-255 0-100 Green 0-100% (MSB) 0-255...
  • Page 28 P-5 W DMX protocols P-5W - 1 channel mode - Dimmer Channel Value Percent Function 0-255 0-100 Dimmer 0-100% P-5W - 2 channel mode - Strobe & dimmer Channel Value Percent Function Shutter Blackout 8-15 Shutter Open 16-151 6-59 Variable Strobe...
  • Page 29 P-5W - 2-channel mode (16-bit) - Fine & coarse dimmer Channel Value Percent Function 0-255 0-100 Dimmer 0-100% (MSB) 0-255 0-100 Fine dimmer (LSB) P-5 TW DMX protocols P-5TW - 2-channel mode - Dimmer/CTC Channel Value Percent Function 0-255 0-100 Dimmer 0-100% 0-255 0-100...
  • Page 30 P-5TW - 4-channel mode - Tunable white Channel Value Percent Function 0-255 0-100 White 2200K 0-100% 0-255 0-100 White 3000K 0-100% 0-255 0-100 White 4000K 0-100% 0-255 0-100 White 5300K 0-100% P-5TW - 6 channel mode - Strobe, dimmer & tunable white Channel Value Percent...
  • Page 31 0-255 0-100 Dimmer 0-100% 0-255 0-100 White 2200K 0-100% 0-255 0-100 White 3000K 0-100% 0-255 0-100 White 4000K 0-100% 0-255 0-100 White 5300K 0-100% P-5TW - 8-channel mode - Tunable white, coarse & fine Channel Value Percent Function 0-255 0-100 White 2200K 0-100% 0-255 0-100...

  • Page 32: Control Menu

    Displays installed software version number. sion Serial number Displays the fixture serial number. RDM ID Displays the fixture RDM ID (for use with the SGM Tool app) DMX View Displays received DMX levels. Temperatures Mainboard Displays temperature on main circuit board.
  • Page 33 Level 1 Level 2 Level 3 Function Settings Wireless DMX Log Off Sends log off command to W-DMX system. Wireless LED status Blinking - not connected to data Solid - connected to data Enable Enables wireless DMX operation. Disable Disables wireless DMX operation. Startup mode Select startup mode Default operating mode when the fixture is powered on:...
  • Page 34 Adjust fan speed relative to fixture internal temperature. Silent Low fan speed for quiet operation. Max power High fan speed for maximum cooling effect. Minimum values Min. red (P-5) Adjust default minimum setting (0-1000). Min. green (P-5) Min. blue (P-5) Min. white (P-5) Min. line 1 (P-5W) Min.
  • Page 35 Reset the fixture to factory default settings. continued... Manual Quick color Red (P-5) Static quick color - red mix (0-255). Sets fixture to quick color startup mode. Green (P-5) Static quick color - green mix (0-255). Sets fixture to quick color startup mode.
  • Page 36 Editor Program Currently selected program (1, 2 or 3). Scene Currently selected scene (1-24). Red (P-5) Red value in currently selected scene (0-255). Green (P-5) Green value in currently selected scene (0-255). Blue (P-5) Blue value in currently selected scene (0-255).
  • Page 37 Level 1 Level 2 Level 3 Function Manual Editor Shutter Shutter setting in currently selected scene (0-255): continued... continued... Shutter Blackout 8-15 Shutter Open 16-151 Variable Strobe 152-175 Pulse Open 176-199 Pulse Close 200-244 Variable Random Strobe 245-255 Shutter Open Fade time min.

  • Page 38: Specifications

    Specifications PHYSICAL Length x width x height ................497 x 185 x 300 mm (19.6 x 7.3 x 11.8 in.) Weight ............................... 8.9 kg (19.6 lbs.) LIGHT SOURCE AND OPTICS Illumination source........................44 x 10 W power LEDs Expected lifetime ............................50,000 hours Luminous flux ............................
  • Page 39 DMX channel requirements ................. 3 to 10 channels (mode dependent) Local control .................... 5 button panel with OLED graphical display Software update ..............via Windows PC and SGM USB 5-Pin-XLR upload cable CONNECTIONS AC power input ......... 1.6# (15 AWG) mains cable prepared for direct tie-in or user-supplied cord cap DMX data input ......................
  • Page 40 Peak inrush current ..............................14 A PF power factor is measured at full load with all LEDs 100% driven. FUSES Main fuse (not user-replaceable) ..........................T5A ACCESSORIES SGM USB 5-Pin-XLR upload cable ......................P/N 40500201 * Specifications subject to change without notice...
  • Page 41 User’s notes...
  • Page 44 SGM A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
