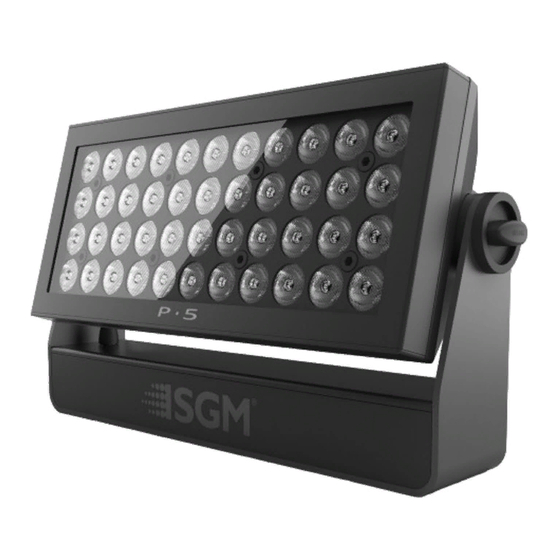

P‐5 WASH LIGHT
P‐5 WHITE
P‐5 TUNABLE WHITE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-5 Wash Light and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SGM P-5 Wash Light

Summary of Contents for SGM P-5 Wash Light

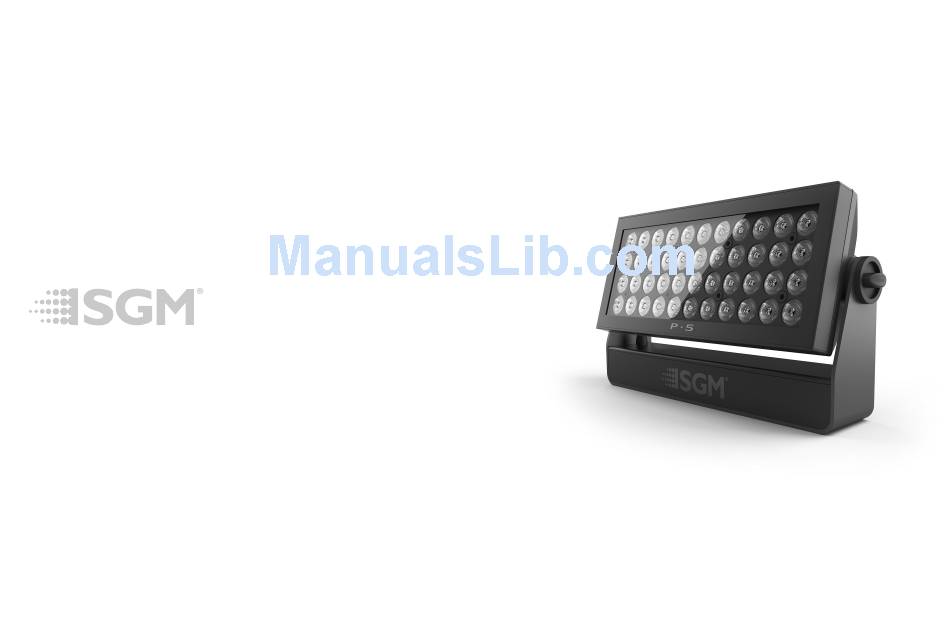

  • Page 1 P‐5 WASH LIGHT P‐5 WHITE P‐5 TUNABLE WHITE...

  • Page 2: Series Dimensions

    P-5 series dimensions Measurements in millimetres and inches (in brackets). Drawing not to scale.
  • Page 3  The SGM logo, the SGM name and all other trademarks in this document  pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    Configuring the fixture ......................17 Configuring the fixture using an Android device via RFID ..................... 17  SGM Tool App for Android............................. 18  Getting fixture information using Android and RFID ...................... 18 Setting a DMX address and mode using Android and RFID ..................18 ...
  • Page 5 Connecting to a DMX control device ................21 Enabling the wireless cone antenna receiver ........................ 21 Attaching the CRMX™ wireless receiver........................22 Configuring the fixture for DMX control ................23 About DMX ..................................23 Setting the DMX address............................... 23 Setting the DMX mode..............................24 Full Color Calibration and Color Temperature Correction (P-5 only) ................
  • Page 6 DMX protocols ........................33 P-5 DMX Protocols ................................ 33 P-5 W DMX Protocols..............................42 P-5 TW DMX Protocols..............................45 Control menu ........................50 Fixtures and accessories ....................60 Included items................................60 Ordering information ..............................60 User’s notes ........................62...

  • Page 7: Safety Information

    Safety information  WARNING! Read the safety precautions in this section before unpacking, installing, powering or operating this product. The P-5 series luminaries are multi-environmental fixtures with an IP-rating of 65, intended for professional use only. They are not suitable for household use. Impropre a l’usage domestique. Review the following safety precautions carefully before installing or operating the fixture.
  • Page 8  Preventing burns and fire  WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the fixture. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...
  • Page 9 Avoid personal injury   WARNING! Take measure to prevent personal injury. • Do not look directly at the light source from close range. • Take precautions to prevent injury due to falls when working at height. For permanent installation, ensure that the fixture is securely fastened to a load-bearing surface with suitable  •...

  • Page 10: Overview

    50,000 hours*. The P-5’s also offer a variation of beam angles with 15°, 21° or 43° interchange- able lenses. This manual covers installation, use and maintenance of the P-5. All documentation is also available from the SGM web-site: http://www.sgmlight.com...

  • Page 11: Parts Identification And Terminology

    Parts identification and terminology 44 x 10 W LEDs Base Safety wire eyelet Cooling fans Tilt lock DMX in and out Wireless antenna socket OLED display Control panel Power connections Tilt lock...

  • Page 12: Preparing For Installation

    Preparing for installation Unpack the fixture and inspect it to ensure that it has not been damaged during transport. ™ The P-5 is shipped with two quarter-turn brackets, that can be used to mount the fixture at elevation, and a CRMX wireless antenna.

  • Page 13: Installing The P-5

    Installing the P-5 The P-5 may be installed in any orientation, but if installed horizontally with a downward beam-angle, water can potentially pool in the fan wells. Under normal operation the moisture will evaporate. However, in  locations with high rainfall, you may wish to  fabricate a rain shield above the fixture, or modify the position and orientation of the fixture to minimize pooling.
  • Page 14 Two quarter-turn brackets are supplied with the fixture if it is to be flown above the ground. Remove the floor stand/base and rig the P-5 to a support truss or structure using the supplied brackets and suitable clamps. Fasten a safety cable (not shown) between the support structure and the attachment point on the fixture.

  • Page 15: Connecting Ac Power

    Connecting AC Power The P-5 can operate on any 208–240 V, 50/60 Hz AC mains power supply. It draws approximately 2 amps at full power. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit.  The junction’s ingress protection (IP) rating must be suitable for the location.
  • Page 16 • 7 fixtures are connected through the same type C, 16A circuit breaker. For assistance with alternative configurations, contact your SGM representative. The fixture must be grounded/earthed and be able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.

  • Page 17: Configuring The Fixture

    The fixture is set by default to be controlled in DMX mode. Configuring the fixture using an Android device via RFID P-5 fixtures can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android device that has NFC ™...

  • Page 18: Sgm Tool App For Android

    SGM Tool App for Android The SGM tool application features the ability to, readout product information, setting DMX address, setting DMX mode and program the internal sequences. All functions can be accessed, changed and stored without having the fixture powered on.

  • Page 19: Programming A Sequence Using Android And Rfid

    Programming a sequence using Android and RFID 1. Scan fixture or press the menu button on the Android device and choose “Goto sequencer”. 2. Choose the scene to change, or delete all existing/default scenes to start a new sequence. 3. Set the desired color vaules for the scene. 4.

  • Page 20: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes, that play continuously in a loop. Up to three stand-alone programs can be defined and run from the menus, and one of the programs can be set to run by default whenever the fixture is started.

  • Page 21: Connecting To A Dmx Control Device

    Connecting to a DMX control device The fixture is controllable using a DMX control device and it can be connected using either a DMX cable or via the P-5’s  built-in wireless receiver system. If using a cabled DMX system, connect the DMX in cable (with male 5-pin XLR plug) and out cable (with female 5-pin XLR plug) to the DMX data link.

  • Page 22: Attaching The Crmx™ Wireless Receiver

    ™ Attaching the CRMX wireless receiver wireless receiver (antenna) is an included accessory and is  The CRMX recommended for long-range wireless operation. Before you connect the wireless receiver, ensure that there is no DMX cable  connected to the fixture. For long-range operation, replace the factory default  antenna to the connector on ...

  • Page 23: Configuring The Fixture For Dmx Control

    Configuring the fixture for DMX control About DMX The P-5 can be controlled using signals sent by a DMX controller on a number of channels (which varies depending on the DMX mode that has been set). The first channel used to receive data from a DMX control device is known as the DMX start address. Each P-5 must have a DMX start address set.

  • Page 24: Setting The Dmx Mode

    Setting the DMX mode Using the “DMX mode” menu available from the control panel, specify the DMX mode that provides the fixture controls that you require, confirm chosen mode by pressing ‘Enter’. (*FCC, Full Color Calibrated) P-5 DMX modes FCC* Function Control for: Red, Green, Blue, White is automatically mixed in.
  • Page 25 P-5 TW DMX modes Function Control for: Intensity & white temperature correction (2200k-5300K). Control for: 2200K-, 3000K-, 4000K-, and 5300K LED’s. Control for: Intensity, shutter / shutter effects & white temperature correction (2200k-5300K). Control for: 2200K-, 3000K-, 4000K-, and 5300K LED’s. 16-Bit. P-5 W DMX modes Function Control for: Intensity...

  • Page 26: Full Color Calibration And Color Temperature Correction (P-5 Only)

    Full Color Calibration and Color Temperature Correction (P-5 only) All channel modes except 3 Channel Mode RGB and 6 Channel RGB + CTC: Lets you choose between raw or white- calibrated color (6500K default) via the Control Menu (“Settings→White Calibrated”) 3 Channel Mode RGB: Features full color calibration (irrespective of current color setting) when you mix 2 or 3 colors to ensure uniform color mixing between products.

  • Page 27: Fixture Personality Settings

    Fixture personality settings Setting the dimming curve The setting of the dimming curve will determine the fixture’s behavior, when changing the light intensity between 0% - 100%. Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change.

  • Page 28: Setting The Fan Mode

    Setting the fan mode For operating environments where low-noise is a requirement or where the fixture will be operating in high temperatures, it is possible to adjust the default fan speed to low or high using the “Settings→Fan mode” menu. Setting the LED refresh rate (Frequency) When using LED lighting with cameras, flickering can occur due to incompatible frequency settings which means the LEDs and the cameras is not synchronised.

  • Page 29: Service

    Apart from the lens module, there are no user-serviceable components in the fixture. Do not open the P-5, as doing so is likely to damage the ingress protection. Consult your SGM dealer if the fixture operates abnormally, is defective or otherwise in need of service or repair.
  • Page 30 Dismantle the front and unscrew the highlighted front plugs with an Unbrako 6/HOP6 Allen key. Take out the lens module. Place the new lens on the PCB print spacers and carefully press the lens module in place.
  • Page 31 Screw in the highlighted front plugs with an Unbrako 6/HOP6 Allen key (Nm 1,0) and place three Silica Gel bags (not included in lens kit) as shown. Place the sealing frame (facing upwards - see below) on top of the lens module.

  • Page 32: Upgrading The Firmware

    The firmware installed on the fixture can be identified using the “Info→Firmware version” menu. We recommend that you keep your fixture’s firmware up-to-date. Visit http://www.sgmlight.com to download the latest firmware.  To perform firmware updates, you need a Windows-based personal computer and a SGM USB 5-Pin-XLR upload cable  (available from your SGM distributor).

  • Page 33: P-5 Dmx Protocols

    DMX protocols Configuring DMX is described “Setting the DMX mode” on page 24. P-5 DMX Protocols 3 Channel Mode - RGB plus automatic White (Full Color Calibrated) Default Channel Name DMX value Description Info Fader type percentage value No RED >  0,0% 100,0% 0 (0%)
  • Page 34 4 Channel Mode - RGBW (Raw mode) Default Channel Name DMX value Description Info Fader type percentage value No RED >  0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  GREEN 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE >...
  • Page 35 6 Channel Mode - RGBW, intensity & Shutter (Raw mode) Default Channel Name DMX value Description Info Fader type percentage value 0,0% 2,7% Closed 3,1% 5,9% Open 6,3% 59,2% Strobe Fast > Slow Shutter 59,6% 68,6% Pulse - Open Slow > Fast 10 (3,9%) Snap 69,0%...
  • Page 36 Default Channel Name DMX value Description Info Fader type percentage value No BLUE >  BLUE 0,0% 100,0% 0 (0%) Fade Maximum BLUE No WHITE >  WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE...
  • Page 37 6 Channel Mode - RGB, intensity, Shutter & CTC (Full Color Calibrated) Default Channel Name DMX value Description Info Fader type percentage value 0,0% 2,7% Closed 3,1% 5,9% Open 6,3% 59,2% Strobe Fast > Slow Shutter 59,6% 68,6% Pulse - Open Slow >...
  • Page 38 Default Channel Name DMX value Description Info Fader type percentage value No GREEN >  GREEN 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE >  BLUE 0,0% 100,0% 0 (0%) Fade Maximum BLUE...
  • Page 39 8 Channel Mode (16 bit) - RGBW Default Channel Name DMX value Description Info Fader type percentage value No RED >  65535 0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  GREEN 65535 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE >...
  • Page 40 9 Channel Mode (16 bit) - Intensity & RGBW Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 0,0% 100,0% 0 (0%) Fade Maximum light No RED >  65535 0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >...
  • Page 41 10 Channel Mode (16 bit) - Intensity & RGBW Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 65535 0,0% 100,0% 0 (0%) Fade Maximum light No RED >  65535 0,0% 100,0% 0 (0%) Fade Maximum RED...

  • Page 42: P-5 W Dmx Protocols

    P-5 W DMX Protocols 1 Channel Mode - Intensity Default Channel Name DMX value Description Info Fader type percentage value No WHITE >  WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE...
  • Page 43 2 Channel Mode - Shutter & Intensity Default Channel Name DMX value Description Info Fader type percentage value 0,0% 2,7% Closed 3,1% 5,9% Open 6,3% 59,2% Strobe Fast > Slow Shutter 59,6% 68,6% Pulse - Open Slow > Fast Snap (3,9%) 69,0% 78,0%...
  • Page 44 2 Channel Mode (16 bit) - Intensity Default Channel Name DMX value Description Info Fader type percentage value No WHITE >  WHITE 65535 0,0% 100,0% 0 (0%) Fade Maximum WHITE...

  • Page 45: P-5 Tw Dmx Protocols

    P-5 TW DMX Protocols 2 Channel Mode - Intensity & white temperature control Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 0,0% 100,0% 0 (0%) Fade Maximum light White temperature 0,0% 100,0% 2200K-5300K 0 (0%) Fade...
  • Page 46 4 Channel Mode - White control (Raw mode) Default Channel Name DMX value Description Info Fader type percentage value No WHITE >  2200K WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE No WHITE >  3000K WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE...
  • Page 47 6 Channel Mode - White control, dimmer & shutter (Raw mode) Default Channel Name DMX value Description Info Fader type percentage value 0,0% 2,7% Closed (3,9%) 3,1% 5,9% Open 0 (0%) 6,3% 59,2% Strobe Fast > Slow 0 (0%) Shutter Snap 59,6% 68,6%...
  • Page 48 Default Channel Name DMX value Description Info Fader type percentage value No WHITE >  3000K WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE No WHITE >  4000K WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE No WHITE >  5300K WHITE 0,0% 100,0%...
  • Page 49 8 Channel Mode (16 bit) - White control (Raw mode) Default Channel Name DMX value Description Info Fader type percentage value No WHITE > 2200K WHITE 65535 0,0% 100,0% 0 (0%) Fade Maximum WHITE No WHITE > 3000K WHITE 65535 0,0% 100,0% 0 (0%)

  • Page 50: Control Menu

    Displays product type. Firmware Version Displays installed software version. Serial Number Displays serial number. RDM ID Displays RDM ID. (for use with the SGM Tool App.) DMX View Displays received DMX levels. Temperatures Displays fixture temperatures. MB: LED: (Mainboard and LED panel) Power On Time Displays power on time.
  • Page 51 Level 1 Level 2 Level 3 Function Info LED On Time Displays LED on time. (Red, Green, Blue, and White) (continued) R: G: B: W: LED On Time Displays LED on time. (can be reset) Resettable R: G: B: W: Displays recorded operating data and error codes.
  • Page 52 Level 1 Level 2 Level 3 Function Settings Wireless DMX Wireless DMX Disables wireless DMX out operation. (continued) (continued) out disable Startup Mode Select Startup Default operating mode when fixture is powered on: Mode 1. Quick Color. 2. Stand-alone. 3. DMX. (factory default) Startup Program Stand-alone program 1, 2, or 3.
  • Page 53 Level 1 Level 2 Level 3 Function Settings Flip Display Enable Flips control panel display. (continued (continued) Display Saver Display Dim Dims the OLED display when the control panel is not in use. Display Off Turns off the OLED display when the control panel is not in use.
  • Page 54 Level 1 Level 2 Level 3 Function Settings Minimum values Min. White (P-5) (continued (continued) Min. Line 1 (P-5 W) Min. Line 2 (P-5 W) Min. Line 3 (P-5 W) Adjust default minimum setting (0-8000). Service use only. Min. Line 4 (P-5 W) Min.
  • Page 55 Level 1 Level 2 Level 3 Function Settings Minimum values Min. 4000 (continued) (continued) (P-5 TW) Adjust default minimum setting (0-8000). Service use only. Min. 5300 (P-5 TW) RFID Write Enable Enables the RFID entry. Disable Disable the RFID entry. Refresh Rate Dimmer Set the LED’s to a dimmer optimized default.
  • Page 56 Factory Default Reset the fixture to factory default settings. (continued) Service Pin Contact your SGM dealer or SGM support to request the service pin. Service use only. Service Menu Only accessible when service pin has been entered. Service use only.
  • Page 57 Level 1 Level 2 Level 3 Function Manual Quick Color 3000K (P-5 TW) Static quick color - white temperature 3000K mix (0-255). (continued) (continued) Sets fixture to quick color startup mode. 4000K (P-5 TW) Static quick color - white temperature 4000K mix (0-255). Sets fixture to quick color startup mode.
  • Page 58 Level 1 Level 2 Level 3 Function Manual Editor White White value in currently selected scene (0-255). (continued) (continued) (P-5 / P-5 W) 2200K (P-5 TW) 2200K white value in currently selected scene (0-255). 3000K (P-5 TW) 3000K white value in currently selected scene (0-255). 4000K (P-5 TW) 4000K white value in currently selected scene (0-255).
  • Page 59 Level 1 Level 2 Level 3 Function Manual Editor Fade Time (Min.) Fade-in (transition) time to current scene in min. (0-999). (continued) (continued) Fade Time (Sec.) Fade-in (transition) time to current scene in sec. (0-59). Wait Time (Min.) Wait (static) time in current scene in min. (0-999). Wait Time (Sec.) Wait (static) time in current scene in sec.

  • Page 60: Fixtures And Accessories

    Wireless Cone antenna (mounted from factory) User manual Neoprene pouch Ordering information P-5 Wash Light (43°) ..........................Order no: 80030517 P-5 Wash Light (21°) ..........................Order no: 80030515 P-5 Wash Light (15°) ..........................Order no: 80030518 P-5 Lens Kit (43°) ............................Order no: 83061118 P-5 Lens Kit (21°) ............................
  • Page 61 APPROVALS AND CERTIFICATIONS Certified to ............................CSA Std. C22.2 No. 166 Conforms to................................UL Std. 1573 Conforms to........................2006/95/EC: Low Voltage Directive Conforms to..........................2011/65/EU: RoHS2 Directive 4008543 The information in this document is subject to change without notice...

  • Page 62: User's Notes

    User’s notes...
  • Page 64 SGM A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
