G‐PROFILE
MOVING HEAD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for SGM G-PROFILE

Summary of Contents for SGM G-PROFILE

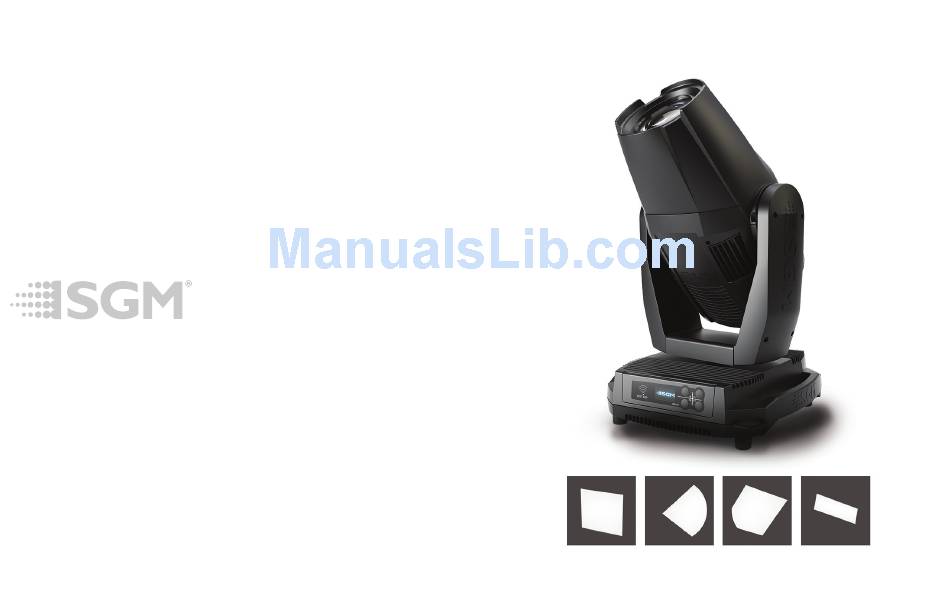

  • Page 1 G‐PROFILE  MOVING HEAD...

  • Page 2: Dimensions

    Dimensions (14.6) (12.9) (31.7) (13.4) (25.4) 135° 135° (19.5) (32.3) Min. c/c (5.7) (18.5) (30.0) 16 (0.63) 37 (1.46) 270° 270° (19.4) (26.2) Measurements in millimetres and inches (in brackets). Drawing not to scale.
  • Page 3  The SGM logo, the SGM Light name and all other trademarks in this document  pertaining to services or products by SGM Light or its affiliates and subsidiaries are trademarks owned or licensed by SGM Light or its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    Connecting AC power ......................14 Control panel operations ....................15 Using the control panel ..............................15 DMX start address ................................ .15 Selecting module (G-Profile or G-Spot) .........................15  Configuring the fixture using an Android device via RFID .................... .16  SGM Tool App for Android .............................16 ...
  • Page 5 Using stand-alone operation ....................17 Manual control / Internal sequence editor ........................17 Using the editor ................................18 Editor .................................... .18 Connecting to a DMX control device ................19 Configuring the device for DMX control ................20 About DMX ..................................20 Setting the DMX address .............................. .20 LED refresh rate (Frequency) ..................21 About LED refresh rate ..............................
  • Page 6 DMX protocols ........................38 Standard Mode ................................38 Extended Mode ................................51 Full Color Calibration and Color Temperature Correction .................... .64 Effects ..........................65 Four individually controllable framing blades ........................ .65 Independent rotating gobo wheel ..........................65 Combination of framing techniques and rotating gobos ....................65 Effect wheel ..................................

  • Page 7: Safety Information

    WARNING! Read the safety precautions in this section before unpacking, installing, powering or operating this product. The G-Profile is intended for professional use only. It is not suitable for household use. Impropre a l’usage domestique. Review the following safety precautions carefully before installing or operating the fixture....
  • Page 8 Preventing burns and fire WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the fixture. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...
  • Page 9 Avoid personal injury  WARNING! Take measures to prevent personal injury. • Do not look directly at the light source from close range. • Take precautions to prevent injury when working at height. • Ensure that the fixture is always securely fastened with suitable hardware. For elevated installations, secure the fixture with suitable safety cables, and always comply with relevant load ...

  • Page 10: Overview

    Overview The SGM G-Profile model is a framing version of the G-Spot Moving Head.  The G-Profile is a maintenance free, multi-environmental fixture with an IP-rating  of 65. It has a powerful LED light source, and a virtually unlimited color palette, four ...

  • Page 11: Unpacking

    Unpacking Unpack the fixture and inspect it to ensure that it has not been damaged in transport. The G-Profile is supplied with: • User manual. • One Neutrik TRUE1 power input connector, 2 m (78 in.) • Two Omega brackets with 1/4-turn fasteners....

  • Page 12: Installation / Rigging

    Installation / Rigging WARNING! Always secure elevated fixtures with a safety cable. The G-Profile may be installed in any orientation. Always use two Omega brackets to rig the fixture. Lock each brack- et with both 1/4-turn fasteners. The fasteners are locked only when turned fully clockwise.
  • Page 13 Start the rigging process by blocking the work area below, and make sure the work is performed from a stable platform. Check that the clamps are undamaged and can bear at least 10 times the weight of the fixture. Check that the structure can bear at least 10 times the weight for all in- stalled fixtures, clamps, cables etc.

  • Page 14: Connecting Ac Power

    Connecting AC power The G-Profile can operate on any 200-240V, 50/60 Hz mains power supply. Connect the fixture to power using a cable with a Neutrik powerCON TRUE1 connector (supplied with the fixture). Connect both DMX in and DMX out cables in order to maintain the fixture IP65.

  • Page 15: Control Panel Operations

    Select DMX address using the arrow buttons. Selecting module (G-Profile or G-Spot) If you replace the fixture’s module in order to switch from a G-Profile to a G-Spot or vice-versa, you need to change the fixture’s software settings. In the Control Menu, go to ‘Settings→Service Menu→Fixture Type” and select the fixture you are currently using.

  • Page 16: Configuring The Fixture Using An Android Device Via Rfid

    Configuring the fixture using an Android device via RFID The G-Profile can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android device that has NFC support, App available in the Google™ Play Store (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz carrier frequency).

  • Page 17: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes, that play continuously in a loop. This program can be set to run by default whenever the fixture is started. Manual control / Internal sequence editor The editor offers the ability to adjust all DMX parameters of the fixture.

  • Page 18: Using The Editor

    Using the editor In the manual menu the following menus will be available: • Editor • Run Program • Stop Program • Run on power on • Capture DMX Editor In the “Editor” menu you have the following options: • Scene - Press OK and choose a scene (1 to 24) confirm with OK. •...

  • Page 19: Connecting To A Dmx Control Device

    Connecting to a DMX control device The G-Profile is controllable using a DMX control device and it can be connected using either a DMX cable or via the fixture’s built-in LumenRadio CRMX wireless receiver system. If using a cabled DMX system, connect the DMX in cable (with male 5-pin XLR plug) and out cable (with female 5-pin XLR plug) to the DMX data link.

  • Page 20: Configuring The Device For Dmx Control

    DMX mode that has been set). The first channel used to receive data from a DMX control device is known as the DMX start address. Each G-Profile must have a DMX start address set. For example, if a fixture has a DMX address of 10 and it is in 3-channel DMX mode, then it uses channels 10, 11, and 12.

  • Page 21: Led Refresh Rate (Frequency)

    The refresh rate can be set between 100,00 kHz and 1,41 kHz. It is recommended to have the G-Profile configured to operate the default refresh rate by setting the ‘Control channel’ to 0 (0%) (factory default settings) by DMX whenever possible to maintain the best possible dimming performance.

  • Page 22: Control Panel Menus

    Control panel menus Level 1 Level 2 Level 3 Level 4 Info DMX MODE STANDARD EXTENDED INFO GENRAL INFO PRODUCT: RDM LABEL RDM ID SOFTWARE  MAIN: VERSION SMPS: PAN: TILT: GOBO: ZOOM:...
  • Page 23 Level 1 Level 2 Level 3 Level 4 Info INFO TIMERS D: H: (continued) GREEN D: H: BLUE D: H: RUNNING HOURS D: H: 001 -  DMX VIEW ↓ 507 - TEMPERATURES R: G: B: SMPS PAN: TILT: GOBO: FOCUS: BASE: HEAD:...
  • Page 24 Level 1 Level 2 Level 3 Level 4 Info INFO FANS LED FAN 1: (continued) LED FAN 2: HEAD: BASE:  FIRMWARE:  BUILD:  BUILD: UPTIME: D: H: M: S: ERRORS SMPS ERROR DETAILS TILT GOBO ZOOM...
  • Page 25 Level 1 Level 2 Level 3 Level 4 Info SETTINGS WIRELESS DMX LOG OFF SIGNAL  STATUS STRENGHT % CRMX PAIRD: RDM ACTIVE: DMX ACTIVE: CRMX RATE Hz ENABLE/DISABLE → CRMX...
  • Page 26 Level 1 Level 2 Level 3 Level 4 Info SETTINGS DIMMING CURVE LINEAR () (continued) GAMMA CORRECTED (X) INVERT PAN () INVERT TILT () SWAP PAN TILT () FLIP DISPLAY () DISPLAY OFF () FAN MODE STANDARD SILENT MAX POWER ALWAYS 100%...
  • Page 27 Level 1 Level 2 Level 3 Level 4 Info → SETTINGS CALIBRATION PAN HOME CALIBRATION (continued) XXXXX PAN POS XXXX - REV. X.XX → TILT HOME CALIBRATION XXXXX PAN POS XXXX - REV. X.XX → GOBO SELECT CALIBRATION XXXXX → EFFECT WHEEL CALIBRATION XXXXX...
  • Page 28 Level 1 Level 2 Level 3 Level 4 Info → SETTINGS CALIBRATION FROST CALIBRATION (continued) (continued) XXXXX → PRISM CALIBRATION XXXXX → CALIBRATION XXXXX → ZOOM CALIBRATION XXXXX → FOCUS CALIBRATION XXXXX SERVICE PIN SERVICE MENU FIXTURE TYPE DEBUG...
  • Page 29 Level 1 Level 2 Level 3 Level 4 Info FACTORY  SETTINGS FACTORY DEFAULT SET (continued) DEFAULT TEST AUTOMATED TEST LED TEST TESTING RED 2 TESTING RED 1 TESTING BLUE 2 TESTING BLUE 1 TESTING YELLOW TESTING GREEN DISPLAY TEST...
  • Page 30 Level 1 Level 2 Level 3 Level 4 Info RESET PAN TILT EFFECT MODULE See note 1 ZOOM FOCUS MODULE → MANUAL EDITOR SCENE → WAIT TIME Seconds 4000 → FADE TIME Seconds 4000 COPY SCENE PASTE SCENE CLEAR SCENE SHUTTER DIMMER...
  • Page 31 Level 1 Level 2 Level 3 Level 4 Info MANUAL EDITOR (continued) (continued) GREEN BLUE Center = 32767 TILT Center = 32767 GOBO 1 Select GOBO 1 ROT Rotation BLADE 1 ANG Angle of blade 1 BLADE 2 IN BLADE 2 ANG Angle of blade 2 BLADE 2 IN BLADE 3 ANG...
  • Page 32 Level 1 Level 2 Level 3 Level 4 Info MANUAL EDITOR BLADE 3 IN (continued) (continued) BLADE 4 ANG Angle of blade 4 BLADE 4 IN BLADE ANG Module rotation EFFECT WHEEL IRIS PRISM FROST ZOOM FOCUS RUN PROGRAM STOP PROGRAM...
  • Page 33  1. If the G-Profile is subjected to extreme exposure, the fixture might not reset correctly. If this happens, the fixture will automatically heat up the gobo bearings at maximum light output for approx. five minutes and attempt to reset the ...

  • Page 34: Gobo Replacement

    Gobo replacement Identification of gobo wheel Gobo Wheel Description Part No. Open Open gobo 37000001 Breakup bricks 37005006 Dots 37005003 Fire up close 37005001 Spiral leaf 37005010 Kaleidoscope gems 37002001 Magnet...

  • Page 35: Replacing Rotating Gobo

    Replacing rotating gobo To replace a gobo: • Disconnect the fixture from power and allow to cool. TORX • Position the head and apply the tilt lock. • Remove the rear head cover located on the same side as the pan lock (A).

  • Page 36: How To Replace A Gobo In A Gobo Holder

    How to replace a gobo in a gobo holder • Place gobo with silver side towards the light source. • Align index markers on the gobo and the gobo holder as shown be- low. • Insert the gobo holder and align it with the index marker on the gobo wheel as shown below.

  • Page 37: Maintenance

    The firmware installed on the fixture can be identified using the “Info→Software version” menu. We recommend that you keep your fixture’s firmware up-to-date. Visit http://www.sgmlight.com to download the latest firmware.  To perform firmware updates, you need a Windows-based personal computer and a SGM USB 5-Pin-XLR upload cable (avail- able from your SGM distributor).

  • Page 38: Dmx Protocols

    DMX protocols 31 Channel Mode (Standard) Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0,0% 2,7% Closed Open 1  3,1% 5,9% See note 1 (‘Pre-heat’ enabled) 6,3% 59,2% Strobe Slow > Fast Shutter 59,6% 68,6% Pulse - Open Slow >...
  • Page 39 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value No RED >  0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  Green 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE > Blue 0,0% 100,0% 0 (0%) Fade...
  • Page 40 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value ≈ 3200° K  25,5% 25,5% (Warm Metal Halide Lamp) ≈ 4000° K  41,2% 41,2% (Clear Metal Halide Lamp) ≈ 4200° K  45,1% 45,1% (Cool White Fluorescent Lamp) Fade (71,3%)
  • Page 41 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value -270° = Front 32767 Lens @ Mains 65535 0,0% 100,0% -270° to 270° Fade Power Input (50%) (Tilt=0) -120° = Front 32767 Lens @ Base Tilt 65535 0,0% 100,0% -120°...
  • Page 42 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Gobo Wheel  50,2% 74,9% Fast > Slow Continuous Rotation CW Gobo Wheel 1 75,3% 75,3% No Rotation (closest to 0 (0%) Snap Gobo Wheel  light source) 75,7% 100,0% Continuous Rotation...
  • Page 43 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Fade Blade 1 In 0,0% 100,0% Blade 1 In Out -> In 0 (0%) Fade Blade 1 Angle 0,0% 100,0% Blade 1 Angle -30° -> +30° (50%) Fade Blade 2 In 0,0% 100,0%...
  • Page 44 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0,0% 0,8% Open 2559 0,8% 3,9% Inserted not indexed 2560 32767 3,9% 50,0% Indexed 32768 46402 50,0% 70,8% Continuous rotation CW Fast > Slow Effect Wheel 0 (0%) Fade 46403 46903...
  • Page 45 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Effect - “Open slow / 80,8% 82,4% Close fast” Iris 82,7% 84,3% Effect - “Open / Close” 0 (0%) Fade Effect - “Random Close / Slow > Fast 84,7% 100,0% Open”...
  • Page 46 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0 (0%) Fade Zoom 0,0% 100,0% Wide > Narrow 0 (0%) Fade Focus 0,0% 100,0% Far > Near 0,0% 1,6% No Effect 2,0% 5,9% Reserved (No Effect) 6,3% 10,2% Reserved (No Effect) 10,6%...
  • Page 47 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Effect 27,1% 100,0% Reserved (No Effect) 0 (0%) Snap Channel 0,0% 1,6% No Function Hold 2,0% 3,5% Full Reset 3 seconds Hold 3,9% 5,5% Pan Reset 3 seconds Control Hold 5,9%...
  • Page 48 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Hold 13,7% 15,3% Display Off 3 seconds Hold 15,7% 17,3% Display On 3 seconds LED Frequency  17,6% 100,0% See note 4 (100 kHz - 1,41kHz) 45,5% 46,7% Capture Scene 1 Control 0 (0%)
  • Page 49 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 56,5% 57,6% Capture Scene 8 58,0% 59,2% Capture Scene 9 59,6% 60,8% Capture Scene 10 61,2% 62,4% Capture Scene 11 62,7% 63,9% Capture Scene 12 64,3% 65,5% Capture Scene 13 Control See note 5 0 (0%)
  • Page 50 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 75,3% 76,5% Capture Scene 20 76,9% 78,0% Capture Scene 21 78,4% 79,6% Capture Scene 22 See note 5 Control 0 (0%) Snap Channel 80,0% 81,2% Capture Scene 23 81,6% 82,7% Capture Scene 24...

  • Page 51: Extended Mode

    46 Channel Mode (Standard) Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0,0% 2,7% Closed Open 1  3,1% 5,9% See note 1 (‘Pre-heat’ enabled) 6,3% 59,2% Strobe Slow > Fast Shutter 59,6% 68,6% Pulse - Open Slow >...
  • Page 52 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value No RED >  0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  Green 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE > Blue 0,0% 100,0% 0 (0%) Fade...
  • Page 53 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value ≈ 3200° K  25,5% 25,5% (Warm Metal Halide Lamp) ≈ 4000° K  41,2% 41,2% (Clear Metal Halide Lamp) ≈ 4200° K  45,1% 45,1% (Cool White Fluorescent Lamp) Fade (71,3%)
  • Page 54 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value -270° = Front 32767 Lens @ Mains 65535 0,0% 100,0% -270° to 270° Fade Power Input (50%) (Tilt=0) -120° = Front 32767 Lens @ Base Tilt 65535 0,0% 100,0% -120°...
  • Page 55 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Gobo Wheel  50,2% 74,9% Fast > Slow Continuous Rotation CW Gobo Wheel 1 75,3% 75,3% No Rotation (closest to 0 (0%) Snap Gobo Wheel  light source) 75,7% 100,0% Continuous Rotation...
  • Page 56 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Blade 1 In 0,0% 100,0% Blade 1 In Out -> In 0 (0%) Fade Blade 1 Angle 0,0% 100,0% Blade 1 Angle -30° -> +30° Fade (50%) Blade 2 In 0,0% 100,0% Blade 2 In...
  • Page 57 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Blade 4 Angle 0,0% 100,0% Blade 4 Angle -30° -> +30° Fade (50%) Blade 0,0% 100,0% Blade Assembly Rotate -45° -> +45° Fade (50%) Assembly Rot. 0,0% 0,8% Open 2559 0,8%...
  • Page 58 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0,0% 78,4% Open > Close Effect - “Open fast / 78,8% 80,4% Close slow” Effect - “Open slow / Iris 80,8% 82,4% 0 (0%) Fade Close fast” 82,7% 84,3% Effect - “Open / Close”...
  • Page 59 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 0,0% 2,0% Open Frost 0 (0%) Fade No Frost >  2,4% 100,0% Maximum Frost 0 (0%) Fade Zoom 0,0% 100,0% Wide > Narrow 0 (0%) Fade Focus 0,0% 100,0% Far >...
  • Page 60 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 15,3% 17,3% Shutter Black = BLUE 17,6% 19,6% Shutter Black = WHITE 20,0% 22,0% Shutter Black = Magenta Effect 0 (0%) Snap Channel 22,4% 24,3% Shutter Black = Yellow 24,7% 26,7% Shutter Black = Cyan...
  • Page 61 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value Hold 7,8% 9,4% Gobo Reset 3 seconds Hold 9,8% 11,4% Zoom Reset 3 seconds 11,8% 13,3% Sleep Mode See note 3 Hold 13,7% 15,3% Display Off 3 seconds Control 0 (0%) Snap...
  • Page 62 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 50,2% 51,4% Capture Scene 4 51,8% 52,9% Capture Scene 5 53,3% 54,5% Capture Scene 6 54,9% 56,1% Capture Scene 7 56,5% 57,6% Capture Scene 8 58,0% 59,2% Capture Scene 9 Control See note 5 0 (0%)
  • Page 63 Default Fader Channel Name DMX Value DMX Percentage Description Info Type Value 69,0% 70,2% Capture Scene 16 70,6% 71,8% Capture Scene 17 72,2% 73,3% Capture Scene 18 73,7% 74,9% Capture Scene 19 75,3% 76,5% Capture Scene 20 See note 5 Control 0 (0%) Snap...

  • Page 64: Full Color Calibration And Color Temperature Correction

    Full Color Calibration and Color Temperature Correction 31 and 46 Channel Mode: Features full color calibration when you mix 2 or 3 colors to ensure uniform color between  products. Adjusting 1 color does not activate full color calibration. 31 and 46 Channel Mode: Features full color temperature correction when channel 6 (in 31 channel mode) or channel 10  (in 46 channel mode) are at DMX value 5 or higher.

  • Page 65: Effects

    The standard gobo includes both breakup patterns, geometric gobos and full colored gobos. Combination of framing techniques and rotating gobos The G-Profile provides the option of combining framing techniques with 5 rotating gobos and opens for gobo animation and interaction when framing is used.

  • Page 66: Effect Wheel

    High-precision pan and tilt The G-Profile has a 16-bit pan and tilt control, with a 540° pan and 270° tilt movement with feedback. Ultra high-speed strobe effect The ultra high-speed strobe effect (1-50 Hz) introduces instant color control and the possibility to strobe between two or more colors at any speed by.

  • Page 67: Fixtures And Accessories

    Ordering information G-Profile Moving Head in cardboard box ....................Order no: 80021010 G-Profile Moving Head in flight case (1 fixture) ..................Order no: 80021011 SGM USB uploader cable .......................... Order no: 83062011 2 m power cable with Neutrik TRUE1 power connector ................Order no: 07860040...
  • Page 68 APPROVALS AND CERTIFICATIONS Conforms to..........................2004/108/EC: EMC Directive Conforms to........................2006/95/EC: Low Voltage Directive Conforms to..........................2011/65/EU: RoHS2 Directive Conforms to................................UL Std.1573 Certified to ............................CSA E60598-1:02, Ed: 2 Certified to ............................CSA-E598-2-17-98, Ed: 1 4008543 The information in this document is subject to change without notice...

  • Page 69: User's Notes

    User’s notes...
  • Page 72 SGM Light A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
