Blankom DRP 393 B-IRD Eagle Instruction Manual

Mpeg-4 receiver / decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

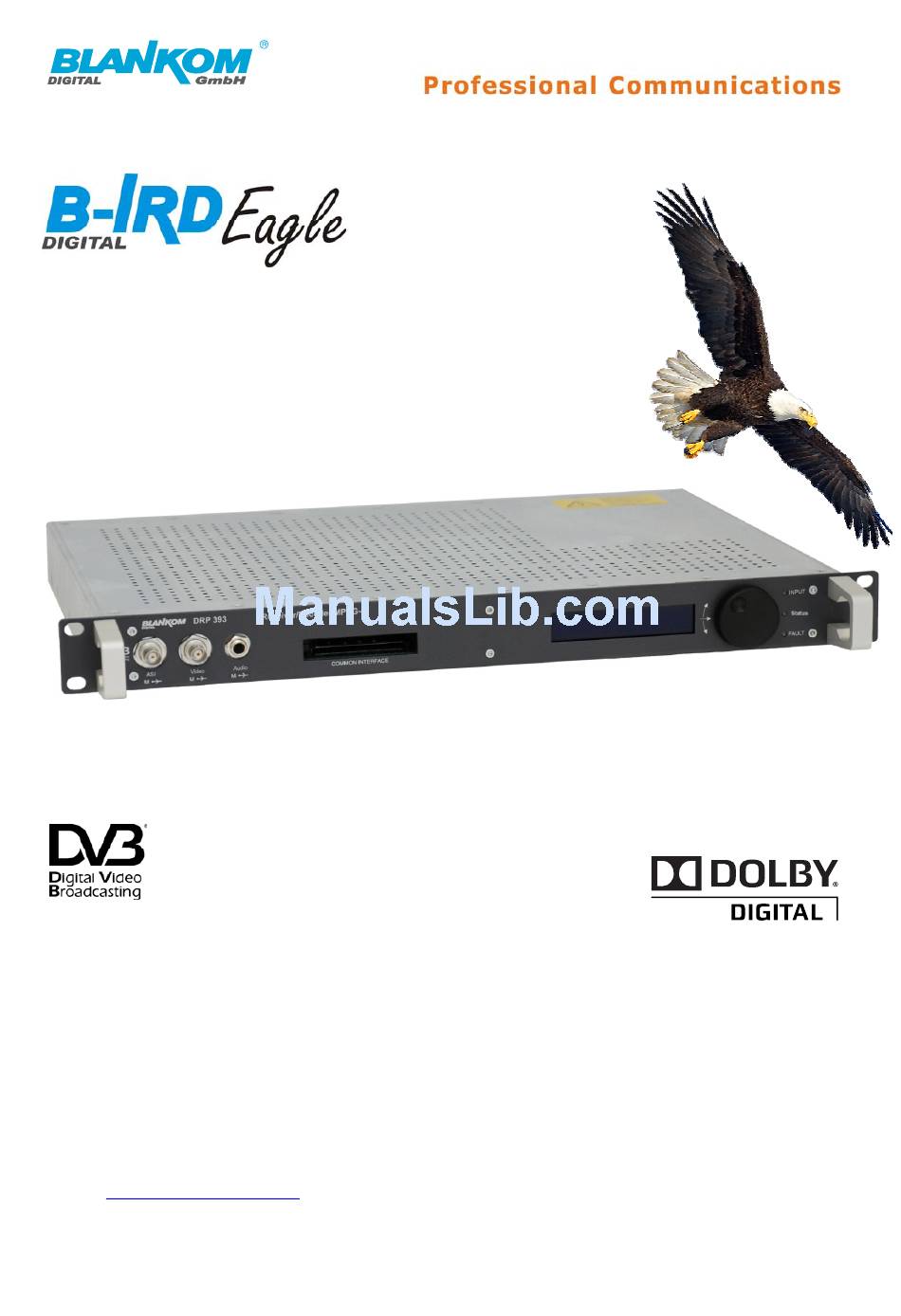

MPEG-4 Receiver / Decoder
Instruction Manual
Blankom Digital GmbH
TecCenter
31162 Bad Salzdetfurth
Germany
Phone +49 (0) 5063 / 2711 - 0
Fax
+49 (0) 5063 / 2711 - 60
E-Mail
info@blankom-digital.de
Web
www.blankom-digital.de
* Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are registered trademarks of Dolby Laboratories
BLANKOM Digital GmbH
TecCenter
DRP 393 MPEG-4 Receiver / Decoder
DRP 393
31162 Bad Salzdetfurth
Germany
(548D10300002-Rev. L 08/11)
Tel. +49 (0) 5063 / 2711-0
*
Fax +49 (0) 5063 / 2711-60
www.blankom-digital.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRP 393 B-IRD Eagle and is the answer not in the manual?

Questions and answers

Related Manuals for Blankom DRP 393 B-IRD Eagle

Summary of Contents for Blankom DRP 393 B-IRD Eagle

  • Page 1 DRP 393 MPEG-4 Receiver / Decoder Instruction Manual Blankom Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Phone +49 (0) 5063 / 2711 - 0 +49 (0) 5063 / 2711 - 60 E-Mail info@blankom-digital.de www.blankom-digital.de * Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are registered trademarks of Dolby Laboratories...

  • Page 2: Important Notes

    (such as translation, transformation or adaptation) without the written permission from BLANKOM Digital GmbH. BLANKOM Digital GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for BLANKOM Digital GmbH to provide notification of such revision or change.

  • Page 3: Table Of Contents

    Decoder SDI (Option) ............ 24   LAN ................25   LAN-SNMP ..............26   System ............... 27   Update ................ 30   Connections ..............31   Technical data..............32   History ................35   Rev. L www.blankom-digital.de Page 3 (36)

  • Page 4: General Description

    Descrambler function for IP and ASI outputs  BISS descrambler  2 additional audio outputs with adapter cable  Additional video output (not simultaneously with SDI output)  HD-/SD-SDI output with embedded audio and additional AES/EBU interface Page 4 (36) www.blankom-digital.de Rev. L...

  • Page 5: Input

    The PID selected for audio decoder 1 can also be given out via the digital SPDIF output. If a Dolby Digital signal (AC3) is selected, the AC3 signal (which is not decoded) can also be given out (“pass thru”). Rev. L www.blankom-digital.de Page 5 (36)

  • Page 6: Wide-Range Power Supply Unit

    Due to the NDS Certification procedure NDS decryption is an option. BISS Decryption BISS by CAM See ordering BISS (Basic Interoperable Scrambling System) Descrambler, MODE 0, MODE 1, BISS-E codes DVB-Subtitling APA103-58 Graphical overlay of service information within the MPEG2 transport stream. Page 6 (36) www.blankom-digital.de Rev. L...

  • Page 7: Ordering Codes

    APA103-58 OPD10301 5800 Bundle: SFP100 + MPTS OPD103-30 OPD103013000 Output Streaming (MPTS) Electrical SFP-Module, RJ45 incl. MPTS Bundle: SFP100 + SPTS OPD103-31 OPD103013100 Output Streaming (SPTS) Activation of software options is described under Download. Rev. L www.blankom-digital.de Page 7 (36)

  • Page 8: Control With Display And Navigation Wheel

    After 30 sec. the configuration mode is switched off automatically if the navigation wheel is not in use. Operation display If an input signal is connected the most important information about the configured channel are displayed. Example: Page 8 (36) www.blankom-digital.de Rev. L...

  • Page 9: Description Of Menu

    Configuration date and time LCD Contrast Configuration contrast of display Common Interface Top Slot Display CA module informationen Bottom Slot Control IP address (192.168.000.202) Subnet mask (255.255.255.000) Gateway address (192.168.000.001) MAC address Display Data (Option) Rev. L www.blankom-digital.de Page 9 (36)

  • Page 10: Control With Web Server

    After configuring the current IP address of DRP 393 on the web browser, the device notifies itself with the following status information. You can request for further information and configurations by selecting the corresponding menu items on the left side. Page 10 (36) www.blankom-digital.de Rev. L...
  • Page 11 For activating another software option, select “Get configuration” under the menu item “Download”. The file that is read out must be sent to Blankom Digital along with the purchase order for the option. A file that is delivered by Blankom Digital having the corresponding options is then loaded in DRP 393 via “Download”.

  • Page 12: Input

    (ONID) as well as the gross and net data rate are displayed. Depending upon the implemented Input Frontend, the user can obtain corresponding status information by clicking on Input. The image presented above applies to the input source ASI (Basic). Page 12 (36) www.blankom-digital.de Rev. L...

  • Page 13: Input-Dvb-S/S2 (Option)

    By entering the transport stream ID (SCPC TSID) it is ensured that the DRP 393 tunes on the selected transport stream. The TSID must be entered in hexa-decimal format. Rev. L www.blankom-digital.de Page 13 (36)

  • Page 14: Ip Input (Option)

    Pass mode: The selected services are passed through, all other services are filtered out . If a new service is in the transport stream this service will be filtered out. Page 14 (36) www.blankom-digital.de Rev. L...

  • Page 15: Conditional Access

    The CA-PMT list is activated via ‘first’, ‘more’ and ‘last’. The Reset button allows a targeted resetting of one CAM. A click on CAM MMI gives the access to more information about CAM and Smart Card via an additional menu. Rev. L www.blankom-digital.de Page 15 (36)

  • Page 16: Biss Decryption (Option)

    BISS Decryption with DRD700 is realized with Alphacrypt Classic Pro. Select the appropriate slot > “CAM MMI” > “5” for Module Options > “5” for BISS Settings: “3” and ENTER for BISS decryption ON, and “1” to edit the service IDs. Page 16 (36) www.blankom-digital.de Rev. L...
  • Page 17 Enter the service-ID in decimal format and the 6 SW bytes (decimal). After successful entering the settings, go back to the service list (Common Interface Slot x) and set the CA Decryption of the appropriate service to ON. Rev. L www.blankom-digital.de Page 17 (36)

  • Page 18: Ip Output Mpts

    All PIDs belonging to a service are listed in the PMT (Programme Association Table). DRP 393 gets the assignment from PID and Service. The elementary PIDs include video PID, audio PID, Teletext PID, subtitle PID etc. Page 18 (36) www.blankom-digital.de Rev. L...

  • Page 19: Ip Output Spts

    IP boxes. A MPTS input data stream can be converted into several SPTS IP output signals in DRP 393. Every individual service can be transferred as SPTS via different ports or receiver IP addresses. Rev. L www.blankom-digital.de Page 19 (36)

  • Page 20: Decoder

    A mixed decoding of MPEG and AC3-encoded audio streams is not possible! The DRP 393 supports the following audio codecs: MPEG1, MPEG2, Dolby Digital, Dolby Digital Plus, HE AAC, HE-AAC+. Page 20 (36) www.blankom-digital.de Rev. L...
  • Page 21 The other type is a simple “Stereo” representation (called Left only/Right only, or Lo/Ro) suitable for playback on a stereo hi-fi or on headphones. This signal can also be used to derive a mono signal. Rev. L www.blankom-digital.de Page 21 (36)
  • Page 22 DRP 393 in different ways. Firstly an additional test line “sinx/x” can be entered for group delay time measurements and secondly this line can also be used for further VPS information if data is available for this line or if the line can be reserved for the assignment of Teletext. Page 22 (36) www.blankom-digital.de Rev. L...
  • Page 23 D: Data). Please ensure that the PID stream has a maximum data rate of 38.4 kbps. The data rate to be achieved depends on the uniformity of the packets of the data stream. The PID of the low-speed data stream must be entered via the menu “PID”. Rev. L www.blankom-digital.de Page 23 (36)

  • Page 24: Decoder Sdi (Option)

    48 kHz by default. If a service is received with another audio sampling rate (e.g. 32 kHz, 44.1 kHz) and transmitted via SDI the sampling rate is internally automatically converted to 48 kHz. Besides a digital audio output conforming to AES/EBU is available. A stereo-/dual-tone signal can be transmitted via AES/EBU. Page 24 (36) www.blankom-digital.de Rev. L...

  • Page 25: Lan

    Tests of the connection of the data port can be done with the ping-command. If a SFP module is inserted additional information about vendor and status of the SFP are shown. Rev. L www.blankom-digital.de Page 25 (36)

  • Page 26: Lan-Snmp

    Management System (NMS). If an error / fault occurs corresponding traps are sent to the NMS. The target addresses for the ztraps can be entered in this menu. Alarm Severity enables the user to activate SNMP traps for different types of events. Page 26 (36) www.blankom-digital.de Rev. L...

  • Page 27: System

    While Factory setting via the web browser or SNMP the IP address is not reset to the factory setting! While Factory setting via the front panel, the IP address is reset to the factory setting (192.168.0.202 and 192.168.0.203). Rev. L www.blankom-digital.de Page 27 (36)
  • Page 28 Under Fallback Time you can configure the automatic fallback time after a login. Admin is able to choose between four different classes of user rights for different accounts. The user rights and accounts can be assigned by the Admin only. Page 28 (36) www.blankom-digital.de Rev. L...
  • Page 29 For software update select Update  Select Softwarefile (.drp) via Durchsuchen (Select)  Click Start  An automatic Reset updates the SW version. To check the success of a download please click refresh and verify the software version. Rev. L www.blankom-digital.de Page 29 (36)

  • Page 30: Update

     Click Get Configuration  Save the configuration file „DRP393_xxxxxxx.dat“ and  Send it via email to Blankom Digital (service@blankom-digital.de). After receiving a written Order Blankom Digital will  Create a Key file „DRP393-Option-Key-SerNr_xxxxxxx.dat“ and  send it back via email to the customer ...

  • Page 31: Connections

    CVBS Coaxial connector, 75 Ohm ASI Out 1/2 Coaxial connector, 75 Ohm ASI In Coaxial connector, 75 Ohm F/SMA/BNC Input Depending on the frontend SFP slot GigEthernet (SFP) SFP module Electrical or optical (Option) Rev. L www.blankom-digital.de Page 31 (36)

  • Page 32: Technical Data

    16-, 32-, 64-, 128-, 256-QAM Input frequency 47 MHz to 862 MHz Input level -60 dBm to -10 dBm Symbol rate 2 MSym/s … 7 Msym/s Bandwidth 2 MHz, 4 MHz, 7 MHz, 8 MHz Page 32 (36) www.blankom-digital.de Rev. L...
  • Page 33 75 Ohm, BNC Data format Embedded Audio, embedded VBI (can be switched off) Data rate 270 Mbps HD-SDI output (Option) Output 75 Ohm, BNC Data format Embedded Audio, Data rate 1,485 Gbps; 1,485/1,001 Gbps (US) Rev. L www.blankom-digital.de Page 33 (36)
  • Page 34 IP check port, RJ45, LAN Format 10/100M, TCP/IP, SNMP, Web server, Software Download Alarm Potential-free relay contact General Power consumption 25 Watt (without LNB powering/CAM) Power supply 100V to 240 V EN 50083-2 Safety EN 60950-1 Page 34 (36) www.blankom-digital.de Rev. L...

  • Page 35: History

    Screenshot (Version) updated, SW Options described, Option list updated. 2010-06-28 System Menu:DVB or ATSC selectable Decoder Audio: ProLogic or Stereo selectable 05.11.2010 Decoder – Video: NTSC selectable Technical data: DVB-T/C/T2 Screenshots renew 2011-01-20 BISS Decryption described. 2011-08-19 Editorial changes regarding BISS 2011-08-23 Rev. L www.blankom-digital.de Page 35 (36)
  • Page 36 DRP 393 MPEG-4 Receiver/Decoder Blankom Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Phone +49 (0) 5063 / 2711 - 0 +49 (0) 5063 / 2711 - 60 E-Mail info@blankom-digital.de www.blankom-digital.de Page 36 (36) www.blankom-digital.de Rev. L...
