Blankom EMA 207 Device Manual

Mpeg-2 encoder/ multiplexer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Device manual

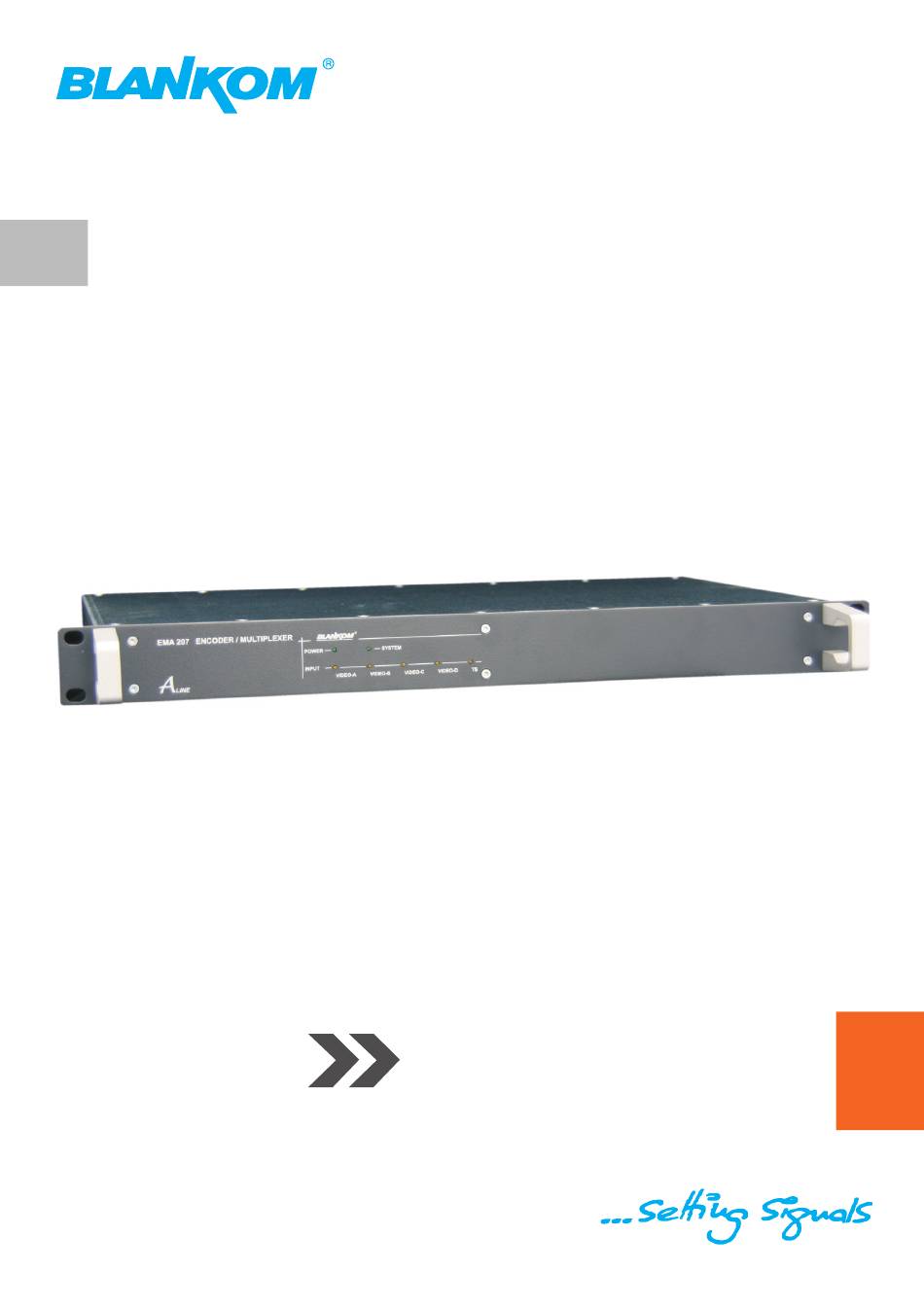

MPEG-2 ENCODER/ MULTIPLEXER
SDI/ A/V → ASI(TS)
Professional Headend Solutions
EMA 207
Part N
: 9172.x1
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMA 207 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blankom EMA 207

Summary of Contents for Blankom EMA 207

  • Page 1 Professional Headend Solutions Device manual MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) EMA 207 Part N : 9172.x1...

  • Page 2: Table Of Contents

    2.2.2 Further function and control elements ..................6 3. Operating instructions ..........................7 3.1 Commissioning of the EMA 207 (EASY, without configuration) ............. 7 3.2 Basic settings on delivery (Factory settings) .................. 7 3.3 Configurations via the Ethernet interface ..................7 3.3.1 Network connection to the computer ..................

  • Page 3: Part N O : 9172.X1

    • The devices come under protection classification I. It is absolutely necessary, therefore, to insert the mains plug into a fused socket. • Warning Connecting external video sources of which the mass has a different potential from that of the EMA 207 may cause “wow” (avoided by matching the potentials or isolating them from each other). 1.2 Contact If there are any questions or problems, help is available from: BLANKOM Antennentechnik GmbH Hermann-Petersilge-Str.

  • Page 4: General Description Of Functions

    It can be sent either to a cascaded EMA 207 or to a downstream modulator. By cascading EMA 207 devices (up to 8), a transport stream with up to 32 services can be produced or these services can be added to an incoming transport stream.

  • Page 5: Explanation Of The Functional Elements

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE 2. Explanation of the functional elements 2.1 Front view Fig. 1: EMA 207, front view POWER (green) LED on Device switched on System (green) LED on Internal system components are ready for operation.

  • Page 6: Further Function And Control Elements

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE Mono Dual Stereo Stereo Dual Mono 3 (+) 1 (+) not in use channel right left channel mono channel channel signal 5 (-) 4 (-) Pin 2 = shielding (6 ...

  • Page 7: Operating Instructions

    Making the connections: The PC and the EMA 207 must be connected to the network using an Ethernet cable. If the EMA 207 is connected directly to the PC, a cross-link Ethernet cable must be used. To establish the connection, the IP addresses of the devices must first be matched up.

  • Page 8: Configuration Menu (Html Page)

    Part N : 9172.x1 LINE That of the EMA 207 is 192.168.2.86 on delivery. The address of the network connection in the PC must be adapted to the IP address of the EMA 207 (subnet mask: 255.255.255.0, IP address: 192.168.2.XXX). Do not let XXX be exactly the same as the IP address of the EMA 207. When cascades are being configured initially, it is necessary to ensure that there is always only one EMA 207 connected to the network, as the IP addresses of all the devices are identical on delivery.
  • Page 9 EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE Status 19x: The status pages regularly deliver updated internal information for maintenance checks on the status and functioning of the device. They also can called up directly by input of IP address followed by page number. E.g. the input status delivers the page 190: “http://192.168.2.86/190.htm“.
  • Page 10 Transfer of the PC‘s settings Date and time on the device. Download MIB: With this function, a MIB parameter file can be downloaded from the EMA 207 to the PC. The file is used to configure the sy- stem via SNMP .

  • Page 11: Settable Parameters For The Ema 207

    SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE 3.3.2.2 Settable parameters for the EMA 207 (Anything pre-set under “Factory Setting” will be underlined in the display.) 3.3.2.2.1 General Input Selection Fig. 8: Selection of types of input signals This is the area in which the expected audio and video signal standards are allocated to the input ports.

  • Page 12: Channel Mux (Settings For The Transport Stream)

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE Serial Number: 5-digit serial number of the devices (information) Mac ADR Group/ MAC-ADR Part: Hardware-specific addresses of the IP module (information) Use DHCP: [ON/ OFF] Allocation of IP address, default : 192.168.2.86 ”ON”:...

  • Page 13: Asi Main Input

    When programmes or transponders are being forwarded, the origin of the data can be indicated here by inserting the “origi- nal” network ID for purposes of information. Cascade Number within Network: [1 ... 8] The number of the cascade is inserted here to distinguish between the EMA 207 cascades installed. It must be the same num- ber for all the EMA 207s of a cascade and it serves to generate unique programme numbers (designated by service ID) within a network.

  • Page 14: System Parameters

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE Program Name: This is where a programme name is allocated for each encoder input port. The programme name will be displayed by the set- top box. The programme name must be unique and may appear only once in a cascade of encoders. The maximum length is 16 characters.

  • Page 15: Detailed Configuration (For Single And Multiple Device Systems)

    Although the standard allows 1 to 8 frames, this range is not supported from every connectable audio device with an ASI TS input port known to BLANKOM. This, with an inappropriate combination of frame value and audio bitrate, can lead to sound problems (for example, periodic breaks).

  • Page 16: The Multiple Device System (Commissioning Cascades)

    • Transport stream identification (TS ID) Unique identification of the transport stream is generated. The TS ID can be any number between 1 and 65 535. However, at the start the TS ID will be the 5-digit serial number of the EMA 207 being initia- lised. In the simplest case, the TS ID of the first device should also be entered for all the devices.
  • Page 17 VTX: Teletext internally generated. The EMA 207 has the facility that a teletext carrousel can be generated for each particular device. This teletext can be allocated to one or all of the services being shown. This is an optional function and a charge is made for it.

  • Page 18: Transport Stream Bit Rate (Ts Out Bitrate), System Bit Rate

    The bit rate (“TS-Out bit rate”) is selected in the configuration settings under Channel Mux. For the EMA 207, the maximum TS-Out bit rate possible is 214 Mbps. When deciding the TS-Out bit rate it is necessary and im- portant to check what is the maximum transport stream bit rate which can be processed or forwarded by succeeding compon- ents such as modulators and upconverters.

  • Page 19: Extended Configuration, Individual Settings

    The EMA 207 can select any pair of signals from these and embed them in the DVB transport stream. 3.4.3 Options The EMA 207 can access the signals when processed in a variety of ways. If there is a need for further functions, it is always possible to enquire about them (section 1.2, contact).

  • Page 20: Re-Set To Status On Delivery (Factory Setting)

    Ethernet connections of the HCB x00 and the EMA 207 are networked. Before this happens, the “lo- west” of the IP addresses of all the EMA 207 encoders must be entered in the configuration menu for the IP address of the HCB x00. It is only possible to enter (or change) IP addresses into the HCB x00 directly.

  • Page 21: Appendix

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE 4. Appendix 4.1 Technical data Device Casing/ dimensions for 19” rack, 1 height unit (steel sheet), HxWxD = 44 x 444 x 300 mm installation Operating voltage 85 ... 264 V~, 50/ 60 Hz or 110 ... 370 V-...

  • Page 22: Accessories

    Audio plugs DIN plug, 5 poles SV 050 0143 (for cable diameter 6 mm) DIN plug, 8 poles SV 081 0141 ... length as specified by customer Further accessories are to be found in the BLANKOM Antennentechnik main catalogue.

  • Page 23: Glossary And Abbreviations

    Within the network this ID is the same for all TSs. Network Information Table The EMA 207 is capable of setting up this table. A this is an important table for the transmission of succeeding modulator component can add to it or channel parameters.

  • Page 24: Bibliography

    EMA 207 MPEG-2 ENCODER/ MULTIPLEXER SDI/ A/V → ASI(TS) Part N : 9172.x1 LINE Term Meaning Notes System bit rate The digital bandwidth available for an A/V channel. The system bit rate for a channel is composed of the video and audio shares combined.
  • Page 25 Declaration of Conformity The Manufacturer BLANKOM Antennentechnik GmbH ∙ Hermann-Petersilge-Str. 1 ∙ 07422 Bad Blankenburg ∙ Germany herewith declares the conformity of the product group MPEG-2 Encoder/ Multiplexer Product name: EMA 207 Type: 9172.x1 Product number: according to the following regulations EN 50083-2 EN 60728-11 (as far as relevant) and additional device-specific regulations, enclosed above, which these products are subjected to.
