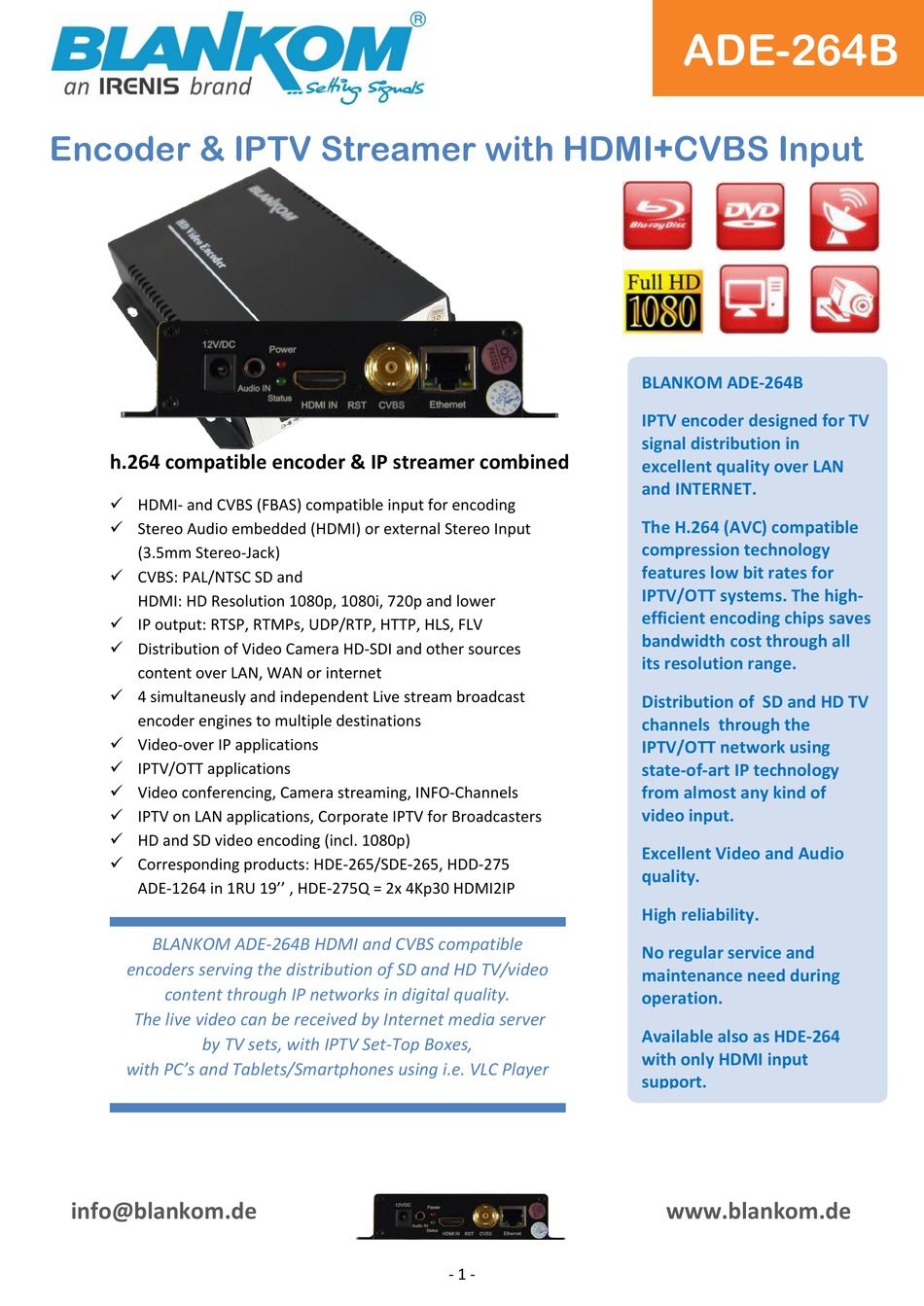

Encoder & IPTV Streamer with HDMI+CVBS Input
h.264 compatible encoder & IP streamer combined
HDMI- and CVBS (FBAS) compatible input for encoding
Stereo Audio embedded (HDMI) or external Stereo Input
(3.5mm Stereo-Jack)
CVBS: PAL/NTSC SD and
HDMI: HD Resolution 1080p, 1080i, 720p and lower
IP output: RTSP, RTMPs, UDP/RTP, HTTP, HLS, FLV
Distribution of Video Camera HD-SDI and other sources
content over LAN, WAN or internet
4 simultaneusly and independent Live stream broadcast
encoder engines to multiple destinations
Video-over IP applications
IPTV/OTT applications
Video conferencing, Camera streaming, INFO-Channels
IPTV on LAN applications, Corporate IPTV for Broadcasters
HD and SD video encoding (incl. 1080p)
Corresponding products: HDE-265/SDE-265, HDD-275
ADE-1264 in 1RU 19'' , HDE-275Q = 2x 4Kp30 HDMI2IP
BLANKOM ADE-264B HDMI and CVBS compatible
encoders serving the distribution of SD and HD TV/video
content through IP networks in digital quality.
The live video can be received by Internet media server
by TV sets, with IPTV Set-Top Boxes,
with PC's and Tablets/Smartphones using i.e. VLC Player
info@blankom.de
- 1 -
ADE-264B
BLANKOM ADE-264B
IPTV encoder designed for TV
signal distribution in
excellent quality over LAN
and INTERNET.
The H.264 (AVC) compatible
compression technology
features low bit rates for
IPTV/OTT systems. The high-
efficient encoding chips saves
bandwidth cost through all
its resolution range.
Distribution of SD and HD TV
channels through the
IPTV/OTT network using
state-of-art IP technology
from almost any kind of
video input.
Excellent Video and Audio
quality.
High reliability.
No regular service and
maintenance need during
operation.
Available also as HDE-264
with only HDMI input
support.
www.blankom.de
Advertisement
Related Manuals for Blankom ADE-264B
Summary of Contents for Blankom ADE-264B
- Page 1 Corresponding products: HDE-265/SDE-265, HDD-275 quality. ADE-1264 in 1RU 19’’ , HDE-275Q = 2x 4Kp30 HDMI2IP High reliability. BLANKOM ADE-264B HDMI and CVBS compatible No regular service and encoders serving the distribution of SD and HD TV/video maintenance need during content through IP networks in digital quality.
- Page 2 Function H.264 compatible Encoder and IP Streamer INPUT HDMI-Cable compatible (1.4) or Cinch for CVBS (BNC-Cinch-Adapter supplied) Resolution 1080p, 1080i, 720p and below (HDMI IN), PAL, NTSC SD IN 576i and below Video encoder H.264 (AVC) compatible, 1x Main + 1x second (HDMI) 2x CVBS encoders Audio encoder AAC +/++, MP3, MPEG1Layer2, AC-3 (External analog stereo Input depending on Model) Audio Bit-rate:...
- Page 3 Quick-Start-Manual Appearance: DC-Jack 12V, AUDIO 3.5mm Input, Status LEDs, HDMI IN, RESET Button-hole, CVBS/FBAS BNC, RJ-45 GbEthernet Variant with SDI Inputs: SDE-265 (no 264 available any more) SDI-Versions have a loop through to cascade the Input to other SDI-devices... Sticker with default settings (MAC may be different) All technical data are subject to change w/o further notice ..
- Page 4 Notes and Hints: The Gigabit-Ethernet-port does not support PoE so please take care of not accidently using a PoE switch- you can damage the port and the unit will be not accessible anymore. We recommend to use an IGMP-V2/3 protocol capable GBE- Switch to avoid flooding your network with unmanaged multicast streams.
- Page 5 Quick-Start-Manual -> Maybe confirm Administrator access-> Change IPv4 settings: And confirm please. Linux users should know how to change the ethernet or WIFI settings. Than open your browser and enter the http- Address of the box 192.168.1.168 (w/o https): Depending on browser you’ll get a log-in-screen window: All technical data are subject to change w/o further notice ..
- Page 6 Enter the default username = admin, default password = admin ..and here we go: - 6 -...
- Page 7 Quick-Start-Manual and second: The STATUS page shows your Setup encodings for all the MAIN and the Substream(s). Parallel and different streamings can be used for all encoder parts as long as the capacity of the system is not claiming it: You will get a message if the encoding capacity will be reached and one or more substreams would be disabled...
- Page 8 In some Sub-Streams Info-sections (model depending) you can check the Picture/Sound directly in the browser by this button: but you need to enable the FLV or HLS stream before using that – and Flash-Player support is needed by your browser: Enabling it in the related Sub-Stream settings ->...
- Page 9 Quick-Start-Manual Allow your browser to do that (here Mozilla): CVBS-Preview with connected DVD-Player: All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........- 9 -...
- Page 10 HDMI-Input stream- Preview: Back to STATUS page: Like the hint above, sometimes its helpful to reload the Status page i.e. if you see @0: to gather the actual values like Input HDMI values: The device time can be adjusted by the Network-setup-part NTP-Server which you need to tell the NTP server URI and UTC-time difference.
- Page 11 Quick-Start-Manual Mark it by the mouse and COPY it - Than insert into VLC: All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........- 11 -...
- Page 12 Note: If you more than one Network-Card in operation (like WIFI and GbE) in your receiving machine, VLC often doesn’t recognize where to catch it from. Manually settings of METRIC Values for both can solve this issue. Note: UDP/RTP-Address will be taken by VLC with an @ and we have made it easy for you: AGAIN: You do not need to restart the encoder only the receivers you have in your network need to re-sync to the changed values!!! - 12 -...
- Page 13 Quick-Start-Manual Multicasts: All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........- 13 -...
- Page 14 CVBS-Stream: Network: Here you can change the encoders IP-address and mode: If you change it to DHCP – after a reboot it will catch it from your router. Disadvantage: You need to check the to the encoder given IP Address by your router in it’s own menu or use an IP-Scanner-tool.
- Page 15 Quick-Start-Manual These are the basic ports for HTTP and RTSP-Streaming use. You can modify that but we recommend to keep them as they are because RTSP – receivers might are fixed to that port while HTTP isn’t. The bottom of the every of the menu-pages contain the ‘Set up’ buttons to take and enable your changes.
-
Page 16: On Screen Display
On Screen Display Menu: You can ‘Overlay’ a Text or Logo over the encoded Picture in 4 Zones: For deeper detailed explanations about the OSD feature refer to the full – Manual please. Also for the ONVIF settings with RTSP. It supports BMP with a special backgroud colour if you like to be that transparent –... - Page 17 Quick-Start-Manual Audio settings are common for both stream encoder parts: All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........- 17 -...
- Page 18 Self-explaining: The default settings are usually Ok for most use-cases: Playing with ‘Deinterlaced settings’ helps sometimes fixing moving picture artefacts. BOTTOM only can solve right-left-camery stucking problems. - 18 -...
- Page 19 Quick-Start-Manual For more info... the full manual should explain... www.blankom.de A schedules ‘restart’ can be programmed (NTP-Time = ON recommended): Supporting Rserial function if needed (Linux like) All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........
- Page 20 The settings as well as the Firmware can be back-upped and re-uploaded. The config-settings file is a linux based text file named box.ini. Do not modify store upload that by a windows editor except you will use notepad++ (freeware – please google...) Finally i.e.
- Page 21 Finally: To get more information about the deeper details of the encoder settings and configuration issues, please download the combined PDF – Manual from our website www.blankom.de. All technical data are subject to change w/o further notice ..© Irenis GmbH 11-2019........
