MPEG4 HD to IP / ASI Encoder & Multiplexer
Installation and operation Instructions
EMU 8200 Series:
EMU- 4220, 8220 (SDI), 4230, 8230 (HDMI)
The differences between the models are only the INPUT Circuits HD-SDI (BNC) or HDMI.
This operating instruction has been made with the HDMI Version EMU-8230 and is subject to technical
changes w/o notification.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blankom EMU-4220
Summary of Contents for Blankom EMU-4220

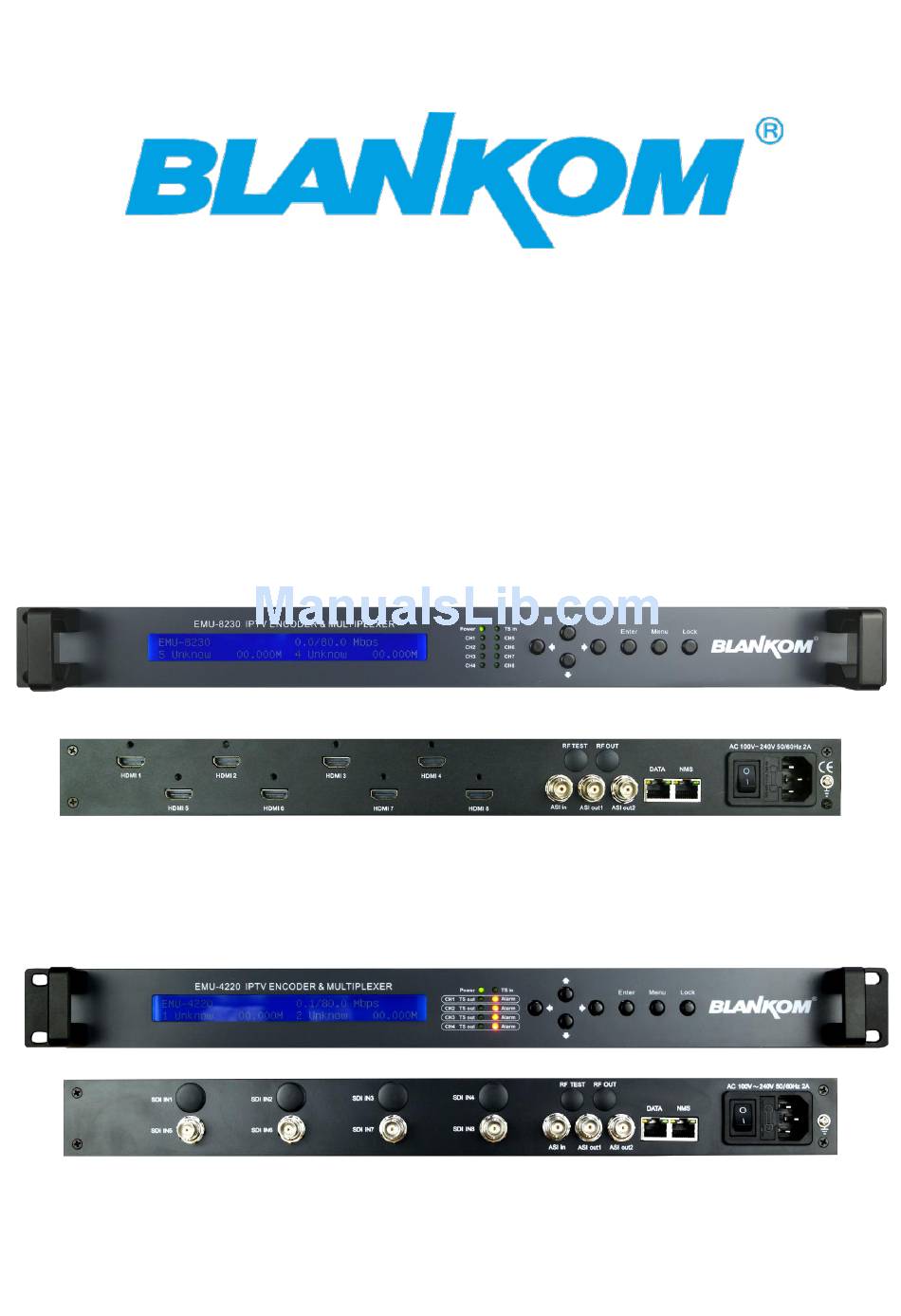

- Page 1 MPEG4 HD to IP / ASI Encoder & Multiplexer Installation and operation Instructions EMU 8200 Series: EMU- 4220, 8220 (SDI), 4230, 8230 (HDMI) The differences between the models are only the INPUT Circuits HD-SDI (BNC) or HDMI. This operating instruction has been made with the HDMI Version EMU-8230 and is subject to technical changes w/o notification.
-
Page 2: About This Manual
This document contains some confidential information. Its usage is limited to the owners of the product. It shouldn't be copied, modified, or translated in another language without prior written authorization from us. Author: RRi Page 2 Version 1.0 Date: 31. August 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 3: Table Of Contents
4. MULTIPLEXING ..........................11 5. OUTPUT PARAMETERS: ........................14 6. SYSTEM SETTINGS: ........................... 16 : ........................17 ETTING ETWORK PARAMETERS .......................... 19 HAPTER ROUBLESHOOTING ..........................19 HAPTER ACKING : ..............................19 ONTACT Author: RRi Page 3 Version 1.0 Date: 31. August 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 4: Chapter 1 Introduction
Usually the DATA GbE Port needs an IP address- otherwise the Switch or the receivers (i.e. IPTV STB's) cannot locate the source of the streams. Author: RRi Page 3+ 1 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 5: Specifications
MPEG-4 AVC/h.264, high or main level 1.2 …4.2 Bit-rate 0.8Mbps…19Mbps each channel Rate Control CBR/VBR GOP Structure IBBP MPEG-1 Layer 2 or AC3 pass, Encoding EMU-4220 supports AAC as well Sampling rate 48KHz Audio Resolution 24-bit 64kbps,128Kbps,192kbps,224kbps,256kbps, Bit-rate 320kbps,384kbps PID remapping ( automatically or manually) -
Page 6: Block Diagram
MPEG4 HD IP Encoder User Manual 1.4 Block Diagram Remark: 4 – Inputs for the EMU 4230/4220 Author: RRi Page 3+ 3 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 7: Appearance And Description
Make sure the power switch is off before you start to install the device 2.3 Device’s Installation Flow Chart Illustrated as following Connecting Grouding Connecting Acquisition Installing Setting Running Wire and Signal Check Device Parameter Device Power cable Cord Author: RRi Page 3+ 4 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 8: Environmental Requirements
It is prohibited to use any other device as part of grounding electric circuit The area of the conduction between grounding wire and device’s frame 19'' rack should be not less than 16 better 25 mm Author: RRi Page 3+ 5 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 9: Chapter 3 Web Interface Setup
For some values, a reboot should be considered to enable the settings and take effect. Almost all of the needed settings can be accessed by the Front panel w/o Web-IF. The Menu structure is nearly self-explaining. Author: RRi Page 3+ 6 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... - Page 10 A Popup will show the Login interface. Insert the Username and Password (Both default Username and Password are “admin”) and then click OK to enter the device setting menu. Note: We recommend using the newest version of the browser Firefox. Author: RRi Page 3+ 7 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
-
Page 11: Encoder Setup
These encoders support up to 4 or 8 Modules with HDMI or SDI inputs. From the menu on the Top of the webpage select Encoder and displays the information of each encoding channel: Author: RRi Page 3+ 8 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... - Page 12 As soon as an Input is automatically detected, the status will show it's parameters from the source. Bitrates and other usual settings can be configured independently for every encoder 1…4 or 1…8: VBR should be chosen for IPTV Recommended H.264-Level: 4: Author: RRi Page 3+ 9 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
- Page 13 For AC3-pass, the audio signal is an encoded signal and it's RAW. But for mpeg1layer2 the encoder needs an uncompress signal: PCM Instead of AC3 pass through, the SDI-Input based version supports AAC. Author: RRi Page 3+ 10 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
-
Page 14: Multiplexing
PID-Remapping is almost not necessary except same PID's are existing in the ASI-IN TS With the Multiplex function you can add the encoded Services to an existing transport stream coming in Author: RRi Page 3+ 11 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... - Page 15 You can expand every Service to check its content: By selecting the Services you can pass them to the output, even getting rid of unwanted services With PID-Remapping: Author: RRi Page 3+ 12 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
- Page 16 MPEG4 HD IP Encoder User Manual and without: Manually editing the Services by selecting them and press EDIT: But: This works only for encoded TV Services, not for the pass-through ASI content. Author: RRi Page 3+ 13 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
-
Page 17: Output Parameters
Set address and protocols, Null Packet Filter enables VBR or CBR. TS ID and ONID… Private Protocol should be SPTS Settings allows you to change the single encoded Stream output values: Author: RRi Page 3+ 14 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... - Page 18 Select VBR (Null PKT=ON) or CBR Null PKT =OFF For IPTV STB streaming VBR is the right choice. TTL should be set according to your local network. Recommended : not less than 64. ASI-Output selection: Author: RRi Page 3+ 15 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
-
Page 19: System Settings
You can chose what to play out on the parallel dual ASI Ports: The already combined MUX + Encoder streams you have created before or simply select single encoder streams. 6. System settings: Author: RRi Page 3+ 16 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... -
Page 20: Setting Network Parameters
MPEG4 HD IP Encoder User Manual Setting Network parameters: Fine-tune your network settings: i.e. the Gateway which we did not change by the front panel: System → password Author: RRi Page 3+ 17 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx... - Page 21 Please always SAFE your settings and also better to safe them as files locally. of course I am ;-). And it might be better to reboot to enable the changed setting in particular if you changed the IP addresses: Author: RRi Page 3+ 18 Version 1.0 Date: 13. July 2017 BLANKOM-EMU-8200_User_Manual_EN.docx...
-
Page 22: Chapter 7 Troubleshooting
IRENIS GmbH Owiesenkehre 1 D-22177 Hamburg - Germany Managing Director: Dipl.Ing. Riccardo Rossini Commercial Register: HRB 130657 / District Court Hamburg Web: www.blankom.de E-Mail: info@blankom.de Irenis-Direct Phone: +49 40 459747 Technical Hotline: +49 40 22864848 Author: RRi Page 3+ 19 Version 1.0...
