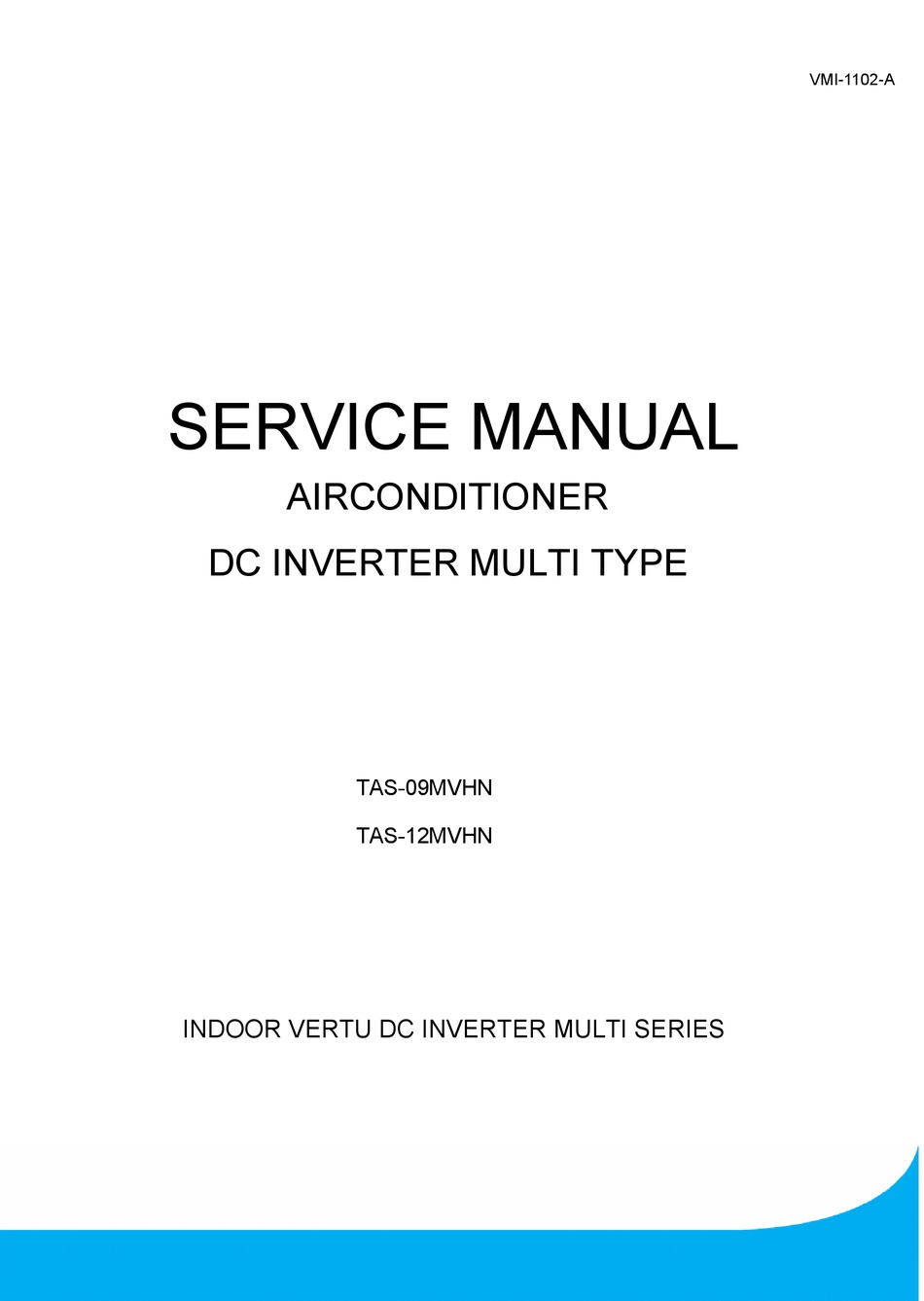

Page 1: Service Manual
VMI-1102-A SERVICE MANUAL AIRCONDITIONER DC INVERTER MULTI TYPE MSV1I-09HRDN1-M TAS-09MVHN TAS-12MVHN INDOOR VERTU DC INVERTER MULTI SERIES... -
Page 2: Table Of Contents
CONTENTS 1. Precaution ..............................1 1.1 Safety Precaution ........................1 1.2 Warning ............................1 2. Function................................ 6 3. Dimension ..............................7 4. Wiring Diagram ............................8 6. Electronic function ............................ 10 6.1 Abbreviation ..........................10 6.2 Display function .........................10 6.3 Main Protection .........................11 ... -
Page 3: Precaution
1. Precaution 1.1 Safety Precaution To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instruction will cause harm or damage. Before service unit, be sure to read this service manual at first. 1.2 Warning Installation Do not use a defective or underrated circuit breaker. - Page 4 For installation, always contact the dealer or an Authorized service center. There is risk of fire, electric shock, explosion, or injury. Do not install the product on a defective installation stand. It may cause injury, accident, or damage to the product. Be sure the installation area does not deteriorate with age.
- Page 5 If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable. There is risk of electric shock or fire. Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives.
- Page 6 the neighborhoods. It may cause a problem for your neighbors. Use two or more people to lift and transport the product. Avoid personal injury. Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause corrosion on the product.
- Page 7 It is not sanitary could cause serious health issues. Use a firm stool or ladder when cleaning or maintaining the product. Be careful and avoid personal injury. Replace the all batteries in the remote control with new ones of the same type. Do not mix old and mew batteries or different types of batteries.
-
Page 8: Function
2. Function Indoor unit Operation by remote controller Sensing by temperature sensor Room temperature control Maintain the room temperature in accordance with the setting temperature. Ionizer Anti-freezing control in cooling Time Delay Safety control Golden fin Indoor fan speed control high, med, low, breeze, auto Tele Remote control Two-direction air vane... -
Page 9: Dimension
3. Dimension Dimension of indoor unit Dimension Model 795 mm 270 mm 165 mm 165 mm TAS-09MVHN 31.30 inch 10.63 inch 6.5 inch 6.5 inch 845 mm 286 mm 165 mm TAS-12MVHN 33.27 inch 11.26 inch 6.5 inch Position of installation board... -
Page 10: Wiring Diagram
4. Wiring Diagram Indoor unit (TAS-09MVHN / TAS-12MVHN) -
Page 11: Operation Characteristics
5. Operation characteristics CAUTION: 1. If air conditioner is used outside of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. 2. Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. -
Page 12: Electronic Function
6. Electronic function 6.1 Abbreviation T1: Indoor ambient temperature T2: Coil temperature of indoor heat exchanger middle. T2B: Coil temperature of indoor heat exchanger outlet. T3: Coil temperature of outdoor heat exchanger T4: Outdoor ambient temperature T5: Compressor discharge temperature Ts：Setting temp. -
Page 13: Main Protection
6.3 Main Protection 6.3.1 Three Minutes Delay at restart for compressor. 6.3.2 Fan Speed is out of control. ----When Indoor Fan Speed keeps too low or too high for certain time, the unit will stop and the LED will display the failure 6.3.3 Indoor fan delayed open function ----When the system starts up, the louver will be active immediately and the indoor fan will open 10s later. -
Page 14: Operation Modes And Functions
6.4 Operation Modes and Functions 6.4.1 Fan mode. (1) The outdoor fan and compressor stop. (2)Temperature setting function is disabled, and no setting temperature is displayed. (3) Indoor fan can be set to high/med/low/auto. (4) The louver operates the same as in cooling mode. (5) Auto fan: The action of auto fan in fan-only mode is the same as auto fan in cooling mode with 24... - Page 15 6.4.2.2 Indoor fan running rules In cooling mode, indoor fan runs all the time and the speed can be selected as high, medium, low and auto. Auto fan in cooling mode acts as follow: 38.3 37.4 34.7 33.8 6.4.2.3 Evaporator low temperature T2 protection. When T2<4 / (39.2F), the indoor has no capacity demand and resume till T2>8...
- Page 16 6.4.3 Heating Mode 6.4.3.1 Compressor running rules: The compressor will run at corresponding frequency according to the gross amendatory capacity demand. HEAT_F1 HEAT _F2 …… HEAT _F11 HEAT _F12 Frequency(Hz) …… ≧12 Amendatory capacity demand. 6.4.3.2 Indoor fan running rules: Indoor fan speed can be set as high, medium, low or auto fan and the anti-cold-wind function is preferential.
- Page 17 6.4.3.3 High evaporator coil temp.T2 protection: , the indoor unit has no capacity demand and resume till 48 ℃ If T2>63℃ (118.4 (145.4 6.4.3.4 Defrosting mode： Condition of defrosting: T3≦TCDIN and lasts for 40 minutes. TCDIN=－2℃. (28.4 Defrosting action： HEAT_F2 COOL_F9 Compressor 4-Way valve...
- Page 18 The louver operate same as in relevant mode. If the machine switches mode between heating and cooling, the compressor will keep stopping for 15 minutes and then rechoose mode according to T1-Ts. If the setting temperature is modified, the machine will rechoose running function. 6.4.5 Dehumidifier mode 6.4.5.1 Indoor fan speed is fixed at breeze and can’t be changed.
- Page 19 6.4.6.5 The slave forced cooling units will not be controlled by other signals except timer off signal. 6.4.6.6 If AC is running in sleep mode and receives forced operation signal, it will quit the sleep mode. 6.4.7 Timer function 6.4.7.1 Timing range is 24 hours. 6.4.7.2 Timer on.
- Page 20 automatically after 3 minutes when power returns. If the memorization condition is forced cooling mode, the unit will run in cooling mode for 30 minutes and turn to auto mode as 24 ℃ (75.2 ) setting temp. 6.4.10 Ionizer/Plasma dust collector function (optional) The indoor unit is equipped with Ionizer, which is controlled by the CLEAN AIR button on the remote controller.
