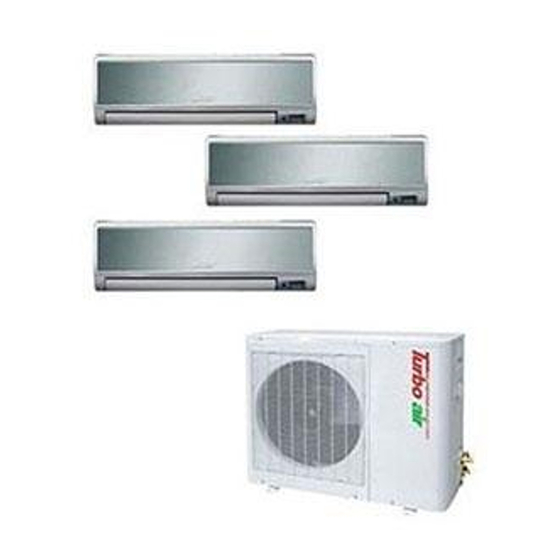

Inverter One-Two / One-Three/
One - Four Split-Type
ROOM AIR CONDITIONER
INSTALLATION MANUAL
TAS-18MVHN/O
MODEL #:
TAS-27MVHN/O
TAS-36MVHN/O
Please read this manual carefully and thoroughly before
operating the unit.
If you still have any difficulties or problems, consult your
dealer for help or Turbo Air Conditioning Corp.
Please keep this manual handy.
W1
Advertisement
Table of Contents
Related Manuals for Turbo Air TAS-18MVHN/O
Summary of Contents for Turbo Air TAS-18MVHN/O
-
Page 1: Room Air Conditioner
INSTALLATION MANUAL TAS-18MVHN/O MODEL #: TAS-27MVHN/O TAS-36MVHN/O Please read this manual carefully and thoroughly before operating the unit. If you still have any difficulties or problems, consult your dealer for help or Turbo Air Conditioning Corp. Please keep this manual handy. -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Warning ............................2 Caution ............................2 INSTALLATION INSTRUCTIONS Selecting installation place.......................3 Wall-mounted type ...........................3 Accessories ......................4 Four-way cassette type ........................9 Duct & Ceiling type ........................12 Ceiling and Floor type ........................16 Floor and Standing type(Console)....................19 Outdoor unit installation ........................23 REFRIGERANT PIPE CONNECTION Refrigerant pipe connection ......................24 ELECTRICAL WORK Electrical work .... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Read the follow SAFETY PRECAUTIONS carefully before installation. Electrical work must be installed by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model to be installed. Incorrect installation due to ignoring of the instruction will cause harm or damage. The seriousness is classified by the following indications. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Wall-mounted type Selecting installation place Read completely, then follow step by step. Indoor unit Do not expose the indoor unit to heat or steam. Select a place where there are no obstacles in front or around the unit. Make sure that condensation drainage can be conveniently routed away. -
Page 5: Accessories
INSTALLATION INSTRUCTIONS Tools needed for installation: Level gauge Vacuum pump Screwdriver Gauge manifold Electric drill,Hole core drill ( 65mm(2.56inch)) Users manual Flaring tool set Thermometer Specified torque wrenches: 1.8kgf.m, 4.2kgf.m, Multimeter 5.5kgf.m, 6.6kgf.m(different depending on model No.) Pipe cutter Spanner (half union) Measuring tape Hexagonal wrench (4mm(0.16inch)) Gas-leak detector... - Page 6 INSTALLATION INSTRUCTIONS More than15cm(6inch) Remote Remote Remote controller controller controller Remote controller One-Two Air out One-Three One-Four CAUTIONS This illustration is for explanation purposes only. The actual shape of your air condtioner may be Loop a slightly different. connective cable Copper lines must be insulated independently Fig.3 CAUTION...
- Page 7 INSTALLATION INSTRUCTIONS Indoor unit installation(wall-mounted type) Correct orientation of Installation Plate 1. Fit the Installation Plate 1. Fit the installation plate horizontally on structural parts of the wall with spaces around the installation plate. 2. If the wall is made of brick, concrete Fig.4 or the like, drill eight (8) 5mm(0.2inch) diameter holes in the wall.Insert Clip anchor for...
- Page 8 INSTALLATION INSTRUCTIONS 2. When connecting extension drain hose, insulate the connecting part of extension drain hose with a shield pipe, do not let the drain hose slack. Connective pipe installation Fig.8 1. For the left-hand and right-hand piping, remove the pipe cover from the side panel.
- Page 9 INSTALLATION INSTRUCTIONS 4. Indoor unit installation 1. Pass the piping through the hole in the wall. 2. Put the upper claw at the back of the indoor unit on the upper hook of the installation plate, move the indoor unit from side to side to see that it is securely hooked (see Fig.12).
-
Page 10: Four-Way Cassette Type
INSTALLATION INSTRUCTIONS 2. Four-way cassette type Attached fittings Please check whether the following fittings are of full scope. If there are some attached fittings free from use, please restore them carefully. Installation Fittings Tubing & Fittings Remote controller & Its Frame 1. - Page 11 INSTALLATION INSTRUCTIONS The length could be calculated from Fig.17: Length=8.3inch+L(in general, L is half of the whole Hook Body length of the installation hook) c. Please adjust the hexangular nuts on the four installation hooks evenly, to ensure the balance of the body.
- Page 12 INSTALLATION INSTRUCTIONS (2) Install the panel Drain side a. Align the swing motor on the panel to the water receiver of the body properly. (Refer to Fig.23) b. Hang the four fixed rope of the main body to the Steel rope installation cover and the other three covers of the swing motor: (Refer to Fig.23 ) CAUTIONS:...
-
Page 13: Duct & Ceiling Type
INSTALLATION INSTRUCTIONS 3. Duct & Ceiling type Installation precautions 1. Determine the moving route. 2. Move the unit in original state. 3. Make sure to do electric insulation according to relevant electric standard in case the unit is installed on metal part of building. 4. -
Page 14: Installation Of Unit
INSTALLATION INSTRUCTIONS Installation of unit Install 0.39 (4 pieces)hanging screw bolt Determine the location of hanging screw bolt following Fig.33. Make sure to use the hanging screw bolt of 0.39. The treatment to the ceiling varies from construction; please consult the professionals for details. 1) Treatment to ceiling---make sure to consolidate the roof beam for possible vibration to keep the ceiling horizontal. - Page 15 INSTALLATION INSTRUCTIONS 380(15) The position of hanging bolts 220(8.7) 175(6.9) Water outlet F25(0.98) Refrigerant piping joint Refrigerant piping joint (gas side) gas side Air outlet sketch map 140(5.8) Air outlet (on side) Fresh air inlet F100(3.9) Ceiling 25(1.0) >500mm(19.7inch) >500mm(19.7inch) Fig.33 MODEL <12000Btu/h...
- Page 16 INSTALLATION INSTRUCTIONS CAUTION 1.5m~2m(59inch~78.7inch) The drain pipe as well as the connection part of Supporting Unit indoor unit must be heat insulated, or condensate will occur. Please connect the pipe with horny PVC bond Lean Downward over 1/100 and make sure there is no leakage. Fig.37 Do not impose the pressure on connecting part of drainpipe.
-
Page 17: Ceiling And Floor Type
INSTALLATION INSTRUCTIONS 4. Ceiling and Floor type 4.1 Accessories Name of Usage Usage Q'ty Q'ty Qutline Qutline Remote controller & Its Frame Accessories Owner's manual 1. Remote controller....1 Installation manual (This manual) (This manual) 2. Frame........1 For wall mounting For wall mounting Hook instal lation instal lation... -
Page 18: Indoor Unit Installation
INSTALLATION INSTRUCTIONS 4.2 Indoor unit installation 4. For original concrete bricks Use embedding screw bold, crock 1. Installing 10(0.39) hanging screw bolts and stick harness (Refer to Fig.42-4). (4 bolts). Please refer to the following figure for the Steel bar distance measurement between the screw bolts. - Page 19 INSTALLATION INSTRUCTIONS 1. Fix the hook with tapping screw onto the 2. Location the hanging arm on the hanging wall. (Refer to Fig.42-7) screw bolt. (Refer to Fig.42-10) 2. Hang the indoor unit on the hook. Prepare the mounting bolts on the unit. (Refer to Fig.42-11) 8-13mm(0.31-0.51inch) Screw nut...
-
Page 20: Floor And Standing Type(Console)
INSTALLATION INSTRUCTIONS 4.5 The Dimension of the Unit Mounting screw B Unit:mm(inch) ST2.9x10-C-H Capacity SET TEMPERATURE£¨ AUTO COOL HIGH HEAT TEMP. 12-18 660(26) 206(8.1) 505(19.9) 506(19.92) 907(35.7) 203(8) 200(7.9) 990(39) ON/OFF FAN SPEED MODE SWING ECONOMIC TIMER ON RESET LOCK TIMER OFF AIR DIRECTION POWERFUL Note:The dimension of 12000Btu/h and... - Page 21 INSTALLATION INSTRUCTIONS Hang the indoor unit on the hook. CAUTION (The bottom of body can touch with floor Keep indoor unit, outdoor unit, power supply or suspended, but the body must install wiring and transmission wiring at least 1 meter vertically.
- Page 22 INSTALLATION INSTRUCTIONS 1. Drill a hole in the wall (suitable just for the 2. Remove the front panel size of the wall conduit), then set on the Remove the string. (Refer to Fig.43-7). fittings such as the wall conduit and its Allowing the front panel to fall forward will cover.
- Page 23 INSTALLATION INSTRUCTIONS When the declivity of the drain pipe downwards Be sure to locate the power wiring and the is over 1/100, there should not be any winding. signal wring well to avoid cross-disturbance. The total length of the drain pipe when pulled Do not turn on the power until you have out traversely shall not exceed 20m(787.4inch), when the checked carefully after wiring.
-
Page 24: Outdoor Unit Installation
INSTALLATION INSTRUCTIONS Outdoor unit installation Outdoor installation precaution Install the outdoor unit on a rigid base to prevent increasing noise level and vibration. Determine the air outlet direction where the discharged air is not blocked. In the case that Strong the installation place is exposed to strong wind wind such as a seaside, make sure the fan operating... -
Page 25: Refrigerant Pipe Connection
REFRIGERANT PIPE CONNECTION Drain joint installation Fit the seal into the drain elbow, then insert the drain joint into the base pan hole of outdoor unit, rotate 90 to securely assemble them. Connecting the drain joint with an extension drain Base pan hole of Drain joint Seal... -
Page 26: Electrical Work
ELECTRICAL WORK D: Flaring work Firmly hold copper pipe in a die in the dimension shown in the table below. Handle Yoke A(mm(inch)) Outer diam. Cone (Inch) Max. Min. 6.35(0.25) 1.3(0.051) 0.7(0.028) Copper pipe 1.6(0.063) 1.0(0.039) 9.53(0.38) Clamp handle Red arrow mark 1.8(0.071) 12.7(0.5) 1.0(0.039) - Page 27 ELECTRICAL WORK Wiring connection Minimum norminal cross-sectional area of conductors: NOTE: Before performing any electrical work, turn off the main power to the system. Nominal cross-sectional Rated current of appliance area (mm (inch )) 0.75(0.0012) CAUTIONS >3 and <6 1(0.00155) >6 and <10 Do not touch the capacitor even if you have disconnected the power for there is...
- Page 28 ELECTRICAL WORK NOTE: For some models, the indoor unit is especially designed to used as either MULTI models or MONO models. If your air conditioner is not set to the MULTI position, see the following INDOOR WIRING DIAGRAM to modify the indoor unit from MONO model to MULTI model. (Fig.56 &...
-
Page 29: Air Purging
AIR PURGING CAUTION CAUTION CAUTION CAUTION After the confirmation of the above conditions, prepare the wiring as follows: 1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, be guided by the circuit diagram posted on the inside of control cover. - Page 30 AIR PURGING When relocate the unit to another place, perform evacuation using vacuum pump. Refrigerant Indoor Make sure the refrigerant added into the air Outdoor unit unit conditioner is liquid form in any case. Gas side (Not applicable to the units adopt freon R22 ) Liquid side Caution in handling the packed valve Packed valve...
-
Page 31: Safety And Leakage Check
AIR PURGING Safety and leakage check Electrical safety check n m k j i h Perform the electric safe check after completing installation: 1. Insulated resistance Indoor unit check point The insulated resistance must be more than 2M . 2. Grounding work Outdoor unit check point After finishing grounding work, measure the... -
Page 32: Test Running
TEST RUNNING Test running Perform test operation after completing gas leak check at the flare nut connections and electrical safety check. Check that all tubing and wiring have been properly connected. Check that the gas and liquid side service valves are fully open. 1. - Page 33 TA-CS045I-BPV1-0301 2020001A6007...
