Procedure:
1. Disconnect power supply to ice machine.
2. Remove old contactor.

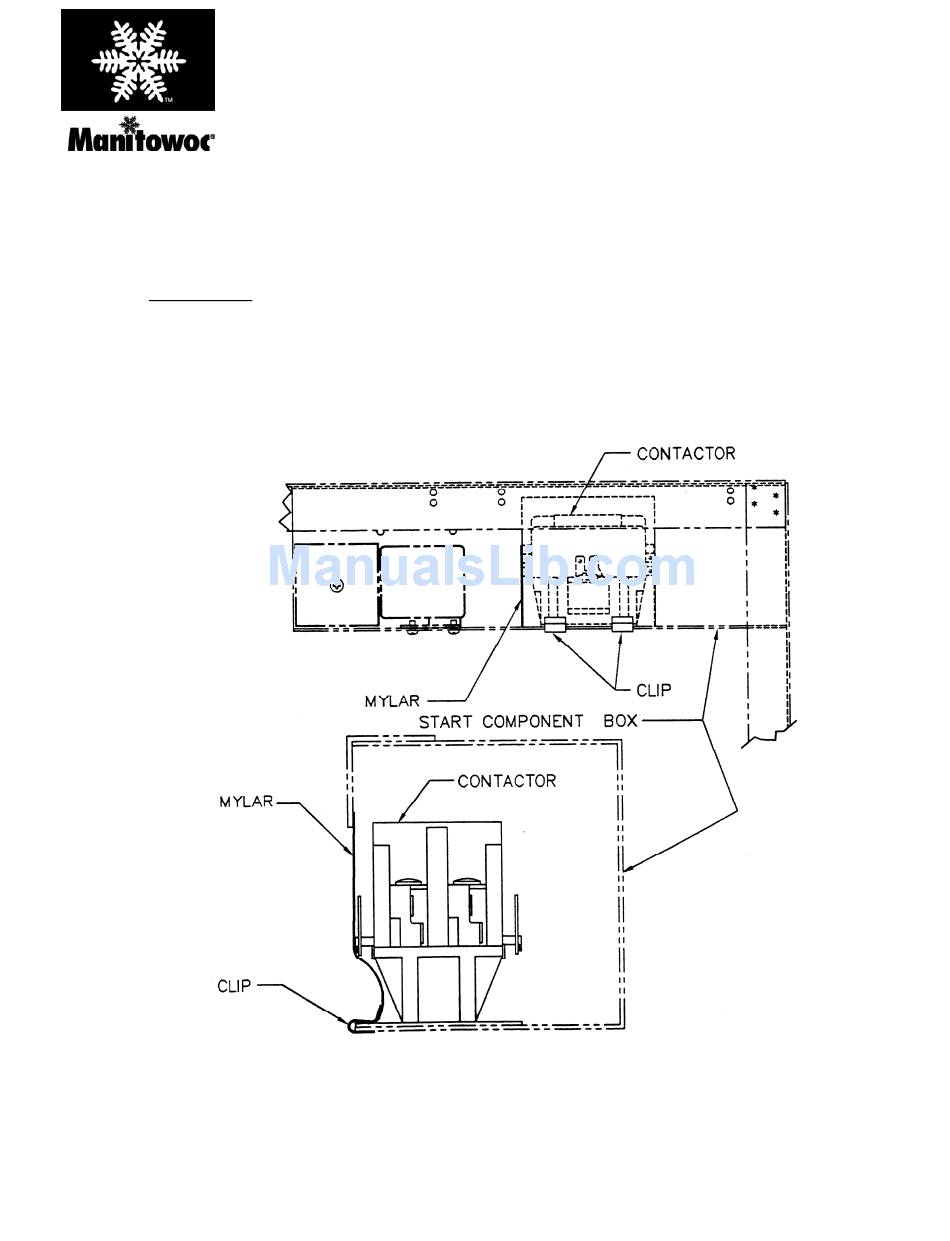

3. IMPORTANT: The replacement contactor is to be mounted on the component box bottom in an upright
position using the clips and Mylar enclosed (do not remount contactor in its original side position).
CAUTION: Mylar must be installed to prevent electrical arcing to metal surfaces.
Manitowoc Ice, Inc.
th
2110 South 26
Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site - www.manitowocice.com
2410169
G-0600/G-0800 CONTACTOR RELOCATION
Installation Instructions
8008683
Rev. 09/08/03
