Parts List:

Item
1.
Lower Ice Chute Weldment (one with insulation)
2.
Upper Ice Chute Weldment
3.
Front Chute Support
4.
Top Front Mounting Bracket
5.
Bottom Front Mounting Bracket
6.
Bottom Rear Mounting Bracket (Angle  )
7.
Top Rear Mounting Bracket (90 ∟)
8.
Water Shield Weldment
9.
Stabilizer Bracket
10.
#10-32 x 1/2 Machine Screw
11.
1/4-20 x 5/8 Hex Brass Machine Screw
12.
#10-24 x 5/8 Self-tapping Screw
13.
#10-24 x 3/8 Self-tapping Screw
14.
#10-32 Hex Nut
15.
1/4-20 Hex Nut
16.
#8-32 Wing Nut
17.
1/4 Split Ring Lock Washer
18.
#10 Split Ring Lock Washer
19.
Installation Instructions
20.
Locking Plate
21.
Foam Tape
22.
Corner Brace
Installation Instructions:
1. The K019 stacking kit is used for stacking two E-1100 machines, two G-1700 machines, or one E-1100 and one G-
1700 machine. The bin must be leveled before proceeding to step 2.

2. INSTALLATION OF CORNER BRACE:

A. Remove foam tape, as shown on Illustration 1.
B. Remove seven screws on the top of the bin and locate corner brace, as shown in Illustration 1. Secure with seven
screws previously removed.
C. Use foam tape from kit around the perimeter of corner brace, as shown in Illustration 1.

3. INSTALLATION OF MACHINES:

A. See service manual for uncrating and inspection of both machines.
B. Remove top cover from lower machine.
C. Set machine carefully and squarely on bin.
D. Position water shield from kit, as shown in Illustration 2. Apply foam tape on the perimeter and across partition
panel, as shown in Illustration 2.
E. Set top machine carefully and squarely on bottom machine.
F. Remove front, back, and side panel on the evaporator end of both machines.
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site -
www.manitowocice.com

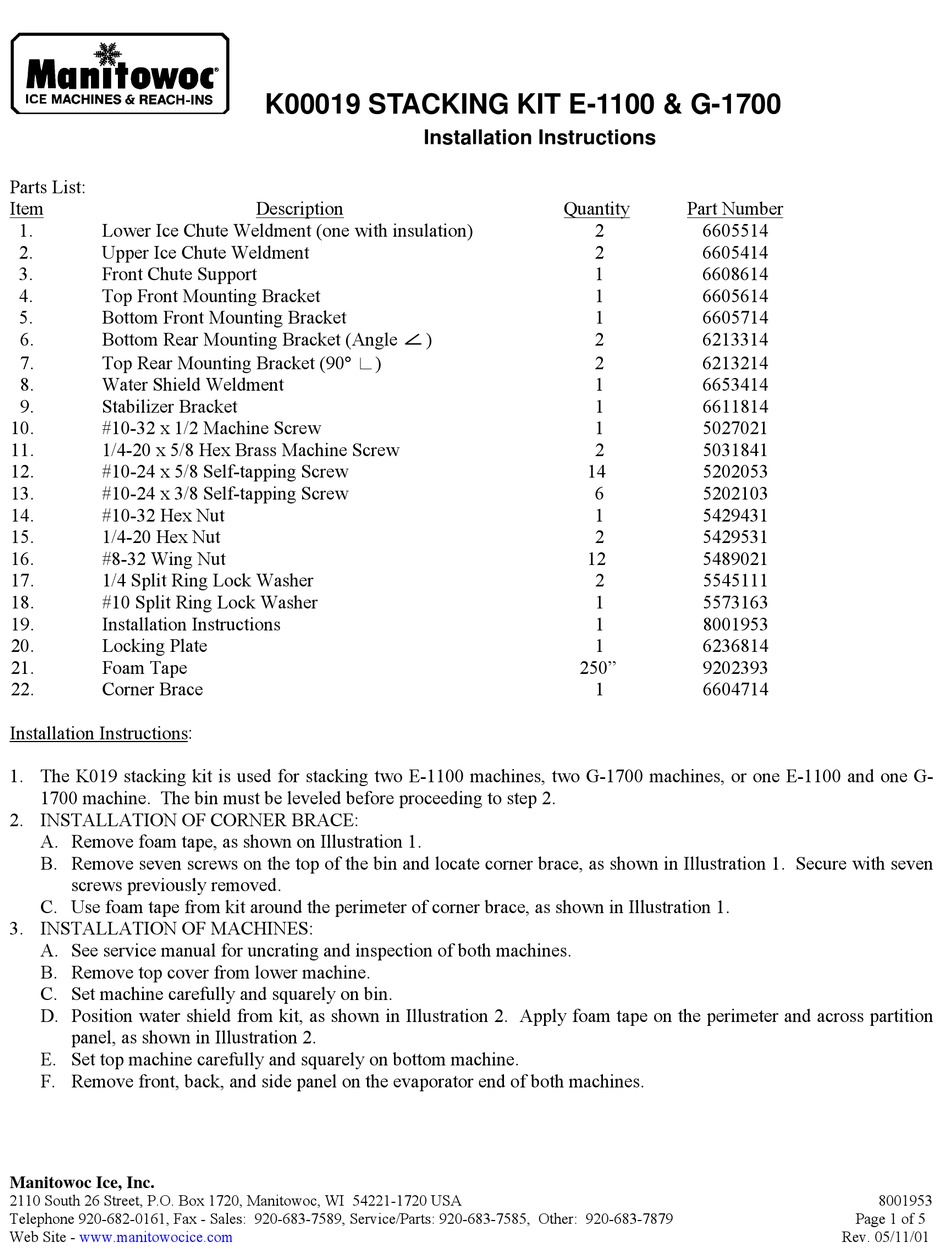

K00019 STACKING KIT E-1100 & G-1700
Installation Instructions
Description
Quantity
Part Number
2
6605514
2
6605414
1
6608614
1
6605614
1
6605714
2
6213314
2
6213214
1
6653414
1
6611814
1
5027021
2
5031841
14
5202053
6
5202103
1
5429431
2
5429531
12
5489021
2
5545111
1
5573163
1
8001953
1
6236814
250"
9202393
1
6604714
8001953
Page 1 of 5
Rev. 05/11/01
