Parts List:
Item
1.
Lower Ice Chute Weldment (one with insulation)
2.
Upper Ice Chute Weldment
3.
Front Chute Support
4.
Top Front Mounting Bracket
5.
Bottom Front Mounting Bracket
6.
Bottom Rear Mounting Bracket (Angle )
7.
Top Rear Mounting Bracket (90 ∟)
8.
Water Shield Weldment
9.
Stabilizer Bracket
10.
#10-32 x 1/2 Machine Screw
11.
1/4-20 x 5/8 Hex Brass Machine Screw
12.
#10-24 x 5/8 Self-tapping Screw
13.
#10-24 x 3/8 Self-tapping Screw
14.
#10-32 Hex Nut
15.
1/4-20 Hex Nut
16.
#8-32 Wing Nut
17.
1/4 Split Ring Lock Washer
18.
#10 Split Ring Lock Washer
19.
Installation Instructions
20.
Locking Plate
21.
Foam Tape
22.
Corner Brace
23.
Curtain Stop
Installation Instructions:
1. The K044 stacking kit is used for stacking two G-1200 ice machines or a G-1200 on an E-1100 or G-1700 ice
machine. The bin must be leveled before proceeding to step 2.
2. INSTALLATION OF CORNER BRACE:
A. Remove foam tape, as shown on Illustration 1.
B. Remove seven screws on the top of the bin and locate corner brace, as shown in Illustration 1. Secure with seven
screws previously removed.
C. Use foam tape from kit around the perimeter of corner brace, as shown in Illustration 1.
3. INSTALLATION OF MACHINES:
A. See service manual for uncrating and inspection of both machines.
B. Remove top cover from lower machine.
C. Set machine carefully and squarely on bin.
D. Position water shield from kit, as shown in Illustration 2. Apply foam tape on the perimeter and across partition
panel, as shown in Illustration 2.
E. Set top machine carefully and squarely on bottom machine.
F. Remove front, back, and side panel on the evaporator end of both machines.
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site -
www.manitowocice.com
Installation Instructions (continued):

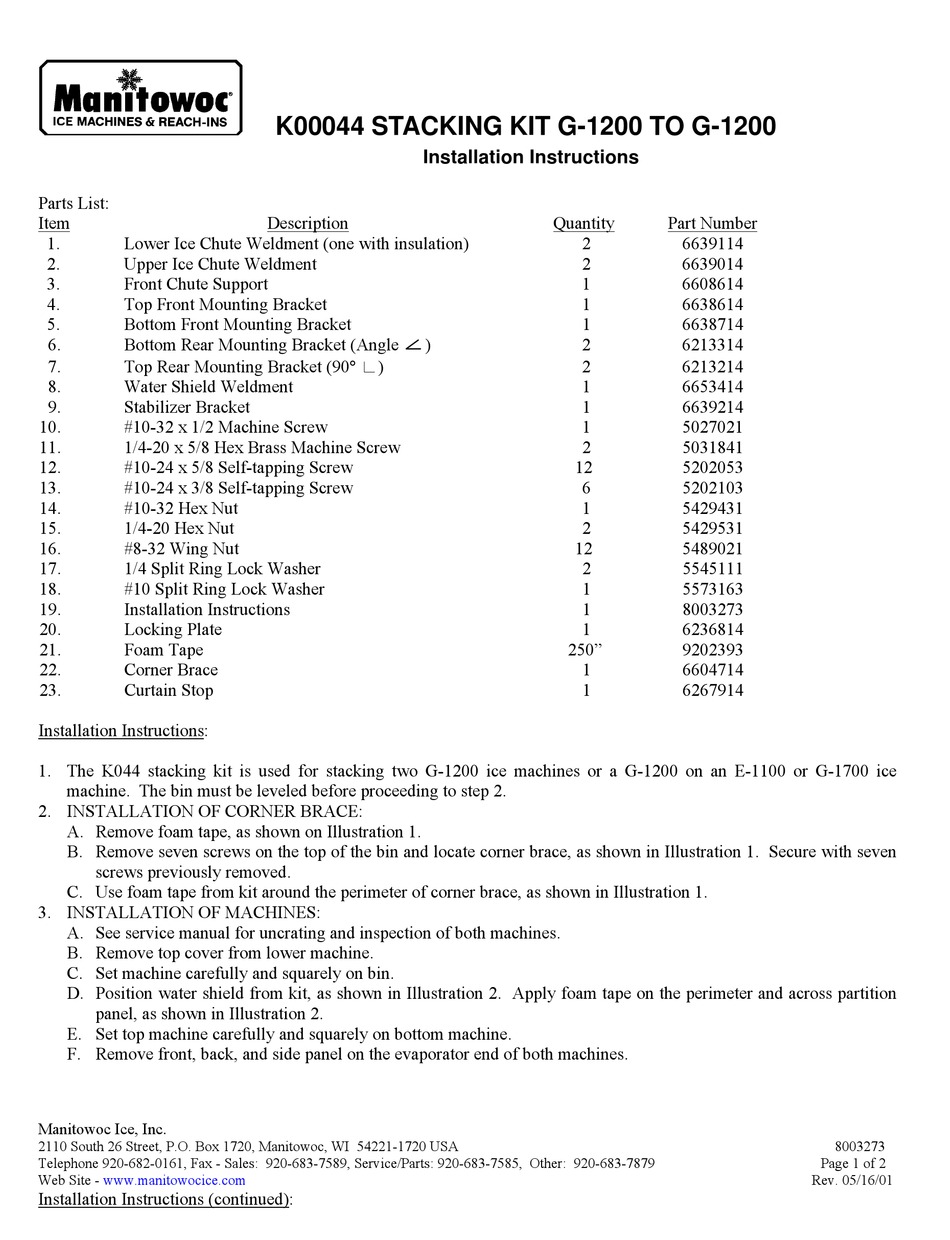

K00044 STACKING KIT G-1200 TO G-1200
Installation Instructions
Description
Quantity
Part Number
2
6639114
2
6639014
1
6608614
1
6638614
1
6638714
2
6213314
2
6213214
1
6653414
1
6639214
1
5027021
2
5031841
12
5202053
6
5202103
1
5429431
2
5429531
12
5489021
2
5545111
1
5573163
1
8003273
1
6236814
250"
9202393
1
6604714
1
6267914
8003273
Page 1 of 2
Rev. 05/16/01
