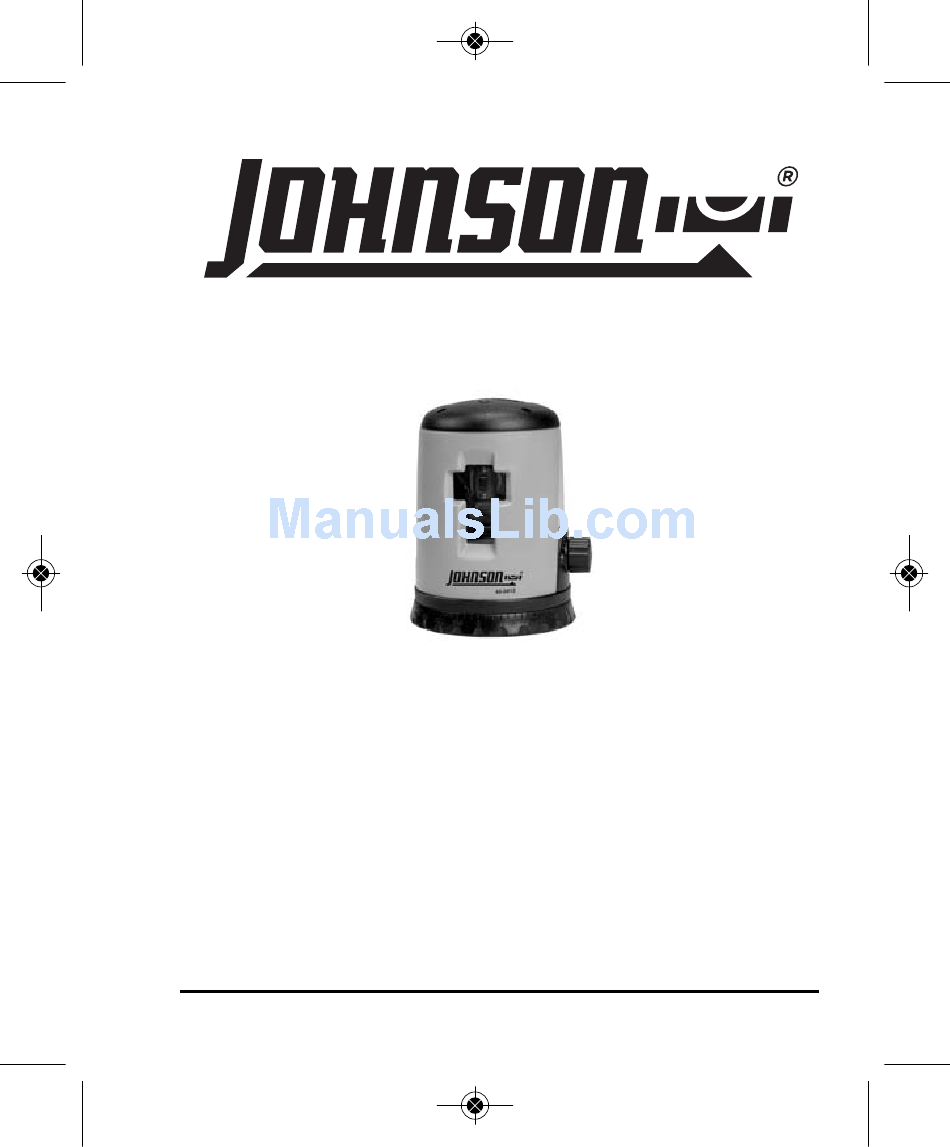

7295H-English_Manuals 8/28/13 8:42 AM Page 1

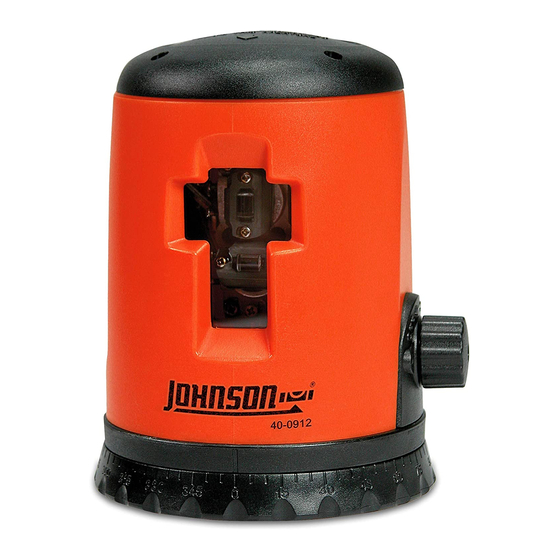

Self-Leveling Cross-Line Laser
Model No. 40-0912 & 40-0921
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser.
We suggest you read this instruction manual thoroughly before using
the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2013 Johnson Level & Tool - Rev. 2
1
Advertisement
Table of Contents
Related Manuals for Johnson 40-0612
Summary of Contents for Johnson 40-0612
- Page 1 Save this instruction manual for future use. This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040.10 and 1040.11 as well as international safety rule IEC 285. ©2013 Johnson Level & Tool - Rev. 2...
-
Page 2: Table Of Contents
2. Features and Functions • Two laser beams to plot both horizontal (level) and vertical (plumb) lines. • Self-levels to within a range of ±6°. • 360º graduated base allows angle layout. ©2013 Johnson Level & Tool - Rev. 2... -
Page 3: Safety Instructions
• Use only original Johnson ® parts and accessories purchased from your Johnson ® ® authorized dealer. Use of non-Johnson parts and accessories will void warranty. ©2013 Johnson Level & Tool - Rev. 2... -
Page 4: Location/Content
7295H-English_Manuals 8/28/13 8:42 AM Page 4 4. Location/Content of Warning Labels ©2010 Johnson Level & Tool - Rev. 1... -
Page 5: Location Of Parts/Components
7295H-English_Manuals 8/28/13 8:42 AM Page 5 5. Location of Part/Components Lock/unlock On/off switch ©2013 Johnson Level & Tool - Rev. 2... -
Page 6: Operating Instructions
Tightly screw the unit and tripod together. Tripod working range from 17" to 47". The laser can be used either with the tripod or independently. ©2013 Johnson Level & Tool - Rev. 2... -
Page 7: Using The Product
Note: The laser level is able to compensate for slope of +/- 6º. If the level is placed on a slope that is too great, it will not be able to level itself accurately. The laser beam will flash if outside of its leveling range. ©2013 Johnson Level & Tool - Rev. 2... -
Page 8: Self-Check & Fine Calibration
If the line needs to be moved up, loosen the inner screw and tighten the two outer screws. Reassemble the housing after completing the calibration procedure. ©2013 Johnson Level & Tool - Rev. 2... -
Page 9: Technical Specifications
5" x 4" x 3 1/2" (127 x 101 x 89mm) Weight 1.2 lbs. (0.54 Kg) Working Temperature 14°F to 113°F (-10°C to +45°C) Center Screw Thread 5/8" – 11 IP Protection Class ©2013 Johnson Level & Tool - Rev. 2... -
Page 10: Application Demonstrations
7295H-English_Manuals 8/28/13 8:42 AM Page 10 10. Application Demonstrations ©2013 Johnson Level & Tool - Rev. 2... -
Page 11: Care And Handling
12. Product Warranty Johnson Level & Tool offers a three year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com. -
Page 12: Warranty Registration
For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Dept. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682. -
Page 13: Accessories
NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682. - Page 14 7295H-English_Manuals 8/28/13 8:42 AM Page 14 ©2013 Johnson Level & Tool - Rev. 2...
