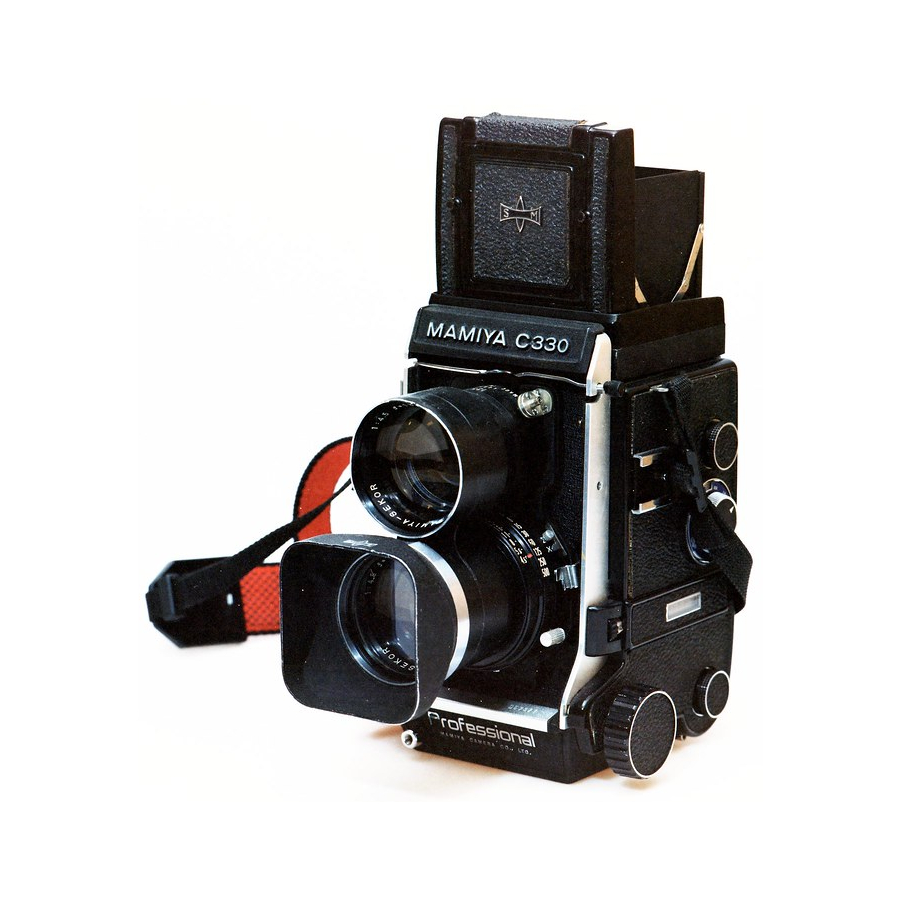

Summary of Contents for Mamiya C330

  • Page 2: Table Of Contents

    Read These Instructions Before Using Your MAMIYA C330 ....Nomenclature of Operating Parts ....

  • Page 3: Read These Instructions Before Using Your Mamiya C330

    C330 C330 Read These lnstructions Before Using Your See page 8 See page 9 See page 7 See page 74 for details. for details. for details. for details.

  • Page 4: Changing The

    Read These lnstructions Before Using Your MAMIYA C330 (cont.) When this camera is under any of the conditions de- scribed as follows, the shutter knob is set on “UN- release button cannot be de- LOCK". pressed. In this case, abso- lutelv do not use force.

  • Page 5: Accessories

    (2) When the film has not (3) When the shutter release (4) When the last film in roll been wound. button has already been pressed. When taking ordinary pic- tures with roll film, set the multiple triangular mark toward the word “SINGLE.."...

  • Page 6: Nomenclature Of Operating Parts

    Nomenclature of Operating Parts 1. Magnifying glass 2. Strap eyelet 3. Exposure counter 4. Shutter release lock button 5. Multiple exposure selector 6. Film wind crank 7. Shutter release button (upper) Focusing knob Sportsfinder frame (for 65mm lens) Sportsfinder frame (for 80mm lens) 11.

  • Page 7: Tripod Socket 2

    14. Synchroflash M-X selector 15. Shutter speed ring 16. Aperture ring 17. Shutter cocking lever 18. Aperture control knob 19. Shutter release button (lower) with cable release socket 20. Lens catch bracket 21. Accessory shoe 22. Spool change knob (upper) 23.

  • Page 8: Opening And Closing The Back Cover

    Opening and Closing the Back Cover Twist the back cover catch button (31) until the red mark on the button faces upward. Then, by pressing the button in the direction indicated on the back cover, the back cover will open. The figure i n t h e exposure counter automatically returns to “0”...

  • Page 9: Before Loading Film

    This camera accepts either 120 or 220 roll film. It has an automatic film stopper and a double exposure prevention device. Take the following steps before loading a film: By turning the multiple ex- posure s e l e c t o r ( 5 ) , s e t t h e triangular mark toward...

  • Page 10: Loading Film

    Loading Film Open the back cover and pull out the spool change knob (22), then insert an empty spool into the take- up spool chamber (38) so that it engages the winding axis. Release the spool change knob. Pull out the spool change knob (29), and insert a roll of film in the film chamber (40).
  • Page 11 Close the back cover. When closing the back cover, firmly press both sides of the back cover catch button. Twist button counter- clockwise, so that the back cover does not open unexpectedly. Turn the film wind crank (6) clockwise until it stops. Figure 1 appears on the exposure counter (3) at the position where the crank stops diagonally upward, and the shutter...

  • Page 12: Handling The Focusing Hood

    Handling the Focusing Hood Raising the Focusing H o o d By pulling up the rear of t h e f i n d e r f r a m e (9), the focusing hood automatically springs up into position. By pushing in the top of the sportsfinder flap (12) at the center of the finder frame,...
  • Page 13 W h e n u s i n g t h e 1 0 5 To return the finder m m , 135mm, 1 8 0 m m , o r frame (10) to its original 2 5 0 m m l e n s , a t t a c h t h e position, by pushing and respective sportsfinder mask releasing the left side plate...

  • Page 14: Accessories 2

    Handling the Focusing Hood (cont.) Changing the Focusing Hood The focusing hood can be replaced with various finders available for this camera as accessories. How to Remove the Focusing Hood By turning the focusing hood lock screw (30) counterclockwise to loosen it, pull back the hood a n d move it upward: then the hood can be taken off.

  • Page 15: Before Taking Pictures

    Before Taking Pictures -1.5 .1.5 -2.5 Setting the Parallax Correcting Dial By turning the parallax correcting dial (25), set the dial index to the focal length of the lens used. Subsequently. while the lens is being extended, the pointer will appear on the upper, left portion of the focusing screen.

  • Page 16: Indicating Film Speed And Type On Respective Windows

    Indicating Film Speed and Type on Respective Windows By turning the ASA indication shifting lever (23) while pushing it against the camera body, the film speed (ASA) will appear in the window. Set it to the speed of the loaded film. By turning the film type indication select lever (26), three types of identifying marks will appear in the window.

  • Page 17: Distance Scale

    Distance Scale A distance scale is provided on the left side (viewing camera held photographing). knob (28), set the distance scale to coincide with the lens used, so that the scale faces horizontally. Distance scales for 55mm, 65mm, and 80mm lenses are indicated in red.

  • Page 18: Taking Pictures

    ictures 1. After focusing, turn the shutter speed ring (15) and set the shutter speed; then adjust the aperture of the lens by turn- ing the aperture control knob (18). Now the camera is prepared for taking pictures. 2. Release the shutter by pressing the shutter release button (7) or (19).

  • Page 19: Shutter Operations

    Shutter Operations Using the Multiple Exposure Selector When the multiple exposure selector triangular mark is set toward the word “SINGLE,” double exposures are prevented. Once the shutter b u t t o n h a s b e e n d e p r e s s e d , i t redepressed without first advancing the film.

  • Page 20: When No Film Is Loaded In The Camera

    When No Film is Loaded in the Camera Even when the film wind crank is turned, the number in the exposure c o u n t e r r e m a i n s a t “0”. I n t h i s case, if the multiple exposure button “SINGLE,”...

  • Page 21: Photographing By Flash Unit

    Photographing by Flash Unit When photographing by flash, attach a flash gun to the accessory shoe (21) on the camera body and connect the cord to the flash synchro-terminal (13). When M-class flash bulbs are used, set the synchroflash M-X selector (14) on M to synchronize flash at all shutter speeds.

  • Page 22: Changing Lenses

    4 Changing lenses By turning the focusing knob, com- pletely retract the bellows so that the lens mount portion contact to the body. Recess the film wind crank in the camera body. Turn the lens change knob (24) so that the triangular mark points to the word “UNLOCK.”...
  • Page 23 After changing a lens, set the par- allax correcting dial (25) to the focal length value of mounted lens. Regarding 55mm and 65mm lenses, set the parallax correcting dial to 80. then attach the parallax correction plate for 55mm/65mm lenses to the focusing hood.
  • Page 26 II Angle of View Changes by Interchanging lenses 80mm All these pictures were taken from the same position, at on identical distance from the sub- $Fi+jjy ject. It i # 1’ 135mm 105mm...
