Summary of Contents for Chauvet Megta Strobe FX12

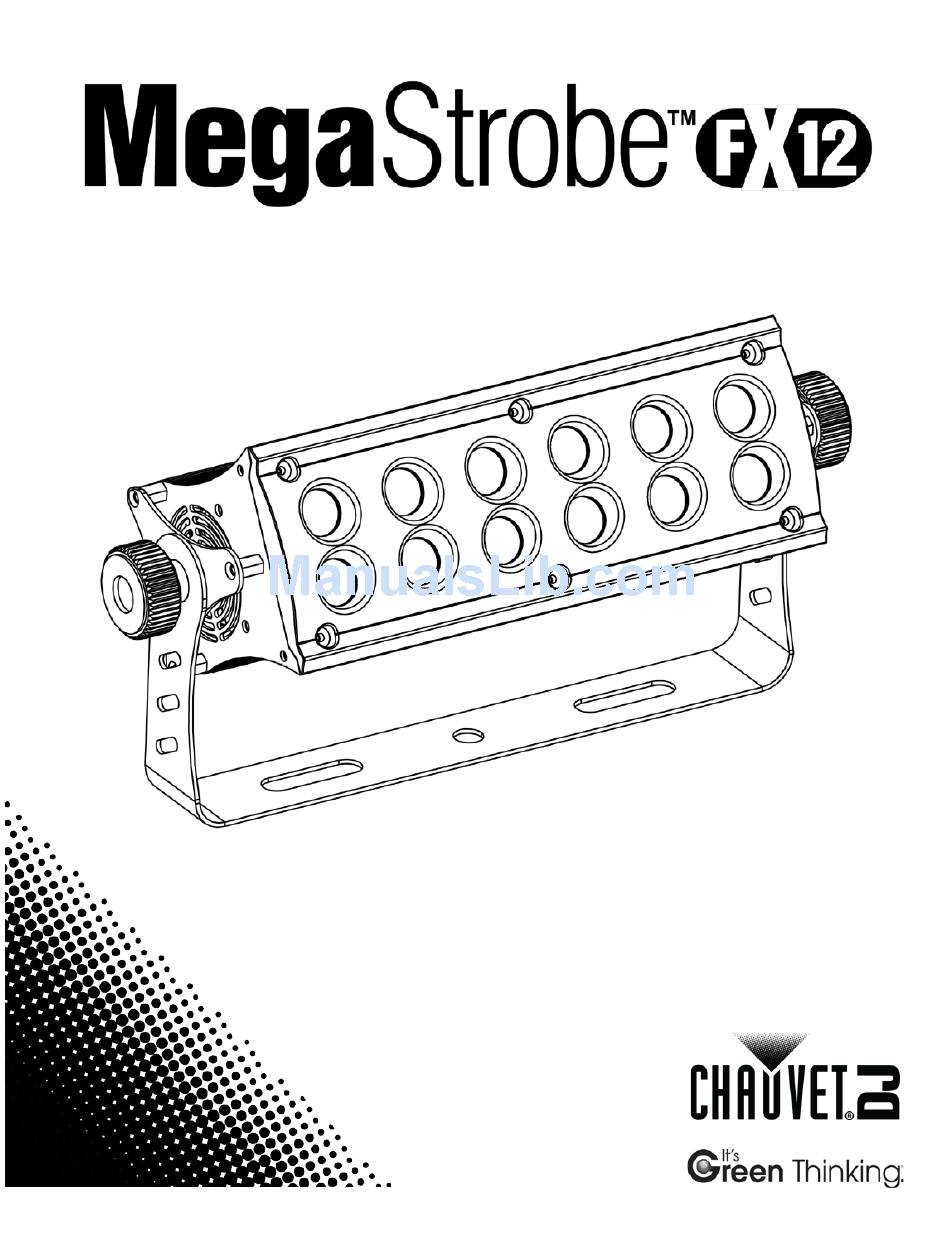

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ............................... 3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance .......................... 4 Safety Notes ............................. 4 2. -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1—512... -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes These notes include important information about the mounting, usage, and maintenance of this product; read before using the product. ·... -
Page 5: Introduction
2. I NTRODUCTION Overview LED Display Power Out DMX Out Fuse Holder and Control Power In DMX In Buttons Back Panel View Microphone MegaStrobe™ FX12 User Manual Rev. 2 Page 5 of 18... -
Page 6: Dimensions
Dimensions 13.8 in 350 mm 6.7 in 171 mm 3.9 in 98 mm Page 6 of 18 MegaStrobe™ FX12 User Manual Rev. 2... -
Page 7: Setup
3. S ETUP AC Power The MegaStrobe™ FX12 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Power Linking
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The MegaStrobe™ FX12 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging · Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>... -
Page 11: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. (DMX) Connect the product to a suitable power outlet. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 12: Dmx Channel Modes, Assignments, And Values
DMX Channel Modes, Assignments, and Values 2-Channel Channel Function Value Setting 000 ó 003 No function Shutter 004 ó 255 0 to 100% (slow to fast) Dimmer 000 ó 255 0 to 100% 5-Channel Channel Function Value Setting Dimmer 000 ó 255 0 to 100% 000 ó... -
Page 13: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. (Standalone) · Connect the product to a suitable power outlet. Never connect a product that is operating in any standalone mode (Static, Automatic, or Sound-Active) to a DMX string connected to a DMX controller. -
Page 14: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single MegaStrobe™ FX12 unit (the “master”) to Mode control the actions of one or more MegaStrobe™ FX12 units (the “slaves”) without the need of a DMX controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave mode. -
Page 15: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency. -
Page 16: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 13.8 in (350 mm) 3.9 in (98 mm) 6.7 in (171 mm) 4.1 lb (1.9 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal) -
Page 17: Returns
U.S., United Kingdom, or Ireland. If you live outside the U.S., United Kingdom, or Ireland, contact your distributor of record and follow their instructions on how to return CHAUVET® products to them. Visit our website for contact details. Returns Call the corresponding CHAUVET®... -
Page 18: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web Toll free: (800) 762-1084 www.chauvetlighting.com UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web Pinxton, Nottingham, UK www.chauvetlighting.co.uk...
