Summary of Contents for Chauvet Firebird LED

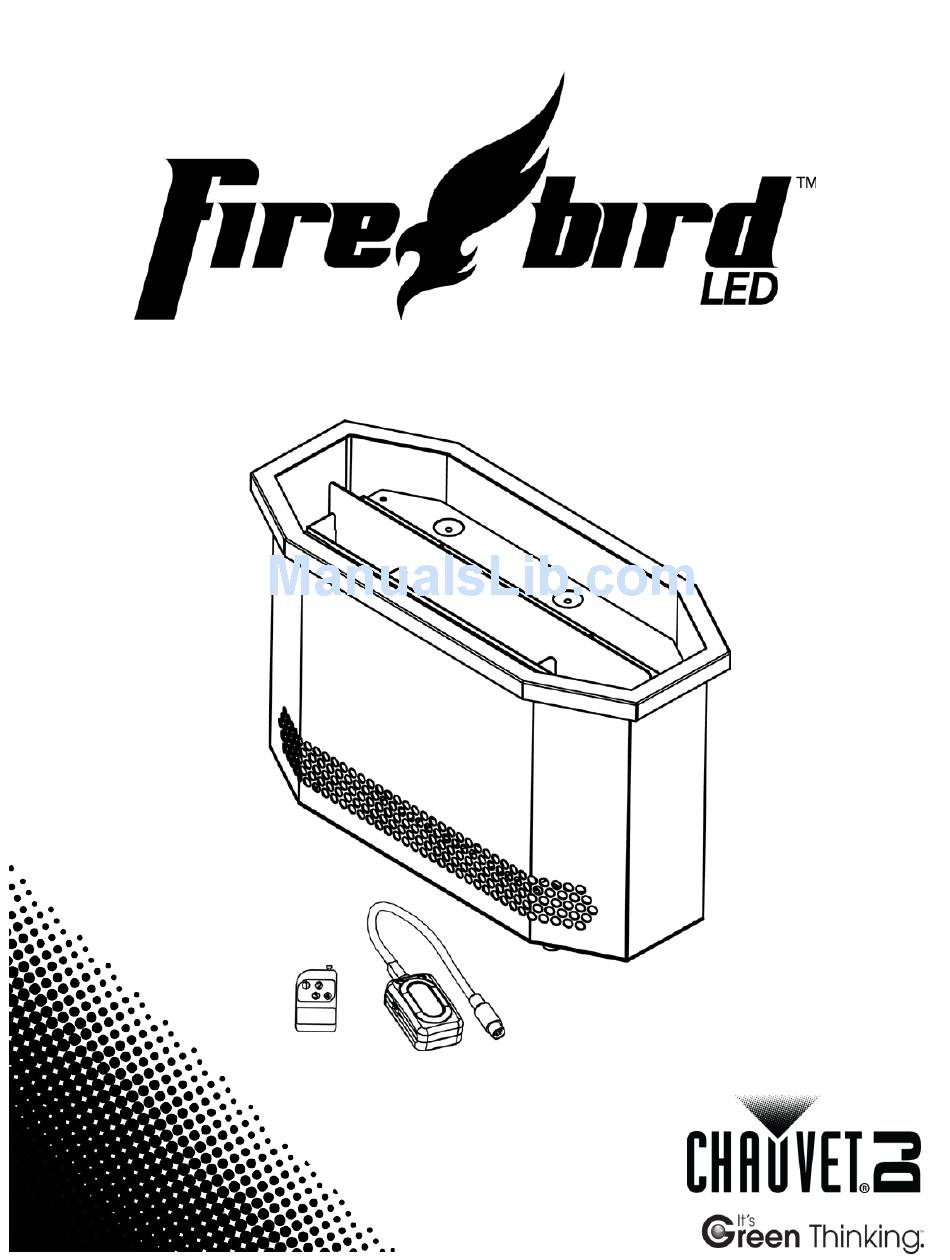

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ..............................3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance ........................4 Safety Notes ............................ 4 2.

  • Page 3: Before You Begin

    Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions.

  • Page 4: Product At A Glance

    Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. · For safety reasons, Chauvet does not recommend mounting the product in any capacity. Operate the product while it is on the ground ONLY. ·...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview LEDs Silk Attachment Plate Display Menu Buttons DMX In/Out Fuse Holder Wireless Remote Port Power Switch Rubber Mounting Feet Power In Firebird™ LED User Manual Rev. 1 Page 5 of 14...

  • Page 6: Product Dimensions

    Product Dimensions 20.4 in 518 mm 12.8 in 325 mm 8.9 in 228 mm 78.7 in 2,000 mm 15 in 380 mm 0.79 in 23.6 in 20 mm 600 mm When the product is running, the imitation flame silk flaps to simulate a flame; consequently, the silk might not extend fully to 2 m in length.

  • Page 7: Setup

    The imitation flame silk will eventually become tattered from use. How long it lasts will depend on how often it is used and for how long. Silk For a replacement imitation flame silk, contact Chauvet Customer Service. See Contact Us in this User Manual.

  • Page 8: Operation

    Co 1–Co17 Selects preset colors, snap, or fade DMX Address Addr 001–512 Sets the DMX address DMX Linking The Firebird™ LED works with a DMX controller. Information about DMX is in the CHAUVET® Primer, which available from Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

  • Page 9: Dmx Channel Assignments And Values

    DMX Channel Assignments and Values Channel Function Value Percent/Setting 9 Channel Mode 000ó009 Dimmer 010ó255 0–100% 000ó009 010ó255 0–100% 000ó009 Green 010ó255 0–100% 000ó009 Blue 010ó255 0–100% 000ó009 Amber 010ó255 0–100% 000ó009 No function Color Macros 010ó255 Manual color mixing (cycles macros 1–15) 000ó009 No function Auto Program...

  • Page 10: Programmable Color Selection

    Programmable To select either the preset color program or one preset color to illuminate the simulated flame using the wireless remote control, follow the instructions below: Color Selection 1. Press <MENU> repeatedly until CH-1–CH-4 shows on the display. Select CH-1, CH-2, CH-3, or CH-4 to choose that color program.

  • Page 11: Maintenance

    5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

  • Page 12: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 20.4 in (518 mm) 8.9 in (228 mm) 12.8 in (325 mm) 22.2 lb (10.1 kg) Imitation Flame Silk Length Width Tapered Length Velcro Strip Width Dimensions 78.7 in (2,000 mm) 15 in (380 mm) 23.6 in (600 mm) 0.79 in (20 mm)

  • Page 13: Returns

    You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number.

  • Page 14: Contact Us

    +52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, or Mexico, contact the dealer of record and follow their instructions to request support or to return a product. Visit the Chauvet website for contact information. Page 14 of 14 Firebird™ LED User Manual Rev. 1...
