Summary of Contents for Chauvet Freedom Stick
-

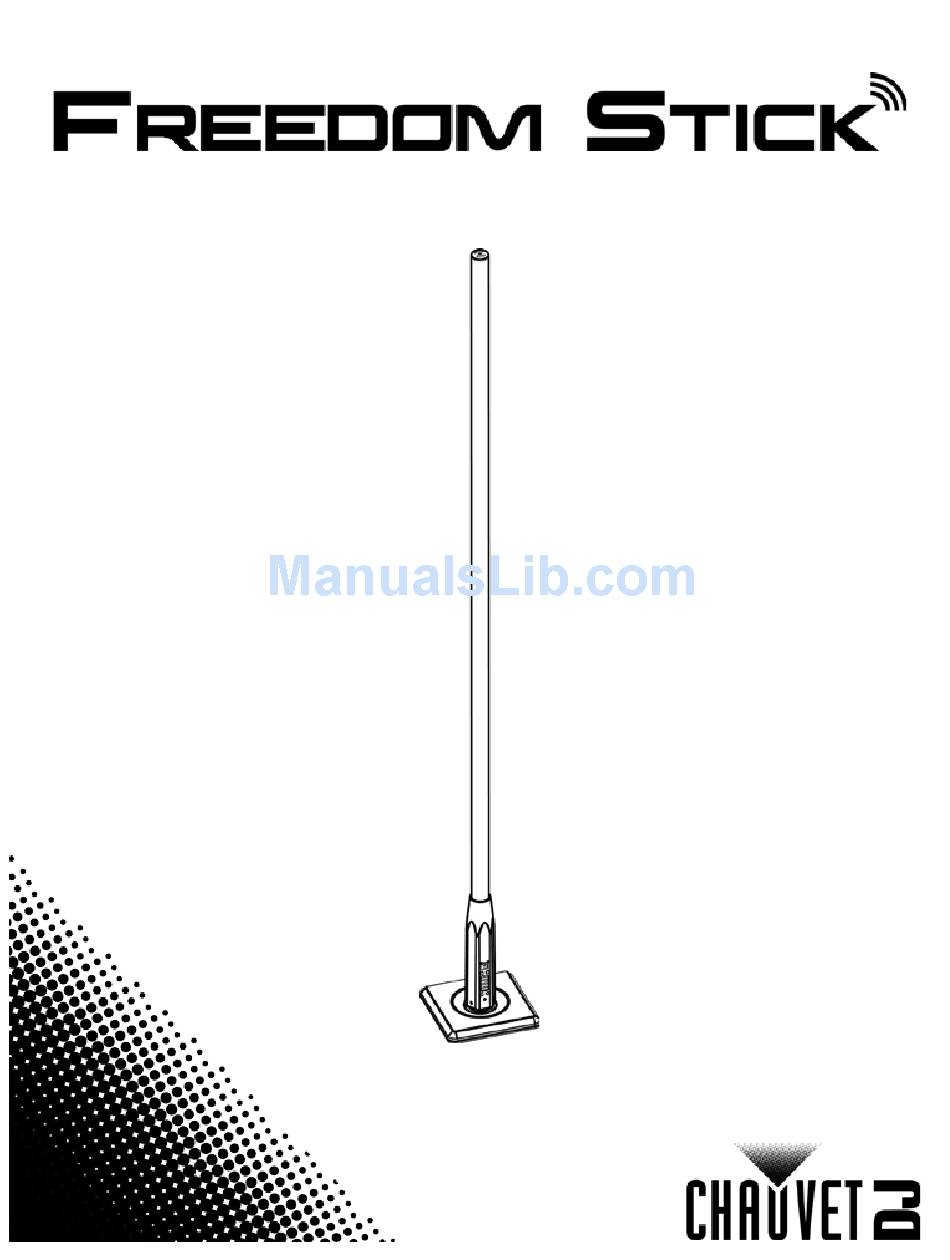

Page 1: User Manual
User Manual... -
Page 2: Table Of Contents
Custom Color Mixing ..........................15 IRC-6 Infrared Remote Control ..................... 16 IRC-6 Operation............................ 17 Master/Slave Mode ........................18 5. Maintenance .........................19 Product Maintenance ........................19 6. Technical Specifications ....................20 Returns ..........................21 Contact Us .........................22 Page 2 of 22 Freedom Stick User Manual Rev. 3... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product, be sure that they receive this document. Page 4 of 22 Freedom Stick User Manual Rev. 3... -
Page 5: Introduction
2. I NTRODUCTION Product Overview On/Off Switch DC Power In LED Indicator LED Display Menu Buttons Antenna IR Sensor Microphone Product Dimensions 61 in 1550 mm 6.3 in 161 mm Freedom Stick User Manual Rev. 3 Page 5 of 22... -
Page 6: Setup
ETUP AC Power The Freedom Stick has an external auto-ranging power supply that can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. The Freedom Stick may be mounted in any position; however, make sure adequate Orientation ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
SLA1 SLA2 Sets Slave mode 1–4 (defines order of Slave Mode SLA3 Master/Slave programs) SLA4 For programs 22–27, color 1 and color 2 cannot be assigned the same color. Page 8 of 22 Freedom Stick User Manual Rev. 3... -
Page 9: Wireless Dmx Linking
Address The Freedom Stick uses up to 50 DMX channels in a 50-CH DMX mode, which defines the highest configurable address to 463. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetlighting.com. -
Page 10: Dmx Channel Assignments And Values
000 ó 255 0–100% Green 12 000 ó 255 0–100% Blue 12 000 ó 255 0–100% Red 13 000 ó 255 0–100% Green 13 000 ó 255 0–100% Blue 13 Page 10 of 22 Freedom Stick User Manual Rev. 3... -
Page 11: 50Ch (Cont.)
000 ó 255 0–100% Green 8 000 ó 255 0–100% Blue 8 000 ó 255 0–100% Red 9 000 ó 255 0–100% Green 9 000 ó 255 0–100% Blue 9 Freedom Stick User Manual Rev. 3 Page 11 of 22... -
Page 12: 48Ch (Cont.)
000 ó 255 0–100% Green 15 000 ó 255 0–100% Blue 15 000 ó 255 0–100% Red 16 000 ó 255 0–100% Green 16 000 ó 255 0–100% Blue 16 Page 12 of 22 Freedom Stick User Manual Rev. 3... -
Page 13: 8-Ch
236 ó 240 Color 8 241 ó 245 Color 9 246 ó 250 Color 10 251 ó 255 Color 11 000 ó 010 No function Strobe 011 ó 255 Strobe, slow to fast Freedom Stick User Manual Rev. 3 Page 13 of 22... -
Page 14: 8-Ch (Cont.)
(When Ch. 7 is 235–255) 011 ó 255 Sound sensitivity, low to high Channel Function Value Percent/Setting 3-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue Page 14 of 22 Freedom Stick User Manual Rev. 3... -
Page 15: Configuration (Standalone)
Press <ENTER> twice to accept. The product will only respond to low frequencies of music (bass and drums). To change the sound sensitivity on the Freedom Stick, follow the instructions below: Sound Sensitivity Press <MENU> repeatedly until SenS shows on the display. -
Page 16: Irc-6 Infrared Remote Control
IRC-6 Infrared The Freedom Stick is compatible with the IRC-6 infrared remote control from Chauvet DJ. To activate IR mode, follow the instructions below: Remote Individual products: Control Each product will respond independently to the IRC-6 remote. Press <MENU> repeatedly until Set appears on the display. -
Page 17: Irc-6 Operation
NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing <BLACK OUT>. You may have inadvertently activated Black Out. Freedom Stick User Manual Rev. 3 Page 17 of 22... -
Page 18: Master/Slave Mode
Master/Slave Master/Slave mode allows a single Freedom Stick product (the “master”) to control the actions of one or more Freedom Stick products (the “slaves”) without the need of a DMX Mode controller or DMX cables. The master (transmitter) product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave (receiver) products will be set to operate in Slave mode. -
Page 19: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Freedom Stick User Manual Rev. 3 Page 19 of 22... -
Page 20: Technical Specifications
Maximum External Temp. Cooling System 104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR 3, 8, 48 or 50 Ordering Product Name Item Code UPC Number Freedom Stick 03051130 781462214784 Page 20 of 22 Freedom Stick User Manual Rev. 3... -
Page 21: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 22: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Page 22 of 22 Freedom Stick User Manual Rev. 3...
