If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

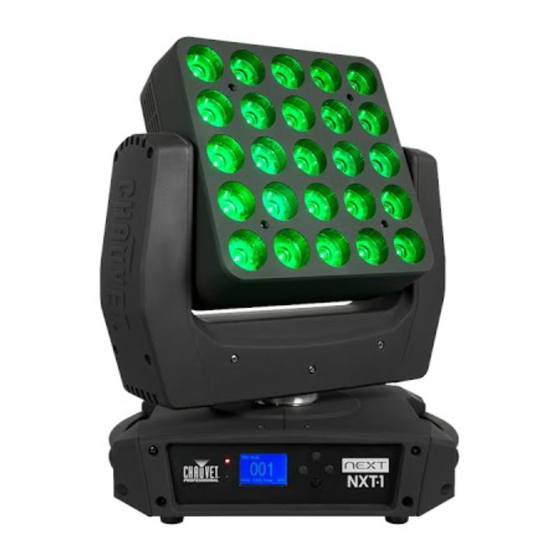

Introduction 2. I NTRODUCTION The NEXT NXT-1 is a moving head panel with twenty-five 10 watt RGBW LEDs that brilliantly Description display pixel mapped images and punch through haze. The fast movement of the panel and rapid response of the narrow-beam LEDs let designers create engaging eye candy that enhances any live production, and the NEXT NXT-1 comes with built-in patterns and alpha- numeric characters for easy programming.
Introduction Dimensions 10.6 in 270 mm 2 in 50 mm 18.6 in 472 mm 14.9 in 378 mm 3.9 in 100 mm 15.4 in 391 mm 3.9 in 11.3 in 100 mm 288 mm NEXT NXT-1 User Manual Rev. 8...
Setup 3. S ETUP Each NEXT NXT-1 has an auto-ranging power supply that works with an input voltage range of AC Power 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each NEXT NXT-1, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.
When mounting the product on the floor, make sure that the product and cables are away from people and vehicles. · Place the NEXT NXT-1 so that it can move freely without hitting anything or anybody. · Leave enough slack on the cables to prevent tension and pull on the plugs.
Setup Signal Connections The NEXT NXT-1 can receive DMX, Art-Net™, or Kling-Net signal. The NEXT NXT-1 has 2 Neutrik® etherCON® through ports, and 3- and 5-pin DMX In and Out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf...
Displays temperature in degrees Celsius Temperature Unit °F Displays temperature in degrees Fahrenheit Auto Speed Fan speed according the product temperature Fan Mode High Speed Fan speed set on high Factory Settings Resets product to factory default settings NEXT NXT-1 User Manual Rev. 8...
119-channel mode: 394. ** - In Art-Net™ modes, the beginning of the IP address is set by the Net setting, to either: · 2, for Net setting 0, · 10, for Net setting 1. NEXT NXT-1 User Manual Rev. 8...
Art-Net™ Configuration The DMX personality must be configured for all Art-Net™ modes. IP Mode To configure the IP address for the NEXT NXT-1 in Art-Net™ modes, do the following: Press <MENU/ESC> repeatedly to reach the main level of the display menu.
Operation Net Address The Net setting on the NEXT NXT-1 determines the first number in the IP address. To configure the Art-Net™ Net address for the NEXT NXT-1, follow the instructions below: Press <MENU/ESC> repeatedly to reach the main level of the display menu.
0–100% Red 8 000ó255 0–100% Green 8 000ó255 0–100% Blue 8 000ó255 0–100% White 8 000ó255 0–100% Red 9 000ó255 0–100% Green 9 000ó255 0–100% Blue 9 000ó255 0–100% White 9 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -15-...
Page 23
0–100% Red 19 000ó255 0–100% Green 19 000ó255 0–100% Blue 19 000ó255 0–100% White 19 000ó255 0–100% Red 20 000ó255 0–100% Green 20 000ó255 0–100% Blue 20 000ó255 0–100% White 20 000ó255 0–100% -16- NEXT NXT-1 User Manual Rev. 8...
Page 24
241ó245 White 9 R: 255 G: 232 B: 207 W: 069 246ó250 White 10 R: 255 G: 245 B: 230 W: 046 251ó255 White 11 R: 255 G: 255 B: 255 W: 0 NEXT NXT-1 User Manual Rev. 8 -17-...
Page 25
Background color GB 142ó157 Background color GW 158ó173 Background color BW 174ó189 Background color RGB 190ó206 Background color RGW 207ó222 Background color RBW 223ó238 Background color GBW 239ó255 Background color RGBW Background Dimmer 000ó255 0–100% -18- NEXT NXT-1 User Manual Rev. 8...
Page 26
Alphabet shape R 216ó220 Alphabet shape S 221ó225 Alphabet shape T 226ó230 Alphabet shape U 231ó235 Alphabet shape V 236ó240 Alphabet shape W 241ó245 Alphabet shape X 246ó250 Alphabet shape Y 251ó255 Alphabet shape Z NEXT NXT-1 User Manual Rev. 8 -19-...
Page 27
000ó010 No function 011ó100 Virtual Gobo indexing Virtual Gobo Speed (when CH 113 is 101ó149 Hold 011ó255) 150ó202 Virtual Gobo speed, forward (fast to slow) 203ó255 Virtual Gobo speed, reverse (slow to fast) -20- NEXT NXT-1 User Manual Rev. 8...
0–100% Red 4 000ó255 0–100% Green 4 000ó255 0–100% Blue 4 000ó255 0–100% White 4 000ó255 0–100% Red 5 000ó255 0–100% Green 5 000ó255 0–100% Blue 5 000ó255 0–100% White 5 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -21-...
Page 29
0–100% Red 15 000ó255 0–100% Green 15 000ó255 0–100% Blue 15 000ó255 0–100% White 15 000ó255 0–100% Red 16 000ó255 0–100% Green 16 000ó255 0–100% Blue 16 000ó255 0–100% White 16 000ó255 0–100% -22- NEXT NXT-1 User Manual Rev. 8...
Page 30
0–100% Red 24 000ó255 0–100% Green 24 000ó255 0–100% Blue 24 000ó255 0–100% White 24 000ó255 0–100% Red 25 000ó255 0–100% Green 25 000ó255 0–100% Blue 25 000ó255 0–100% White 25 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -23-...
0–100% Green 10 000ó255 0–100% Blue 10 000ó255 0–100% Red 11 000ó255 0–100% Green 11 000ó255 0–100% Blue 11 000ó255 0–100% Red 12 000ó255 0–100% Green 12 000ó255 0–100% Blue 12 000ó255 0–100% -24- NEXT NXT-1 User Manual Rev. 8...
Page 32
0–100% Green 23 000ó255 0–100% Blue 23 000ó255 0–100% Red 24 000ó255 0–100% Green 24 000ó255 0–100% Blue 24 000ó255 0–100% Red 25 000ó255 0–100% Green 25 000ó255 0–100% Blue 25 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -25-...
241ó245 White 9 R: 255 G: 232 B: 207 W: 069 246ó250 White 10 R: 255 G: 245 B: 230 W: 046 251ó255 White 11 R: 255 G: 255 B: 255 W: 0 -26- NEXT NXT-1 User Manual Rev. 8...
Page 34
Background color GB 142ó157 Background color GW 158ó173 Background color BW 174ó189 Background color RGB 190ó206 Background color RGW 207ó222 Background color RBW 223ó238 Background color GBW 239ó255 Background color RGBW Background Dimmer 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -27-...
Page 35
Alphabet shape R 216ó220 Alphabet shape S 221ó225 Alphabet shape T 226ó230 Alphabet shape U 231ó235 Alphabet shape V 236ó240 Alphabet shape W 241ó245 Alphabet shape X 246ó250 Alphabet shape Y 251ó255 Alphabet shape Z -28- NEXT NXT-1 User Manual Rev. 8...
Page 36
000ó010 No function 011ó100 Virtual Gobo indexing Virtual Gobo Speed (when CH 19 is 101ó149 Hold 011ó255) 150ó202 Virtual Gobo speed, forward (fast to slow) 203ó255 Virtual Gobo speed, reverse (slow to fast) NEXT NXT-1 User Manual Rev. 8 -29-...
000ó255 Fine (16-bit) tilt control Pan/Tilt Speed 000ó255 Fast to slow 000ó199 No function Reset 200ó209 Resets product (hold for 3 seconds) 210ó255 No function 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% NEXT NXT-1 User Manual Rev. 8 -31-...
Operating Settings Configuration Home Screen The NEXT NXT-1 has a home screen that shows the protocol mode, the IP address or DMX address, the DMX personality, and the current product temperature. To see the home screen, press <MENU/ESC> repeatedly until it shows on the display.
Operation White Balance To set the white balance of the NEXT NXT-1: Press <MENU/ESC> repeatedly to reach the main level of the display menu. Use <UP> or <DOWN> to select System Setup. Press <ENTER>. Use <UP> or <DOWN> to select White Balance.
Use <UP> or <DOWN> to select from No (keep current settings) or Yes (reset settings). Press <ENTER>. After a Factory Reset, the NEXT NXT-1 will be set to Only DMX mode, with the 23-channel personality and a starting address of 1.
PDATE The following steps apply to the Windows® 7 operating system: Step 1 Connect the NEXT NXT-1 to a router, such as the NET-Switch from Chauvet Professional. Connect the router to a computer. Verify the network with the NEXT NXT-1 is connected to the computer.
Page 43
255.0.0.0. If not, then enter it manually. Ignore the Default gateway bar. Step 8 View the Home Screen on the NEXT NXT-1. (see Home Screen) Open the internet browser on the computer. Enter the IP address from the NEXT NXT-1 display into the URL bar of the internet browser.
Page 44
Step 11 Find the latest Firmware Upgrade on the website at http://www.chauvetprofessional.com/products/next- nxt-1/ under DOWNLOADS. Step 12 Click Choose File on the NEXT NXT-1 Upgrade page. In the File Explorer window that pops up, select the Firmware Upgrade file from the website and click Open.
Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans by blowing compressed air into them. -38- NEXT NXT-1 User Manual Rev. 8...
Cooling System 113 °F (45 °C) Fan-Assisted Convection Ordering Product Name Item Name Item Code UPC Number NEXT NXT-1 1 Pack NXT1 03010849 781462211974 NEXT NXT-1 2 Pack NXT1X2 03110850 781462211981 Road Case NEXT NXT-1 User Manual Rev. 8 -39-...
· If you are located in Benelux, contact Chauvet Europe BVBA. If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux.
+52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. NEXT NXT-1 User Manual Rev. 8...
Page 49
Chauvet no está en absoluto obligado a hacerlo así, ni se compromete a realizar revisión alguna. El Manual de usuario del NEXT NXT-1 Rev. 8 reemplaza todas las versiones anteriores de Revisión del este manual. Deseche cualquier versión anterior de este manual y sustitúyala con esta versión.
Además, guarde la caja y todo el material de embalaje para su inspección. Para otras incidencias, como componentes o piezas que falten, daños no relacionados con el transporte o daños no evidentes, presente una reclamación a Chauvet en el plazo de 7 días desde la entrega. Convención...
· ¡En caso de un problema grave de funcionamiento, deje de usar el producto inmediatamente! En el caso improbable de que su producto Chauvet necesite reparación, póngase en contacto con el Servicio técnico de Chauvet. Los LED van perdiendo brillo paulatinamente con el tiempo, principalmente a causa del calor.
Introducción 2. I NTRODUCCIÓN NEXT NXT-1 es un panel de cabeza móvil con veinticinco LED RGBW de 10 vatios que Descripción del muestran en pantalla mapas de píxeles con brillantes imágenes y se abren paso a través de la Producto niebla.
Introducción Dimensiones del Producto 10,6” 270 mm 2” 50 mm 18,6” 472 mm 14,9” 378 mm 3,9” 100 mm 15,4” 391 mm 3,9” 11,3” 100 mm 288 mm -46- NEXT NXT-1 Manual de Usuario Rev. 8...
100–240 VCA, 50/60 Hz. Para Alterna determinar los requisitos de alimentación de cada NEXT NXT-1, consulte la etiqueta fijada en el producto. También puede consultar el cuadro de Especificaciones Técnicas de este manual.
Cuando monte el producto en el suelo, asegúrese de que el producto y los cables estén fuera del alcance de personas y vehículos. · Coloque el NEXT NXT-1 de forma que se pueda mover libremente sin golpear a nada ni a nadie. ·...
Kling-Net o Art-Net™ Los indicadores LED entre los puertos Neutrik® etherCON® indican una conexión a una red y actividad en esa red. No indican si el NEXT NXT-1 está o no recibiendo una señal de un controlador. NEXT NXT-1 Manual de Usuario Rev. 8...
Muestra la temperatura del producto en Fahrenheit Velocidad de ventilador según la temperatura Auto Speed Fan Mode del producto High Speed Velocidad alta del ventilador Restablece el producto a los valores de Factory Settings fábrica -50- NEXT NXT-1 Manual de Usuario Rev. 8...
** - En modos Art-Net™, los inicios de las direcciones IP los configuran los ajustes de red como: · 2, para la configuración de Net 0 · 10, para la configuración de Net 1 NEXT NXT-1 Manual de Usuario Rev. 8 -51-...
Hay que configurar la personalidad DMX para todos los modos Art-Net™. Modo IP Para configurar la dirección IP para el NEXT NXT-1 en los modos Art-Net™, haga lo siguiente: Pulse <MENU/ESC> repetidamente para llegar al nivel principal del menú de pantalla.
Funcionamiento Dirección de red La configuración de red del NEXT NXT-1 determina el primer número de la dirección IP. Para configurar la dirección de red Art-Net™ para el NEXT NXT-1, siga estas instrucciones: Pulse <MENU/ESC> repetidamente para llegar al nivel principal del menú de pantalla.
Page 67
Color de fondo BW 174ó189 Color de fondo RGB 190ó206 Color de fondo RGW 207ó222 Color de fondo RBW 223ó238 Color de fondo GBW 239ó255 Color de fondo RGBW Atenuador fondo 000ó255 0–100% -60- NEXT NXT-1 Manual de Usuario Rev. 8...
Page 68
216ó220 Forma alfabeto S 221ó225 Forma alfabeto T 226ó230 Forma alfabeto U 231ó235 Forma alfabeto V 236ó240 Forma alfabeto W 241ó245 Forma alfabeto X 246ó250 Forma alfabeto Y 251ó255 Forma alfabeto Z NEXT NXT-1 Manual de Usuario Rev. 8 -61-...
Page 69
Índice de gobo Velocidad de Gobo Virtual (cuando el C 113 101ó149 Mantener está entre 011ó255) 150ó202 Velocidad de gobo hacia adelante, rápida a lenta 203ó255 Velocidad de gobo hacia atrás, lenta a rápida -62- NEXT NXT-1 Manual de Usuario Rev. 8...
Page 76
Color de fondo BW 174ó189 Color de fondo RGB 190ó206 Color de fondo RGW 207ó222 Color de fondo RBW 223ó238 Color de fondo GBW 239ó255 Color de fondo RGBW Atenuador fondo 000ó255 0–100% NEXT NXT-1 Manual de Usuario Rev. 8 -69-...
Page 77
216ó220 Forma alfabeto S 221ó225 Forma alfabeto T 226ó230 Forma alfabeto U 231ó235 Forma alfabeto V 236ó240 Forma alfabeto W 241ó245 Forma alfabeto X 246ó250 Forma alfabeto Y 251ó255 Forma alfabeto Z -70- NEXT NXT-1 Manual de Usuario Rev. 8...
Page 78
Velocidad de gobo de virtual (cuando el C 19 101ó149 Mantener está entre 011ó255) 150ó202 Velocidad de gobo hacia adelante, rápida a lenta 203ó255 Velocidad de gobo hacia atrás, lenta a rápida NEXT NXT-1 Manual de Usuario Rev. 8 -71-...
052ó101 Modo velocidad del atenuador apagado Modo Velocidad del atenuador 102ó152 Modo velocidad del atenuador 1 rápida 153ó203 Modo velocidad del atenuador 2 intermedia 204ó255 Modo velocidad del atenuador 3 lenta -72- NEXT NXT-1 Manual de Usuario Rev. 8...
Control de inclinación fino (16 bits) Velocidad Desplazamiento 000ó255 Lento a rápido Lateral/Inclinación 000ó199 Sin función Reinicio el producto (mantener pulsado 3 Reinicio 200ó209 segundos) 210ó255 Sin función Rojo 000ó255 0–100% Verde 000ó255 0–100% Azul 000ó255 0–100% NEXT NXT-1 Manual de Usuario Rev. 8 -73-...
Configuración de ajustes de funcionamiento Pantalla de inicio Eñ NEXT NXT-1 tiene una pantalla de inicio que muestra el modo de protocolo, la dirección IP o la dirección DMX, la personalidad DMX y la temperatura actual del producto. Para ver la pantalla de inicio, pulse <MENU/ESC>...
Funcionamiento Equilibrio de Para configurar el equilibrio de blancos del NEXT NXT-1: Pulse <MENU/ESC> repetidamente para llegar al nivel principal del menú de pantalla. blancos Utilice <UP> o <DOWN> para seleccionar System Setup (configuración del sistema). Pulse <ENTER>. Utilice <UP> o <DOWN> para seleccionar White Balance (equilibrio de blancos).
Utilice <UP> o <DOWN> para escoger entre No (mantener la configuración actual) o Yes (restablecer configuración). Pulse <ENTER>. Después de restablecer a valores de fábrica, el NEXT NXT-1 quedará configurado en modo Solo DMX, con la personalidad de 23 canales y 1 como dirección de inicio. Información del Para ver información sobre el producto:...
CTUALIZACIÓN DE SOFTWARE Los siguientes pasos se refieren al sistema operativo Windows® 7: Paso 1 Conecte el NEXT NXT-1 a un router, como el NET-Switch de Chauvet Professional. Conecte el router a un ordenador. Verifique que la red del NEXT NXT-1 está...
Page 85
255.0.0.0. Si no, introdúzcalo manualmente. No haga nada con el campo Default gateway. Paso 8 Vea la pantalla de inicio del NEXT NXT-1 (ver Pantalla de inicio). Abra el navegador de Internet en el ordenador. Escriba la dirección IP de la pantalla del NEXT...
Page 86
Recorra los pasos 3 al 6 si las ventanas de esos pasos están cerradas. En la ventana Propiedades de TCP/IPv4, seleccione Obtener una dirección IP automáticamente. La instalación está ya completa. Los ejemplos mostrados son solo ilustrativos. NEXT NXT-1 Manual de Usuario Rev. 8 -79-...
Con cuidado, frote las superficies de la lente hasta que no quede turbiedad ni pelusas. Seque siempre meticulosamente y con cuidado las superficies exteriores después de limpiarlas. No haga girar los ventiladores cuando sople a través de ellos con aire comprimido. -80- NEXT NXT-1 Manual de Usuario Rev. 8...
Por ventilador y convección Pedidos Descripción del Nombre del Producto Código de Artículo Número UPC Producto NEXT NXT-1 1 Pack NXT1 03010849 781462211974 NEXT NXT-1 2 Pack NXT1X2 03110850 781462211981 Road Case NEXT NXT-1 Manual de Usuario Rev. 8 -81-...
Si se encuentra en EE. UU., póngase en contacto con la Oficina Central de Chauvet. · Si se encuentra en el Reino Unido o Irlanda, póngase en contacto con Chauvet Europe Ltd. · Si se encuentra en México, póngase en contacto con Chauvet México.
+52 (728) 285-5000 Fuera de EE.UU., Reino Unido, Irlanda, México, o Benelux póngase en contacto con su proveedor. Siga sus instrucciones para pedir soporte o para devolver un producto. Visite www.chauvetlighting.com para detalles de contacto. NEXT NXT-1 Manual de Usuario Rev. 8...
Page 91
Chauvet a édité cette version du manuel d'utilisation du NEXT NXT-1 en avril 2016. CHAUVET, le logo Chauvet et NEXT NXT-1 sont des marques déposées ou des marques de Marques Chauvet & Son, LLC. (d/b/a Chauvet et Chauvet Lighting) aux États-Unis et dans d'autres pays.
· En cas de sérieux problèmes de fonctionnement, arrêtez l'appareil immédiatement ! Dans le cas peu probable que votre appareil Chauvet nécessite d'être réparé, veuillez contacter le support technique de Chauvet. La luminosité des LEDs décline au fil du temps, principalement à cause de la chaleur. Lorsqu'elles Durée de vie...
Introduction 2. I NTRODUCTION Le NEXT NXT-1 est un panneau LED à tête mobile composé de 25 LEDs RGBW de 10 watt qui Description de permet d'afficher de manière éclatante des images en mappage de pixels et de transpercer les l'Appareil brouillards.
10,6 po 270 mm 2 po 50 mm 18,6 po 472 mm 14,9 po 378 mm 3,9 po 100 mm 15,4 po 391 mm 3,9 po 11,3 po 100 mm 288 mm -88- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Configuration 3. C ONFIGURATION Chaque panneau NEXT NXT-1 est doté d'une alimentation universelle qui peut prendre en charge Alimentation n'importe quelle tension d'entrée comprise entre 100 et 240 V CA, 50/60 Hz. Pour connaître les besoins en alimentation de chaque NEXT NXT-1, veuillez-vous référer à l'étiquette collée sur l'appareil.
· Placez le NEXT NXT-1 afin qu'il puisse bouger sans entrave sans toucher ni rien ni personne. · Laissez assez de mou sur les câbles pour éviter les tensions et de tirer sur les prises.
Kling-Net ou Art-Net™ Les trois voyants LED situés entre les ports Neutrik® etherCON® indiquent la connexion au réseau et l'activité sur ce réseau. Ils n'indiquent pas si le NEXT NXT-1 reçoit un signal de la part d'un contrôleur. Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
La vitesse du ventilateur s'adapte à la température de Auto Speed l'appareil Fan Mode High Speed La vitesse du ventilateur est réglée sur la vitesse haute Factory Settings Réinitialise l'unité à sa configuration d'usine -92- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
** - En modes Art-Net™, le début des adresses IP est définit par le paramètre Net, soit à la valeur: · 2 pour un paramétre de Net á 0, · 10 pour un paramétre de Net á 1. Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -93-...
être effectuée pour l'appareil afin qu'il puisse correctement réagir au(x) contrôleur(s). Veuillez vous référer à la Plan du menu pour plus d'information. Pour configurer le protocole sur le NEXT NXT-1, veuillez suivre la procédure qui suit : Appuyez sur le bouton <MENU/ESC> de manière répétée jusqu'à atteindre le niveau principal de l'affichage du menu.
Configuration Art-Net™ La personnalité DMX doit être configurée pour tous les modes Art-Net™. Mode IP Pour configurer l'adresse IP du NEXT NXT-1 dans les modes Art-Net™, effectuez les actions suivantes : Appuyez sur le bouton <MENU/ESC> de manière répétée jusqu'à atteindre le niveau principal de l'affichage du menu.
1 et 512. Configuration Art-Net™ et DMX En mode ArtNet+DMX, le NEXT NXT-1 réagit à la fois à un contrôleur DMX et à une console Art-Net™. Pour que cela fonctionne correctement, les points qui suivent sont à observer. ·...
Fonctionnement Configuration de mappage de pixels Zones pour contrôle par DMX/Art-Net™ Formes alphanumériques Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -97-...
Page 110
Couleur de l'Arrière-plan BW 174ó189 Couleur de l'Arrière-plan RGB 190ó206 Couleur de l'Arrière-plan RGW 207ó222 Couleur de l'Arrière-plan RBW 223ó238 Couleur de l'Arrière-plan GBW 239ó255 Couleur de l'Arrière-plan RGBW Gradateur de l'Arrière- 000ó255 0–100% plan Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -103-...
Page 111
Forme de l'alphabet T 226ó230 Forme de l'alphabet U 231ó235 Forme de l'alphabet V 236ó240 Forme de l'alphabet W 241ó245 Forme de l'alphabet X 246ó250 Forme de l'alphabet Y 251ó255 Forme de l'alphabet Z -104- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Page 112
Vitesse de Gobo Virtuel 101ó149 Maintenir (lorsque le canal 113 est Vitesse de gobo en marche avant, de 150ó202 entre 011ó255) rapide à lent Vitesse de gobo en marche arrière, de lent 203ó255 à rapide Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -105-...
Page 119
Couleur de l'Arrière-plan BW 174ó189 Couleur de l'Arrière-plan RGB 190ó206 Couleur de l'Arrière-plan RGW 207ó222 Couleur de l'Arrière-plan RBW 223ó238 Couleur de l'Arrière-plan GBW 239ó255 Couleur de l'Arrière-plan RGBW Gradateur de l'Arrière- 000ó255 0–100% plan -112- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Page 120
Forme de l'alphabet T 226ó230 Forme de l'alphabet U 231ó235 Forme de l'alphabet V 236ó240 Forme de l'alphabet W 241ó245 Forme de l'alphabet X 246ó250 Forme de l'alphabet Y 251ó255 Forme de l'alphabet Z Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -113-...
Page 121
Vitesse de Gobo Virtuel 101ó149 Maintenir (lorsque le canal 19 est Vitesse de gobo en marche avant, de 150ó202 entre 011ó255) rapide à lent Vitesse de gobo en marche arrière, de lent 203ó255 à rapide -114- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Arrêt du mode de vitesse de gradateur Mode vitesse de gradateur 102ó152 Mode 1 de vitesse de gradateur (rapide) 153ó203 Mode 2 de vitesse de gradateur (moyenne) 204ó255 Mode 3 de vitesse de gradateur (lente) Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -115-...
Vitesse de pan / tilt 000ó255 Lent à rapide 000ó199 Pas de fonction Réinitialiser le produit Réinitialisation 200ó209 (maintenir enfoncé 3 secondes) 210ó255 Pas de fonction Rouge 000ó255 0–100% Vert 000ó255 0–100% Bleu 000ó255 0–100% -116- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Configuration des paramètres de fonctionnement Écran d'accueil Le NEXT NXT-1 dispose d'un écran d'accueil qui affiche le mode de protocole, l'adresse IP ou l'adresse DMX, la personnalité DMX et la température actuelle de l'appareil. Pour accéder à l'écran d'accueil, appuyez sur le bouton <MENU/ESC> de manière répétée jusqu'à ce qu'il s'affiche.
Utilisez <UP> ou <DOWN> pour sélectionner parmi No (mode normal) ou Yes (mode inversé). Appuyez sur <ENTER>. Pour régler la balance des blancs du NEXT NXT-1 : Balance des Appuyez sur le bouton <MENU/ESC> de manière répétée jusqu'à atteindre le niveau principal blancs de l'affichage du menu.
Yes (réinitialiser les paramètres). Appuyez sur <ENTER>. A la suite d'une réinitialisation aux paramètres d'usine, le NEXT NXT-1 est configuré en mode DMX seul avec une personnalité à 23 canaux et une adresse de départ égale à 1.
Connectez le NEXT NXT-1 à un routeur comme par exemple le NET-Switch de chez Chauvet Professional. Connectez le routeur à un ordinateur. Vérifiez que le NEXT NXT-1 soit bien relié à l'ordinateur par le réseau. Étape 2 Paramétrez le mode de protocole sur le NEXT NXT-1 sur Only ArtNet.
Page 128
(voir la section Écran d'accueil) Ouvrez le navigateur internet de votre ordinateur. Saisissez l'adresse IP qui s'affiche sur le NEXT NXT-1 dans la barre de navigation de votre navigateur internet. (Par exemple, si l'appareil affiche la valeur 2.200.197.180, saisissez 2.200.197.180 dans la barre de navigation de votre navigateur internet.)
Page 129
L'appareil se réinitialise lorsque l'installation du micrologiciel est terminée. Ne PAS éteindre l'appareil pendant ce processus. Étape 13 Sur le NEXT NXT-1 : Appuyez sur le bouton <MENU/ESC> de manière répétée jusqu'à atteindre le niveau principal de l'affichage du menu.
Nettoyez en douceur la surface des lentilles jusqu'à ce que toute peluche ou trace ait disparue. Assurez-vous avec soin de bien laisser sécher toutes les surfaces externes après les avoir nettoyer. Ne faites pas tourner les ventilateurs de refroidissement tout en soufflant de l'air comprimé dessus. Manuel d'Utilisation du NEXT NXT-1 Rév. 8 -123-...
Convection assistée par ventilateur Commande Description de Nom de l'Appareil Code de l'Article Code UPC l'Appareil NEXT NXT-1 1 Pack NXT1 03010849 781462211974 NEXT NXT-1 2 Pack NXT1X2 03110850 781462211981 Road Case -124- Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
à un emballage inadéquat. Nous vous recommandons d'utiliser un emballage double ou celui de FedEx. Chauvet se réserve le droit, à sa convenance, de réparer ou remplacer tout appareil qui lui est retourné.
En dehors des États-Unis, du Royaume-Uni, de l'Irlande, Mexique, ou du Benelux contactez votre revendeur. Suivez leurs instructions pour accéder à l'assistance ou pour renvoyer un produit. Consultez notre site web pour les coordonnées. Manuel d'Utilisation du NEXT NXT-1 Rév. 8...
Page 134
Chauvet behoudt zich het recht voor om de inhoud van dit document te wijzigen zonder enige verplichting om enig persoon of bedrijf van een dergelijke herziening te op de hoogte te stellen.
Chauvet. Als u dit niet tijdig doet, kan uw claim bij de vervoerder verlopen. Daarnaast moet u de verpakking en al het verpakkingsmateriaal bewaren voor inspectie.
· Stop direct met het gebruik van dit product in geval van ernstige gebruiksproblemen. In het onwaarschijnlijke geval dat uw Chauvet-product een reparatie nodig heeft, kunt u contact opnemen met de technische dienst van Chauvet. LED-lampen gaan met de loop der tijd achteruit in helderheid, voornamelijk door warmte. Als ze...
Inleiding 2. I NLEIDING NEXT NXT-1 is paneel met bewegende kop, met vijfentwintig RGBW LED's van 10 watt die de Product- pixelmapbeelden helder weergeeft en door mist heen gaat. De snelle beweging van het paneel beschrijving en de snelle reactie van de LED's met nauwe straal laten ontwerpers oogstrelende beelden creëren die elke live productie verbetert en de NEXT NXT-1 wordt geleverd met ingebouwde...
Inleiding Afmetingen 10,6 in 270 mm 2 in 50 mm 18,6 in 472 mm 14,9 in 378 mm 3,9 in 100 mm 15,4 in 391 mm 3,9 in 11,3 in 100 mm 288 mm NEXT NXT-1 Gebruikershandleiding Rev. 8 -131-...
Power Linking De NEXT NXT-1 ondersteunt power linking. Via power linking kunt u tot 5 producten met elkaar verbinden bij 120 V; tot 9 bij 208 V; of tot 10 bij 230 V. Dit product wordt geleverd met een elektriciteitssnoer. Power linking-kabels zijn verkrijgbaar bij Chauvet.
· Plaats de NEXT NXT-1 zodat het vrij kan bewegen zonder iets of iemand te raken. · Laat voldoende speling op de kabels om spanning en trekkracht aan de stekkers te voorkomen.
Aan andere Kling-Net of Art-Net™ apparaten De drie LED-lampjes tussen de Neutrik® etherCON®-poorten geven een verbinding met een netwerk en activiteit op dat netwerk aan. Ze geven niet aan of de NEXT NXT-1 een signaal ontvangt van een controller. -134-...
Toont de producttemperatuur in graden Celsius Temperature Unit °F Toont de producttemperatuur in graden Fahrenheit Ventilatorsnelheid in overeenstemming met Auto Speed producttemperatuur Fan Mode High Speed Ventilatorsnelheid op hoog ingesteld Factory Settings Herstelt product naar de fabrieksinstellingen NEXT NXT-1 Gebruikershandleiding Rev. 8 -135-...
500; 23-kanaals modus: 490; 81-kanaals modus: 432; 106-kanaals modus: 407; en 119-kanaals modus: 394. ** - Voor Art-Net™-modi, de Net-instelling bepaalt het eerste cijfer van het IP-adres, te hetzij: · 2, voor Net-instelling 0, · 10, voor Net-instelling 1. -136- NEXT NXT-1 Gebruikershandleiding Rev. 8...
Werking Protocolconfiguratie De NEXT NXT-1 kan worden ingesteld om te reageren op DMX, Art-Net™, Kling-Net, of een combinatie van Art-Net™ en DMX of Kling-Net en DMX. De protocolconfiguratie moet worden ingesteld zodat het product kan corrent kan reageren op de controller(s). Zie de Menumap voor meer informatie. Voor het configureren van het protocol voor de NEXT NXT-1 volgt u onderstaande instructies: Druk herhaaldelijk op <MENU/ESC>...
Werking Net-adres De Net-instelling op de NEXT NXT-1 bepaalt het eerste cijfer van het IP-adres. Voor het configureren van het Art-Net™ Net-adres voor de NEXT NXT-1 volgt u onderstaande instructies: Druk herhaaldelijk op <MENU/ESC> om naar het hoofdniveau van het displaymenu te gaan.
Page 153
Alfabetische vormen R 216ó220 Alfabetische vormen S 221ó225 Alfabetische vormen T 226ó230 Alfabetische vormen U 231ó235 Alfabetische vormen V 236ó240 Alfabetische vormen W 241ó245 Alfabetische vormen X 246ó250 Alfabetische vormen Y 251ó255 Alfabetische vormen Z -146- NEXT NXT-1 Gebruikershandleiding Rev. 8...
Page 154
(waneer K 112 001ó255 128ó191 180° 192ó255 270° 000ó010 Geen functie 011ó100 Virtuele Gobo index Virtuele Gobo-snelheid (waneer K 113 011ó255 101ó149 Houden 150ó202 Gobo-snelheid vooruit, langzaam tot snel 203ó255 Gobo-snelheid achteruit, snel tot langzaam NEXT NXT-1 Gebruikershandleiding Rev. 8 -147-...
Page 162
Alfabetische vormen R 216ó220 Alfabetische vormen S 221ó225 Alfabetische vormen T 226ó230 Alfabetische vormen U 231ó235 Alfabetische vormen V 236ó240 Alfabetische vormen W 241ó245 Alfabetische vormen X 246ó250 Alfabetische vormen Y 251ó255 Alfabetische vormen Z NEXT NXT-1 Gebruikershandleiding Rev. 8 -155-...
Page 163
(waneer K 18 001ó255 128ó191 180° 192ó255 270° 000ó010 Geen functie 011ó100 Virtuele Gobo index Virtuele Gobo-snelheid (waneer K 19 011ó255 101ó149 Houden 150ó202 Gobo-snelheid vooruit, langzaam tot snel 203ó255 Gobo-snelheid achteruit, snel tot langzaam -156- NEXT NXT-1 Gebruikershandleiding Rev. 8...
Stroboscoop 011ó255 Langzaam tot snel Voorinstelling van de dimmersnelheid vanaf 000ó051 het displaymenu 052ó101 Dimmer snelheidsmodus uit Dimmer snelheidsmodus 102ó152 Dimmer snelheidsmodus 1 (snel) 153ó203 Dimmer snelheidsmodus 2 (middel) 204ó255 Dimmer snelheidsmodus 3 (langzaam) NEXT NXT-1 Gebruikershandleiding Rev. 8 -157-...
Werking Configuratie bedieningsinstellingen Startscherm De NEXT NXT-1 heeft een startscherm dat de protocolmodus toont, het IP-adres of DMX-adres, de DMX-persoonlijkheid en de huidige producttemperatuur. Druk herhaaldelijk op <MENU/ESC> om het startscherm te zien. Om in te stellen of de zwenk- of kanteloriëntatie normaal of geïnverteerd is.
Werking Witbalans Om de witbalans in te stellen van de NEXT NXT-1: Druk herhaaldelijk op <MENU/ESC> om naar het hoofdniveau van het displaymenu te gaan. Gebruik <UP> of <DOWN> om System Setup te selecteren. Druk op <ENTER>. Gebruik <UP> of <DOWN> om White Balance te selecteren.
Gebruik <UP> of <DOWN> om te kiezen tussen No (huidige instellingen behouden) of Yes (instellingen resetten). Druk op <ENTER>. Na een fabrieksherstel, zal de NEXT NXT-1 alleen worden ingesteld naa Only DMX-modus, met de 23-kanaals persoonlijkheid en een startadres van 1. Systeem- Om informatie over het product weer te geven: Druk herhaaldelijk op <MENU/ESC>...
UPDATE De volgende stappen zijn van toepassing op het Windows® 7-besturingssysteem. Stap 1 Verbind de NEXT NXT-1 met een router, zoals de NET-Switch van Chauvet Professional. Verbind de router met een computer. Controleer of het netwerk met de NEXT NXT-1 aan de computer is verbonden.
Page 170
Bekijk het startscherm op de NEXT NXT-1. (zie Startscherm) Open de internetbrowser op de computer. Vul het IP-adres van de NEXT NXT-1-display in de URL-balk van de internetbrowser in. (Als er op het beeldscherm van het product bijvoorbeeld 2.200.197.180 staat vult u 2.200.197.180 in de URL-balk van de...
Page 171
Stap 11 De nieuwste firmware-upgrade kunt u op de website http://www.chauvetprofessional.com/products/next- nxt-1/ vinden onder DOWNLOADS. Stap 12 Klik op Choose File op de NEXT NXT-1 upgradepagina. In het venster File Explorer dat verschijnt, selecteert u het Firmware Upgrade-bestand vanaf de website en klikt u op Open.
Veeg vuil voorzichtig naar de buitenranden van het lensoppervlak. Poets de lensoppervlakken voorzichtig totdat het vrij is van waas en pluisjes. Droog de externe oppervlakken altijd grondig en voorzichtig na het reinigen. Laat de koelventilatoren nooit draaien met behulp van perslucht. NEXT NXT-1 Gebruikershandleiding Rev. 8 -165-...
Als u zich in Benelux bevindt, neem dan contact op met Chauvet Europe BVBA. Als u zich in een ander land bevindt, neem dan GEEN contact op met Chauvet. Neem in plaats daarvan contact op met uw plaatselijke distributeur. Zie www.chauvetlighting.com voor distributeurs buiten de VS, het Verenigd Koninkrijk, Ierland, Mexico of Benelux.
