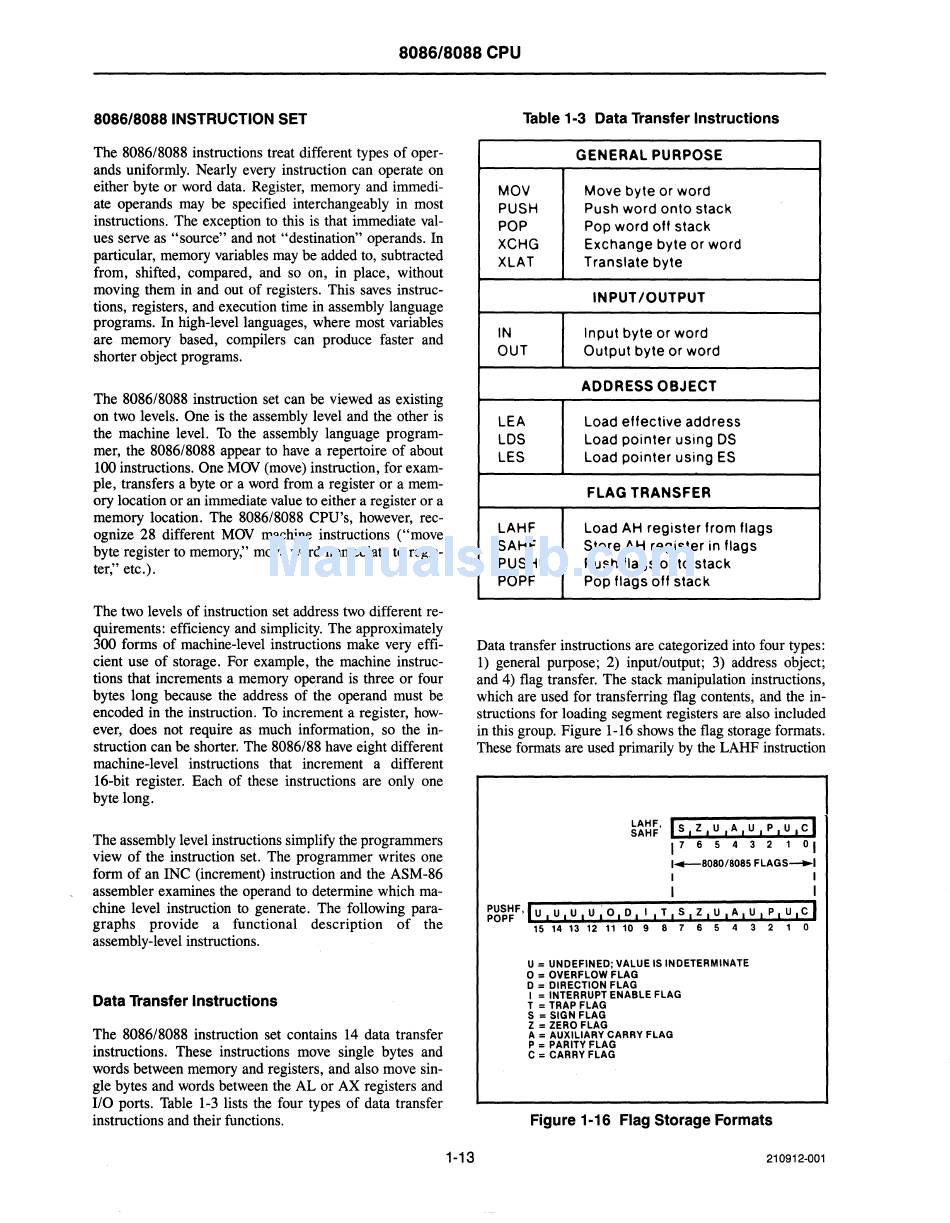

8086/8088 INSTRUCTION SET
The 8086/8088 instructions treat different types of oper-
ands uniformly. Nearly every instruction can operate on
either byte or word data. Register, memory and immedi-
ate operands may be specified interchangeably in most
instructions. The exception to this is that immediate val-
ues serve as "source" and not "destination" operands. In
particular, memory variables may be added to, subtracted
from, shifted, compared, and so on, in place, without
moving them in and out of registers. This saves instruc-
tions, registers, and execution time in assembly language
programs. In high-level languages, where most variables
are memory based, compilers can produce faster and
shorter object programs.
The 8086/8088 instruction set can be viewed as existing
on two levels. One is the assembly level and the other is
the machine level. To the assembly language program-
mer, the 8086/8088 appear to have a repertoire of about
100 instructions. One MOV (move) instruction, for exam-
ple, transfers a byte or a word from a register or a mem-
ory location or an immediate value to either a register or a
memory location. The 8086/8088 CPU's, however, rec-
ognize 28 different MOV machine instructions ("move
byte register to memory," move word immediate to regis-
ter," etc.).
The two levels of instruction set address two different re-
quirements: efficiency and simplicity. The approximately
300 forms of machine-level instructions make very effi-
cient use of storage. For example, the machine instruc-
tions that increments a memory operand is three or four
bytes long because the address of the operand must be
encoded in the instruction. To increment a register, how-
ever, does not require as much information, so the in-
struction can be shorter. The 8086/88 have eight different
machine-level instructions that increment a different
16-bit register. Each of these instructions are only one
byte long.
The assembly level instructions simplify the programmers
view of the instruction set. The programmer writes one
form of an INC (increment) instruction and the ASM-86
assembler examines the operand to determine which ma-
chine level instruction to generate. The following para-
graphs provide a functional description of the
assembly-level instructions.
Data Transfer Instructions
The 8086/8088 instruction set contains 14 data transfer
instructions. These instructions move single bytes and
words between memory and registers, and also move sin-
gle bytes and words between the AL or AX registers and
110 ports. Table 1-3 lists the four types of data transfer
instructions and their functions.
1-13
Table 1-3 Data Transfer Instructions
GENERAL PURPOSE
MOV Move byte or word
PUSH Push word onto stack
POP Pop word off stack
XCHG Exchange byte or word
XLAT Translate byte
INPUT /OUTPUT
IN Input byte or word
OUT Output byte or word
ADDRESS OBJECT
LEA Load effective address
LDS Load pointer using DS
LES
Load pointer using ES
FLAG TRANSFER
LAHF Load AH register from flags
SAHF Store AH register in flags
PUSHF Push flags onto stack
POPF Pop flags off stack
Data transfer instructions are categorized into four types:
1) general purpose; 2) input/output; 3) address object;
and 4) flag transfer. The stack manipulation instructions,
which are used for transferring flag contents, and the in-
structions for loading segment registers are also included
in this group. Figure 1-16 shows the flag storage formats.
These formats are used primarily by the LAHF instruction
~:~~'
I s !
Z
!
U
!
A
!
U
!
P
!
U
!
C
I
1 7 6 5 4 3 2 1 0 1
1_8080/8085 FLAGS_I
1 1
I I
~g~~F,
I
u ,
U
I
U , U
,0,0
I
I , T , S
I
Z
I
U
I
A
I
U ,
P,
U
,c
I
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
U
=
UNDEFINED; VALUE IS INDETERMINATE
D
=
OVERFLOW FLAG
D
=
DIRECTION FLAG
I
=
INTERRUPT ENABLE FLAG
T
=
TRAP FLAG
S
=
SIGN FLAG
Z
=
ZERO FLAG
A
=
AUXILIARY CARRY FLAG
P
=
PARITY FLAG
C
=
CARRY FLAG
Figure 1-16 Flag Storage Formats
