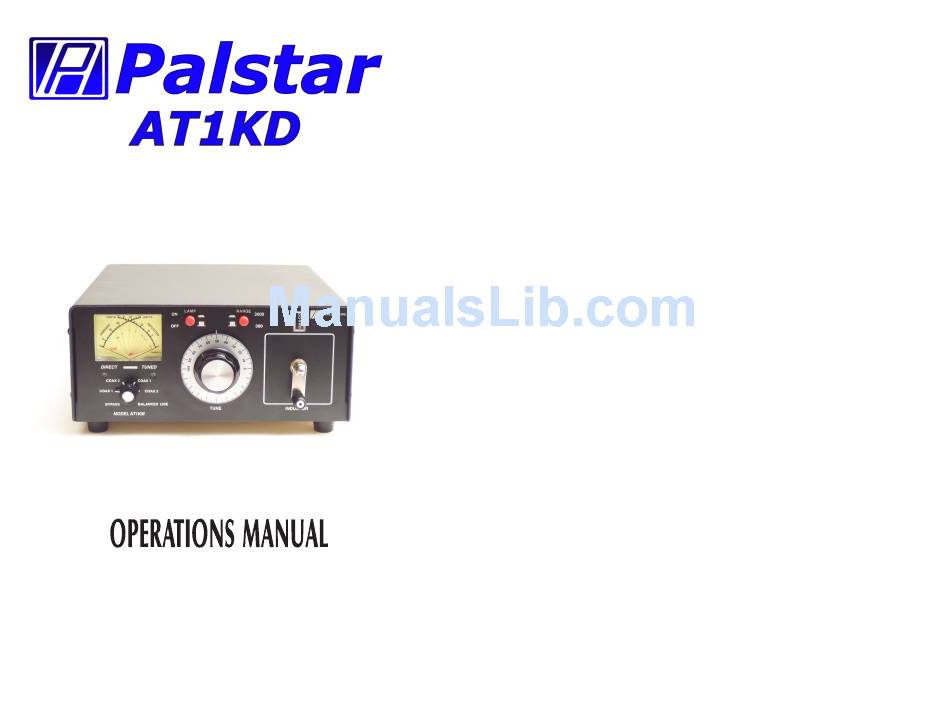

1200 Watt Antenna Tuner
9676 N. Looney Rd., Piqua, OH 45356
Tel: (937)-773-6255 Fax: (937)-773-8003
800-773-7931
www.palstar.com
1. Features
The AT1KD optimizes the performance of your antenna and transmitter or SWL
receiver by providing adjustable impedance matching using a T-type circuit
configuration with a dual-stator differential variable capacitor. The AT1KD also
measures the power and Voltage Standing Wave Ratio (VSWR or SWR) which
allows you to tune the SWR to the lowest ratio possible for the selected
transmission frequency. The AT1KD also features a precision roller inductor
with a steatite ceramic core. The innovative differential capacitor design simplifies
operation by reducing the number of knobs and eliminates false peaks while
tuning. It also results in a more compact case that takes up less room on the
operation desk.
2. Specifications

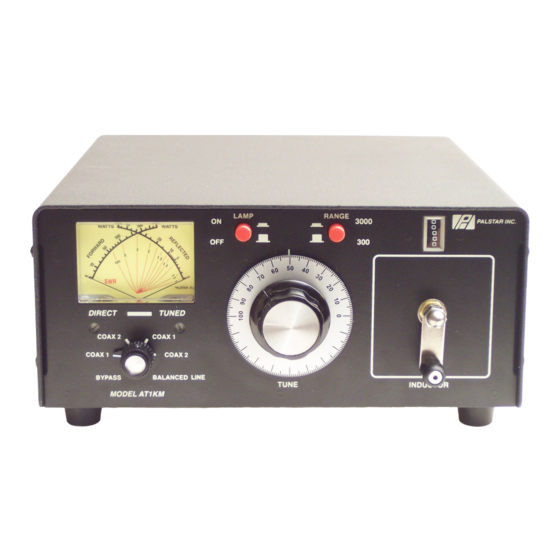

FRONT PANEL INDICATORS AND CONTROLS
Meter
CONTROLS
Input Tuning & Antenna Tuning Dual-stator differential capacitor (440 - 0 - 440
Inductance
Antenna Selector
Switch Wafers
Range Switch
REAR PANEL CONNECTORS
Coax 1
Coax 2
Bypass
RF INPUT
Balanced Line
End-Fed Wire
12 VDC@200ma (center positive)Adaptor for LED display; 2.1 mm female plug
OTHER
• Frequency Coverage
• Power Maximum
• Impedance Range
(assuming Resistive load)
• Balanced output
• Dimensions
• Weight
• Materials
Dual movement cross needle power and
frequency compensated coupler.
pF, 3 kV) with 6:1 precision verier drive.
24 µH roller inductor; 12 ga. wire wound on
steatite ceramic core, silver plated bar/wheel
6 position: Coax 1 tuned and tuner bypass,
coax 2 tuned and tuner bypass, bypass and
balanced antenna.
G-10 Glass Epoxy (3 kV rated)
2 position 140 W / 1400 W
SO239 connector
SO239 connector
SO239 connector
SO239 connector
Dual high voltage Nylon 66 terminal post
Dual high voltage Nylon 66 terminal post
1.8 - 30 MHz
1000 W PEP SSB, 800 W single tone
20 to 1500W - 160 m to 10m
Reduce power for lower Z range
4 to 1 Ruthroff voltage type balun
5.3"H x 10.6"W x 12.5"D (incl.
terminals)
8 lbs.
Chassis and top cover is .078"
aluminum. Cover and front panel
powdercoated and epoxy screened.
1
Advertisement
Table of Contents
Related Manuals for Palstar AT1KD
Summary of Contents for Palstar AT1KD
-
Page 1: Specifications
1. Features The AT1KD optimizes the performance of your antenna and transmitter or SWL receiver by providing adjustable impedance matching using a T-type circuit configuration with a dual-stator differential variable capacitor. The AT1KD also measures the power and Voltage Standing Wave Ratio (VSWR or SWR) which allows you to tune the SWR to the lowest ratio possible for the selected transmission frequency. - Page 2 3. Controls / Connectors DIRECT COAX 2 selects COAX 2 connector bypassing the impedance matching circuit but providing SWR, FORWARD and REFLECTED FRONT PANEL CONTROLS meter readings. TUNED COAX 1 selects COAX 1 connector through the impedance matching circuit. TUNED COAX 2 selects COAX 2 connector through the impedance matching circuit.
- Page 3 3 digits closest to the bottom of the INDUCTOR indicator. Actual settings may vary from antenna to antenna. Select a location for the AT1KD that allows the connectors to be free from any TUNE INDUCTOR BAND possible contact during operation.
-
Page 4: Limited Warranty
Palstar Inc's obligation under this warranty is limited to repair or 10. When you have tuned your antenna to the best SWR, record the settings replacement of the product; at its option at the Palstar factory in Piqua, of the INPUT, ANTENNA and INDUCTANCE controls on the chart on the Ohio.
