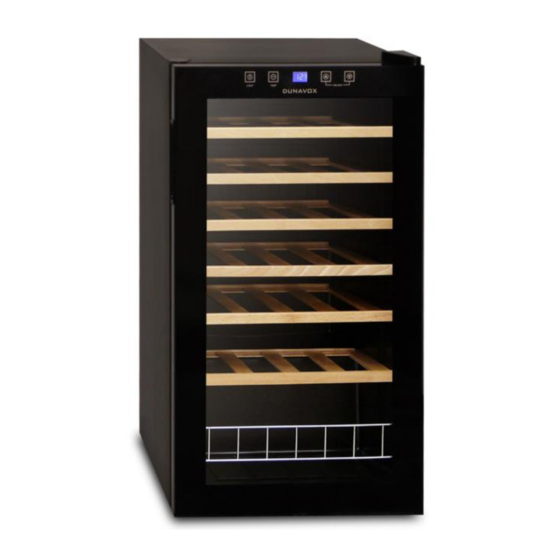

Dunavox DX-16.46K Operation Manual
Compressor wine cooler
Hide thumbs
Also See for DX-16.46K:
- Instruction manual (87 pages) ,
- Instruction manual (8 pages) ,
- Instruction manual (30 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Dunavox DX-16.46K
Summary of Contents for Dunavox DX-16.46K

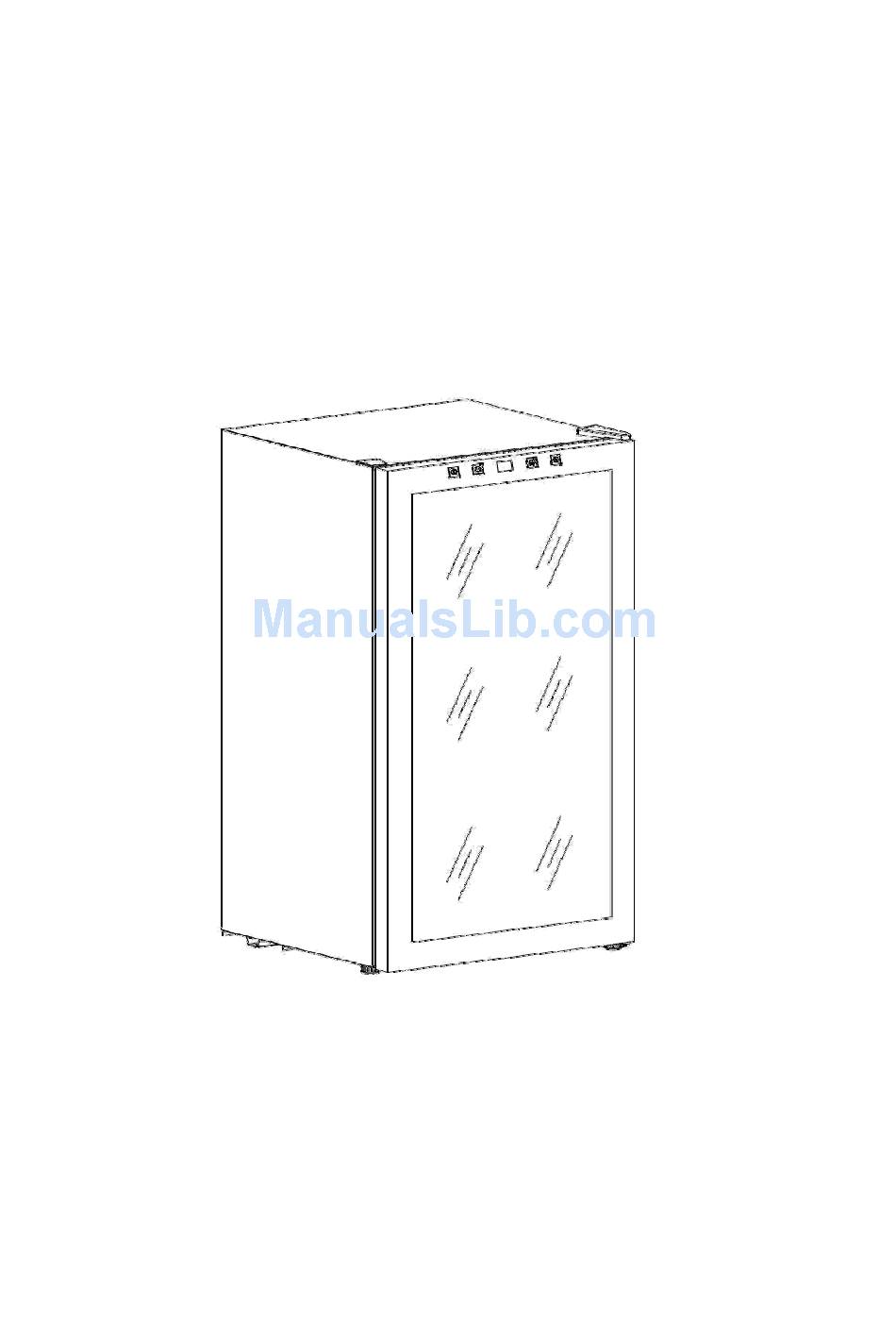

- Page 1 COMPRESSOR WINE COOLER Model No.: DX-16.46K / DX-20.62K / DX-28.88K Operation Manual...
-
Page 2: Table Of Contents
Index I. General Safety Precautions…………..…..….1 II. Technical Data………………………..…....….2 III. Illustrated Structure……………………..…..….3 IV. Electric Principle Diagram………………………….. 3 V. Operation …………………………………………… 4 VI. Particular Precautions……………………………….. 5 VII. Maintenance………………………………………….5 VIII. Troubleshooting…………………………………….. 6... -
Page 3: General Safety Precautions
I. GENERAL SAFETY PRECAUTIONS ● Do not install the winecooler 48 hours after shipping (moving)! ● Do not place the appliance on floor heated area! ● After removing the chiller from the package, make sure it is in good condition. In case of doubt, do not use it and contact an authorized service center. -
Page 4: Technical Data
II. TECHNICAL DATA Model DX-16.46K DX-20.62K DX-28.88K Volume (liter) Case Iron Iron Iron Material Door Glass Glass Glass Unit Dimension 430x480x510 430x480x640 430x480x825 (W×D×H)(mm) Packaging Dimension 460x515x530 460x540x660 460x515x845 (W×D×H)(mm) Net Weight (Kg) Gross Weight (Kg) Power Consumption 0.52 0.858 0.858... -
Page 5: Illustrated Structure
III. ILLUSTRATED STRUCTURE 1. Control Panel 2. Hinge Cover 3. Light 4. Chrome Shelf 5. Display Shelf 6. Foot IV. ELECTRIC PRINCIPLE DIAGRAM... -
Page 6: Operation
V. OPERATION OF WINE COOLER This cooler has touch control panel which locates on the upper side of glass door. The image as following: You could touch to turn ON / OFF the interior light, and to transform the display between Fahrenheit and Celsius. There are a pair of touch panel. -
Page 7: Particular Precautions
VI. PARTICULAR PRECAUTIONS ● In order to function at its highest potential, this wine cooler needs to be placed on flat floor, with 2cm spaces at each side and 10cm space at the backside. ● Use the adjustable iron case to place the cellar fully horizontal. ●... -
Page 8: Troubleshooting
VIII. TROUBLESHOOTING Symptoms Possible cause Solutions Plug not put in Put in the plug No cooling Low voltage Ensure normal voltage Fuse broken Change fuse Keep the chiller away from sunshine The chiller is placed or other heat source too close to a heat Temperature Place the chiller in the area with good source...
