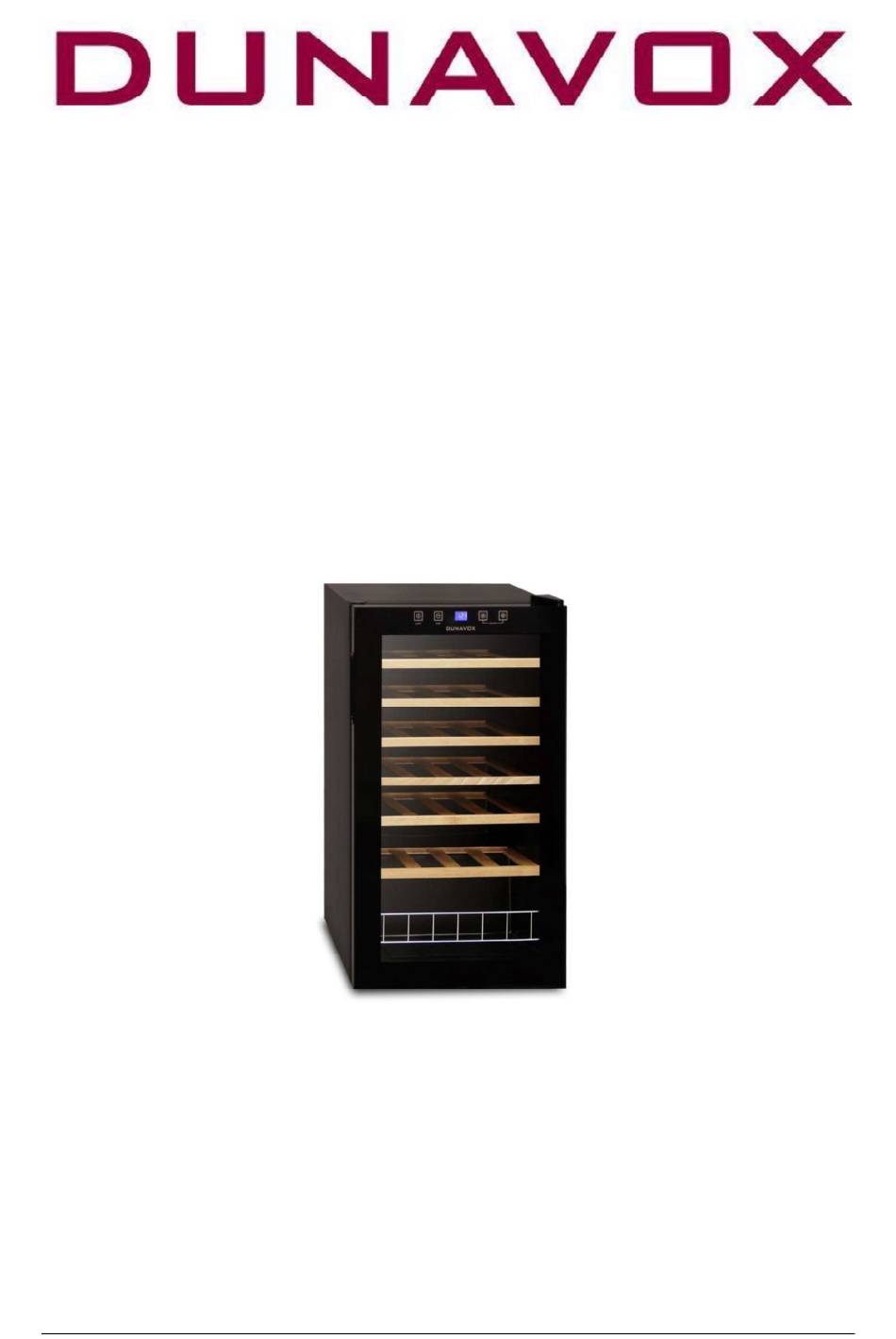

- Page 1 INSTRUCTION MANUAL Model Number: DX-16.46K/DX-20.62KF/DX-28.88KF DX-30.80DK/DX-46.128DK/DX-54.150DK Wine Cooler (Photo: DX-28.88KF) CAUTION! BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
-
Page 2: Table Of Contents
5.4. E ............................. 9 XTENSION OPERATING YOUR WINE COOLER ....................9 6.1. S ............................... 9 PECIAL OTICE 6.2. C (DX-16.46K, DX-20.62KF, DX-28.88KF) .................. 9 ONTROL ANEL 6.3. C (DX-30.80DK, DX-46.128DK, DX-54.150DK) ................ 10 ONTROL ANEL 6.4. C ), ON/OFF (DX-30.80DK, DX-46.128DK, DX-54.150DK) ....10... -
Page 3: Wine Cooler Safety
INSTRUCTION MANUAL THIS PRODUCT IS DESIGNED FOR WINE STORAGE ONLY. 1. WINE COOLER SAFETY YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT. We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. -
Page 4: Important Safeguides
INSTRUCTION MANUAL 2. IMPORTANT SAFEGUIDES Before the Wine Cooler is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the Wine Cooler, follow basic precautions, including the following: Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord. - Page 5 INSTRUCTION MANUAL Do not kink or pinch the power supply cord of Wine Cooler. The fuse (or circuit breaker) size should be 15 amperes. It is important for the Wine Cooler to be leveled in order to work properly. You may need to make several adjustments to level it.
-
Page 6: Parts & Features
INSTRUCTION MANUAL 3. PARTS & FEATURES drawing for reference only) Control Panel SHELF Hinge Cover DISPLAY SHELF LED Light... -
Page 7: Important Safety Instructions
INSTRUCTION MANUAL 4. IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, WARNING or injury when using your appliance, follow these basic precautions: Read all instructions before using the Wine Cooler. DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. -
Page 8: Installation Of Your Wine Cooler
INSTRUCTION MANUAL 5.2. Installation of Your Wine Cooler This Wine Cooler is designed to be free standing installation or built under counter. Place your Wine Cooler on a surface that is strong enough to support it when it is fully loaded. Allow 1-5 cm of space between the back and sides of the Wine Cooler, which allows the proper air circulation to cool the heat sink. -
Page 9: Extension Cord
The range of 4~18 /39~64 F (5~18 /41~64 F for duo zone models) may not be reached 6.2. Control Panel (DX-16.46K, DX-20.62KF, DX-28.88KF) LIGHT To turn the inner light on/off. You could increase the set temperature 1 or 1 F by pressing this mark. -
Page 10: Control Panel (Dx-30.80Dk, Dx-46.128Dk, Dx-54.150Dk)
6.5. Storage Capacity You can place 16 (DX-16.46K), 20 (DX-20.62KF), 28 (DX-28.88KF), 30 (DX-30.80DK), 46 (DX- 46.128DK), 56 (DX-54.150DK) bottles in this Wine Cooler number). Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. -
Page 11: Care And Maintenance
INSTRUCTION MANUAL 7. CARE AND MAINTENANCE 7.1. Defrosting Your Wine Cooler The unit should be defrosted manually. The condensation collects in the drainage channel behind the rear wall of the unit, and the flows through the drainage hole into the drip tray by the compressor where it evaporates. 7.2. -
Page 12: Problems With Your Wine Cooler
INSTRUCTION MANUAL 8. PROBLEMS WITH YOUR WINE COOLER? You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE... -
Page 13: Wiring Diagram
INSTRUCTION MANUAL 9. WIRING DIAGRAM DX-16.46K, DX-20.62KF, DX-28.88KF DX-30.80DK, DX-46.128DK, DX-54.150DK 10. TECHNICAL DATA Model DX-16.46K DX-20.62KF DX-28.88KF Volume (liter) Case Steel Steel Steel Material Door Glass Glass Glass Unit Dimension 430x480x510 430x480x640 430x480x825 Packaging Dimension 460x515x530 460x540x660 460x515x845 Net Weight (Kg) - Page 14 INSTRUCTION MANUAL Model DX-30.80DK DX-46.128DK DX-54.150DK Volume (liter) 128L 158L Case Steel Steel Steel Material Door Glass Glass Glass Unit Dimension 480x490x835 480x470x1125 480x470x1295 Packaging Dimension 510x520x870 510x520x1165 510x520x1335 Net Weight (Kg) 47,6 Gross Weight (Kg) 44,5 Power Consumption 0.516 0,63 0,64 (KWh/24h)
