INSTRUCTION MANUAL

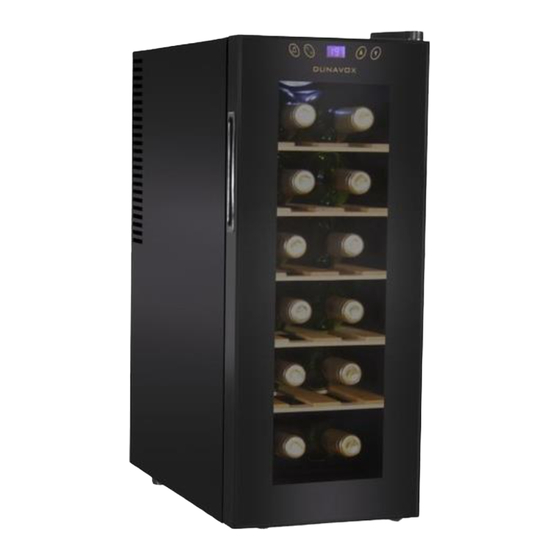

Thermoelectric wine cellar
Model: DX-12.35DG
This manual contains important information including safety and installation instructions
about the appliances. Please read it carefully before use and follow all the safety information &
instructions.
It is recommended that you keep this manual for reference so that you are familiar with the
operation of the appliance.
Advertisement
Table of Contents
Related Manuals for Dunavox DX-12.35DG
Summary of Contents for Dunavox DX-12.35DG

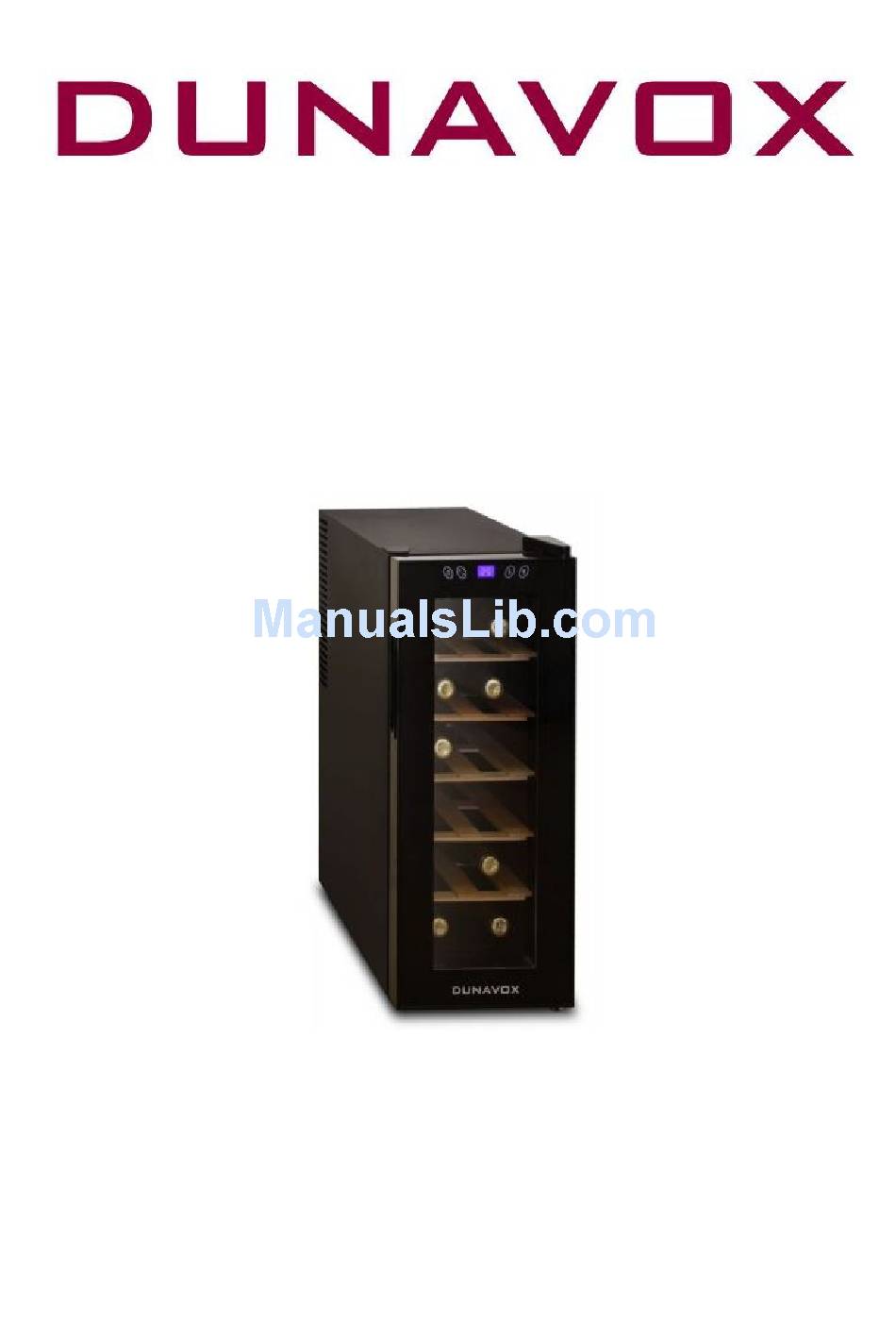

- Page 1 INSTRUCTION MANUAL Thermoelectric wine cellar Model: DX-12.35DG This manual contains important information including safety and installation instructions about the appliances. Please read it carefully before use and follow all the safety information & instructions. It is recommended that you keep this manual for reference so that you are familiar with the...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL --CONTENTS-- GENERAL SAFETY PRECAUTIONS ........................2 Caution................................... 2 TECHNICAL DATA ............................3 ILLUSTRATED STRUCTURE..........................4 DISPLAY FUNCTIONS ............................4 ELECTRIC PRINCIPLE DIAGRAM ........................5 OPERATION OF REFRIGERATOR ........................5 PARTICULAR PRECAUTIONS ...........................6 MAINTENANCE ..............................6 TROUBLESHOOTING ............................7... -
Page 3: General Safety Precautions
INSTRUCTION MANUAL GENERAL SAFETY PRECAUTIONS - After removing the wine cooler from the package, make sure it is in good condition. In case of doubt, do not use it and contact your own dealer or an authorized service center. - Plastic bags, nails, etc. Should be kept out of the reach. Read the operation manual carefully and check that the rating data on the rating nameplate corresponds to your power supply. -
Page 4: Technical Data
INSTRUCTION MANUAL TECHNICAL DATA Type DX-12.35DG Volume (liter) Case Iron Material Door Glass Unit Dimension 260*650*495 (W×H×D)(mm) Packaging Dimension 300*660*535 (W×H×D)(mm) Net Weight (Kg) 12.4 Gross Weight (Kg) 13.4 Power Consumption (KW·h/24h) Interal temperature setting 11-18 Rated Voltage 220-240VAC Rated Frequency... -
Page 5: Illustrated Structure
INSTRUCTION MANUAL ILLUSTRATED STRUCTURE 1. Light 2. Fan Grill 3. Shelf 4. Feet 5. Hinge cover 6. Magnetic Seal 7. Door DISPLAY FUNCTIONS 8. Light button 9.C/F button 10. LCD display 11. Set temp up button 12. Set temp down button... -
Page 6: Electric Principle Diagram
INSTRUCTION MANUAL ELECTRIC PRINCIPLE DIAGRAM Ⅴ OPERATION OF REFRIGERATOR - The internal temperature of the thermoelectric refrigerator depends on the room temperature. The refrigerator can be adjusted within the range of 11 (± 1° C), when it is located in an ideal room ℃... -
Page 7: Particular Precautions
INSTRUCTION MANUAL PARTICULAR PRECAUTIONS In order to function at its best, this wine cooler needs to be placed on a level surface, with 2cm space at each side and 10cm at the back, maintaining a good airflow. Use the adjustable feet to level the unit. Avoid direct sunlight and high temperatures, do not place the unit on the top of a refrigerator. -
Page 8: Troubleshooting
INSTRUCTION MANUAL TROUBLESHOOTING Symptoms Possible cause Solutions Plug not in Put in the plug No cooling Low voltage Ensure normal voltage Fuse broken Change fuse Keep the refrigerator away from The refrigerator is placed sunshine or other heat source; too near heat source; Place the refrigerator in an area Not cold enough Bad ventilation;...
