INSTRUCTION MANUAL

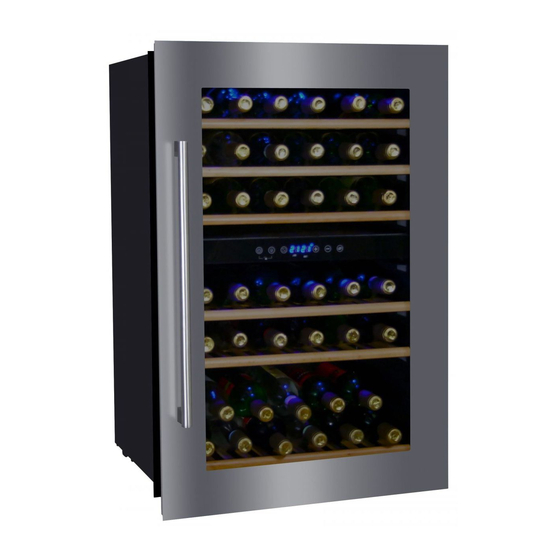

COMPRESSOR WINE COOLER
This manual contains important information including safety and installation
instructions of the appliances. Please read it carefully before use and
follow all safety information & instructions. It is recommended to keep this
manual for easy reference so that you can be familiar with the operation of the
appliance.
Advertisement
Table of Contents
Related Manuals for Dunavox DX-41.130BBK
Summary of Contents for Dunavox DX-41.130BBK
- Page 1 INSTRUCTION MANUAL COMPRESSOR WINE COOLER This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION �����������������������������������������������������1 STURCTURE AND DESCRIPTION ������������������������������������������������������������2 ● BUILT-UNDER SERIES (Built under a kitchen table top) ��������������������������������������������� 2 ● FLOOR-STANDING SERIES ��������������������������������������������������������������������������������������������������������������������� 5 ACCESSORY INSTALLATION BEFORE OPERATING ��������������������������������5 ● UNPACKING AND CLEANING THE WINE COOLER ������������������������������������������������������������������������� 5 ● HOW TO REVERSE THE DOOR HANDLE�������������������������������������������������������������������������������������������� 6 ●... -
Page 3: Important Safety Information
INSTRUCTION MANUAL IMPORTANT SAFETY INFORMATION Before use the appliance, please properly position and install it as described in this manual� To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: • The appliance is intended to be used exclusively for the storage of wine� •... -
Page 4: Sturcture And Description
INSTRUCTION MANUAL STURCTURE AND DESCRIPTION The following pictures only show the structure of the appliance� The dimension and shelf quantity may differ among the models of the same series� „ BUILT-UNDER SERIES (Built under a kitchen table top) Single Zone Structure Outside Canbinet Touch-Key Control Panel Door... - Page 5 INSTRUCTION MANUAL 295mm width Installation Drawing (mm) 595mm width Installation Drawing (mm) BUILT-IN-COLUMN SERIES (Built into a kitchen cabinet) Single Zone Structure Condenser Outside Canbinet Touch-Key Control Panel Door & Digital Display Handle Deep Shelf Shallow Shelf Gasket Leveling Foot Mounting Bar �3�...
- Page 6 INSTRUCTION MANUAL Condenser Outside Canbinet Door Touch-Key Control Panel Handle & Digital Display Deep Shelf Gasket Shallow Shelf Leveling Foot Mounting Bar 455mm Height Installation Drawing 1� Before inserting the unit into the kitchen cabinet, please unscrew the original 4 leveling feet (in white), and screw the 2 short leveling feet (in black), which are packed as the accessory, to the front bottom of the unit�...
-
Page 7: Floor-Standing Series
INSTRUCTION MANUAL „ FLOOR-STANDING SERIES Single Zone Structure Upper Right Hinge Touch-Key Control Panel & Digital Display Door Outside Canbinet Deep Shelf Handle Shallow Shelf Front Louver Lock Leveling Foot Dual Zone Structure Upper Right Hinge Door Outside Canbinet Handle Deep Shelf Touch-Key Control Panel &... -
Page 8: How To Reverse The Door Handle
INSTRUCTION MANUAL 1st Step -Remove the gasket on the internal door to expose the two screw holes� Gasket 2nd Step -Install the handle tightly with the screws and washers provided� Flat Washer 3rd Step -Restore the gasket� Handle Locker Washer Screw Door Frame „... -
Page 9: Lock & Unlock The Door (For Option)
INSTRUCTION MANUAL 5th Step - Tidy and restore the gasket� Figure4 Figure3 „ LOCK & UNLOCK THE DOOR (FOR OPTION) ● Lock is an optional function� If your Wine Cooler has such function, a key should be attached inside the packing of this Manual� ●... -
Page 10: Wine Storage
INSTRUCTION MANUAL „ WINE STORAGE • The standard shelves are designed perfectly for Bordeaux bottle storage� The maximum loaded bottles may vary subject to the different size or dimension wine bottles you store� • The shelves can be pull out approximately by 1/3 for easy access to the wine storage, while it is designed with a plastic stopper on each sides of the shelf track to prevent bottles from falling�... -
Page 11: Control Panel
INSTRUCTION MANUAL „ CONTROL PANEL • For Single Zone Temp.Up Power Lighting Display Window Temp.Down ºC/ºF Lock / Unlock Interchange • For Dual Zone Upper Zone Temp.Up Display Window Lock / Unlock Temp.Down ºC/ºF Power Lighting Bottom Zone Zone Select Interchange Display Window „... -
Page 12: Interior Lighting On/Off Control
INSTRUCTION MANUAL Warning: To avoid breaking the compressor, please do not turn on the appliance again within 5 minutes after you turn it off� „ UNLOCKING THE CONTROL PANEL • To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same time and hold for 3 seconds �... -
Page 13: Selecting Fahrenheit(ºf) & Celsius (ºc) Display
INSTRUCTION MANUAL appliance to achieve the temperature you have set� „ TEMPERATURE SETTING For Single Zone • The temperature setting range is 5-22 ºC (41-72 ºF )� • Directly touch the mark to set the wine cooler temperature as you want� •... -
Page 14: Care And Maintenance
INSTRUCTION MANUAL For Dual Zone Directly touch the mark , you can interchange the Fahrenheit and Celsius display for both zones at the same time� CARE AND MAINTENANCE „ CLEANING THE WINE COOLER • Turn off the power, unplug the appliance, and remove all items including shelves� •... -
Page 15: Troubleshooting
INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is out of order, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service� No� PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in� The wine cooler does not operate The awwwppliance is turned off�... -
Page 16: Reverse The Door Swing
INSTRUCTION MANUAL REVERSE THE DOOR SWING „ FOR BUITL-UNDER SERIES Remarks: ● Reversible door swing function is only available for a unit with 870mm height, and with control panel inside the cabinet� ● The instruction is based on a unit with right door hinge installed already� ●... -
Page 17: For Built-In-Column Series
INSTRUCTION MANUAL „ FOR BUILT-IN-COLUMN SERIES Remarks: ● Reversible door swing function is only available for a unit with 4 handle screw holes reserved on the front door (2 at the left side and 2 at the left side)� ● The instruction is only suitable for a unit with control panel on the door� ●... - Page 18 INSTRUCTION MANUAL 2nd step – Tidy the Door� 1� Pull the harness wires one by one out of the upper Figure2 right hinge hole through its gap, and remove the upper right hinge (Disused)� See Figure 2� 2� Tidy the harness and carefully push back it into the Figure3 door frame, and cover it with the right door corner cover...
- Page 19 INSTRUCTION MANUAL 4�Slowly pull out the harness at the left door corner, Figure7 which must be ensured no longer than 90mm to avoid loosen the inside terminals� Insert the harness wires one by one into the upper left hinge hole through its gap�...
-
Page 20: For Floor-Standing Series
INSTRUCTION MANUAL Figure9 5th step – Reverse the Door Handle� Reverse the door handle by following the instruction of “ How to Reverse the Door Handle” as mentioned above� „ FOR FLOOR-STANDING SERIES Remarks: ● Reversible door swing function is only available for a unit with control panel inside the cabinet�... - Page 21 INSTRUCTION MANUAL 2nd step - Move the support rod (at the bottom of the door) from the right to the left side� Move the hinge hole cover (at the top of the door) from the left side to the right side� See Figure 2 & 3� Figure3 Figure2 3rd step...
-
Page 22: Energy Label
INSTRUCTION MANUAL ENERGY LABEL �20�... - Page 23 INSTRUCTION MANUAL �21�...
- Page 24 INSTRUCTION MANUAL �22�...
- Page 25 INSTRUCTION MANUAL �23�...
