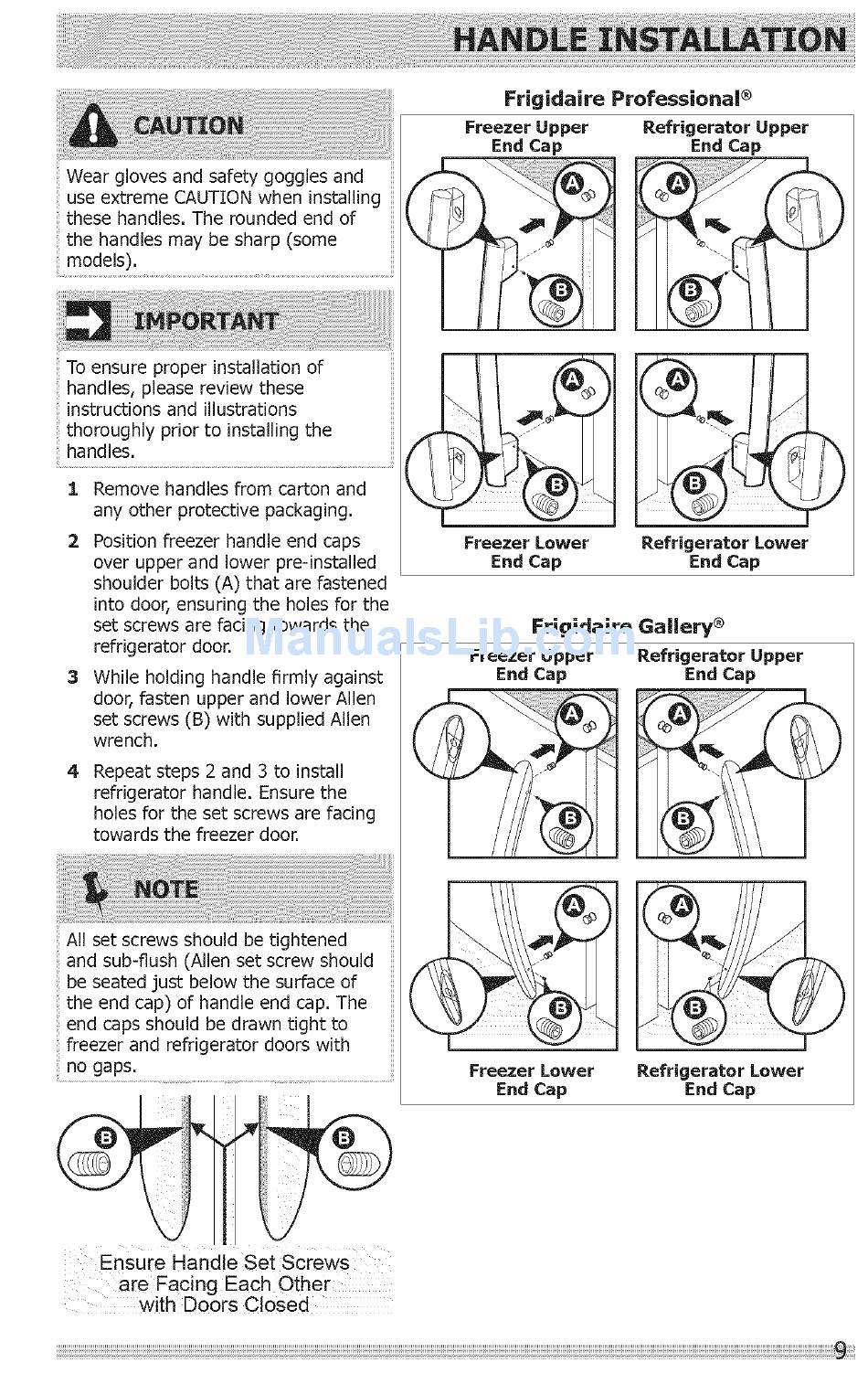

Handle Installation - Frigidaire FGHS2355PF5A Use & Care Manual

Wear gloves and safety goggles and
use extreme CAUTION when i nstalling
these h andles. The rounded end of
the handles may b esharp (some
To ensure proper installation of
handles, please review t hese
instructions and illustrations
thoroughly prior toinstalling the
handles.
1 Remove handles from carton and
any other protective packaging.
Position freezer handle end caps
over upper and lower pre-installed
shoulder bolts ( A) t hat a re fastened
into door, ensuring the holes forthe
set s crews are facing towards the
refrigerator door.
While holding handle firmly a gainst
door, fasten u pper and lower Allen
set s crews (B) w ith supplied Allen
wrench.
Repeat steps 2and 3toinstall
refrigerator handle. Ensure the
holes forthe set s crews are facing
towards the freezer door.
All s et s crews should betightened
and sub-flush (Allen set s crew s hould
be seated just b elow t he surface of
the end cap) ofhandle end cap. The
end caps should bedrawn tight t o
freezer and refrigerator doors with
nogaps: ..................................................................................................
EnsureHandle Set S crews i
areFacing E ach Other
with Doors C losed
Frigidaire Professional ®
Freezer Upper Refrigerator Upper
End Cap End Cap
Freezer Lower
End Cap
Frigidaire Gallery ®
Freezer Upper Refrigerator Upper
End Cap End Cap
i
Refrigerator Lower
End Cap
Freezer Lower RefrigeratorLower
End Cap End Cap
