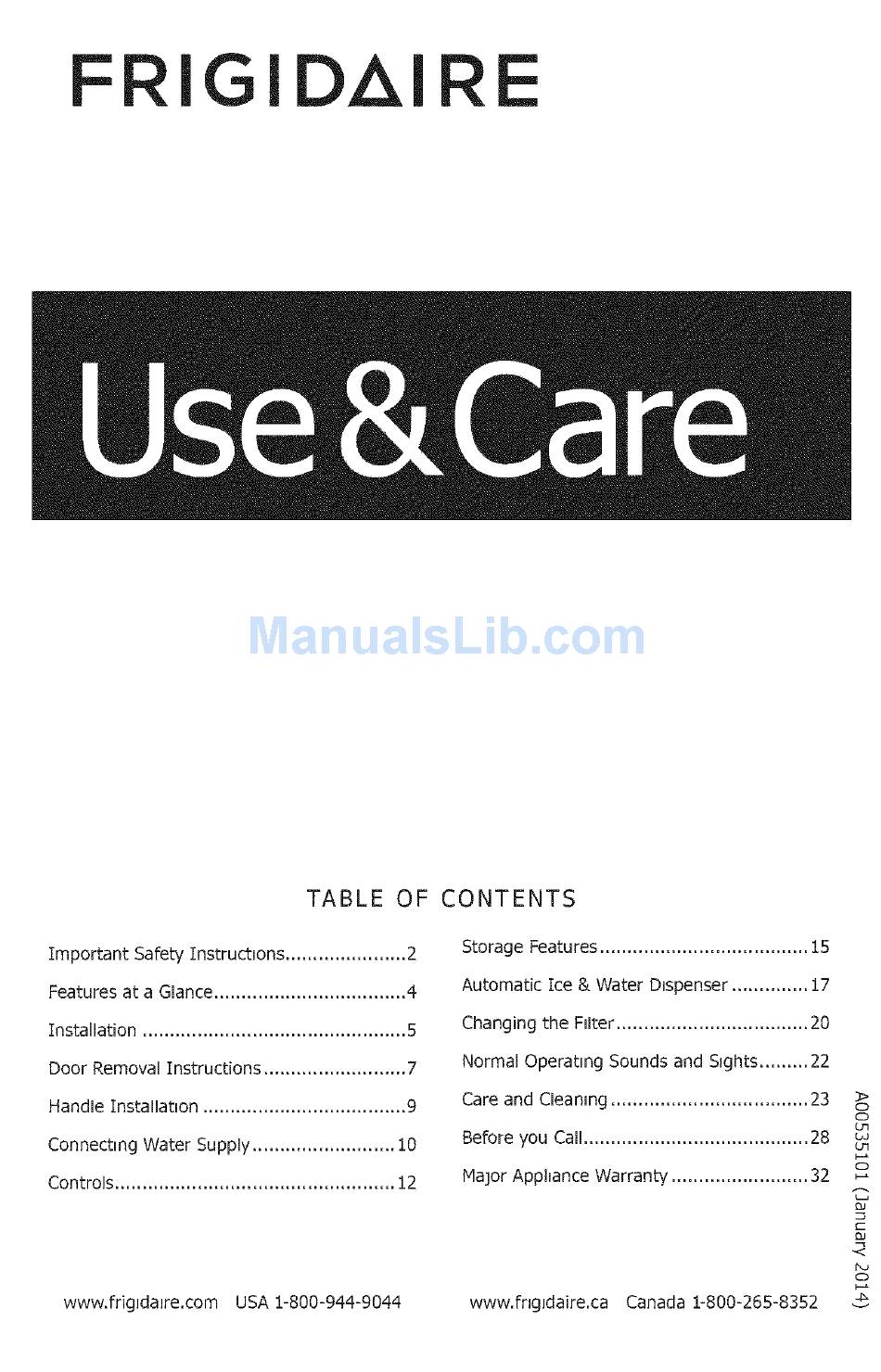

F
IGIDAI
E
TABLE
OF
important
Safety Znstructlons ......................
2
Features at a Glance ...................................
4
Installation
................................................
5
Door Removal Instructions ..........................
7
Handle [nstallatuon .....................................
9
Connectung Water Supply ..........................
10
Controls ...................................................
12
www.frigidalre.com
USA 1-800-944-9044
CONTENTS
Storage Features ......................................
15
Automatic [ce& Water Dispenser ..............
17
Changing the Fulter ...................................
20
Normal Operating Sounds and Sights ......... 22
Care and Cleaning ....................................
23
Before you Call .........................................
28
Major Apphance Warranty .........................
32
www.fngidaire.ca
Canada 1-800-265-8352
>
o
oJ

Advertisement

Table of Contents
loading

Frequently Asked Questions (34)

  • How do I replace the water filter in my Frigidaire FGHS2355PF5A refrigerator?

    To replace your water filter:

    1. Turn Off the ice maker.
    2. Remove the filter by pushing on the end/face of the filter.
    3. Slide the old water filter cartridge straight out of the housing and discard it.
    4. Unpackage the new filter cartridge. Using the alignment guide, slide it gently into the filter housing until it stops against the snap-in connector at the back of the housing.
    5. Push firmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-in connector).
    6. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.
    7. After filling one glass of water, continue flushing the system for about four minutes.
    8. Turn On the ice maker.
    9. Press and hold the Water Filter button on the Ice & Water Dispenser control panel for three seconds. When the display changes from "Red" to "Green," the status has been reset.

    For more information, see page 21 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator not cooling, but the freezer is working?
    If your refrigerator compartment is not cooling but the freezer is working, it could be due to the `Fresh Food/freezer door` being slightly open, or the `Fresh Food control` being set too cold.
    For more information, see page 31 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator not cooling?

    If your refrigerator is not cooling, consider the following:

    • Cooling System Disabled: The cooling system may be disabled if the On/Off button on the temperature control panel (Electronic controls) was pressed and held for three seconds, or if the Freezer and Fresh Food controls (Mechanical controls) were turned to "0".
    • Compressor Not Running: This can be due to the freezer control being set to "OFF" or "0", the refrigerator being in a defrost cycle, the plug at the electrical outlet being disconnected, a house fuse being blown or circuit breaker tripped, or a power outage.

    For more information, see pages 3 and 30 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator not producing ice?

    If your refrigerator is not producing ice, consider the following:

    • Ice maker is turned off: Turn on the ice maker.
    • Refrigerator not connected to water line or water valve not open: Connect the unit to the household water supply and ensure the water valve is open.
    • Water supply line is kinked: Ensure the supply line does not kink when the refrigerator is pushed into place.
    • Water filter not seated properly: Remove and reinstall the water filter, ensuring it is pushed firmly so it locks solidly into position.
    • Water filter may be clogged: If water dispenses slowly or not at all, or if the filter is six months old or older, it should be replaced.
    • Freezer ice maker wire signal arm held up: Move any item or frozen ice cubes that may block the signal arm from being in the on or down position.
    • Ice dispenser is jammed: Remove the ice container, thaw, and empty the contents. Clean the container and replace it. Alternatively, remove ice cubes that are jamming the dispenser.

    For more information, see pages 18, 28 and 29 of the manual.
    Was this helpful?
  • How to reset the ice maker on a Frigidaire FGHS2355PF5A refrigerator?

    To reset or turn on the ice maker:

    • For a fresh food ice maker, press and hold the Ice Off button for three seconds until the indicator light is off.
    • For a freezer ice maker, lower the wire signal arm to the ON position. Alternatively, press the switch to the I position (rear mounted).

    For more information, see pages 18 and 28 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator flashing H1?
    If your refrigerator's digital temperature display is flashing "HI", it indicates a `High Temp alarm` that will sound and continue to show "HI" for 20 minutes. This alarm is active even in Sabbath Mode for health reasons. If the `electronic control system` has detected a performance problem, the digital temperature displays may flash. In such cases, you should `call your Frigidaire service representative` for interpretation of the messages or codes.
    For more information, see pages 13, 14 and 31 of the manual.
    Was this helpful?
  • How do I make ice with my Frigidaire FGHS2355PF5A refrigerator?
    To make ice, ensure the `ice maker is turned ON`. For a fresh food ice maker, press and hold the `Ice Off` button for three seconds until the indicator light is off. For a freezer ice maker, lower the `wire signal arm` or set the switch to the `I` position (rear mounted). If you need to increase ice production, use the `quick ice on off` feature, which increases the production of ice and deactivates after 12 hours.
    For more information, see pages 13, 18 and 28 of the manual.
    Was this helpful?
  • How do I stop my Frigidaire FGHS2355PF5A refrigerator from beeping?

    To stop your refrigerator from beeping, you typically need to address the cause of the alarm and then press the set key to reset any system alarms. Common reasons for beeping and their solutions include:

    • Power Failure: The power fail alert will be illuminated. Press alarm reset to acknowledge.
    • Freezer Temp: If the freezer temperature reaches 26°F or greater, an alarm will sound. You can disable it by pressing the set key.
    • Fresh Food Temp: If the fresh food temperature reaches 55°F or greater, an alarm will sound. You can disable it by pressing the set key.
    • Door Ajar: If doors have been left open for five minutes or more, an alarm will sound. Press the set key to reset.
    • Flapper (ice chute door) held open: If the flapper is held open by a jammed ice cube, an alarm will sound for two minutes. It will reset after two minutes or when the ice cube is removed and the set key is pressed.

    For more information, see page 14 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator not dispensing water?

    If your refrigerator is not dispensing water, consider the following:

    • Dispenser lock out is engaged: Press and hold control lock for three seconds.
    • Water filter not seated properly: Remove and reinstall the water filter, ensuring it is pushed firmly so it locks solidly into position.
    • Water filter is clogged: Replace the filter cartridge and push the filter firmly so it locks solidly into position.
    • Household water line valve is not open: Open the household water line valve.

    For more information, see page 29 of the manual.
    Was this helpful?
  • How do I change the air filter in my Frigidaire FGHS2355PF5A refrigerator?

    To change your PureSource Ultra™ air filter:

    1. Pull the air filter housing straight out.
    2. Remove the old filter and discard it.
    3. Unpack the new filter and place it inside the housing.
    4. Slide the housing back into position.

    It is recommended to change the air filter every six months to ensure optimal filtering of refrigerator odors.


    For more information, see page 20 of the manual.
    Was this helpful?
  • Why is there condensation inside my Frigidaire FGHS2355PF5A refrigerator?
    Condensation or `moisture collects on the inside` of refrigerator walls if the `weather is hot and humid` or if the `door is slightly open`.
    For more information, see page 31 of the manual.
    Was this helpful?
  • How do I remove odors from my Frigidaire FGHS2355PF5A refrigerator?
    To help prevent odor build-up, `wipe up any spills immediately` and clean the freezer and fresh food compartments at least twice a year. For `interior & door liners`, you can use two tablespoons of `baking soda in one quart of warm water`. Additionally, the `air filter` helps ensure optimal filtering of refrigerator odors.
    For more information, see pages 20, 23 and 24 of the manual.
    Was this helpful?
  • How often should I change the water filter in my Frigidaire FGHS2355PF5A refrigerator?
    You should change the water filter `every six months` to ensure the highest possible water quality. The water filter should also be replaced if `water dispenses slower than normal` or if the filter is `six months old or older`. Additionally, if `small ice cubes or ice chips` are jamming in the ice maker, it may be a sign that your water filter needs changing, especially if it has been six months or longer since the last change.
    For more information, see pages 18, 20 and 28 of the manual.
    Was this helpful?
  • Why is my Frigidaire FGHS2355PF5A refrigerator not dispensing cold water?

    If your refrigerator is not dispensing cold water, consider the following:

    • Water not cold enough: If warmer tap water goes through the filter and enters the water supply system, the chilled water is pushed through to the dispenser. It will take several hours for freshly replaced water to cool down. You can add ice to the cup or container before dispensing water.
    • Dispenser lock out is engaged: Press and hold control lock for three seconds.
    • Water filter not seated properly: Remove and reinstall the water filter, ensuring it is pushed firmly until it locks solidly into position.
    • Water filter is clogged: Replace the filter cartridge and push the filter firmly so it locks solidly into position.
    • Household water line valve is not open: Open the household water line valve.

    For more information, see pages 29 and 30 of the manual.
    Was this helpful?
  • How do I reset my Frigidaire FGHS2355PF5A refrigerator after a power outage?
    In the event of a power failure, the `power fail alert` will be illuminated. To reset, `press alarm reset` to acknowledge the alarm. Once acknowledged, the refrigerator will resume normal operation. A `high temp alarm` may also be illuminated until a safe operating range temperature has been reached.
    For more information, see page 14 of the manual.
    Was this helpful?
  • How can I make my Frigidaire FGHS2355PF5A refrigerator colder?

    To make your refrigerator colder, adjust the temperature settings:

    1. Locate the Plus (+) and Minus (-) indicators on the right side of the control panel.
    2. Press the + or - indicator to adjust the temperature to the desired colder setting. The refrigerator temperature can be set from +33°F / +1°C to +47°F / +8°C, and the freezer temperature from -6°F / -21°C to +6°F / -15°C.

    For more information, see page 13 of the manual.
    Was this helpful?
  • How do I unlock the controls on my Frigidaire FGHS2355PF5A refrigerator?
    To unlock the controls, `press and hold control lock` for three seconds.
    For more information, see page 29 of the manual.
    Was this helpful?
  • How do I defrost my Frigidaire FGHS2355PF5A refrigerator?
    Your refrigerator is a `fully automatic defrost` refrigerator, and the defrost cycle occurs periodically, lasting about 30 minutes. Water dripping onto the defrost heater may cause a hissing or sizzling sound, and a popping sound may occur after defrosting.
    For more information, see pages 22 and 30 of the manual.
    Was this helpful?
  • How do I set the temperature on my Frigidaire FGHS2355PF5A refrigerator?

    To set the temperature on your refrigerator:

    1. Locate the Plus (+) and Minus (-) indicators on the right side of the control panel.
    2. Press the + or - indicator to adjust the temperature to the desired setting. The refrigerator temperature can be set from +33°F / +1°C to +47°F / +8°C, and the freezer temperature from -6°F / -21°C to +6°F / -15°C.

    For more information, see page 13 of the manual.
    Was this helpful?
  • How do I reset the air filter indicator on my Frigidaire FGHS2355PF5A refrigerator?
    To reset the air filter indicator status to "Good", `press and hold the "set" key` for three seconds.
    For more information, see page 13 of the manual.
    Was this helpful?
  • Why is the interior light not working in my Frigidaire FGHS2355PF5A refrigerator?

    If your interior light is not working, consider the following:

    • Power Issues: Check if there's a power outage, a house fuse is blown, or a circuit breaker is tripped.
    • LED Lights: If your refrigerator has LED lights, they are in series, so if one is bad or unplugged, several lights may not light up.
    • Bulb Replacement: The light bulb may need replacing. Unplug the refrigerator's power cord, wear gloves, remove the light cover, unscrew and replace the old bulb with an appliance bulb of the same type and wattage (normally 40 watts), replace the cover, and plug in the refrigerator.

    For more information, see pages 26, 27 and 30 of the manual.
    Was this helpful?
  • How can I make the freezer colder in my Frigidaire FGHS2355PF5A refrigerator?

    To make the freezer colder, adjust the temperature setting:

    1. Locate the Plus (+) and Minus (-) indicators on the right side of the control panel.
    2. Press the + or - indicator to adjust the temperature to the desired colder setting. The freezer temperature can be set from -6°F / -21°C to +6°F / -15°C.

    After adjusting the setting, allow 24 hours for the temperature to stabilize.


    For more information, see pages 13 and 28 of the manual.
    Was this helpful?
  • How do I adjust the humidity in the crisper drawers of my Frigidaire FGHS2355PF5A refrigerator?
    The fresh drawers feature `humidity control` which allows you to adjust the humidity within the drawer. This can extend the life of fresh vegetables that keep best in `high humidity`. Leafy vegetables keep best when stored with the humidity control set on `Higher Humidity`, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and maintains maximum moisture content.
    For more information, see page 15 of the manual.
    Was this helpful?
  • How do I use the dispenser lock feature on my Frigidaire FGHS2355PF5A refrigerator?
    To use the dispenser lock feature, `press and hold control lock` for three seconds. When the control is locked, you will not be able to change any settings on the display nor dispense ice and water. The `Control Locked` indicator will flash and an audible warning tone will be played.
    For more information, see pages 13 and 29 of the manual.
    Was this helpful?
  • How do I check if the door seal on my Frigidaire FGHS2355PF5A refrigerator is working correctly?
    Your refrigerator's `door seals` should completely seal to the cabinet on all sides. If the `Fresh Food/freezer gasket` is dirty, worn, cracked, or poorly fitted, it can cause `leaks in the door seal` and make the refrigerator run longer to maintain desired temperatures. You should `clean or change` the gasket if this occurs.
    For more information, see pages 2 and 31 of the manual.
    Was this helpful?
  • How do I turn on my Frigidaire FGHS2355PF5A refrigerator?
    To turn on your refrigerator, ensure it is plugged into its own dedicated `115 Volt, 60 Hz., 15 Amp, AC only electrical outlet`. Make sure the `Freezer` and `Fresh Food controls` are not set to "0" (Mechanical controls) or that the `On/Off button` on the temperature control panel (Electronic controls) has not been pressed and held for three seconds to disable the cooling system.
    For more information, see pages 3 and 13 of the manual.
    Was this helpful?
  • How do I turn off the water supply to my Frigidaire FGHS2355PF5A refrigerator?
    To turn off the water supply to your refrigerator, turn OFF the `water supply at the shutoff valve`.
    For more information, see pages 10, 18 and 23 of the manual.
    Was this helpful?
  • How do I remove the doors from my Frigidaire FGHS2355PF5A refrigerator?

    To remove the doors from your refrigerator:

    To prepare for removing the doors:

    1. Unplug the electrical power cord from the wall outlet.
    2. Open both doors and remove the toe grille.
    3. Remove any food from the door shelves.

    To remove the refrigerator top hinge cover:

    1. Remove the three screws from each cover over the top door hinges.
    2. Lift the hinge cover straight up and off.

    To remove the refrigerator door:

    1. Trace lightly around the door's top hinge with a pencil to aid reinstallation.
    2. Remove the two screws from the top hinge. Lift the door off the bottom hinge and set it aside.

    To remove the freezer top hinge cover:

    1. Remove the two screws from each cover over the top door hinges.
    2. Lift the hinge cover straight up and off.

    To remove the freezer door:

    1. Detach the multi-wire cable connector located above the top hinge by grasping both sides and pulling apart.
    2. Trace lightly around the hinge with a pencil.
    3. Detach the water tube from the connector below the freezer door by pressing its outer sleeve inward.
    4. Remove the screws from the top hinge and pull the multi-wire cable through it. Lift the door off the bottom hinge.
    5. Remove the two bottom hinge screws and hinge if necessary.
    6. Lay the door on its side to avoid damage to the water tube extending from the bottom hinge.

    For more information, see pages 7 and 8 of the manual.
    Was this helpful?
  • How often should my Frigidaire FGHS2355PF5A refrigerator run?
    It is `normal` for the refrigerator to work longer under certain conditions, such as when the room or outside weather is hot, or when doors are opened frequently or for too long. The compressor will go on and off to maintain a constant temperature.
    For more information, see page 31 of the manual.
    Was this helpful?
  • How do I remove the light bulb cover in my Frigidaire FGHS2355PF5A refrigerator?

    To remove the light bulb cover:

    For LED Lights (select models):

    1. Unplug your refrigerator's power cord.
    2. Remove the lens cover.

    For traditional light bulbs (select models):

    1. Unplug your refrigerator's power cord.
    2. Wear gloves as protection.
    3. Remove the light cover, if necessary.

    For more information, see pages 26 and 27 of the manual.
    Was this helpful?
  • How do I level my Frigidaire FGHS2355PF5A refrigerator?

    To level your refrigerator:

    To level the cabinet using the front rollers:

    1. Open both doors and remove the toe grille.
    2. Close the doors and use a flat-blade screwdriver or 3/8 inch socket wrench to raise or lower the front rollers.
    3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides.

    To level the doors using the adjustable lower hinge (some models):

    1. Before leveling either door, remove the set screw that locks door height into position.
    2. If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning the adjustment screw clockwise using a 7/16 inch wrench.
    3. If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw clockwise using a 7/16 inch wrench.
    4. After leveling, verify the door stop contacts the lower hinge and the top of the door does not contact the upper hinge through full movement.
    5. Reinstall the set screw, locking the door height.
    6. Replace the toe grille.

    For more information, see page 6 of the manual.
    Was this helpful?
  • How can I improve the energy efficiency of my Frigidaire FGHS2355PF5A refrigerator?

    To improve the energy efficiency of your refrigerator:

    • Location: Place the refrigerator out of direct sunlight and away from heat sources like the range or dishwasher.
    • Door Usage: Avoid opening doors too frequently or for too long, as warm air entering the refrigerator causes it to run more.
    • Cleaning: Clean the condenser regularly. The toe grille should be removed, and both sides of the condenser should be vacuumed.

    For more information, see pages 5, 24 and 31 of the manual.
    Was this helpful?
  • Does the Frigidaire FGHS2355PF5A refrigerator have a child lock feature?
    The refrigerator has a `control locked` feature that prevents changing settings on the display and dispensing ice and water. When active, the "Control Locked" indicator will flash and an audible warning tone will be played.
    For more information, see page 13 of the manual.
    Was this helpful?
  • How do I remove a shelf from my Frigidaire FGHS2355PF5A refrigerator?

    To remove a cantilever shelf:

    1. Lift the front edge of the shelf up.
    2. Pull the shelf out.

    To replace the shelf, insert the hooks at the rear of the shelf into the wall bracket, then lower the shelf into the desired slots and lock it into position.


    For more information, see page 15 of the manual.
    Was this helpful?
Need help?

Need help?

Do you have a question about the FGHS2355PF5A and is the answer not in the manual?

Questions and answers

Judy Reece
March 4, 2025

When dispensing water a loud noise is coming from the bottom of the refrigerator

0
3 comments:
Mr. Anderson
March 4, 2025

A loud noise from the bottom of the Frigidaire FGHS2355PF5A refrigerator when dispensing water could be due to the condenser fan or the compressor. The condenser fan, located at the bottom, may produce noise if it is dirty or obstructed. The compressor, which cycles on and off, can also create clicking or humming sounds during operation. Cleaning the condenser fan or checking for obstructions may help reduce the noise.

This answer is automatically generated

0
Judy Reece
March 4, 2025

@Mr. Anderson the water in not dispensing just noise

0
Judy Reece
March 4, 2025

@Mr. Anderson sounds like the pump wants to go but not getting water

0
mike donnelly
May 1, 2025

Water accumulates and freezes on floor of freezer under drawer! Eventually out door and onto floor.

0
1 comments:
Mr. Anderson
May 16, 2025

Water can accumulate and freeze on the floor of the freezer in a Frigidaire FGHS2355PF5A if the ice dispenser is not used frequently. This causes ice cubes to freeze together in the bin, jamming the dispenser mechanism. If the freezer door does not close properly—such as when the ice bin is not aligned correctly—warm air can leak into the freezer, leading to melting and refreezing of ice, which causes water to accumulate and freeze on the floor.

This answer is automatically generated

0
Barbara Ames
April 29, 2025

The Interface Panel LED lights are not working well. Some of the numbers still have bright parts, but the rest are dimming. Can I replace a fuse or something to light them back up?

0
1 comments:
Mr. Anderson
May 15, 2025

Yes, the LED lights on the Frigidaire FGHS2355PF5A can be replaced. The process involves removing the lens cover, replacing the LED light board (Part #242196201), and ensuring the light faces inward toward the LED light unit.

This answer is automatically generated

0
jerry joyce
July 27, 2025

where is the thermistor located in a frigidaire gallery fghs2631pf4a

0
Laura Bowlby
April 22, 2025

Where do I go to purchase a fixed door bin

0

Related Manuals for Frigidaire FGHS2355PF5A

Related Products for Frigidaire FGHS2355PF5A

This manual is also suitable for:

Fghs2631pf4aFghs2631pp4aFghs2631pe4aFphc2399pf7aFghc2355pf9aFghc2331pfaa

Table of Contents

Save PDF
