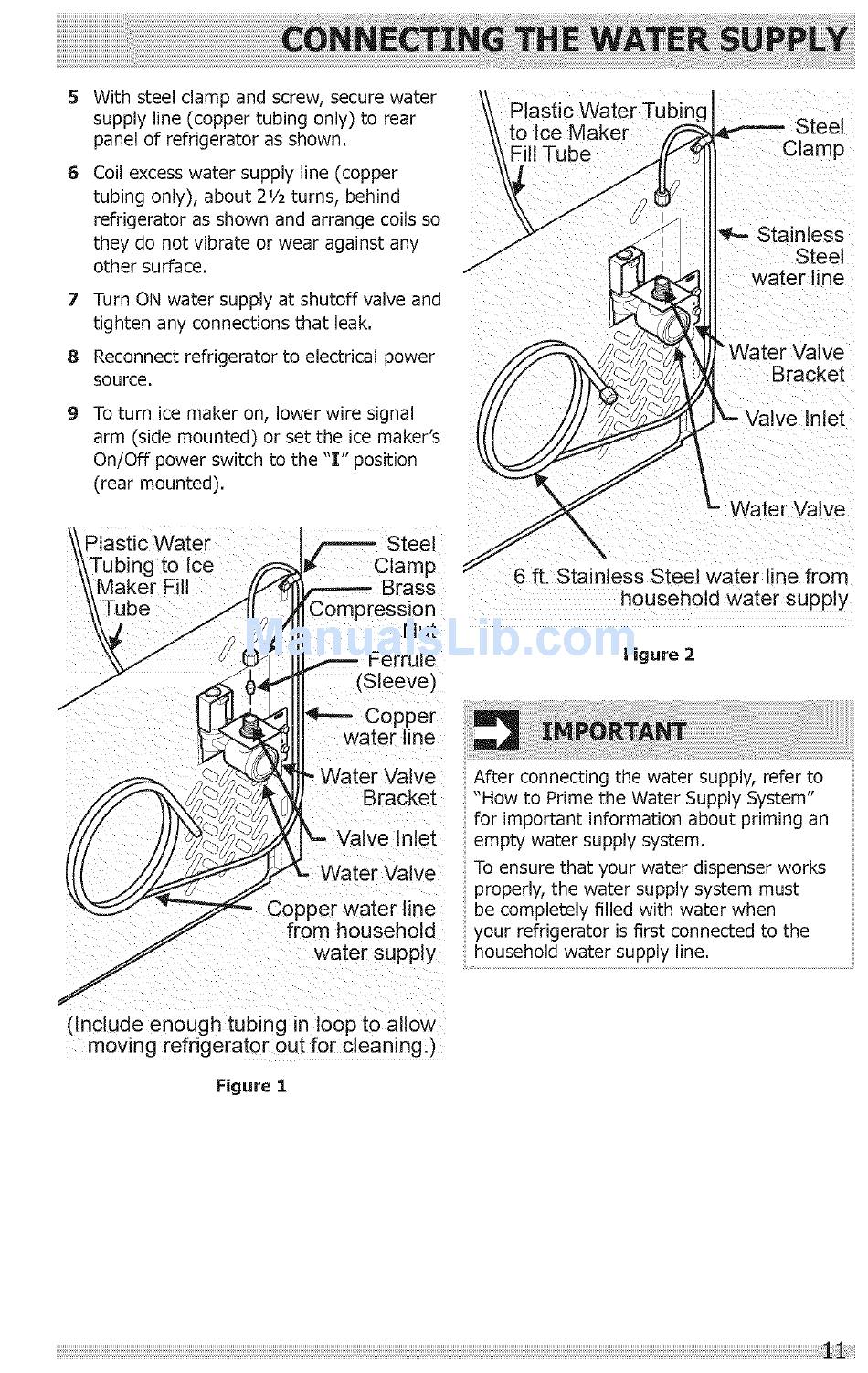

With steel clamp and screw, secure water
supply line (copper tubing only] to rear
panel of refrigerator as shown.
Coil excess water supply line (copper
tubing only), about 21/2turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
Turn ON water supply at shutoff valve and
tighten any connections that leak.
Reconnect refrigerator to electrical power
source.
To turn ice maker on, lower wire signal
arm (side mounted) or set the ice maker's
On/Off power switch to the 'T' position
(rear mounted).
Plastic Water
to Ice
3n
Nut
Jle
(Sleeve)
Plastic Water
to Ice Maker
Fill Tube
I_- Stainless
Steel
water line
Water Valve
acket
Valve Inlet
JVater Valve
6 ft. Stainless Steel water line from
household water supply
Figure 2
Water Valve
Bracket
ve Inlet
Copper water line
from household
water supply
After connecting the water supply, refer to
"How to Prime the Water Supply System"
for important information about priming an
empty water supply system
To ensure that your water dispenser works
properly, the water supply system must
be completely filled with water when
your refrigerator is first connected to the
household water supply line,
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Figure 1
