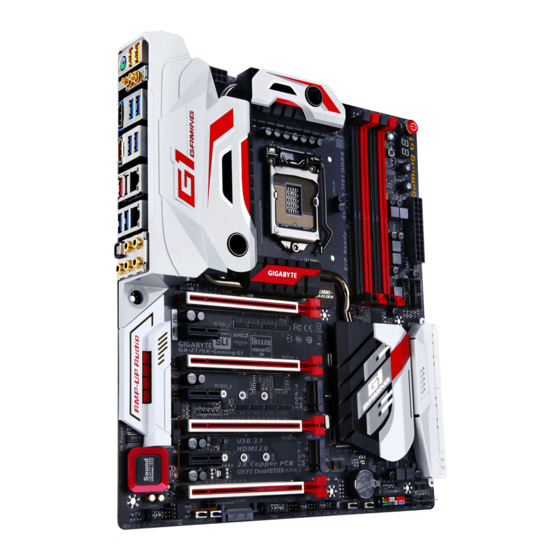

Gigabyte GA-Z170X-Gaming G1 Owner's Manual
  1. Manuals
  2. Brands
  3. Gigabyte Manuals
  4. Motherboard
  5. GA-Z170X-Gaming G1
  6. Owner's manual

Gigabyte GA-Z170X-Gaming G1 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

GA-Z170X-Gaming G1
User's Manual
Rev. 1002
12ME-Z17XGG1-1002R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are
recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-Z170X-Gaming G1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte GA-Z170X-Gaming G1

Summary of Contents for Gigabyte GA-Z170X-Gaming G1

  • Page 1 GA-Z170X-Gaming G1 User's Manual Rev. 1002 12ME-Z17XGG1-1002R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Motherboard GA-Z170X-Gaming G1 Motherboard GA-Z170X-Gaming G1 Jul. 24, 2015 Jul. 24, 2015 Wireless Module Country Approvals: See the latest safety and regulatory documents at GIGABYTE's website.

  • Page 3: Identifying Motherboard Revision

    GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of docu- mentations: „ For quick set-up of the product, read the Quick Installation Guide included with the product.

  • Page 4: Table Of Contents

    Table of Contents Box Contents ........................6 Optional Items .........................6 GA-Z170X-Gaming G1 Motherboard Layout ..............7 Chapter 1 Hardware Installation ..................9 Installation Precautions ................... 9 1-2 Product Specifications ................... 10 Installing the CPU and CPU Cooler............... 14 1-3-1 Installing the CPU ....................14 1-3-2 Installing the CPU Cooler ..................16...
  • Page 5 Chapter 4 Drivers Installation ..................85 Drivers & Software ..................85 Application Software ..................86 Information ..................... 86 Chapter 5 Unique Features...................87 BIOS Update Utilities ..................87 5-1-1 Updating the BIOS with the Q-Flash Utility ............87 5-1-2 Updating the BIOS with the @BIOS Utility ............90 5-1-3 Using Q-Flash Plus ....................91 APP Center ....................

  • Page 6: Box Contents

    Box Contents 5 GA-Z170X-Gaming G1 motherboard 5 Motherboard driver disk 5 Wireless module driver disk 5 User's Manual 5 Quick Installation Guide 5 Six SATA cables 5 I/O Shield 5 One 2-Way SLI bridge connector 5 One 3-Way SLI bridge connector...

  • Page 7: Ga-Z170X-Gaming G1 Motherboard Layout

    GA-Z170X-Gaming G1 Motherboard Layout LED_IO PW_SW ATX_12V_2X4 KB_MS_USB CPU_FAN SYS_FAN1 Debug CPU_OPT M2_WIFI (Note) Renesas ® LGA1151 USB 3.0 Hub MegaChips MCDP2800 FBIOS_LED USB31_LAN2 Intel ® Thunderbolt ™ Controller USB30_LAN1 Rivet Networks Killer ™ E2400 LAN Rivet Networks Killer ™...
  • Page 8 - 8 -...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 10: Product Specifications

    Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Š Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor+MegaChips MCDP2800 chip: Š Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version.
  • Page 11 Storage Interface Š Chipset: 2 x M.2 Socket 3 connectors 3 x SATA Express connectors 6 x SATA 6Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 * R efer to "1-13 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors. 2 x ASMedia ASM1061 chips: ®...
  • Page 12 Back Panel 1 x PS/2 keyboard/mouse port Š Connectors 1 x HDMI port Š 1 x USB Type-C port, with USB 3.1 support ™ Š 1 x USB 3.1 Type-A port (red) Š 7 x USB 3.0/2.0 ports Š 2 x USB 2.0/1.1 ports Š...
  • Page 13 E-ATX Form Factor; 30.5cm x 26.4cm Š * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices. Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps.

  • Page 14: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 15 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. • Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. •...

  • Page 16: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Refer to the steps below to correctly install the CPU cooler on the motherboard. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Male Push Pin Direction of...

  • Page 17: Installing The Memory

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 18: Installing A Memory

    1-4-2 Installing a Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. DDR4 and DDR3 DIMMs are not compatible to each other or DDR2 DIMMs. Be sure to install DDR4 DIMMs on this motherboard. Notch DDR4 DIMM A DDR4 memory module has a notch, so it can only fit in one direction. Follow the steps below to correctly install...

  • Page 19: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 20: Setting Up Amd Crossfire ™ /Nvidia ® Sli ™ Configuration

    Setting up AMD CrossFire /NVIDIA Configuration ™ ® ™ A. System Requirements - Windows 10/8.1/7 operating system - A CrossFire/SLI-supported motherboard with two PCI Express x16 slots and correct driver - CrossFire/SLI-ready graphics cards of identical brand and chip and correct driver (Current GPUs that support 3-Way/4-Way CrossFire technology include the ATI Radeon HD 3800, HD ™...

  • Page 21: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. You can connect a USB DAC to this port or use this port for USB devices. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. MMCX Antenna Connectors (2T2R) Use this connector to connect an antenna. Tighten the antenna cables to the antenna connectors and then move the antenna to a place where the signal is good.
  • Page 22 USB Type-C Port ™ The reversible USB port supports the USB 3.1 specification and is compatible to the USB 3.0/2.0 specifica- tion. Use this port for USB devices. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Connection/Speed LED: Activity LED: Speed LED Activity LED State Description State Description Orange...

  • Page 23: Onboard Buttons And Switches

    Onboard Buttons and Switches BIOS Switches and BIOS LED Indicators 1 2 3 The BIOS switch (BIOS_SW) allows users to easily select a different BIOS for boot up or overclocking, helping to reduce BIOS failure during overclocking. The SB switch allows enabling or disabling of the Dual BIOS function. The LED indicator (MBIOS_LED1/BBIOS_LED1) shows which BIOS is active.
  • Page 24 ECO Button and OC Button GIGABYTE's unique ECO button provides power-saving features by automatically reducing the overall power consumption according to current system load. The OC button helps enthusiasts and overclockers not only get the most performance from their hardware, but also the absolute most enjoyable OC experience.

  • Page 25: Changing The Operational Amplifier

    1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 Voltage Measurement Points Use a multimeter to measure the following motherboard voltages. You can employ following way to measure component voltages.

  • Page 26: Installing The Gc-M2-U2-Minisas

    1-10 Installing the GC-M2-U2-MiniSAS Step 1: Use a screw driver to unfasten the screw and nut from the motherboard. Locate the proper mounting hole for the GC-M2-U2-MiniSAS and screw the nut first. Then slide it into the connector at an angle. Step 2: Press the GC-M2-U2-MiniSAS down and then secure it with the screw. Step 3: Remove the protective cover from the SAS connector on the GC-M2- U2-MiniSAS and connect one end of the SSD cable to the connector.

  • Page 27: Installing The Gc-Usb3.1 Bay

    1-11 Installing the GC-USB3.1 BAY Step 1: Install the GC-USB3.1 BAY in the chassis and fasten it with screws. Then connect one end of the cable to the SATA Express connector on the motherboard. Please connect the cable to the SATA Express connector consisting of the SATA3 0, 1 or SATA3 2, 3 connectors.

  • Page 28: Installing The Mmcx Antenna Connectors (2T2R)

    1-12 Installing the MMCX Antenna Connectors (2T2R) Step 1: Tighten the antenna cables to the MMCX antenna connectors on the back panel. Step 2: Place the retention cover next to the cables. Insert the cables into the side openings of the retention cover. Step 3: Place one finger into the groove at the base of the antenna connector.

  • Page 29: Internal Connectors

    1-13 Internal Connectors ATX_12V_2X4 GSATA3 8/9 M2B_32G/M2C_32G ATX4P F_PANEL CPU_FAN F_AUDIO SYS_FAN1/2/3/4/5 F_USB30_1/F_USB30_2 CPU_OPT F_USB1/F_USB2 LED_IO SATA EXPRESS SATA3 0/1/2/3/4/5 CLR_CMOS SATA3 6/7 Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 30 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 31 3) ATX4P (PCIe Power Connector) The power connector provide auxiliary power to the onboard PCI Express x16 slots. When two or more graphics cards are installed, we recommend that you connect the SATA power cable(s) from the power supply to the ATX4P connector to ensure system stability. Pin No.
  • Page 32 B S S 6) CPU_OPT (Water Cooling CPU Fan Header) The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design.
  • Page 33 1 2 3 B S S B S S 8) SATA EXPRESS (SATA Express Connectors) Each SATA Express connector supports a single SATA Express device. B S S 1 2 3 B S S 9) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors, Controlled by Intel Z170 Chipset) ®...
  • Page 34 10) SATA3 6/7 (SATA 6Gb/s Connectors, Controlled by ASMedia ASM1061 Chip) ® The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. SATA3 7 6 Pin No.
  • Page 35 B S_ 12) M2B_32G/M2C_32G (M.2 Socket 3 Connectors) The M.2 connectors support M.2 SATA SSDs and M.2 PCIe SSDs and support RAID configuration through the Intel Chipset. Please note that an M.2 PCIe SSD cannot be used to create a RAID set either with ® an M.2 SATA SSD or a SATA hard drive. To create a RAID array with an M.2 PCIe SSD, you must set up the configuration in UEFI BIOS mode. Refer to Chapter 3, "Configuring a RAID Set," for instructions B S_ S B_...

  • Page 36: Ahci Mode

     When installing different types of M.2 SSDs (including SATA SSDs, PCIe x4 SSDs, and PCIe x2 SSDs), be sure to refer to the supported configurations in the tables below according to the operating mode of your SATA controller (AHCI mode or RAID mode). • AHCI mode: M2C_32G M.2 connector Connector SATA3_0 SATA3_1 SATA3_2 SATA3_3 SATA3_4 SATA3_5 SATA3_6 SATA3_7 SATA Express...
  • Page 37 13) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Power LED Power Switch Speaker...
  • Page 38 14) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD). You may connect your chassis ® front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
  • Page 39 16) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Power (5V) Power (5V) USB DX- USB DY- USB DX+ USB DY+ F_USB30 No Pin F_ U •...
  • Page 40 18) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.

  • Page 41: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.

  • Page 42: Startup Screen

    Startup Screen The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F9>: SYSTEM INFORMATION Press the <F9>...

  • Page 43: The Main Menu

    The Main Menu On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want. (Sample BIOS Version: D34) Setup Menus Enter Q-Flash...

  • Page 44: System Information

    BIOS Setup Menus „ M.I.T. Use this menu to configure the clock, frequency, and voltages of your CPU and memory, etc. Or check the system/CPU temperatures, voltages, and fan speeds. „ System Information Use this menu to configure the default language used by the BIOS and system time and date. „ BIOS Features Use this menu to configure the device boot order and advanced features available on the CPU. „ Peripherals Use this menu to configure all peripheral devices, such as USB, display settings, etc. „ Chipset Use this menu to configure Chipset-related options, such as SATA, onboard LAN, etc. „ Power Management Use this menu to configure all the power-saving functions. „ Save & Exit Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. You can save the current BIOS settings to a profile or load optimized defaults for optimal-performance system operations.

  • Page 45: M.i.t

    M.I.T. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 46 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & Performance Upgrade (Note) Provides you with five different overclocking configurations. Options are: 20% Upgrade, 40% Upgrade, 60% Upgrade, 80% Upgrade, 100% Upgrade. (Default: Auto) & CPU Base Clock Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto) Important: It is highly recommended that the CPU frequency be set in accordance with the CPU specifications.
  • Page 47 ` Advanced CPU Core Settings & CPU Clock Ratio, CPU Frequency The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. & Uncore Ratio Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. &...
  • Page 48 & Hyper-Threading Technology (Note 1) Allows you to determine whether to enable multi-threading technology when using an Intel CPU that ® supports this function. This feature only works for operating systems that support multi-processor mode. Auto lets the BIOS automatically configure this setting. (Default: Auto) & CPU Enhanced Halt (C1E) (Note 1) Enables or disables Intel CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt...
  • Page 49 & System Memory Multiplier Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD data. (Default: Auto) & Memory Frequency (MHz) The first memory frequency value is the normal operating frequency of the memory being used; the second is the memory frequency that is automatically adjusted according to the System Memory Multiplier settings. ` Advanced Memory Settings &...

  • Page 50: Channel Interleaving

    & Profile DDR Voltage When using a non-XMP memory module or Extreme Memory Profile (X.M.P.) is set to Disabled, the value is displayed according to your memory specification. When Extreme Memory Profile (X.M.P.) is set to Profile1 or Profile2, the value is displayed according to the SPD data on the XMP memory. & Memory Multiplier Tweaker Provides different levels of memory auto-tuning.
  • Page 51 ` Advanced Voltage Settings ` Advanced Power Settings & CPU Vcore Loadline Calibration Allows you to set the Load-Line Calibration level for the CPU Vcore voltage. The levels are (from highest to lowest): Extreme, Turbo, High, Medium, Low, and Standard. Selecting a higher level keeps the CPU Vcore voltage more consistent with what is set in BIOS under heavy load.
  • Page 52 & VAXG Loadline Calibration Allows you to set the Load-Line Calibration level for the CPU VAXG voltage. The levels are (from highest to lowest): Extreme, Turbo, High, Medium, Low, and Standard. Selecting a higher level keeps the CPU VAXG voltage more consistent with what is set in BIOS under heavy load. Auto lets the BIOS automatically configure this setting and sets the voltage following Intel's specifications. (Default: Auto) &...
  • Page 53 & VAXG PWM Switch Rate Allows you to set the PWM frequency for the CPU VAXG voltage. The adjustable range is from 300.0KHz to 500.0KHz. (Default: Auto) & DDR VPP CH(A/B) PWM Switch Rate Allows you to set the PWM frequency for the memory VPP voltage. The adjustable range is from 300.0KHz to 500.0KHz.

  • Page 54: Pc Health Status

    ` PC Health Status & Reset Case Open Status Keeps or clears the record of previous chassis intrusion status. (Default) Disabled Clears the record of previous chassis intrusion status and the Case Open field will show Enabled "No" at next boot. & Case Open Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. If the system chassis cover is removed, this field will show "Yes", otherwise it will show "No". To clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to...
  • Page 55 & CPU Vcore/CPU VRIN/CPU VCCIO/DDRVTT Channel A/B Voltage/DRAM Channel A/B Voltage/DDRVPP Channel A/B Voltage/+3.3V/+5V/PCH Core/+12V/CPU VAXG Displays the current system voltages. & CPU/PCH Temperature Displays current CPU/Chipset temperature. & System Temperature/2nd System Temperature Displays current system temperatures detected by the system temperature sensors on the motherboard. &...
  • Page 56 & Fan Speed Percentage Allows you to control the fan speed. This item is configurable only when 1st System Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & 2nd System Fan Speed Control (SYS_FAN2 Connector) Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the system temperature.

  • Page 57: Miscellaneous Settings

    ` Miscellaneous Settings & Max Link Speed Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each slot. Auto lets the BIOS automatically configure this setting. (Default: Auto) & 3DMark01 Enhancement Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled) - 57 - BIOS Setup...

  • Page 58: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 59: Bios Features

    System program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.

  • Page 60: Sata Support

    & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.

  • Page 61: Network Stack

    & Storage Boot Option Control Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Disables option ROM. Disabled Legacy Only Enables legacy option ROM only. (Default) UEFI Only Enables UEFI option ROM only. This item is configurable only when CSM Support is set to Enabled.

  • Page 62: Peripherals

    Peripherals & Intel Platform Trust Technology (PTT) Enables or disables Intel PTT Technology. (Default: Disabled) ® & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the first display. Sets the graphics card on the PCIEX16_1 slot as the first display. (Default) PCIe 1 Slot Sets the graphics card on the PCIEX8_1 slot as the first display. PCIe 2 Slot Sets the graphics card on the PCIEX16_2 slot as the first display. PCIe 3 Slot Sets the graphics card on the PCIEX8_2 slot as the first display. PCIe 4 Slot & OnBoard LAN Controller (LAN1) Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled.
  • Page 63 & Rear Panel LED Enables or disables the audio LED on the rear panel I/O shield. The LED will light and follow the behavior of the onboard audio LEDs. (Default) Disables this function. Off & LED Hue Allows you to change the color of the audio LEDs. (Default: Red) &...

  • Page 64: Hot Plug

    & Aggressive LPM Support Enables or disables the power saving feature, ALPM (Aggressive Link Power Management), for the Chipset SATA controllers. (Default: Enabled) & Port 0/1/2/3/4/5 Enables or disables each SATA port. (Default: Enabled) & Hot plug Enables or disable the hot plug capability for each SATA port. (Default: Disabled) &...

  • Page 65: Chipset

    Chipset & VT-d (Note) Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Disabled) ® & Internal Graphics Enables or disables the onboard graphics function. (Default: Enabled) & DVMT Pre-Allocated Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...

  • Page 66: Power Management

    Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On The system is turned on upon the return of the AC power. The system returns to its last known awake state upon the return of the AC power.

  • Page 67: Resume By Alarm

    & ErP Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: Resume by Alarm, PME event wake up, power on by mouse, power on by keyboard, and wake on LAN. &...

  • Page 68: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 69: Chapter 3 Configuring A Raid Set

    Chapter 3 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 ≥4 Drives Array Capacity Number of hard Size of the smallest (Number of hard (Number of hard drives * Size of the drive drives -1) * Size of drives/2) * Size of the...
  • Page 70 B. Configuring SATA controller mode in BIOS Setup Make sure to configure the SATA controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Go to Peripherals\SATA Configuration, make sure SATA Controller(s) is enabled. To create RAID, set SATA Mode Selection to RAID (Figure 1). Figure 1 Step 2: If you want to configure UEFI RAID, follow the steps in "C-1." To enter the legacy RAID ROM, save the settings...
  • Page 71 C-1. UEFI RAID Configuration Only Windows 10/8.1 64-bit supports UEFI RAID configuration. Step 1: In BIOS Setup, go to BIOS Features and set Windows 8/10 Features to Windows 8/10 and CSM Support to Disabled (Figure 2). Save the changes and exit BIOS Setup. Figure 2 Step 2: After the system reboot, enter BIOS Setup again. Then enter the Peripherals\Intel(R) Rapid Storage Technology sub-menu (Figure 3).
  • Page 72 Step 3: On the Intel(R) Rapid Storage Technology menu, press <Enter> on Create RAID Volume to enter the Create RAID Volume screen. Enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 4). RAID levels supported include RAID 0, RAID 1, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed).
  • Page 73 Step 5: After setting the capacity, move to Create Volume and press <Enter> to begin. (Figure 6) Figure 6 After completing, you'll be brought back to the Intel(R) Rapid Storage Technology screen. Under RAID Volumes you can see the new RAID volume. To see more detailed information, press <Enter> on the volume to check for information on RAID level, stripe block size, array name, and array capacity, etc.
  • Page 74 Delete RAID Volume To delete a RAID array, press <Enter> on the volume to be deleted on the Intel(R) Rapid Storage Technology screen. After entering the RAID VOLUME INFO screen, press <Enter> on Delete to enter the Delete screen. Press <Enter> on Yes (Figure 8). Figure 8 Configuring a RAID Set - 74 -...
  • Page 75 C-2. Configuring Legacy RAID ROM Enter the Intel legacy RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the ® installation of Windows operating system for a non-RAID configuration. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-I> to enter Configuration Utility" (Figure 9). Press <Ctrl> + <I> to enter the RAID Configuration Utility. Intel(R) Rapid Storage Technology - Option ROM - 14.0.0.2209 Copyright (C) Intel Corporation. All Rights Reserved. RAID Volumes : None defined.
  • Page 76 Step 3: After entering the CREATE VOLUME MENU screen, enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 11). RAID levels supported include RAID 0, RAID 1, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed).
  • Page 77 Step 5: Enter the array capacity and press <Enter>. Finally press <Enter> on the Create Volume item to begin creating the RAID array. When prompted to confirm whether to create this volume, press <Y> to confirm or <N> to cancel (Figure 13). Intel(R) Rapid Storage Technology - Option ROM - 14.0.0.2209 Copyright(C) Intel Corporation. All Rights Reserved. [ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID0(Stripe) Disks :...
  • Page 78 Recovery Volume Options Intel Rapid Recover Technology provides data protection by allowing users to easily restore data and system ® operation using a designated recovery drive. With the Rapid Recovery Technology, which employs RAID 1 functionality, users can copy the data from the master drive to the recovery drive; if needed, the data on the recovery drive can be restored back to the master drive.
  • Page 79 Step 3: Press <Enter> under the Select Disks item. In the SELECT DISKS box, press <Tab> on the hard drive you want to use for the master drive and press <Space> on the hard drive you want to use for the recovery drive. (Make sure the recovery drive has equal or larger capacity than the master drive.) Then press <Enter> to confirm (Figure 17).
  • Page 80 Delete RAID Volume To delete a RAID array, select Delete RAID Volume in MAIN MENU and press <Enter>. In the DELETE VOLUME MENU section, use the up or down arrow key to select the array to be deleted and press <Delete>. When prompted to confirm your selection (Figure 19), press <Y> to confirm or <N> to abort.

  • Page 81: Installing The Sata Raid/Ahci Driver And Operating System

    Installing the SATA RAID/AHCI Driver and Operating System With the correct BIOS settings, you are ready to install the operating system. A. Installing Windows As some operating systems already include Intel SATA RAID/AHCI driver, you do not need to install separate ®...
  • Page 82 B. Rebuilding an Array Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1, RAID 5 or RAID 10 arrays. The procedures below assume a new drive is added to replace a failed drive to rebuild a RAID 1 array.
  • Page 83 • Performing the Rebuild in the Operating System While in the operating system, make sure the chipset driver has been installed from the motherboard driver disk. Then launch the Intel Rapid Storage Technology utility from the desktop. ® Step 2: Select a new drive to rebuild the RAID and click Rebuild.
  • Page 84 • Restoring the Master Drive to a Previous State (for Recovery Volume only) When two hard drives are set to Recovery Volume in Update on Request mode, you can restore the master drive data to the last backup state when needed. For example, in case the master drive detects a virus, you can restore the recovery drive data to the master drive.

  • Page 85: Chapter 4 Drivers Installation

    Chapter 4 Drivers Installation • Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc"...

  • Page 86: Application Software

    Information This page provides detailed information on the drivers on the driver disk. The Contact page provides contact information of the GIGABYTE Taiwan headquarter. You can click the URL on this page to link to the GIGA- BYTE website to check more information on the GIGABYTE headquarter or worldwide branch offices. Drivers Installation...

  • Page 87: Chapter 5 Unique Features

    Chapter 5 Unique Features BIOS Update Utilities GIGABYTE motherboards provide two unique BIOS update tools, Q-Flash and @BIOS . GIGABYTE Q-Flash ™ ™ and @BIOS are easy-to-use and allow you to update the BIOS without the need to enter MS-DOS mode.
  • Page 88 B. Updating the BIOS In the main menu of Q-Flash, use the keyboard or mouse to select an item to execute. When updating the BIOS, choose the location where the BIOS file is saved. The following procedure assumes that you save the BIOS file to a USB flash drive. Step 1: 1. Insert the USB flash drive containing the BIOS file into the computer. In the main menu of Q-Flash, select Update BIOS From Drive. • The Save BIOS to Drive option allows you to save the current BIOS file. •...
  • Page 89 Step 4: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults on the Save & Exit screen and press <Enter> to load BIOS defaults. System will re-detect all peripheral devices after a BIOS update, so we recommend that you reload BIOS defaults. Select Yes to load BIOS defaults Step 5: Select Save &...

  • Page 90: Updating The Bios With The @Bios Utility

    Internet). Failure to do so may result in a corrupted BIOS or a system that is unable to start. 3. GIGABYTE product warranty does not cover any BIOS damage or system failure resulting from an inadequate BIOS flashing.

  • Page 91: Using Q-Flash Plus

    5-1-3 Using Q-Flash Plus A. Before You Begin 1. From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model. 2. Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system and it must be a USB 2.0 flash drive. 3. Insert the USB flash drive into the white USB port on the back panel. B. Using Q-Flash Plus If both the main and backup BIOS fail during system boot, wait for 15-20 seconds, the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The FBIOS_LED will flash when the BIOS matching and flashing activities start.

  • Page 92: App Center

    APP Center GIGABYTE App Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard . Using a simple, unified user interface, GIGABYTE App Center allows you (Note) to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the apps, drivers, and BIOS.

  • Page 93: Easytune

    5-2-1 EasyTune GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or do overclock/overvoltage in Windows environment. The EasyTune Interface Tabs Information Description The Smart Boost tab provides you with different levels of CPU frequency to choose to achieve desired system performance. After making changes, be sure to restart your system for these changes to take effect.

  • Page 94: System Information Viewer

    5-2-2 System Information Viewer GIGABYTE System Information Viewer allows you to monitor and adjust the fan speed in the operating system. You can also display the hardware monitor information on the desktop to view the system status at any time.

  • Page 95: Fast Boot

    5-2-3 Fast Boot Through the simple GIGABYTE Fast Boot interface, you can enable or change the Fast Boot or Next Boot (Note 1) After AC Power Loss setting right in the operating system. The Fast Boot Interface Using Fast Boot •...

  • Page 96: Smart Timelock

    5-2-4 Smart TimeLock GIGABYTE Smart TimeLock allows you to effectively manage computer or Internet usage time with simple rules and options. The Smart TimeLock Interface Using Smart TimeLock Click the lock icon on the bottom left corner and enter the password .

  • Page 97: Usb Blocker

    5-2-5 USB Blocker GIGABYTE USB Blocker provides you with an easy-to-use interface that allows you to block certain USB device types on your PC. Devices classes that are blocked will be ignored by the operating system. The USB Blocker Interface Using USB Blocker Select the class of USB device that you would like to block or unblock.

  • Page 98: Smart Keyboard

    5-2-6 Smart Keyboard GIGABYTE Smart Keyboard allows you to define your own commands/hotkeys, change the mouse sensitivity, and create shortcut and password to open a web page or document file, helping you make the most out of your keyboard and mouse. The Smart Keyboard Interface Using Smart Keyboard: • Marco Key: Create macro commands and define your own hotkeys to quickly perform the function your want. • Sniper Key: Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy.

  • Page 99: Smart Backup

    5-2-7 Smart Backup Smart Backup allows you to back up a partition as an image file every hour. You can use these images to restore your system or files when needed. The Smart Backup main menu: Button Description Allows you to select the source and destination Settings partition Start Allows you to create a rescue drive Backup Now Allows you to perform the backup immediately File Allows you to recover your files from the backup Recovery...
  • Page 100 Recovering your system with Smart Backup: Steps: 1. Click the System Recovery button on the main menu. 2. Select the location where your backup is saved. 3. Use the time slider to select a time point. 4. Select a partition backup created on the selected time point and click Restore.

  • Page 101: Ambient Led

    5-2-8 Ambient LED GIGABYTE Ambient LED allows you to enable or change the display mode for the onboard audio LEDs and rear panel I/O shield LEDs while in the Windows environment. (Note) The Ambient LED Interface Using Ambient LED • Audio LED: Allows you to enable or disable the onboard audio LEDs.

  • Page 102: Osd

    5-2-9 3D OSD 3D OSD automatically detects and displays your system information during games, allowing you to easily (Note) get hold of your system information without switching between screens. The 3D OSD Interface Using 3D OSD Main Menu: Allows you to enable or disable the 3D OSD feature and to select the type of real-time system information you wish to display.

  • Page 103: Cloud Station

    Cloud Station (Server) installed. Before You Begin: • To use HomeCloud, GIGABYTE Remote, and Remote OC, you must install GIGABYTE Cloud Station on your smart phone/tablet device. (For Android systems, please download the app from Google Play; for iOS systems, please download it from App Store.)
  • Page 104 Cloud Station: Using HomeCloud Step 1: Launch HomeCloud on the host computer (installed with Cloud Station (Server)), sign in with your Google/ Facebook/Windows Live account or select the account on the Account List. Then enable HomeCloud Function. To automatically enable this function after system reboot, enable Always run on next reboot. Step 2: Run Cloud Station on your smart phone/tablet device/remote computer, sign in with the same account you use for HomeCloud on your host computer.
  • Page 105 Always run on next reboot. Step 2: Run GIGABYTE Cloud Station on your smart phone/tablet device, sign in with the same account you use for HomeCloud on your computer. Tap on Remote Control to perform the following remote controls:...
  • Page 106 Always run on next reboot. Step 2: Run GIGABYTE Cloud Station on your smart phone/tablet device, sign in with the same account you use for HomeCloud on your computer. Tap on Remote OC to perform the following functions:...
  • Page 107 HotSpot HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices. Make sure your computer has been connected to a network and Wi-Fi is enabled. The HotSpot Interface Using HotSpot: Configuring your host computer: The options are as follows.

  • Page 108: Autogreen

    5-2-11 AutoGreen AutoGreen is an easy-to-use tool that provides users with simple options to enable system power savings (Note) via a Bluetooth-enabled smart phone/tablet device. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode. Before using this app, you need to turn on Bluetooth on both your computer and smart phone/tablet device. The AutoGreen Interface Control Tab: The Control tab allows you to select a system power saving mode.

  • Page 109: Easy Raid

    5-2-12 Easy RAID The GIGABYTE Easy RAID utility includes the following 'EZ' setups applications that will offer greatly simplified install and configuration procedures: Disk Mode Switch, EZ Smart Response, and XHD. Disk Mode Switch Disk Mode Switch allows you to change the SATA controller disk mode from AHCI to RAID mode even after the hard drive has been installed with an operating system. After switching the operating mode, please restart your computer and make sure the Intel Rapid Storage Technology utility can work properly.
  • Page 110 EZ Smart Response A. System Requirements 1. An Intel Chipset-based motherboard supporting this feature ® 2. Intel Core series processor ® 3. Intel SATA controllers set to RAID mode ® 4. Intel Rapid Storage Technology utility installed ® (Note 1) 5.
  • Page 111 With GIGABYTE XHD , users can quickly configure a RAID-ready system for RAID 0 when a new SATA (Note 1) drive is added. All with a simple click of a button, XHD helps to enhance your hard drive read/write performance without the need for complex and time-consuming configurations. A. System Requirements 1. An Intel Chipset motherboard supporting RAID ® 2. Intel SATA controllers set to RAID mode ®...

  • Page 112: Smart Switch

    Smart Switch GIGABYTE Smart Switch provides you with the conventional Windows start menu, allowing you to easily access to the apps that you frequently use. You can also select the default screen displayed after you enter Windows. The Smart Switch Interface...

  • Page 113: Chapter 6 Appendix

    Chapter 6 Appendix Killer Network Manager The Killer Network Manager allows you to view your network connection status and Internet bandwidth and to configure your network settings. After installing the LAN driver, you can access the Killer Network Manager in Apps>Killer Networking>Killer Network Manager or click on the icon in the notification area. Applications Page On the Applications Page configuration screen, you can set the priority for an application or online game to use the bandwidth to access the Internet.

  • Page 114: Configuring Audio Input And Output

    6-2 Configuring Audio Input and Output 6-2-1 Configuring 2/5.1-Channel Audio The motherboard supports 2/5.1-channel audio. Refer to the following for speaker configurations. • 2-channel audio: Headphone or Line out. Center/Subwoofer Line In/Mic In • 5.1-channel audio: Front speaker out, Rear speaker Speaker Out Front Speaker out, and Center/Subwoofer speaker out. Rear Speaker Out Headphone/ Speaker Out 6-2-2 Creative Software Suite...
  • Page 115 Sound Blaster Recon3Di To launch the Sound Blaster Recon3Di Control Panel, go to Apps>Creative and select Sound Blaster Recon3Di Control Panel or click the icon in the notification area. SBX PRO STUDIO: Click the SBX PRO STUDIO icon to enable or disable it. The sliders on the right side allow you to adjust the enhancement level for each feature.
  • Page 116 SCOUT MODE: This page allows you to enable or disable Scout Mode. This feature enables you to hear your opponents from further away in FPS games, giving you a distinct tactical advantage in combat. You can set hot keys which can be used enable or disable this feature during games.
  • Page 117 EQUALIZER: This panel allows you to adjust the strength of certain frequencies for your audio signals. ADVANCED FEATURES: This page allows you to play stereo mix to digital output. You can output the mixed audio signals simultaneously to the speakers and S/PDIF out to obtain 2-channel sound.

  • Page 118: Configuring S/Pdif Out

    6-2-3 Configuring S/PDIF Out The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable: Connect a S/PDIF optical cable to an external decoder for transmitting the S/PDIF digital audio signals. Connects to a S/PDIF optical cable 2. Configuring S/PDIF Out: Step 1:...

  • Page 119: Configuring Audio Recording

    6-2-4 Configuring Audio Recording You can record the sound from the microphone or Line in device or record the sound from your computer. 1. Configuring your microphone: Step 1: Connect your microphone to the Mic in jack on the back panel or the Mic in jack on the front panel. Note: The microphone functions on the front panel and back panel cannot be used at the same time.
  • Page 120 Step 2: Right-click on the icon in the notification area and select Recording devices. Step 3: On the Recording tab, right-click on Line-In, and select Set as Default Device. 3. Recording the sound from your computer: Step 1: While in the operating system, right-click on the icon in the notification area and select Recording devices.

  • Page 121: Using The Sound Recorder

    Step 3: Open the Sound Blaster Recon3Di Control Panel and go to the Mixer page. In the REC section, you can use the What U Hear slider to set the volume. Step 4: To open the Sounder Recorder, move the mouse cursor to the bottom left corner of the screen, click the Start icon to switch to the Start screen (or press...

  • Page 122: Troubleshooting

    Troubleshooting 6-3-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support & Downloads\FAQ page on GIGABYTE's website. Q: Why is the light of my keyboard/optical mouse still on after the computer shuts down? A: Some motherboards provide a small amount of standby power after the computer shuts down and that's why the light is still...

  • Page 123: Troubleshooting Procedure

    6-3-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. START Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or Isolate the short circuit.
  • Page 124 The power supply, CPU or When the computer is turned on, is the CPU cooler running? CPU socket might fail. The problem is verified and solved. The graphics card, expansion slot, or monitor Check if there is display on your monitor. might fail. The problem is verified and solved. Turn off the computer. Plug in the keyboard and mouse and restart the computer.

  • Page 125: Debug Led Codes

    Debug LED Codes Regular Boot Code Description PEI Core is started. Pre-memory CPU initialization is started. 12~14 Reserved. Pre-memory North-Bridge initialization is started. 16~18 Reserved. Pre-memory South-Bridge initialization is started. 1A~2A Reserved. 2B~2F Memory initialization. Memory installed. 32~36 CPU PEI initialization. 37~3A IOH PEI initialization.
  • Page 126 Code Description PCI Bus initialization is started. PCI Bus hot plug initialization. PCI Bus enumeration for detecting how many resources are requested. Check PCI device requested resources. Assign PCI device resources. Console Output devices connect (ex. Monitor is lighted). Console input devices connect (ex. PS2/USB keyboard/mouse are activated). Super IO initialization.
  • Page 127 Code Description USB device hot plug-in. PCI device hot plug. Clean-up of NVRAM. Reconfigure NVRAM settings. B8~BF Reserved. C0~CF Reserved. S3 Resume Code Description S3 Resume is started (called from DXE IPL). Fill boot script data for S3 resume. Initializes VGA for S3 resume. OS S3 wake vector call.
  • Page 128 Code Description PCH initialization error. Some of the Architectural Protocols are not available. PCI resource allocation error. Out of Resources. No Space for Legacy Option ROM initialization. No Console Output Devices are found. No Console Input Devices are found. It is an invalid password. D9~DA Can't load Boot Option.

  • Page 129: Regulatory Statements

    Restriction of Hazardous Substances (RoHS) Directive Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 130 FCC Notice (U.S.A. Only) Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 131 Canada-Industry Canada (IC): This device complies with Canadian RSS-210. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 132 European Community Directive R&TTE Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999 on Radio Equipment and Telecommunication Terminal Equipment (R&TTE). This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States.
