"...WITH A PASSION FOR COFFEE"
COFFEE QUEEN
...............................................................................
...............................................................................
...............................................................................
...............................................................................
User manual
Harmony
Your retail dealer
U / GB
Rev. 080215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harmony and is the answer not in the manual?

Questions and answers

Related Manuals for Coffee Queen Harmony

Summary of Contents for Coffee Queen Harmony

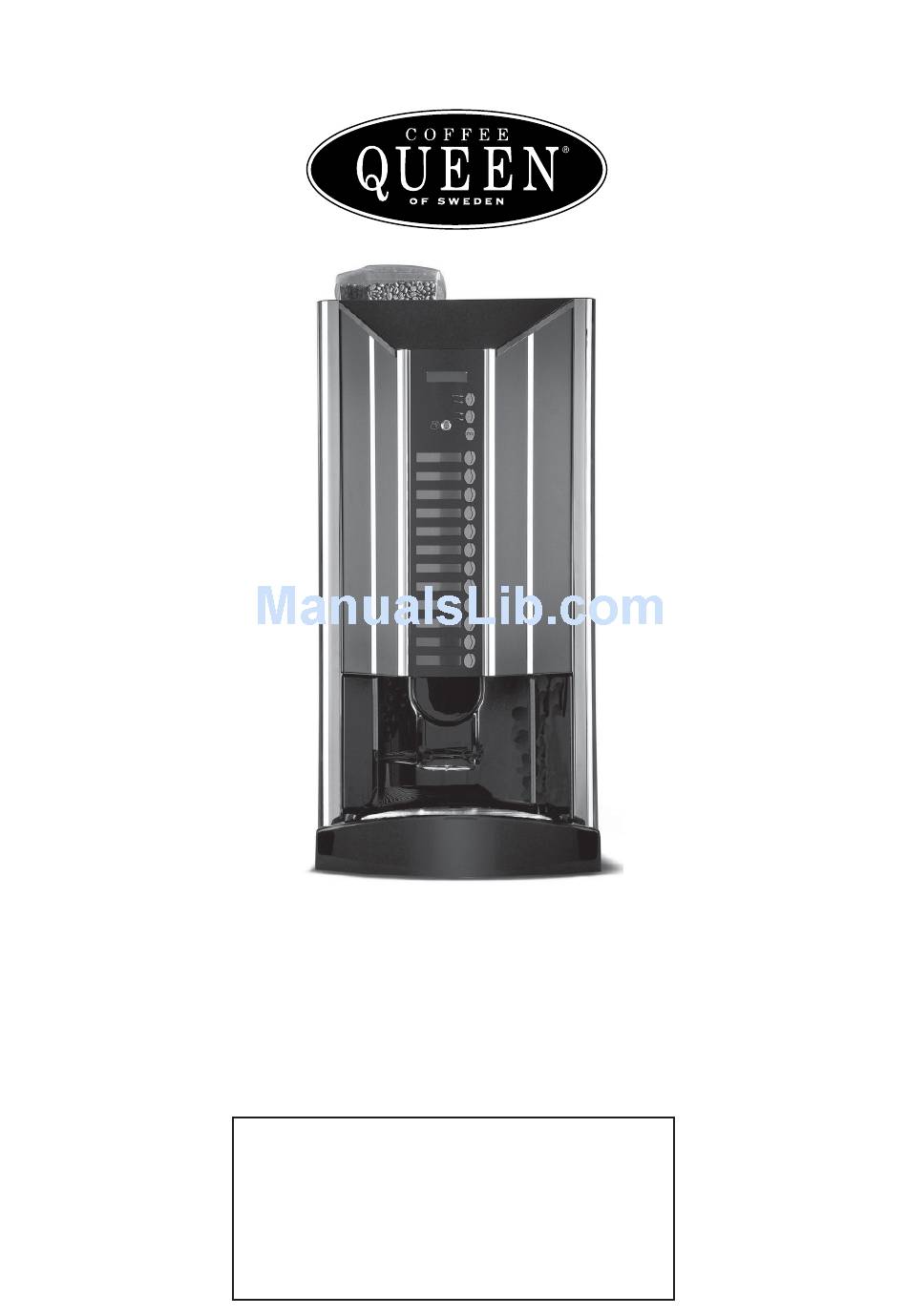

  • Page 1 ”...WITH A PASSION FOR COFFEE” User manual COFFEE QUEEN Harmony Your retail dealer U / GB ................................Rev. 080215 ................................

  • Page 2: Table Of Contents

    1. Table (list) of contents. Table of contents page. General Overview of components front Overview of components mixing system SERVICE: Installation and start 6 - 7 Place the brewer Connections: Electricity/Water Starting up machine Fill canisters with ingredients Fill bean container with coffee beans Operation Brewing of coffee in cup Brewing of jug...

  • Page 3: General

    2. General. Harmony We congratulate to your choice of a Coffee Queen Harmony Freshbrew machine. Please read this manual before you take the machine into operation for the first time. The manual contains important instructions for a safe and proper use of the machine.

  • Page 4: Overview Of Components Front

    3. Overview of components, front Harmony Lid, bean container Bean container Display Strength of drinks ++ / - - Key switch Drinks Door lock Outlet for drinks Cupholder Drip tray insert Drip tray Optional: Base cabinet with storage and large waste bin.

  • Page 5: Overview Of Components Mixing System

    3. Overview of components, mixer system. Harmony Bean container Ingredients- canister Chute Grinder Mixer bowls FUSE holder ON/OFF Brewing switch mechanism Door lock Outlet Waste box drinks Capacity./cups Volume/litre Amount/unit Detail; Ingredients; Width; Height; coffee beans 165 2,5kg / 208 Canister;...

  • Page 6: Service: Installation And Start

    4. Service. Installation and start Harmony Place the brewer on a flat Connect the electrical plug to a separate level and waterproof surface. grounded wall socket 230V 10A OBSERVE! Make sure there is a space behind the machine for free flow of air.

  • Page 7: Fill Canisters With Ingredients

    4. Service. Installation and start Harmony 6. Fill canisters with ingredients. Take out (this to avoid unnecessary spillage in the machine) ingredient canisters and fill them with ingredients. 7. When placing the ingredient canisters; Make sure that the outlet pipes on the ingredient canisters are touching the steam traps (A).

  • Page 8: Brewing Of Coffee In Cup

    5. Operation: Brewing of coffee in cup Harmony Brewing of coffee in cup, etc. Place a cup in the centre of the cup holder.. The strength has a standard setting, if you wish to increase or decrease it, do as follows if not continue to point 3.

  • Page 9: Brewing Of Jug

    5. Operation: Brewing of jug Harmony Brewing of jug. Lift up the cupholder. Place a jug in the centre of drip tray. Turn on the key with jug symbole clockwise. 6 cups of brewing is standard settings, Change amount of cups by pushing + or - button.
  • Page 10 6. Cleaning program. Harmony Weekly cleaning! Automatic cleaning of mixing bowls 2 or 3. If you only wish to clean the mixer bowl and whipper house; Follow these instructions: The mixer bowls can easily be cleaned with the key switch in ”cup”...

  • Page 11: Cleaning Program

    6. Cleaning program CLEANING: Harmony Automatic cleaning of In/Outlet valves: The In/Outlet valves can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again.

  • Page 12: Rotate Brew Mechanism Without Water Or Ingredients

    6. Cleaning program CLEANING: Harmony Rotate brew mechanism without water or ingredients: The brew mechanism can be rotatedwithout water and ingredients with the key switch in ”cup” (normal) position.To be used when brew mechanism has been dismounted forwashing and shall be remounted.

  • Page 13: Automatic Cleaning Of Brew Mechanism, Mixing Bowl

    6. Cleaning program CLEANING Harmony Automatic cleaning of brew mechanism, mixing bowl: Shall been done every week. The brewmechanism can easily be cleaned with the key switch in ”cup” (normal) position. 1. Turn the key slowly ninety degress and back again.
  • Page 14 6. Cleaning program CLEANING Harmony Dismantling and cleaning brew house: Dismantle brew house: Reassemble brew house. 3. Flush brew house! NOTE! When reassemble brew house To remove detergent and coffee remnants. make sure that (B) wiper are between (A) arms.

  • Page 15: Weekly Cleaning

    7. CLEANING: Weekly cleaning Harmony Dismantle : Mixer system Cleaning Loosen mixer bowl. Pull apart (C). 5. Clean with a wet rag and Loosen outlet hose (A) drought drily. turn lock knob (B) anti-clockwise. Wash these parts: A. Mixer bowl B.

  • Page 16: Assemble Mixer System

    7. CLEANING: Weekly cleaning Harmony REASSEMBLE: Mixer system Make sure that the motor whippers plane side will be in accordance with the whippers plane side. see next (G) and picture (H). Reassemble the assembly plate by turning lock knob (F) clockwise. INSPECT gaskets.

  • Page 17: Cleaning And Maintenance

    8. Cleaning and maintenance Harmony Cleaning when needed. Outside cleaning; use a soft rag and liquid cleaning agent to prevent scratches. Cleaning bean container. 1. Shut closing hatch. 2. Dismantle bean container. Use a soft rag and liquid cleaning agent to prevent scratches.

  • Page 18: Cleaning And Dismantling Of Coffee Filter

    Prolonged contact with cleaning agent may damage the screen assembly. Once this is done, the screen should then be thoroughly rinsed with dish soap and warm water to remove any leftover residue. Cleaning agent: (brew mechanism) Coffee Queen article no 1104161 Filter: (brew mechanism) Coffee Queen article no 47200213 Tool: (dismantling filter)

  • Page 19: Maintenance, Grinder

    8. Maintenance, Grinder. Harmony Adjustments: The adjustment of the blades is set at the factory. All maintenance, adjustments and installations shall be done of an Coffee Queen authorized service technician. This coffee grinder is only constructed to grind coffee beans without additives (as tasted oils or sugar).

  • Page 20: Cup Counter And Easy Access

    9. Cup counter and Easy Access Harmony Cup counter: The machine has a cup counter which is available to see and reset with the key switch in ”cup” (normal) position. Push ”-” button for 6 seconds. After 4 seconds the signal will go faster..

  • Page 21: Safety Functions

    10. Safety functions. Harmony The machine is equipped with following safety functions Indication of door Door not closed The display shows; ”Door open” ”Door open” When machine is not in use: Valves are blocked. 11. Failure messages. Failure messages which can mostly be corrected without any help from service company The display shows;...

  • Page 22: Dimension Sketch

    13. Dimension sketch. Harmony...

  • Page 23: Circuit Diagram

    14. Circuit diagram. 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1...

  • Page 24: Installation Of Coin Mechanism

    15. Installation of coin mechanism. Installation of coin mechanism for freshbrew machines CQ. IMPORTANT: Installation must been done of an authorized technician. 1. Assemble coin mec and connect to display-card, placed inside door. (see fig. 10). (10) ( Connect with the enclosed fig.
  • Page 25 COFFEE QUEEN Harmony FOR SERVICE Your retail dealer ................................................COFFEE QUEEN AB, Box 960, 671 29 ARVIKA, besöksadress; Korpralsv 1B, Tel vxl; +46 (0)570-47700, Fax; +46 (0)570-47719 E-mail: info@coffeequeen.se www.coffeequeen.se Art. nr/Art. no.1704558...
